Fiber optic adapter is an essential passive component in fiber optic communication network. It is used for the connection between connectors, jumpers, pigtails, splitters, etc. Fiber Optic Adapter’s internal precision sleeve is used to align ferrules of fiber optic connectors.
There are many types of fiber optic adapters for various connectors. We provide a wide range of fiber optic adapters, including SC adapter, FC adapter, LC adapter, ST adapter, E2000 adapter, MU adapter, MPO adapter, MTRJ adapter and hybrid adapters, including SC to ST adapter, SC to FC adapter, SC to LC adapter, FC to LC adapter, LC to ST adapter, etc.

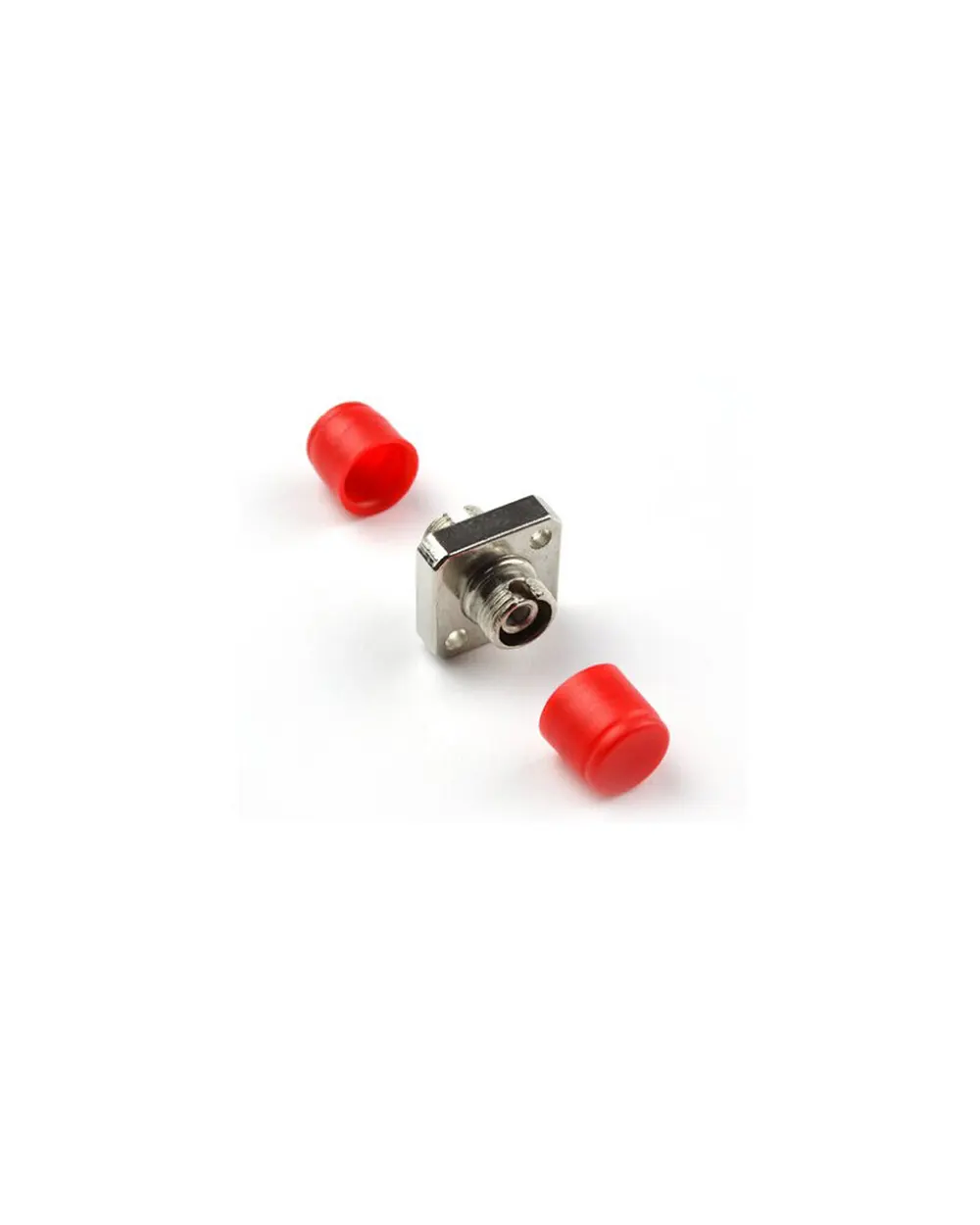

FC Adapters, also called FC Coupler or FC Bulkhead Adapter, could couple FC connectors to FC connectors. The combination of a ceramic sleeve and precision metal housing provides consistent long-term mechanical and optical performance.
| Insertion Loss | ≤0.2dB | |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥65dB | |
| Plug and Unplug Force | 200~600g/f | |
| Durability | 1,000 times | |
| Exchangeability | ≤0.2dB typical change after 1,000 matings | |
| Relative Humidity | 95% | |
| Operating Temperature | -40°C~+85°C | |
| Storage Temperature | -55°C~+85°C | |
