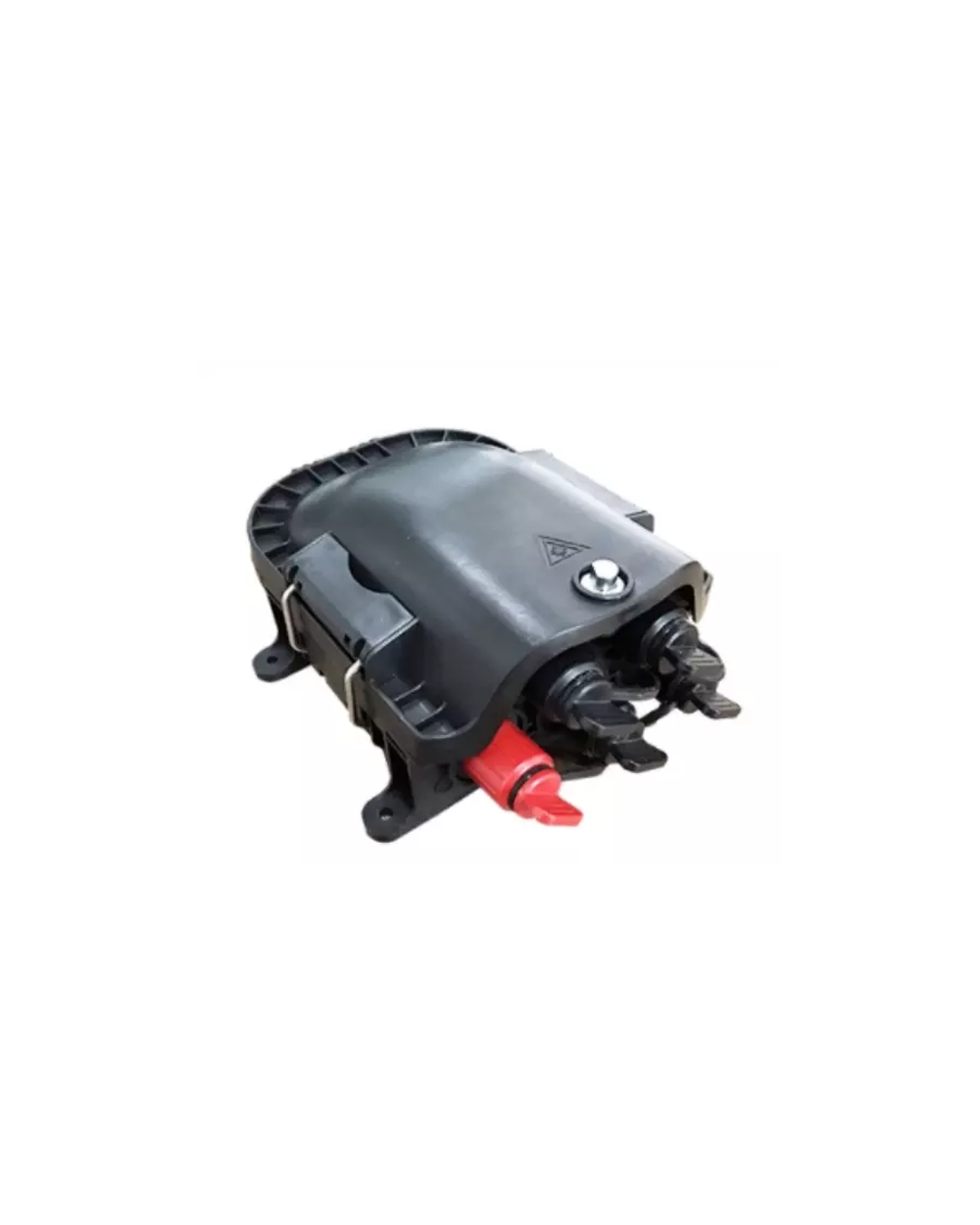

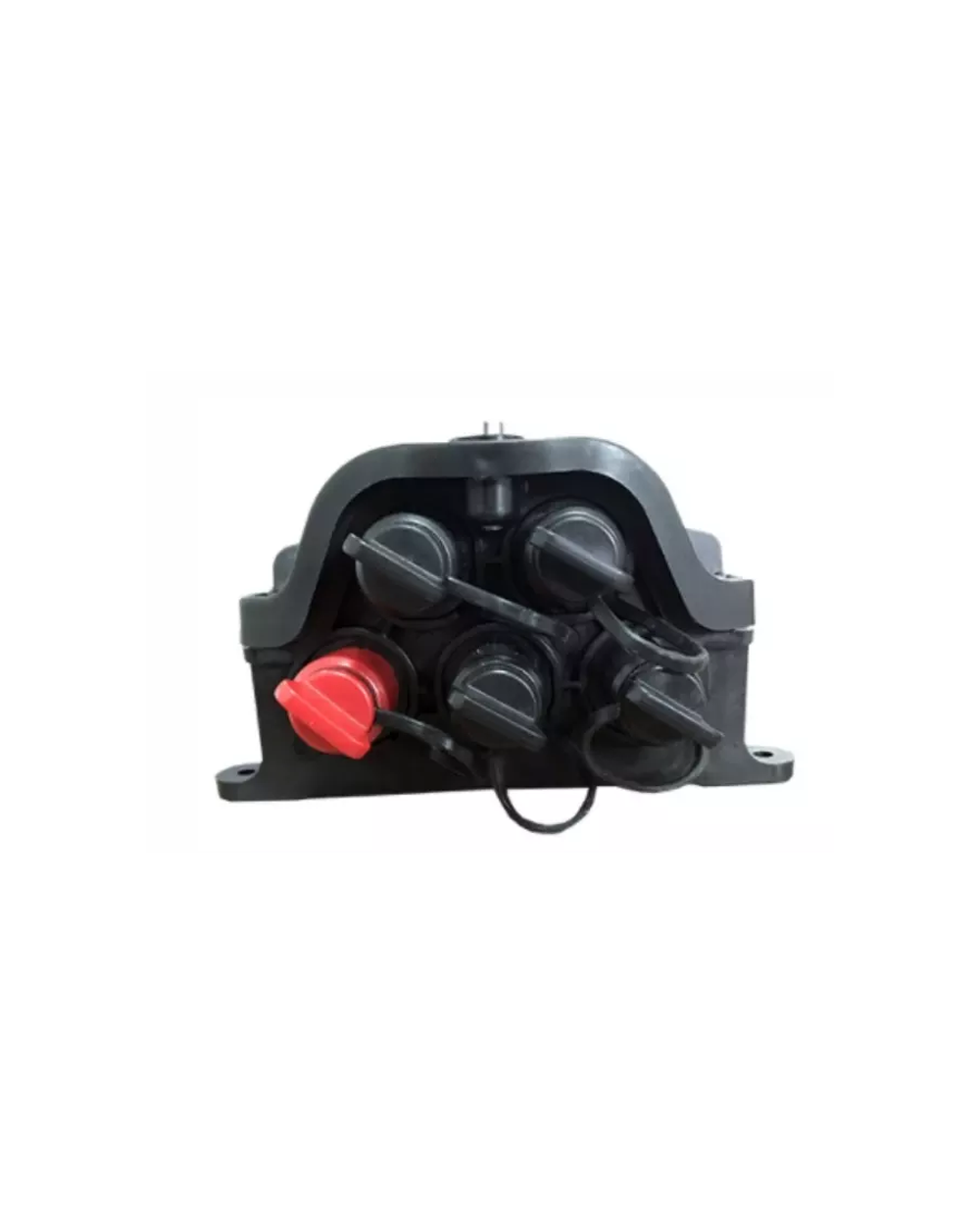

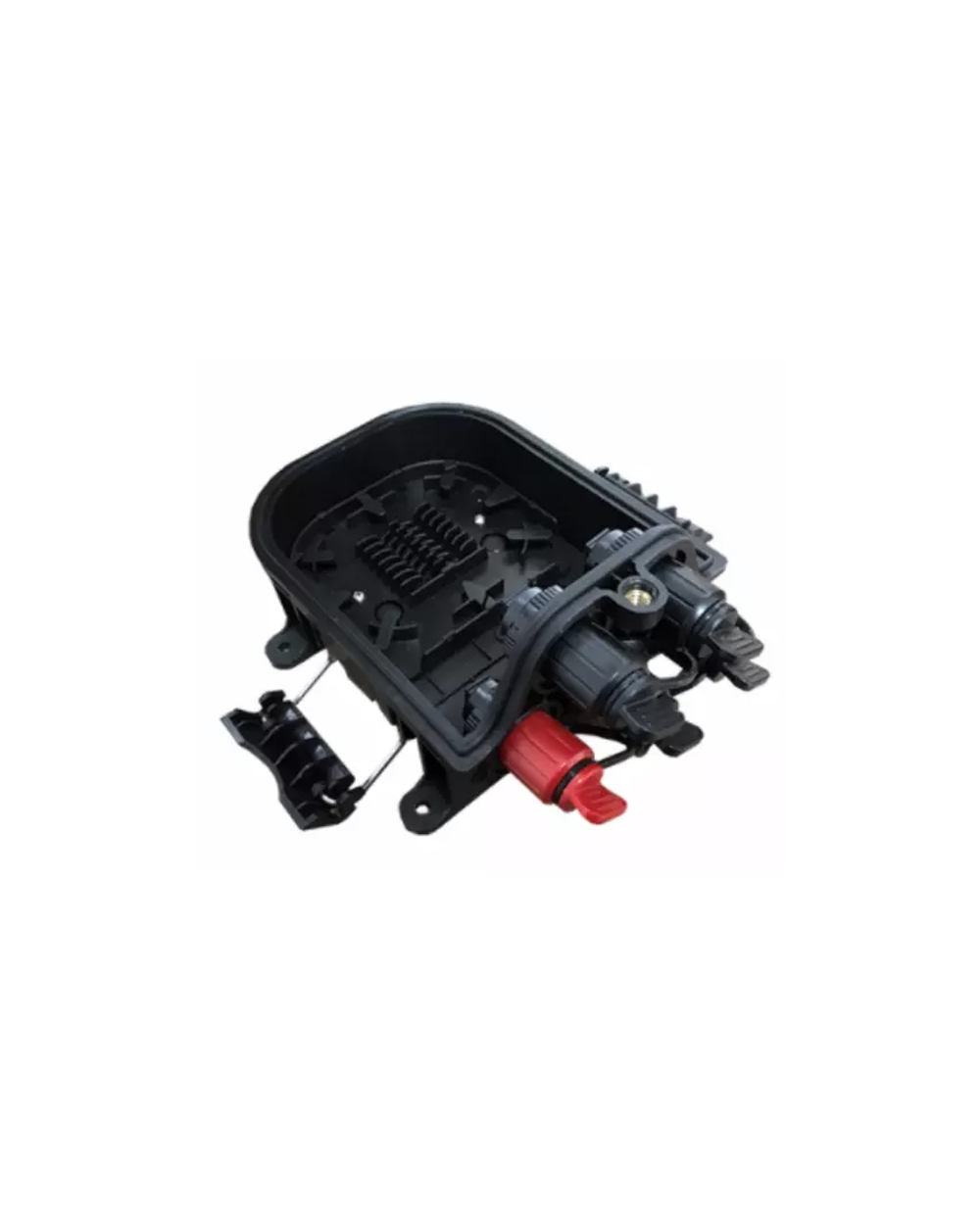

Fiber Access Terminal with hardened cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber optic network. hardened Fiber Access Terminal helps save installation time and labor cost by plugging the hardened cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again. ASLA TECH  provides Fiber Access Terminal made of high quality PC and ABS plastic alloy.

Categories: ,
Pay with Apple Pay, Mastercard, Visa, PayPal
Free shipping on all orders above €150 in EU + UK
Returns and exchanges within 30 days of delivery
SKU: AT-FAT-5B/5B-1
Share:
Item added to cart View Cart Checkout

Extra Description

Hardened Patchcord
Drop Cable Structure:

The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. Then, the cable is completed with a jacket and Messenger Wire.

Features:
  • Low purchasing and construction costs
  • Soft and flexible, good bending performance
  • Simple structure, compact and lightweight, and high practicability
  • Flame retardant LSZH jacket meets relevant fire protection requirements
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • AT-FAT-5B/5B-1 Data Sheet

Item Code Information

More Details

Specifications:

Max. Capacity SC: 5 fibers
Max. Inlet Cable Diameter 14mm
Inlet Cable Number 1 uncut cable port and 2 cable glands
Outlet Cable Port 5 pcs of SC adapters
Protection Grade IP65
Installation Method Wall mounting and pole mounting (pole ring is optional)
Working Environment Outdoor and indoor
Dimension 170(H)*115(W)*75(D)mm
Working Temperature -20°C~+60°C
Storage Temperature -40°C~+70°C
Relative Humidity 0%~95%
Air Pressure 70~106KPa

Environmental Characteristics:

Operation Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C

Mechanical Characteristics:

Operation Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C

Geometrical Characteristics:

Fiber Count 1 1
Cable Dimension (mm) 2.0×5.0 5.0
Cable Weight (kg/km) 20 50

Transmission Characteristics:

Fiber Type G.652.D G.657.A1/A2 G.657.B1/B2
Wavelength (nm) 1310 1550 1310 1550 1310 1550
Attenuation (dB/km) ≤0.45 ≤0.40 ≤0.45 ≤0.35 ≤0.45 ≤0.35
