Fiber Access Terminal with Pre-terminated/Hardened cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber-optic network.

Pre-terminated/Hardened Fiber Access Terminal helps save installation time and labor cost by plugging the Pre-terminated/Hardened cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again

Categories: ,
Pay with Apple Pay, Mastercard, Visa, PayPal
Free shipping on all orders above €150 in EU + UK
Returns and exchanges within 30 days of delivery
SKU: AT-FAT-6A
Share:
Item added to cart View Cart Checkout

Extra Description

ASLA TECH provides Fiber Access Terminal made of high-quality PC and ABS plastic alloy.

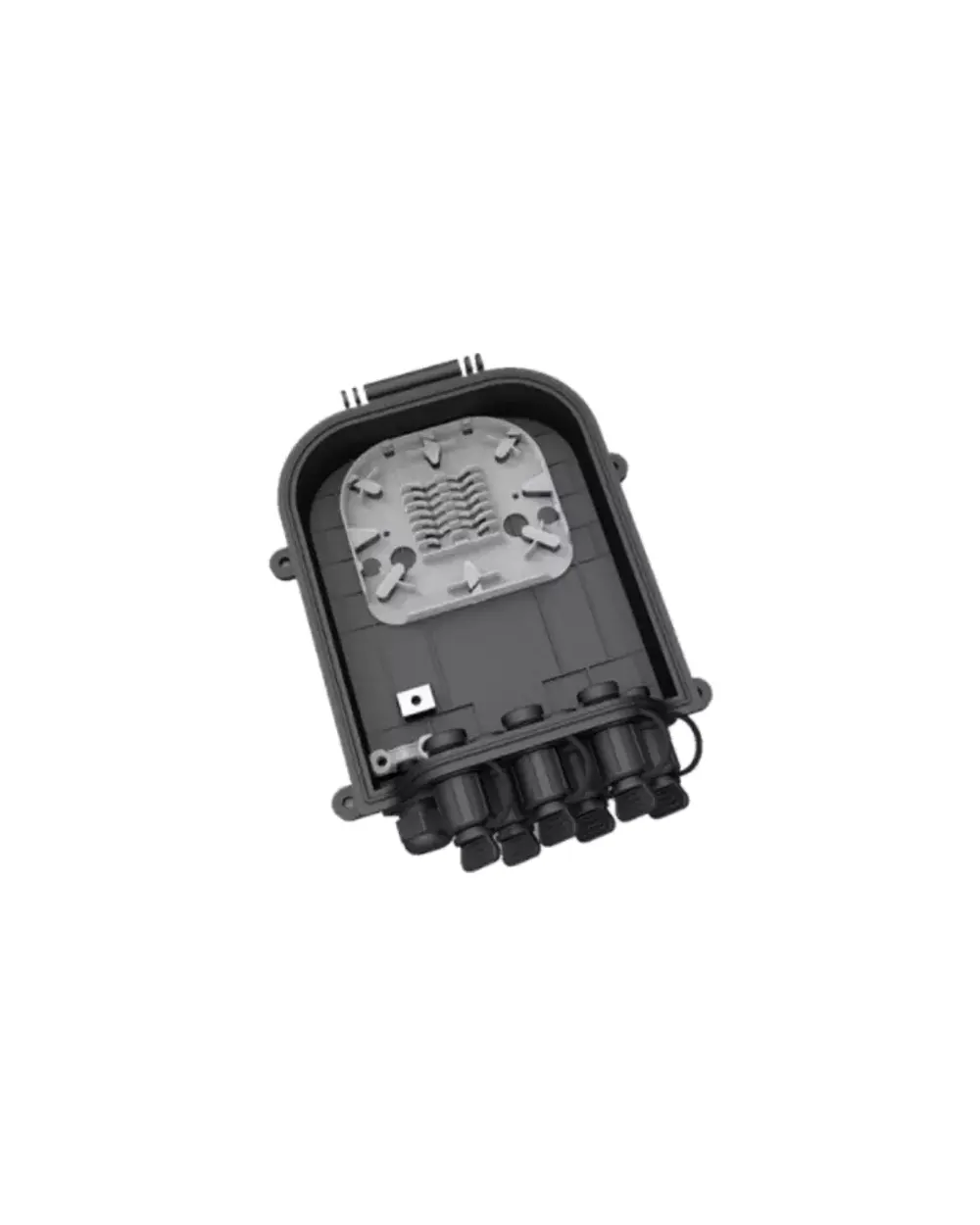

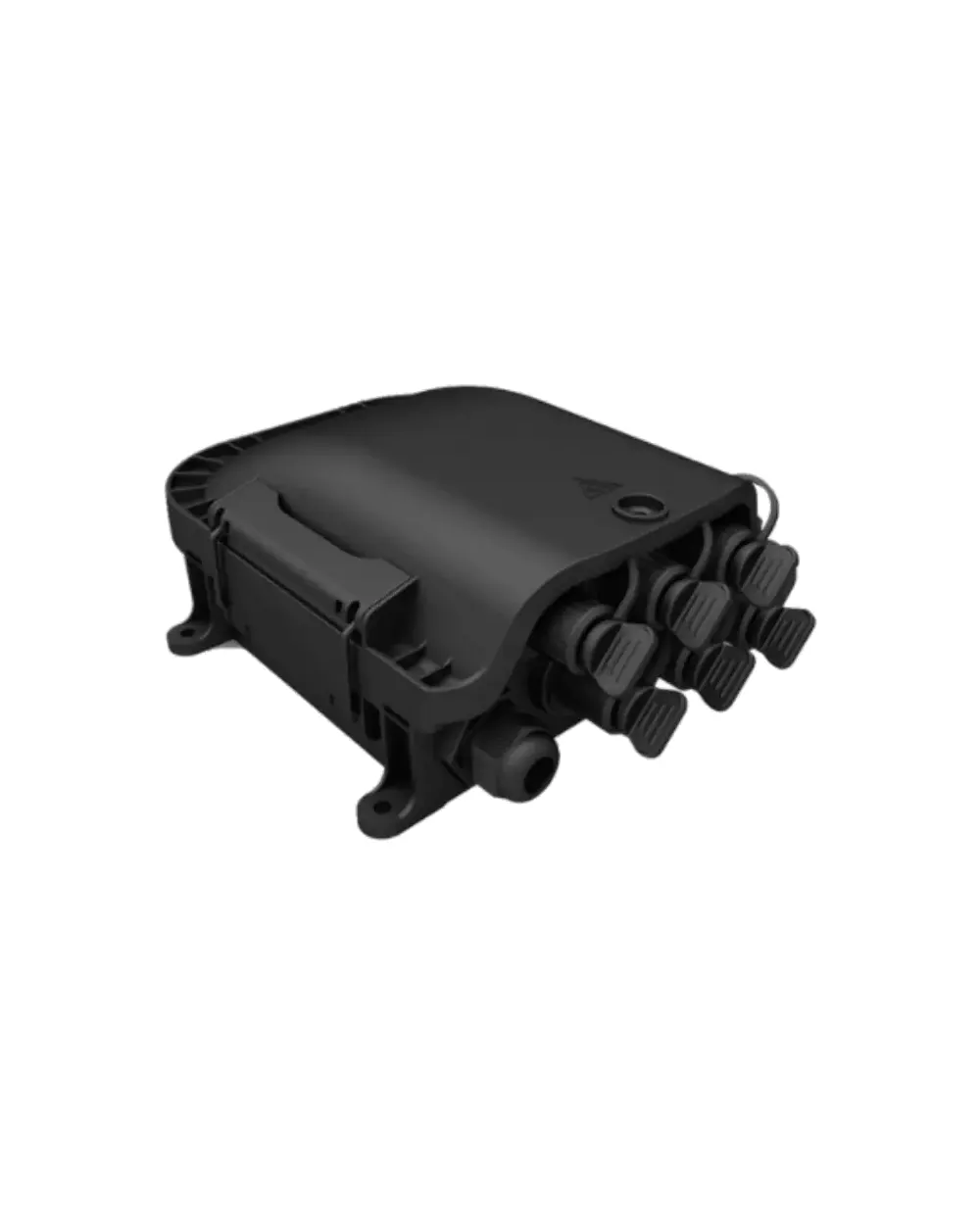

AT-FAT-6A Pre-terminated/Hardened Fiber Access Terminal integrates fiber cable fixation, storage, splicing, and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.

Hardened Patchcord
Drop Cable Structure:

The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. Then, the cable is completed with a jacket and Messenger Wire.

Features:
  • Water-proof design with IP65 Protection level
  • Integrated with splice tray and cable management system
  • Fiber bending radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • 1×4 blockless spitter can be installed as an option
  • 6 outlet cable ports for Pre-terminated/Hardened drop cables
  • AT-FAT-5B/5B-1 Data Sheet

Item Code Information

More Details

Specifications:

Max. Capacity SC: 6 fibers
Max. Inlet Cable Diameter 14mm
Inlet Cable Number 1 uncut cable port and 2 cable glands
Outlet Cable Port 6 pcs of SC adapters
Protection Grade IP65
Installation Method Wall mounting and pole mounting (pole ring is optional)
Working Environment Outdoor and indoor
Dimension 170(H)*115(W)*75(D)mm
Working Temperature -20°C~+60°C
Storage Temperature -40°C~+70°C
Relative Humidity 0%~95%
Air Pressure 70~106KPa

Environmental Characteristics:

Operation Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C

Mechanical Characteristics:

Operation Temperature -20°C~+60°C
Storage Temperature -20°C~+60°C

Geometrical Characteristics:

Fiber Count 1 1
Cable Dimension (mm) 2.0×5.0 5.0
Cable Weight (kg/km) 20 50

Transmission Characteristics:

Fiber Type G.652.D G.657.A1/A2 G.657.B1/B2
Wavelength (nm) 1310 1550 1310 1550 1310 1550
Attenuation (dB/km) ≤0.45 ≤0.40 ≤0.45 ≤0.35 ≤0.45 ≤0.35

Ordering Information:
