Fiber Optic Splice Enclosure, also called Fiber Optic Joint Enclosure, is a necessary passive fiber optic component in fiber optic network. Fiber Optic Splice Enclosure is used to store excess fiber cables, protect fiber splicing joints, distribute feeder cables, etc. Fiber Optic Splice Enclosure has straight through and branching applications, widely used aerial, pole mounting, duct, direct buried locations.
According to the shapes of Fiber Optic Splice Enclosure, there are inline Fiber Optic Splice Enclosure (horizontal Fiber Optic Splice Enclosure) and dome Fiber Optic Splice Enclosure (vertical Fiber Optic Splice Enclosure). According to the functions of Fiber Optic Splice Enclosure, there are standard Fiber Optic Splice Enclosure for fiber splicing and FTTH Splitter Enclosure for housing fiber optic splitters for FTTH Passive Optical Network.

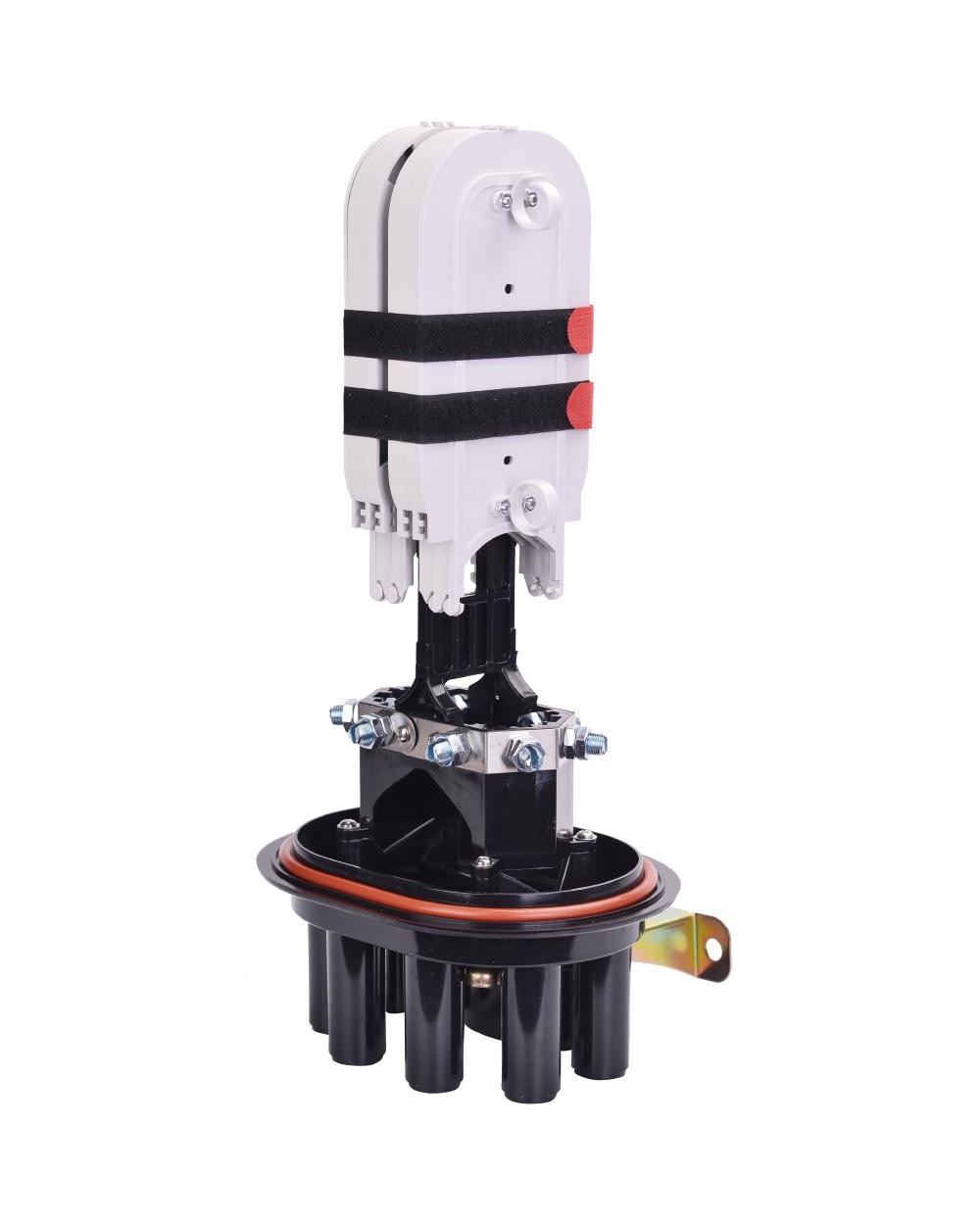

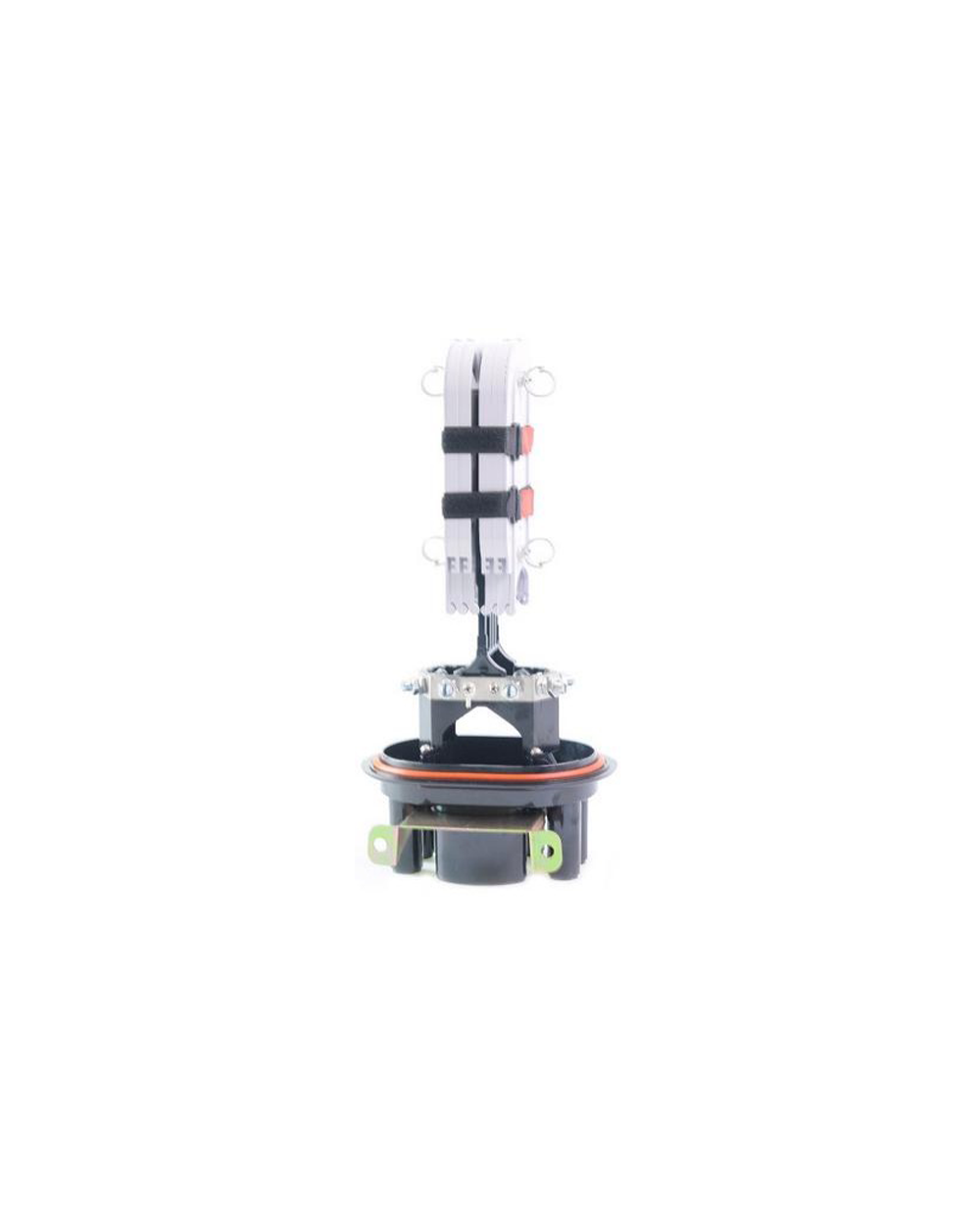

AT-FOSC-DH-240A-7 Dome Type 7 Port Heat Shrinkable Fiber Optic Splice Enclosure (FOSC) is heat shrinkable sealing and suitable for uncut cables.
●Easy access to installation, maintenance and future expansions.
●Excellent sealing against water ingress and harsh environment.
●Hinged splice trays for easy expansion without disturbing spliced fibers.
●Compatible with standard normal fiber cable types.
| Model | AT-FOSC-DH-240A-7 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 7 ports |
| Cable Diameter | 1 port×36mm; 6 ports×21mm |
| Maximum Capacity | Bunchy: 240 fibers; Ribbon: 756 fibers |
| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs |
| Quantity of Splice Tray | 10pcs |
| Body Material | PP |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 450(H)×220(D)mm |
| Net Weight | 3~3.6KG |
| Temperature | -40℃~65℃ |

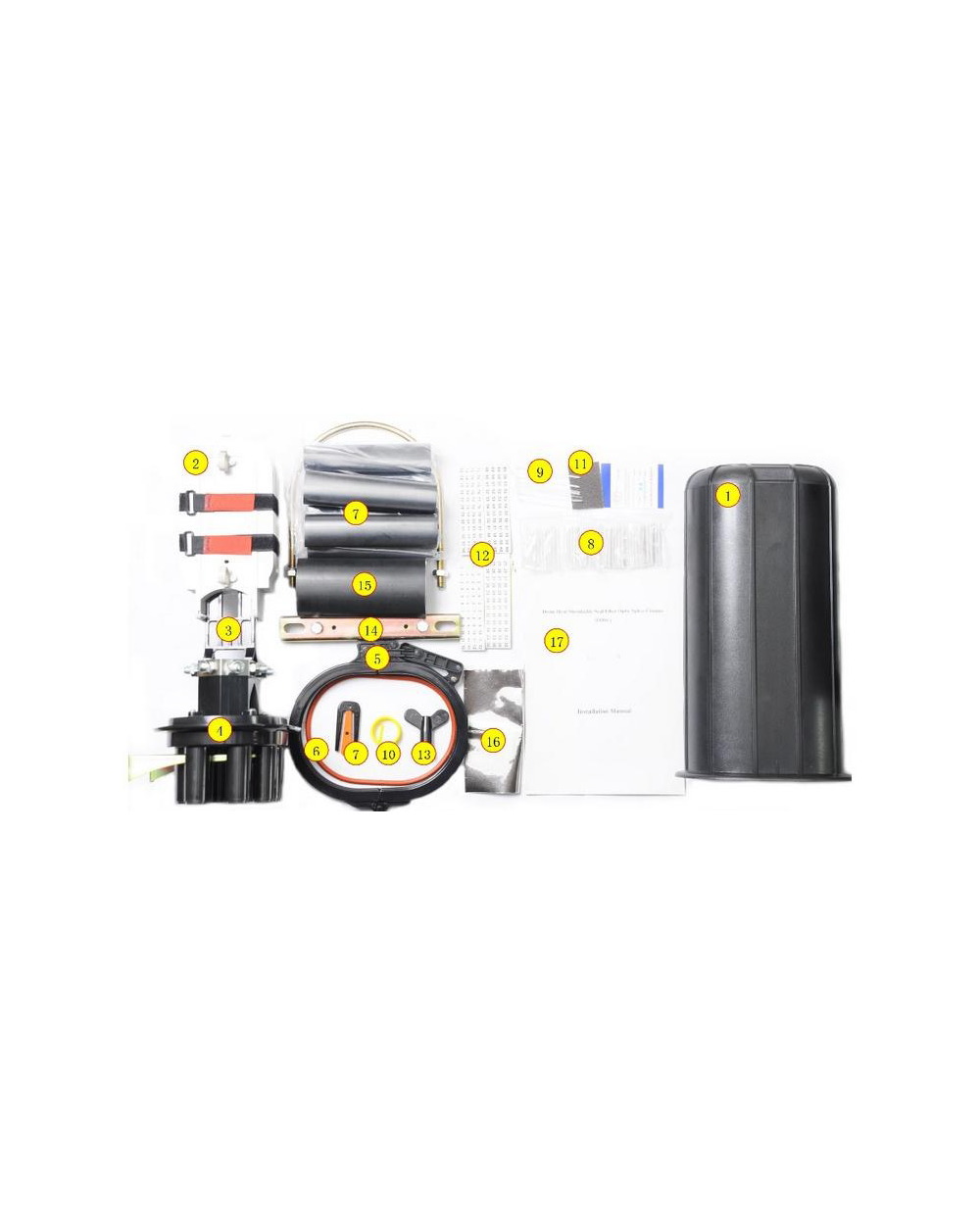

| Housing (Cover) | To protect splices of fiber optic cables | 1pc |

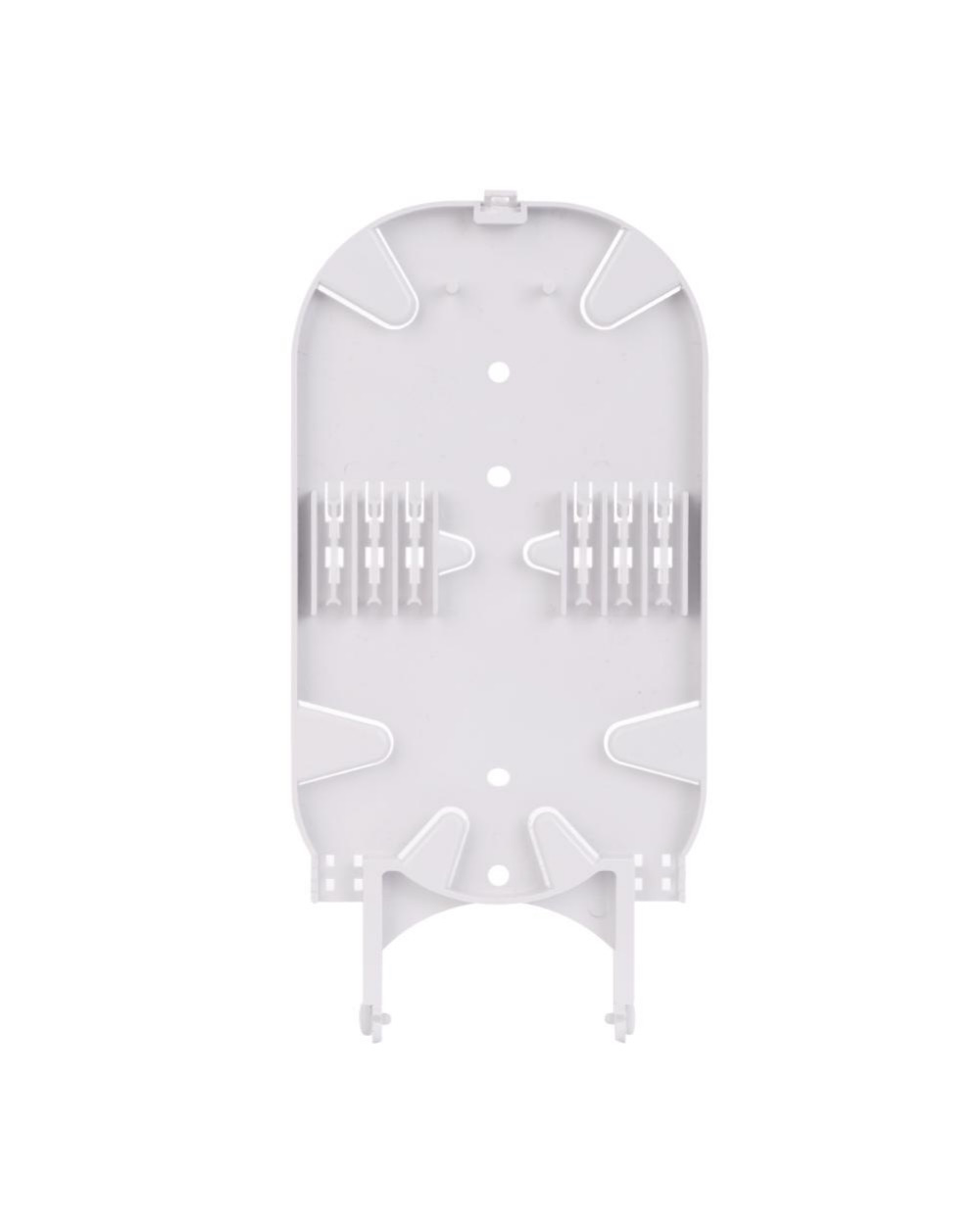

| Splice Tray | To fix Fiber Splice Protective Sleeves | Max. 10pcs |
| Fiber Holding Tray | To store loose tube fibers | 1pc |
| Housing (Base) | To fix internal and external structure | 1pc |
| Plastic H | To fix Housing Cover and Base | 1pc |
| Sealing Grommet | To seal Cover and Base | 1 set |
| Heat Shrinkable Protective Tubes and Branching Clip | To seal fiber optic splice closure | As per capacity |
| Fiber Splice Protective Sleeves | To protect fiber splices | Same as capacity |
| Nylon Tie | To fix buffer tubes with fibers inside | 8pcs |
| Grounding Wire | To connect with grounding device | 1pc |
| Abrasive Cloth | To polish fiber optic cable | 1pc |
| Labelling Paper | To label fibers | 1 set |
| M10 Wrench | To screw nuts for strength member | 1pc |
| Hanging Hoop | To install on wall and pole | 1 set |
| Heat Shrinkable Fixing Tube (Mass) | To seal fiber cables | optional |
| Aluminum-foil Paper | To protect cable ports when heated | 1pc |
| User Manual | To instruct installation | 1pc |

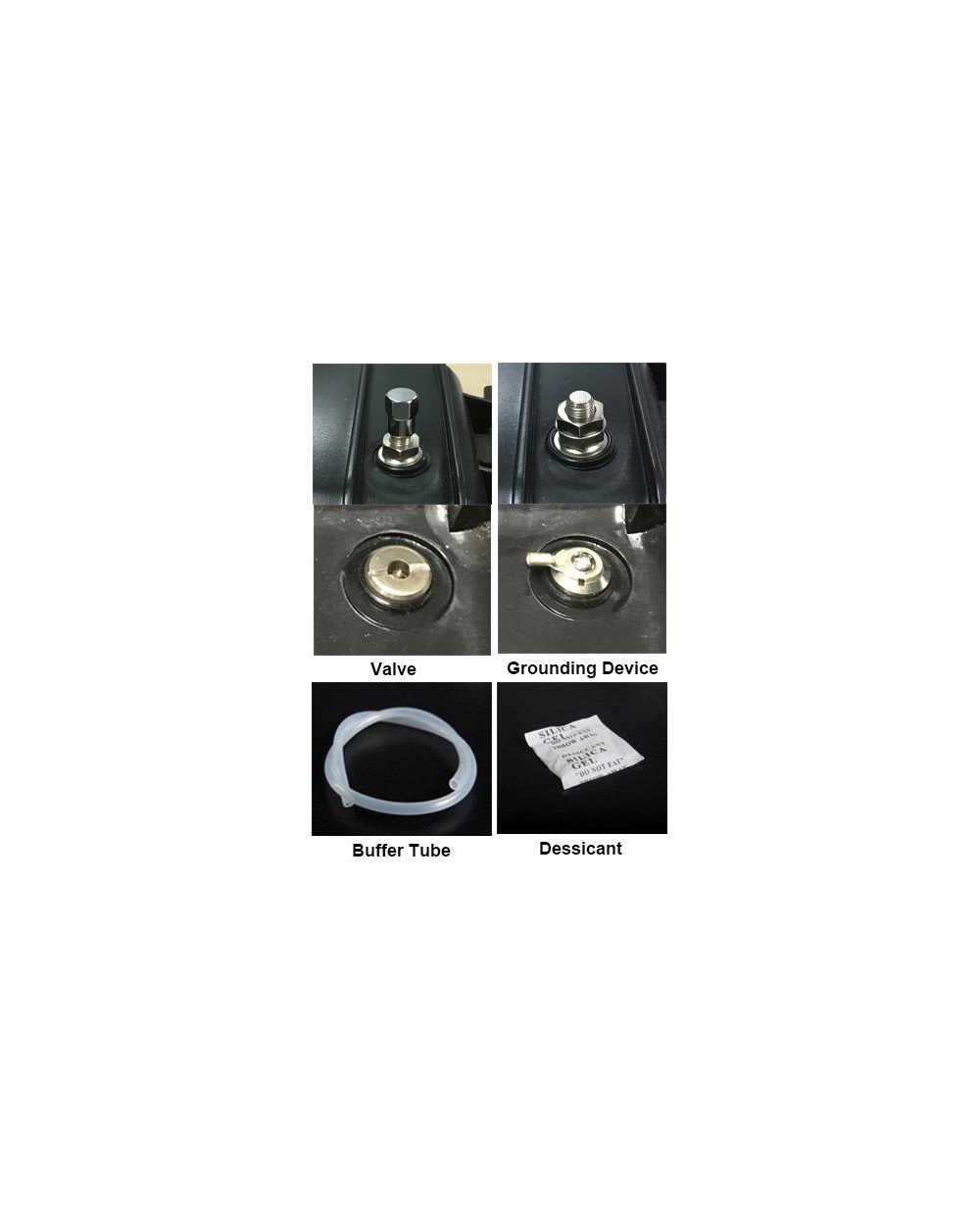

| Valve | To perform pressure and sealing testing | 1pc |
| Grounding Device | To derive metallic components of fiber cable | 1 set |
| Buffer Tube | To protect fibers and be fixed on splice trays | specified |
| Desiccant | To desiccate air in FOSC after sealing | 1 bag |
