Fiber Optic Joint Enclosure, also called Fiber Optic Splice Closure, is an important fiber optic component for fiber optic cable connection in fiber optic network. It is used to house and protect fiber splices.

All of our Fiber Optic Joint Enclosure are tested before the delivery. The testing for Fiber Optic Joint Enclosure includes optical performance testing, sealing performance testing and mechanical performance testing, including tension, impact, bending and torsion, and environmental performance testing, including temperature cycling, high temperature, vibration, radiation and corrosion.

Categories:
Pay with Apple Pay, Mastercard, Visa, PayPal
Free shipping on all orders above €150 in EU + UK
Returns and exchanges within 30 days of delivery
SKU: AT-FOSC-IM48B-8
Share:
Item added to cart View Cart Checkout

Extra Description

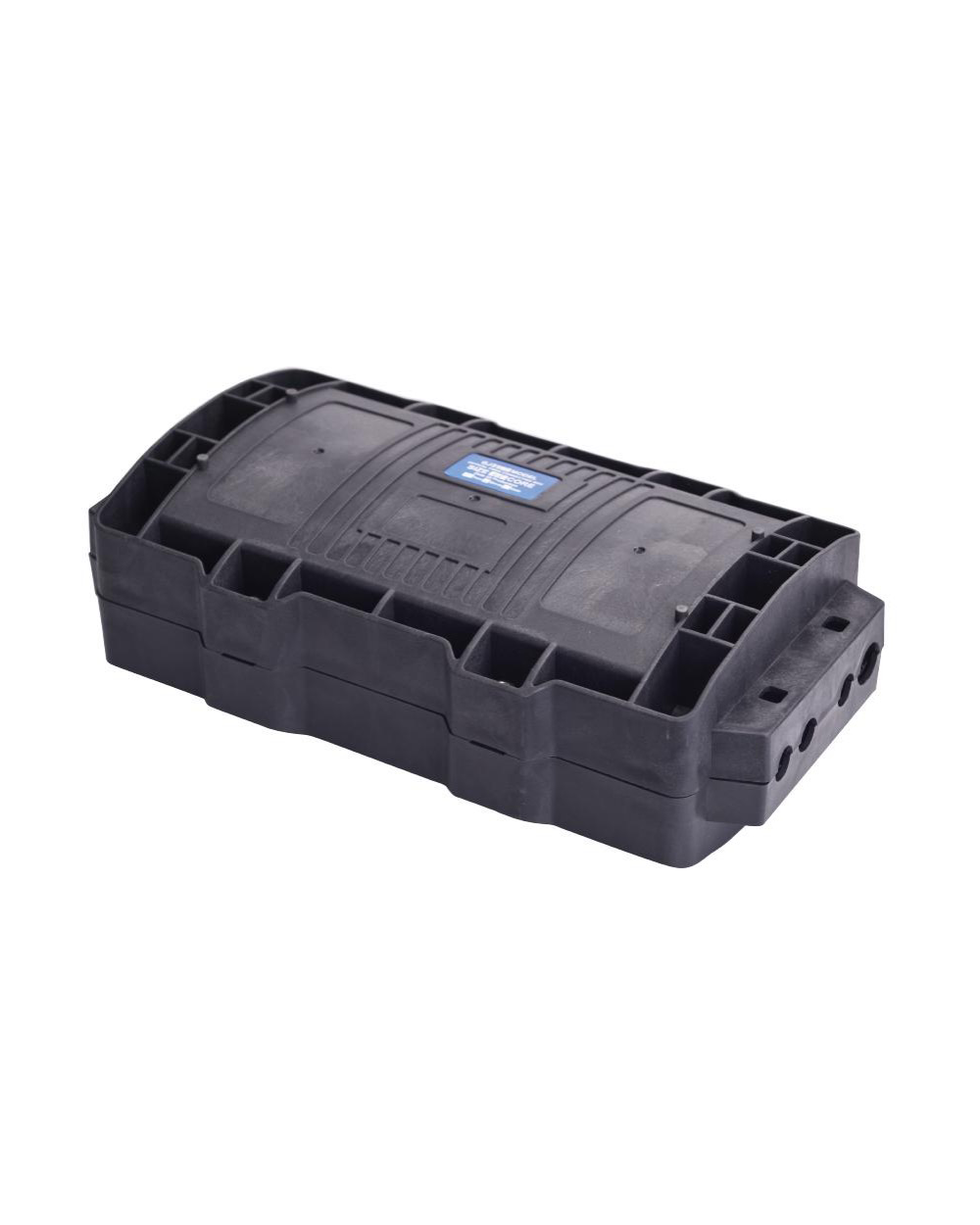

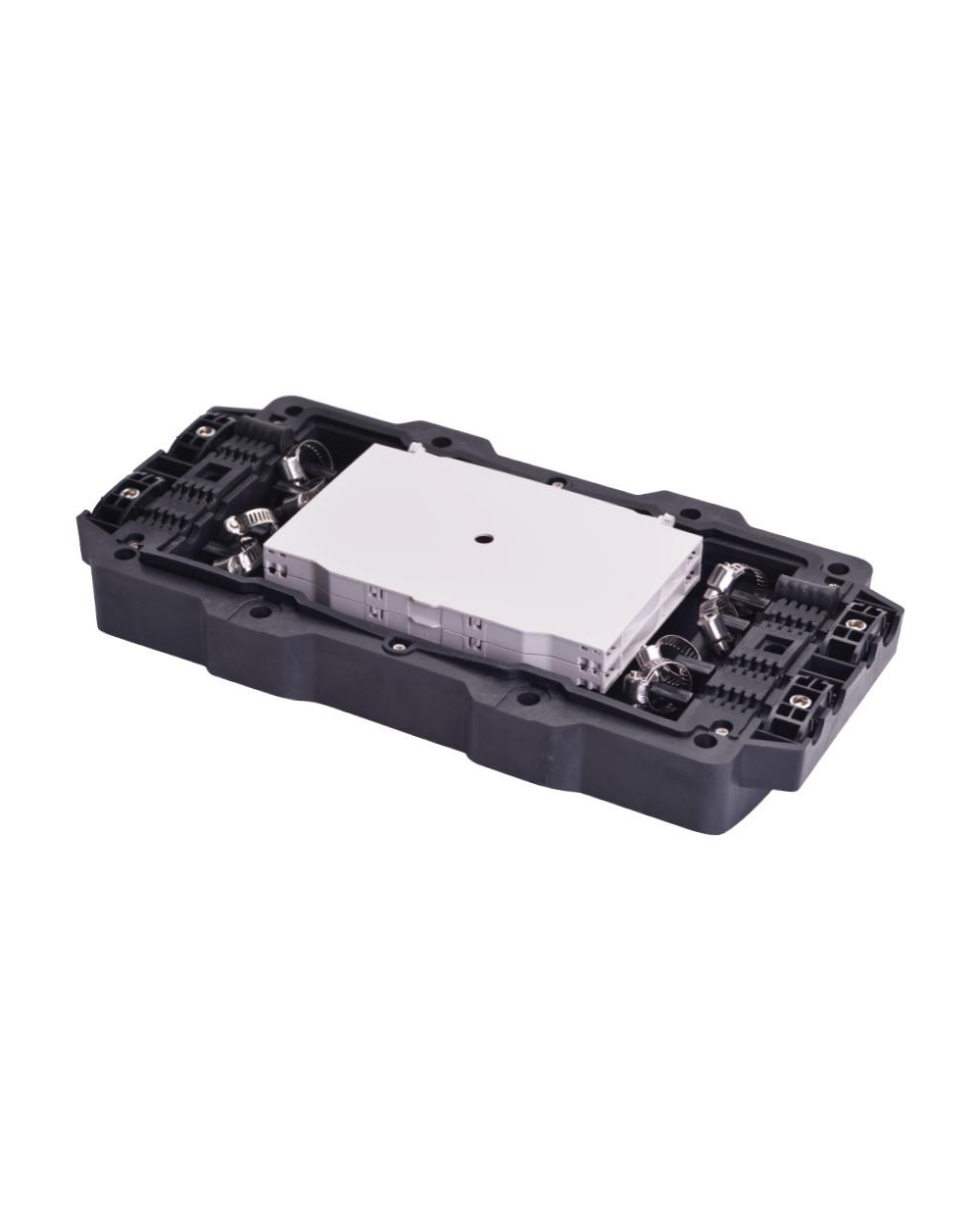

AT-FOSC-IM48B-8 Inline Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application



Features:

●Easy access to installation, maintenance and future expansions.

●Excellent sealing against water ingress and harsh environment.

●Hinged splice trays for easy expansion without disturbing spliced fibers.

●Compatible with standard normal fiber cable types.

  • AT-FOSC-IM48B-8 Data Sheet

Item Code Information

More Details

Specifications:

Model AT-FOSC-IM48B-8
Type Inline type
Number of Inlet/Outlet ports 8 ports
Cable Diameter 6 ports×13mm, 2 ports×16mm
Maximum Capacity Bunchy: 48 fibers; Ribbon: 72 fibers
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: 6pcs
Quantity of Splice Tray 2pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 336(L)×180(W)×100(H)mm
Net Weight 1.9~2.3KG
Temperature -40℃~65℃

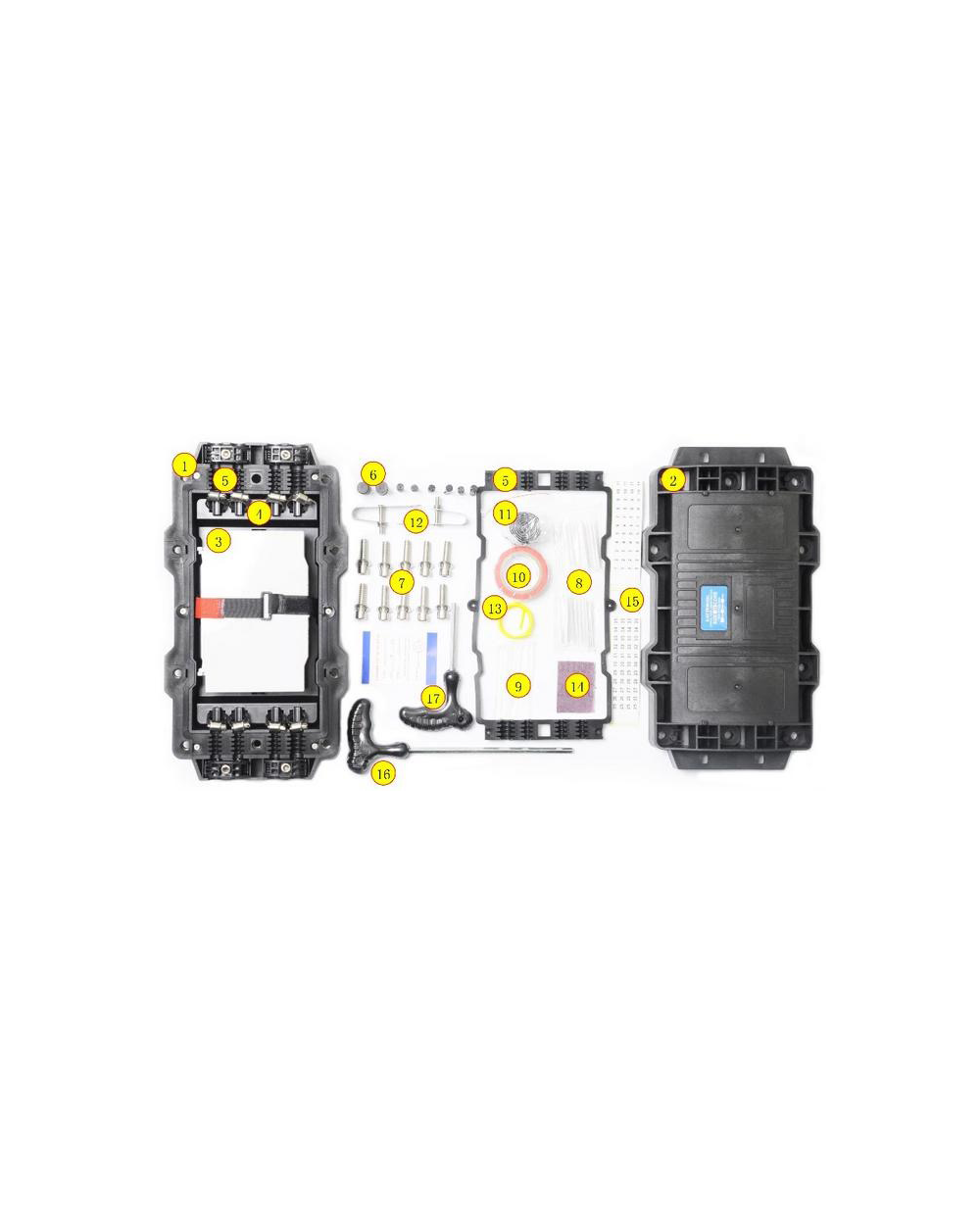

Components:

Housing (Bottom) To protect splices of fiber optic cables 1pc
Housing (Cover) To protect splices of fiber optic cables 1pc

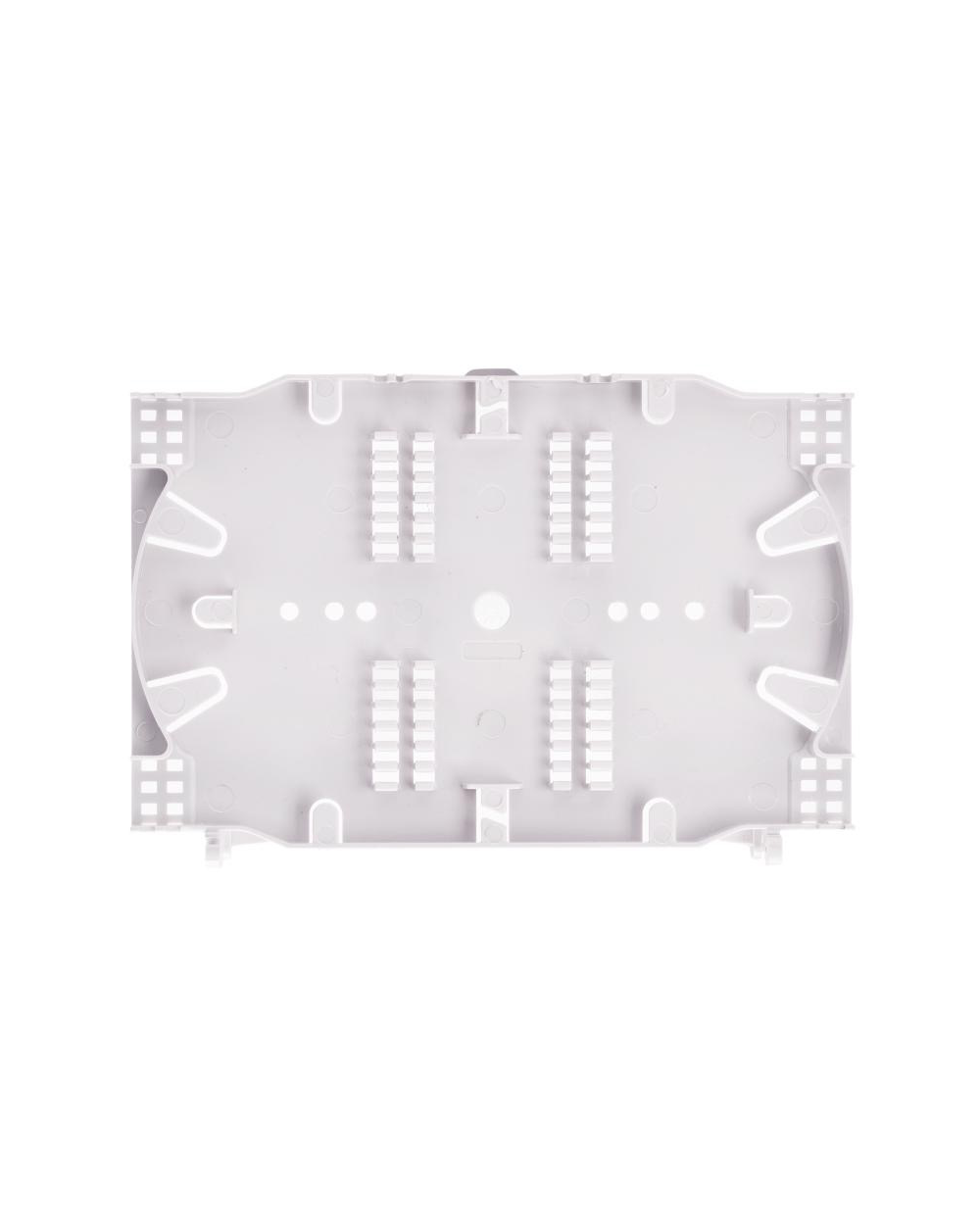

Splice Tray To fix Fiber Splice Protective Sleeves Max. 2 pcs

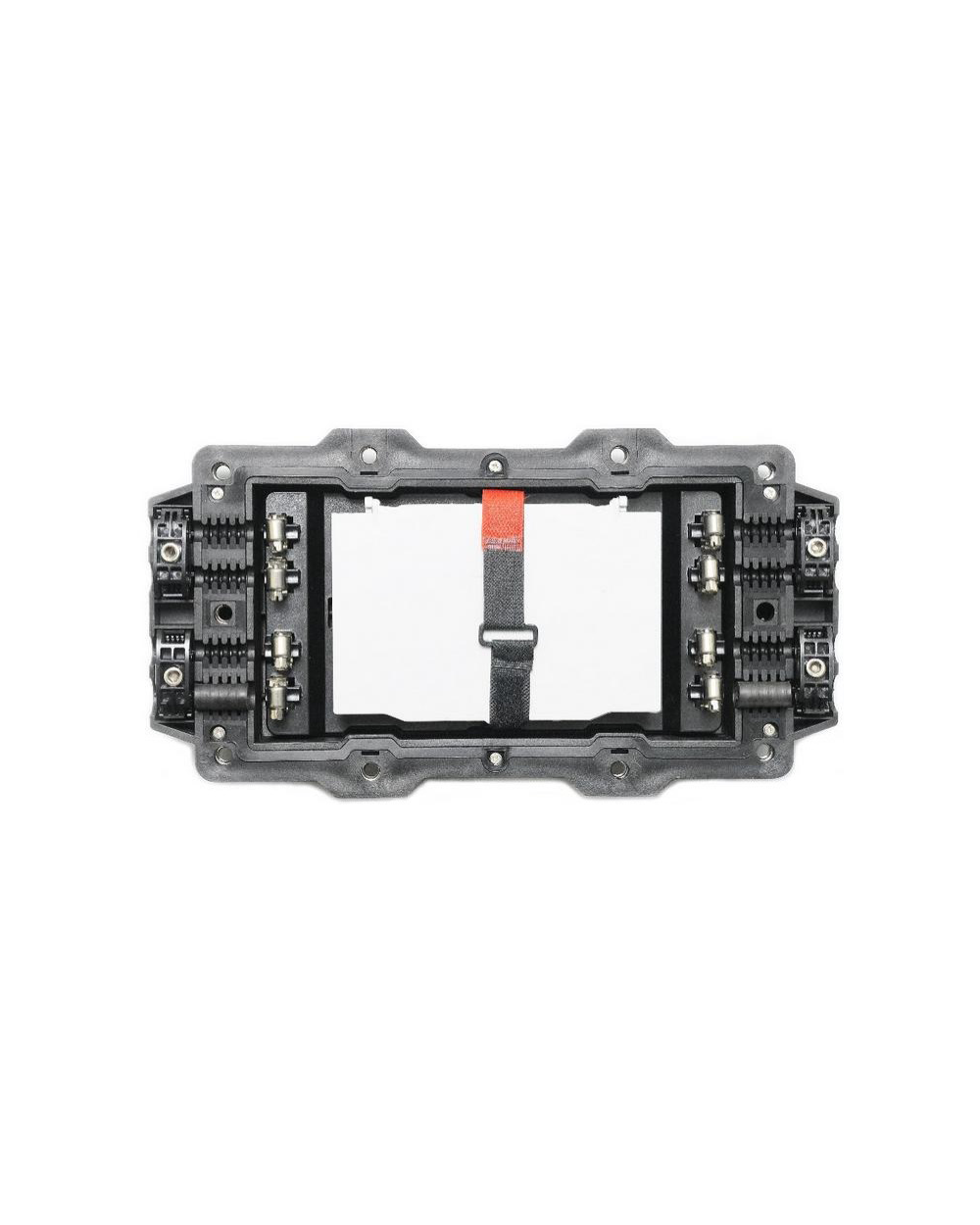

Foundation To fix fiber cable, strength member and splice trays 1pc
Sealing Grommet To seal bottom and cover 1 set
Plug To seal empty ports 6pcs
Bolt To fix bottom and cover 1 set
Fiber Splice Protective Sleeves To protect fiber splices Same as capacity
Nylon Tie To fix buffer tubes with fibers inside 8pcs
Insulation Tape To enlarge cable diameter for fixation 1 roll
Sealing Tape To enlarge cable diameter for sealing grommet 1 roll
Hanging Hook For aerial installation 2pcs
Grounding Wire To connect with grounding device 1pc
Abrasive Cloth To polish fiber optic cable 1pc
Labelling Paper To label fibers 1 set
M6 Wrench To screw bolts of housing 1pc
User Manual To instruct installation 1pc

Optional Accessories:

Valve To perform pressure and sealing testing 1pc
Grounding Device To derive metallic components of fiber cable 1 set
Buffer Tube To protect fibers and be fixed on splice trays specified
Desiccant To desiccate air in FOSC after sealing 1 bag
