Fiber Optic Splice Closure, also named Fiber Optic Joint Enclosure, is an essential passive component for fiber optic cable management in fiber optic network of backbone, MAN and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. In straight through and branching applications either in the outside plant or indoor buildings.

Categories:
Pay with Apple Pay, Mastercard, Visa, PayPal
Free shipping on all orders above €150 in EU + UK
Returns and exchanges within 30 days of delivery
SKU: AT-FOSC-IM96B-6
Share:
Item added to cart View Cart Checkout

Extra Description

Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting. According to the shapes of Fiber Optic Splice Closure, there are inline Fiber Optic Splice Closure (horizontal Fiber Optic Splice Closure) and dome Fiber Optic Splice Closure (vertical Fiber Optic Splice Closure).

According to the functions of Fiber Optic Splice Closure, there are standard Fiber Optic Splice Closure for fiber splicing and FTTH Fiber Optic Splice Closure for housing fiber optic splitters for FTTH Passive Optical Network.

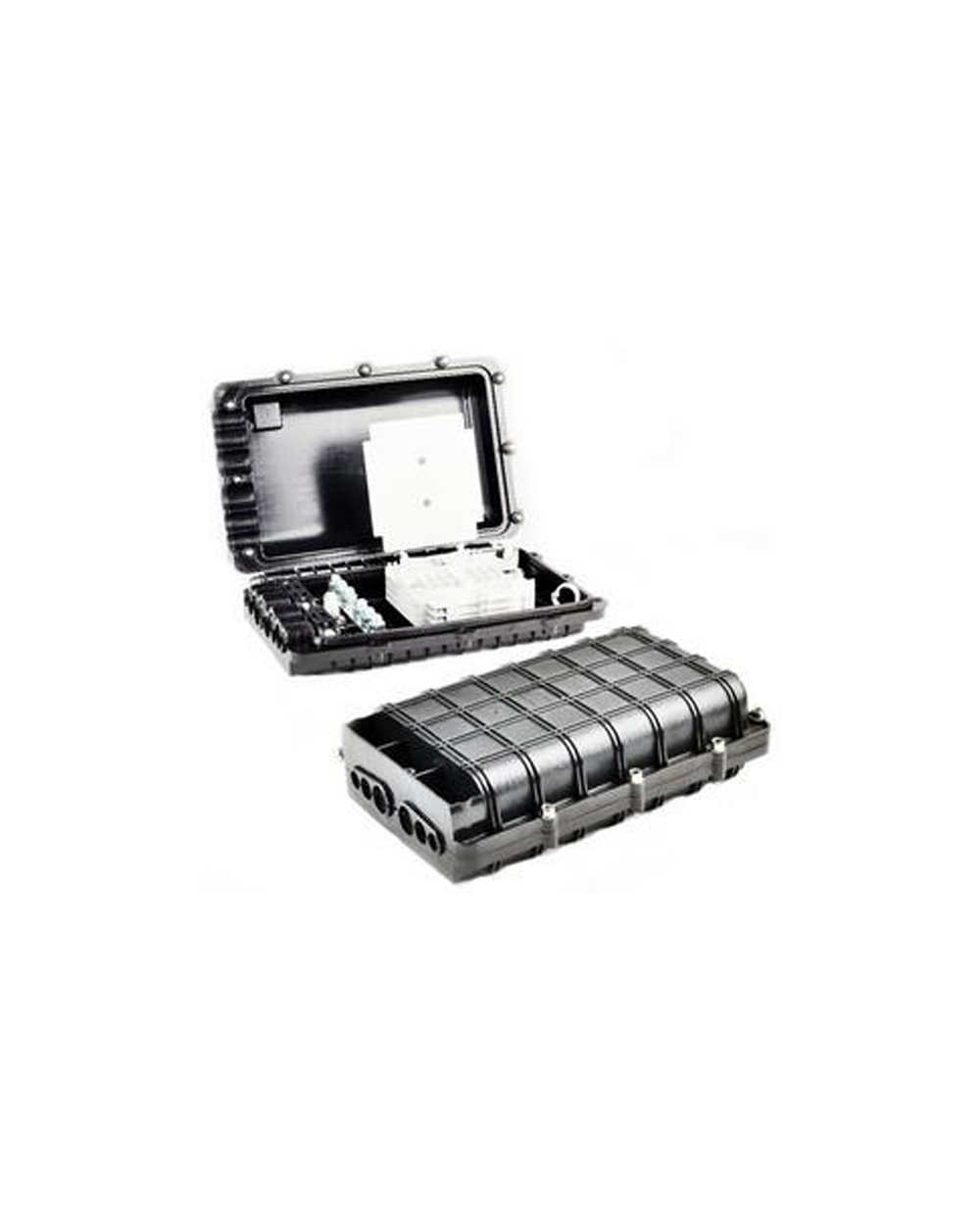

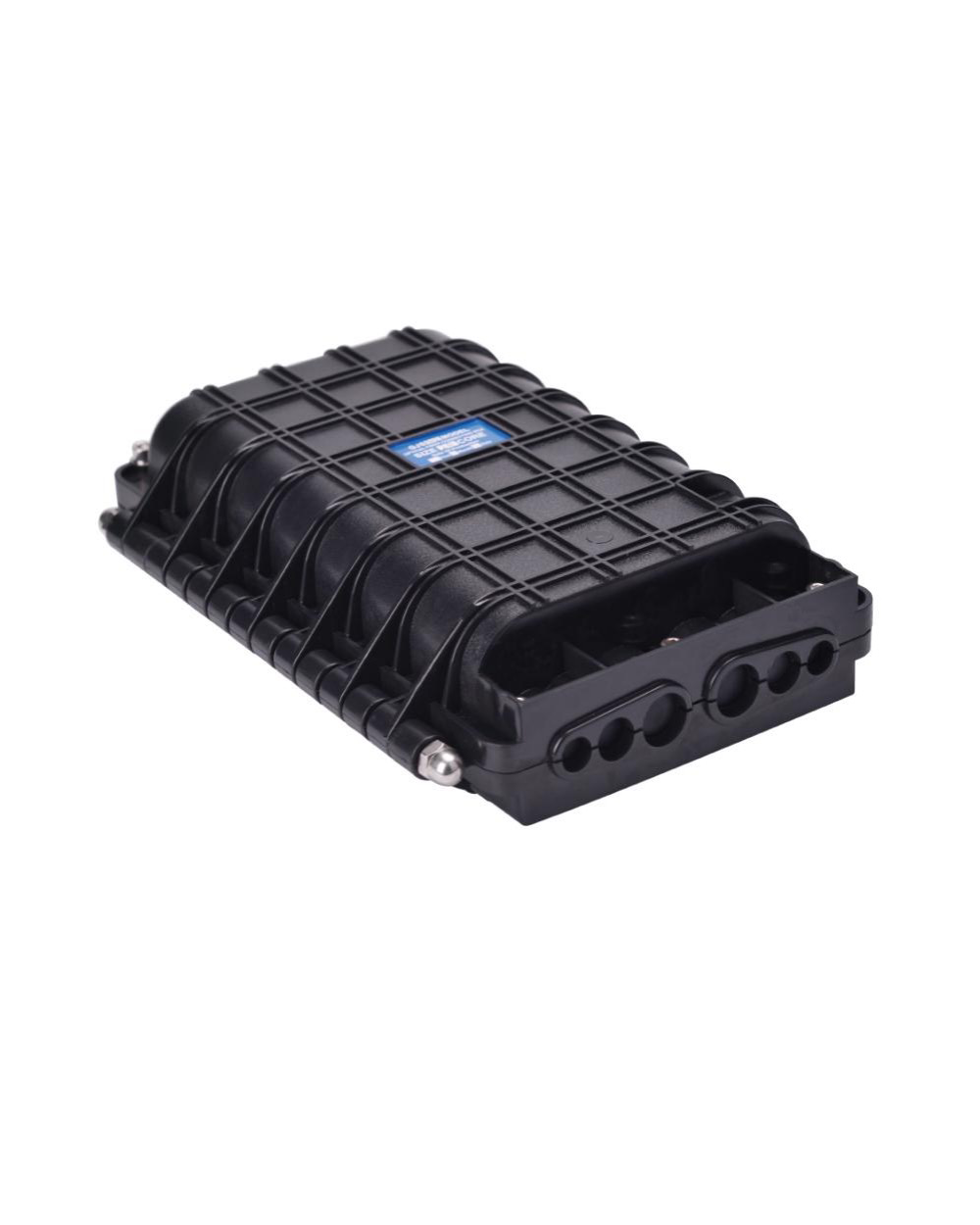

AT-FOSC-IM96B-6 Inline Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application



Features:

●Easy access to installation, maintenance and future expansions.

●Excellent sealing against water ingress and harsh environment.

●Hinged splice trays for easy expansion without disturbing spliced fibers.

●Compatible with standard normal fiber cable types.

  • AT-FOSC-IM96B-6 Data Sheet

Item Code Information

More Details

Specifications:

Model AT-FOSC-IM96B-6
Type Inline type
Number of Inlet/Outlet ports 6 ports
Cable Diameter 2 ports×13mm, 2 ports×16mm, 2 ports×20mm
Maximum Capacity Bunchy: 96 fibers; Ribbon: 144 fiber
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs
Quantity of Splice Tray 4pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 320(L)×210(W)×85(H)mm
Net Weight 2.65~2.8KG
Temperature -40℃~65℃

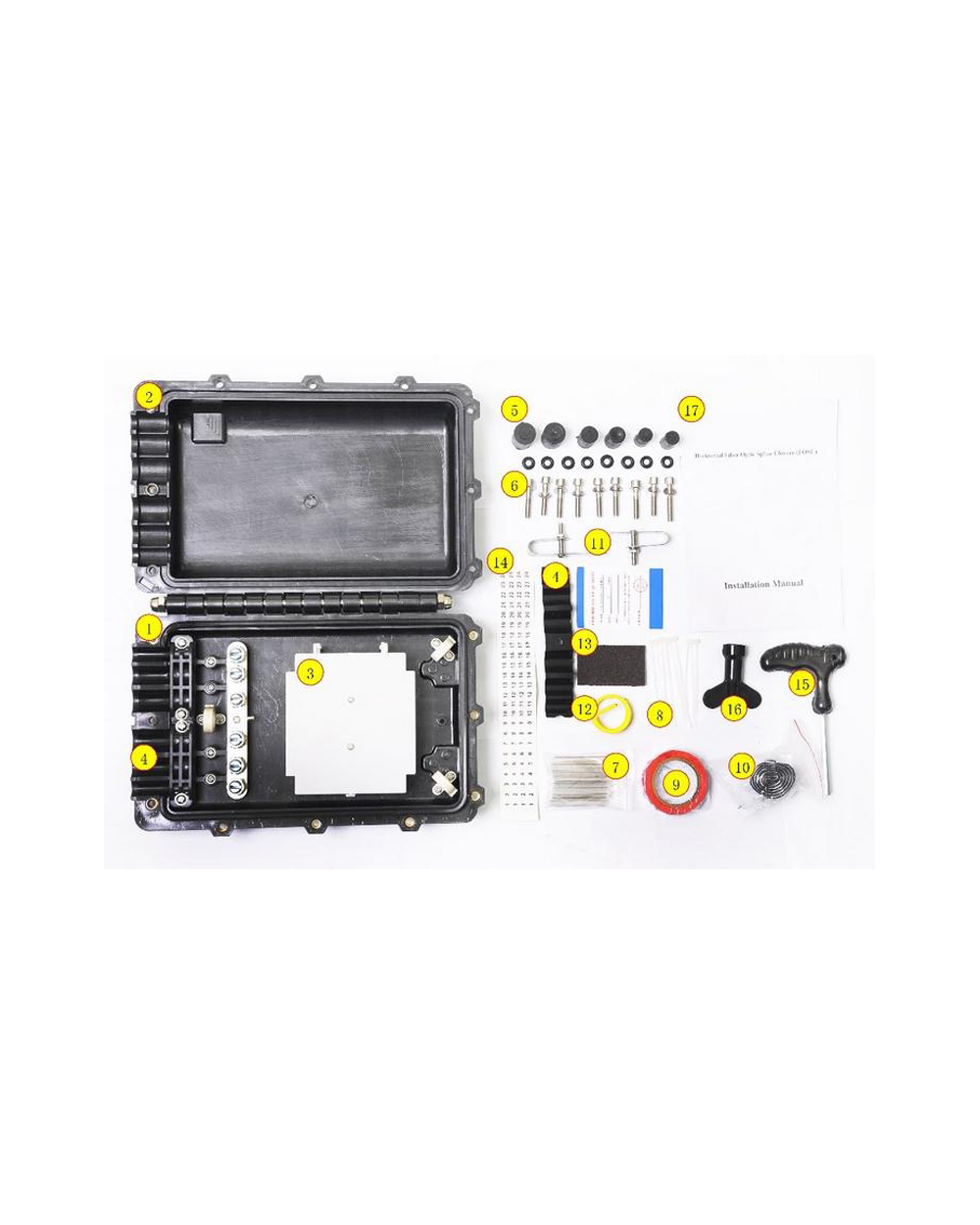

Components:

Housing (Bottom) To protect splices of fiber optic cables 1pc
Housing (Cover) To protect splices of fiber optic cables 1pc

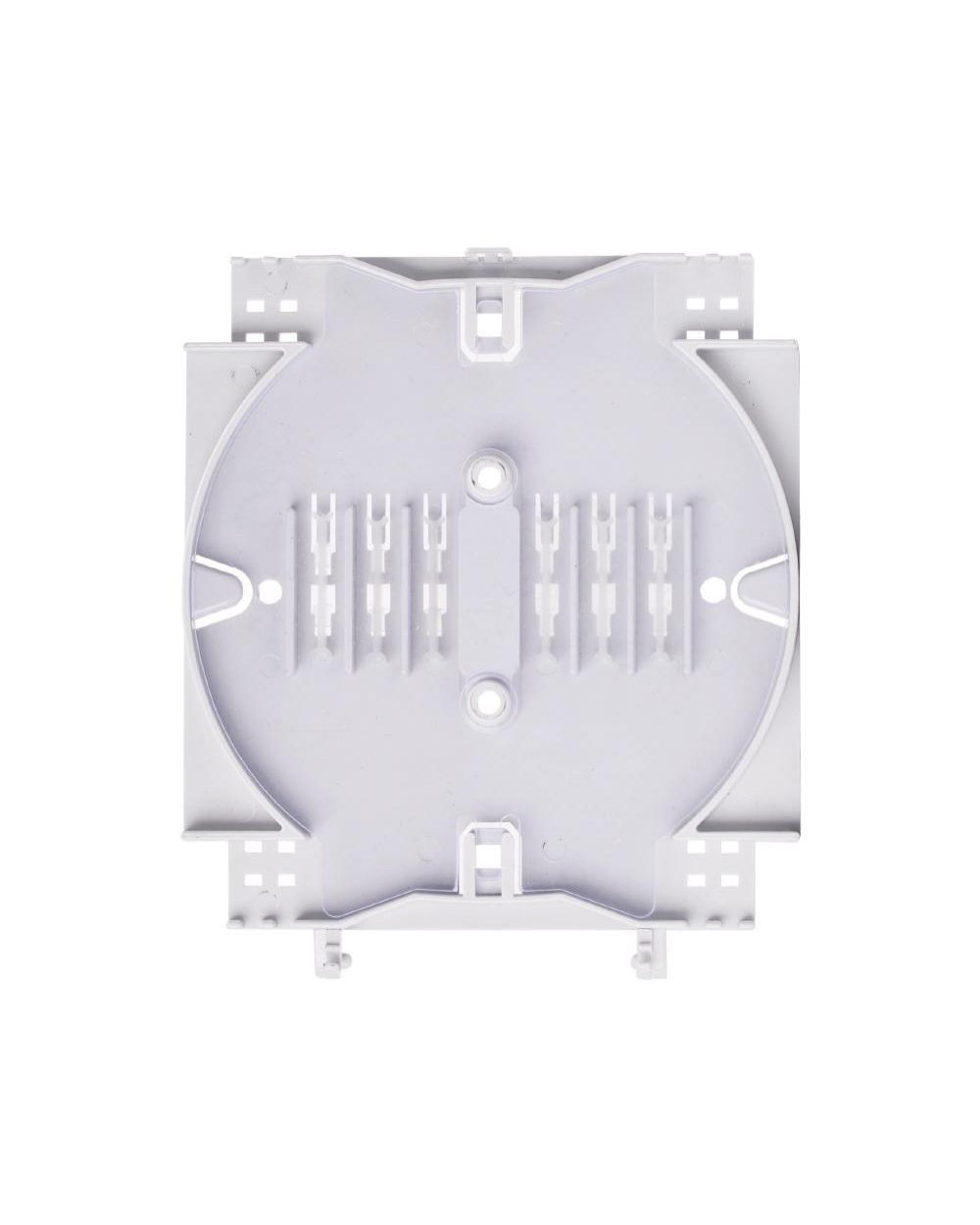

Splice Tray To fix Fiber Splice Protective Sleeves Max. 4pcs
Foundation To fix fiber cable, strength member and splice trays 1pc
Sealing Grommet To seal bottom and cover 1 set
Plug To seal empty ports 6pcs
Bolt To fix bottom and cover 1 set
Fiber Splice Protective Sleeves To protect fiber splices Same as capacity
Nylon Tie To fix buffer tubes with fibers inside 8pcs
Insulation Tape To enlarge cable diameter for fixation 1 roll
Sealing Tape To enlarge cable diameter for sealing grommet 1 roll
Hanging Hook For aerial installation 2pcs
Grounding Wire To connect with grounding device 1pc
Abrasive Cloth To polish fiber optic cable 1pc
Labelling Paper To label fibers 1 set
M6 Wrench To screw bolts of housing 1pc
M10 Wrench To screw nuts for strength member 1pc
Measuring Paper To measure perimeter of fiber cable 1pc
User Manual To instruct installation 1pc

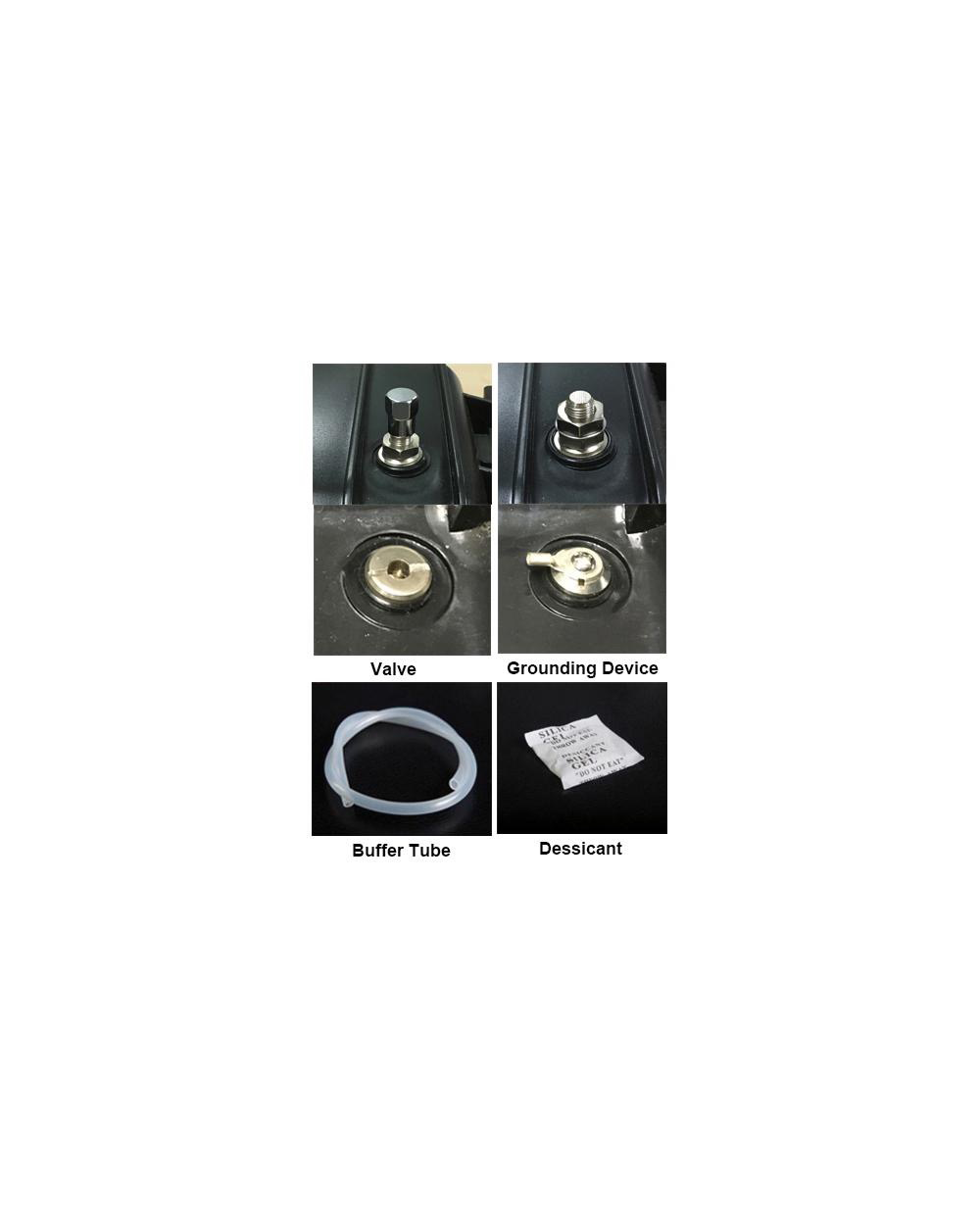

Optional Accessories:

Valve To perform pressure and sealing testing 1pc
Grounding Device To derive metallic components of fiber cable 1 set
Buffer Tube To protect fibers and be fixed on splice trays specified
Desiccant To desiccate air in FOSC after sealing 1 bag

Ordering Information:
