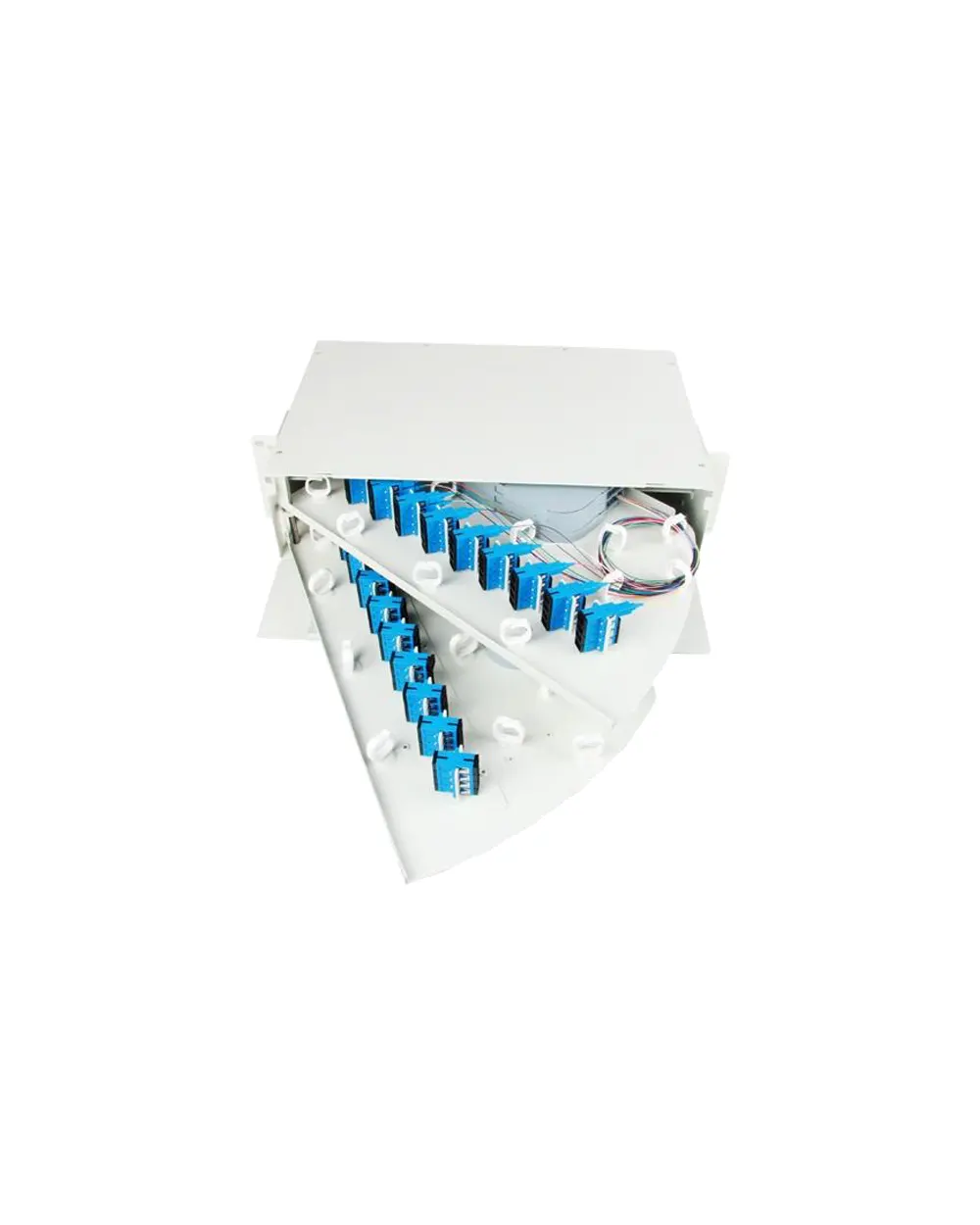

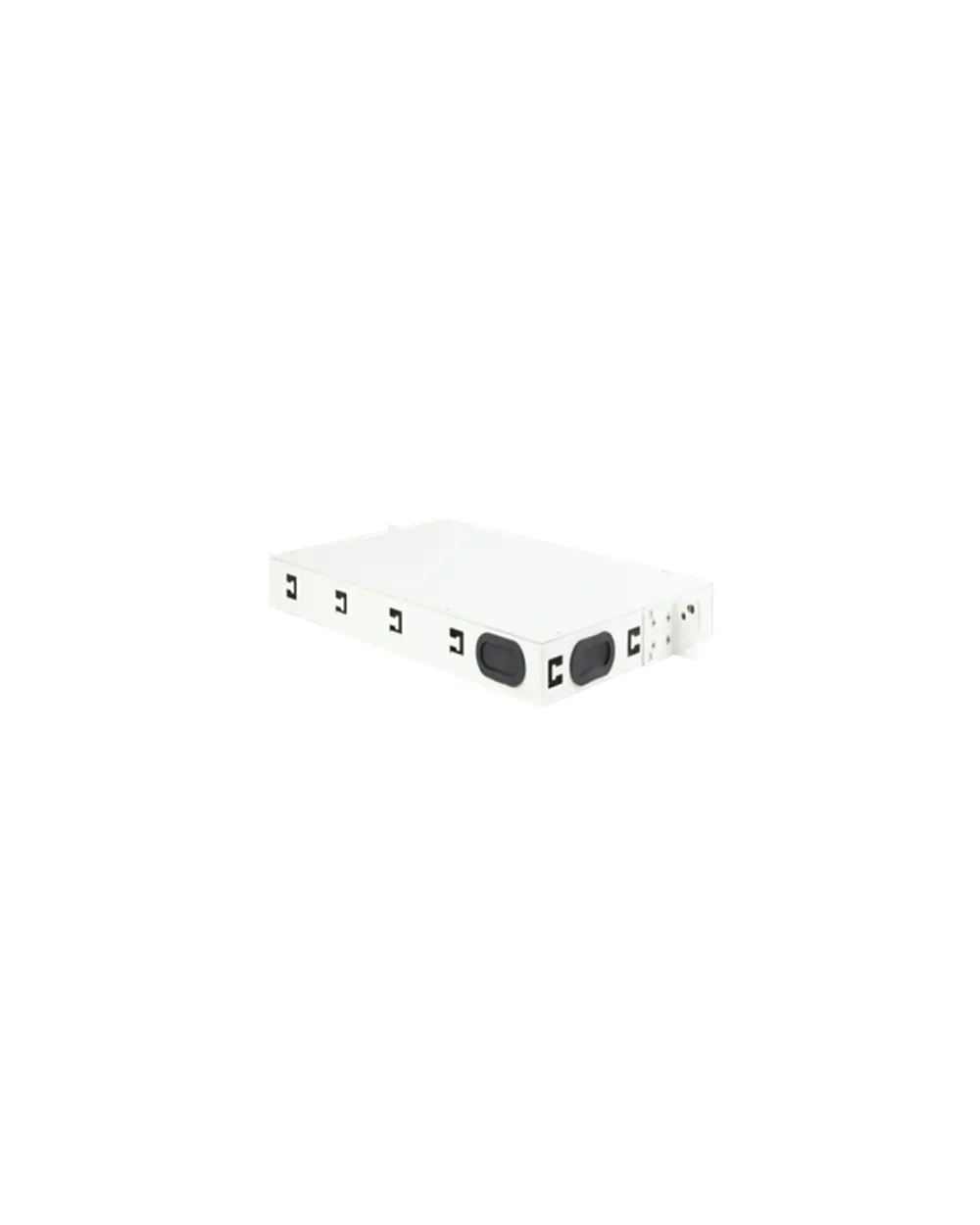

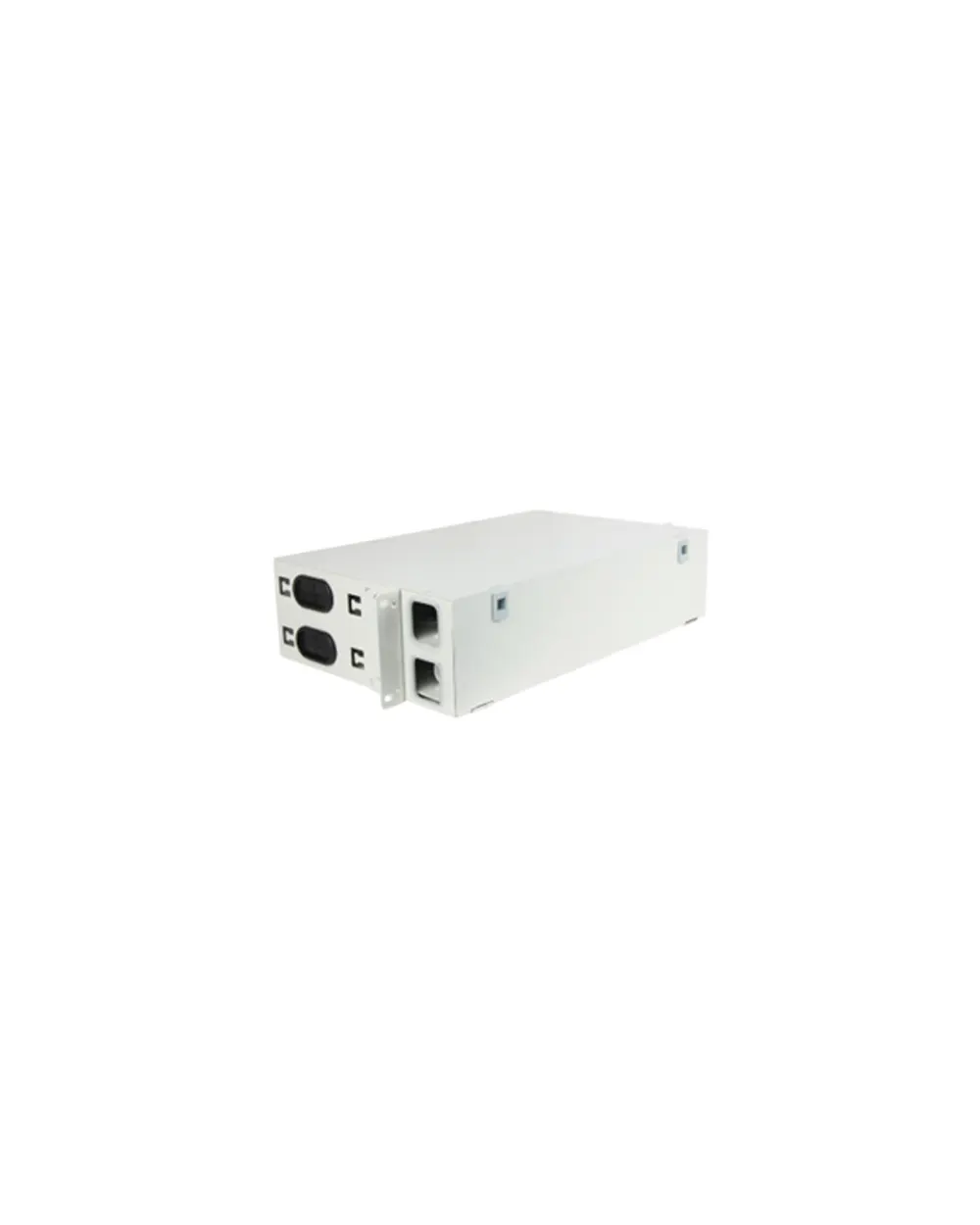

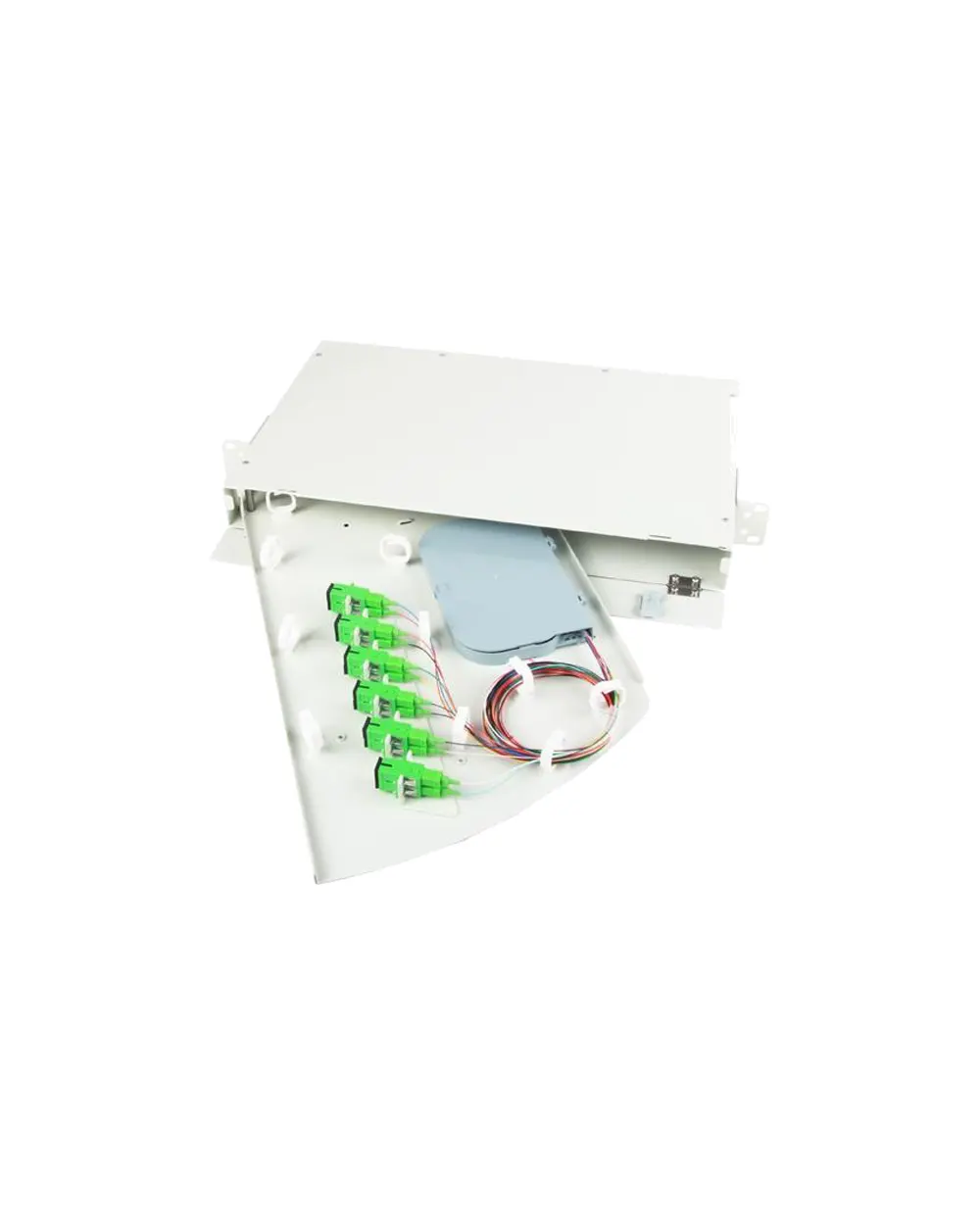

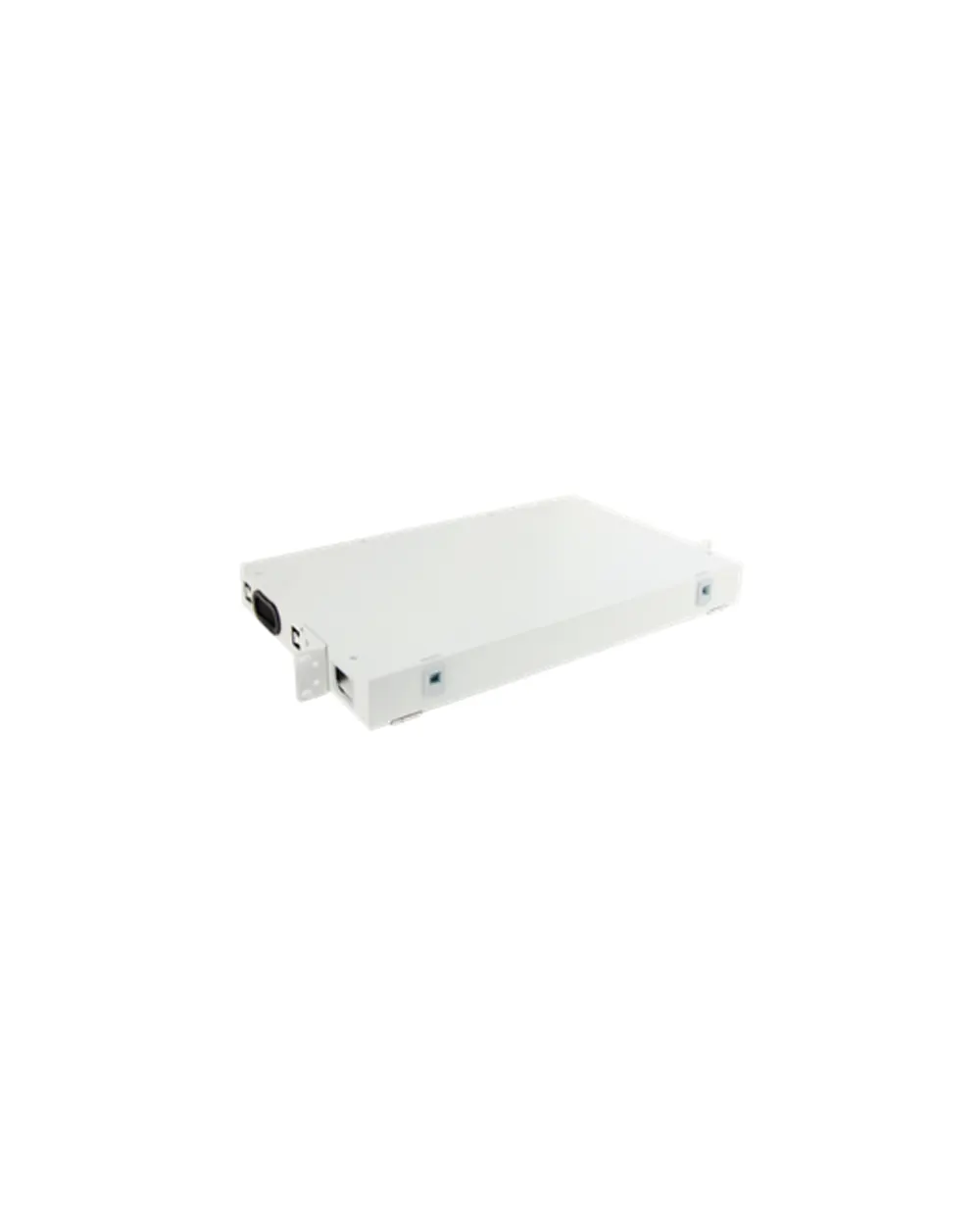

Drawer Type Fiber Optic Patch Panel is a 19” and 21” rack mount splice & patch enclosure with sliding trays for managing fiber optic cabling in central office in FTTx application.

Drawer Type Fiber Optic Patch Panel is used as termination panel for optical fiber wiring, fixation, splicing and patching.

Based on different height, there are 1U patch panel, 2U patch panel, 3U patch panel, etc.

Based on different capacity, there are 24 port LC fiber patch panel, 48 port LC fiber patch panel, 72 port LC fiber patch panel, 96 port LC fiber patch panel and 144 port LC fiber patch panel.

Categories: ,
Pay with Apple Pay, Mastercard, Visa, PayPal
Free shipping on all orders above €150 in EU + UK
Returns and exchanges within 30 days of delivery
SKU: AT-FPP-R2
Share:
Item added to cart View Cart Checkout

Extra Description

Features:

●Adapters are installed in angle to avoid direct laser beam.

● Cable comes in the ODF from left side and back of ODF.

● Sliding type ODF.

  • AT-FPP-R2 Data Sheet

How To Order

More Details

Specifications:

Applicable Adapter SC, FC, LC
Capacity 12~72 fibers
Material cold rolled steel
Color Grey or any other customized color (With MOQ)
Size 12(SC)/24(LC) fibers: 482.6(W)*270(D)*44(H)mm (19” 1U) 72(SC)/144(LC) fibers: 482.6(W)*270(D)*135(H)mm (19” 3U)
Net Weight 12(SC)/24(LC) fibers: 4.3kgs 72(SC)/144(LC) fibers: 7.4kgs
Installation Method 19”and 21” rack mount
Splice Tray Capacity 16 to 24 (SC) fibers/tray

Ordering Information:
