AT-ODF-PRW-1U

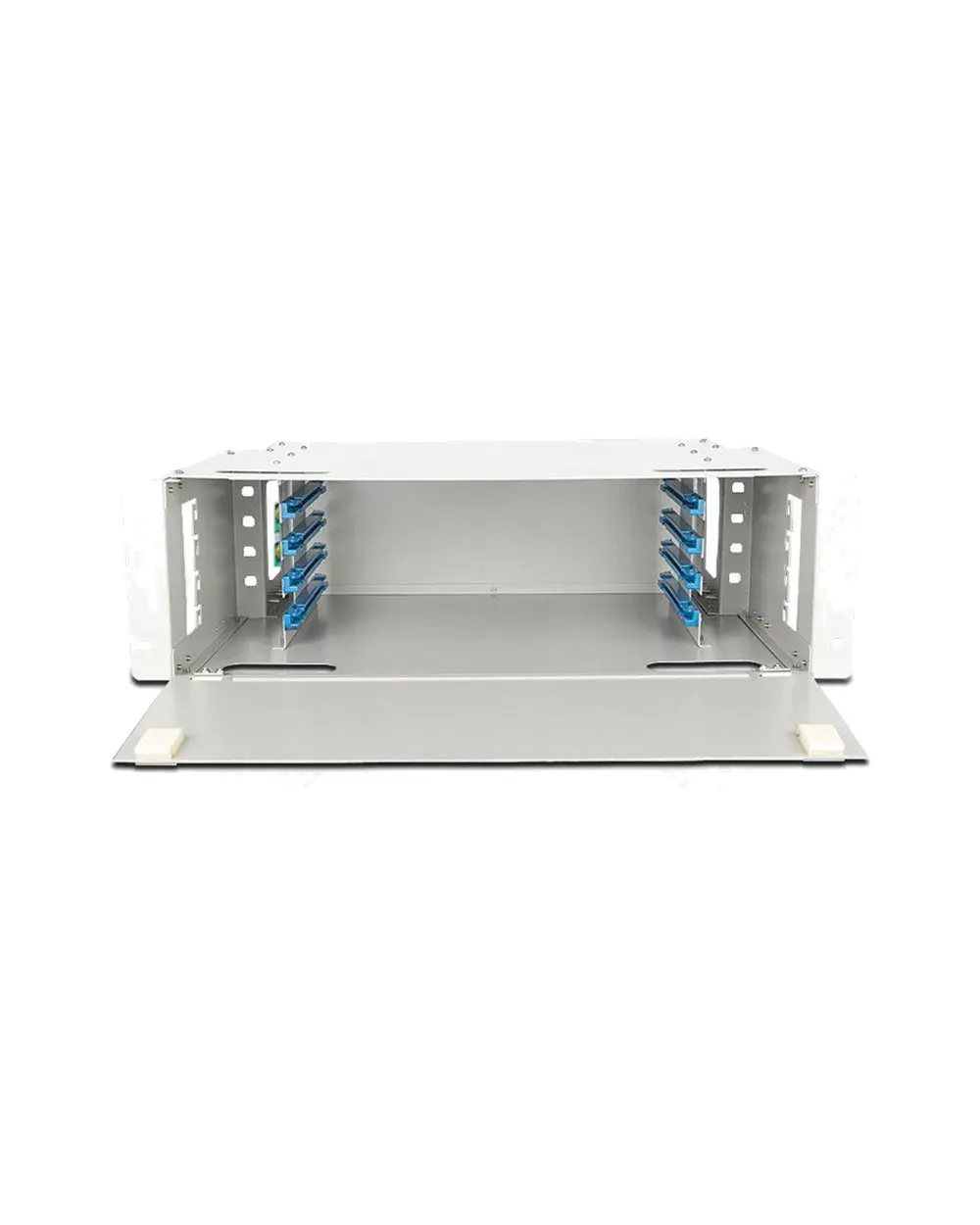

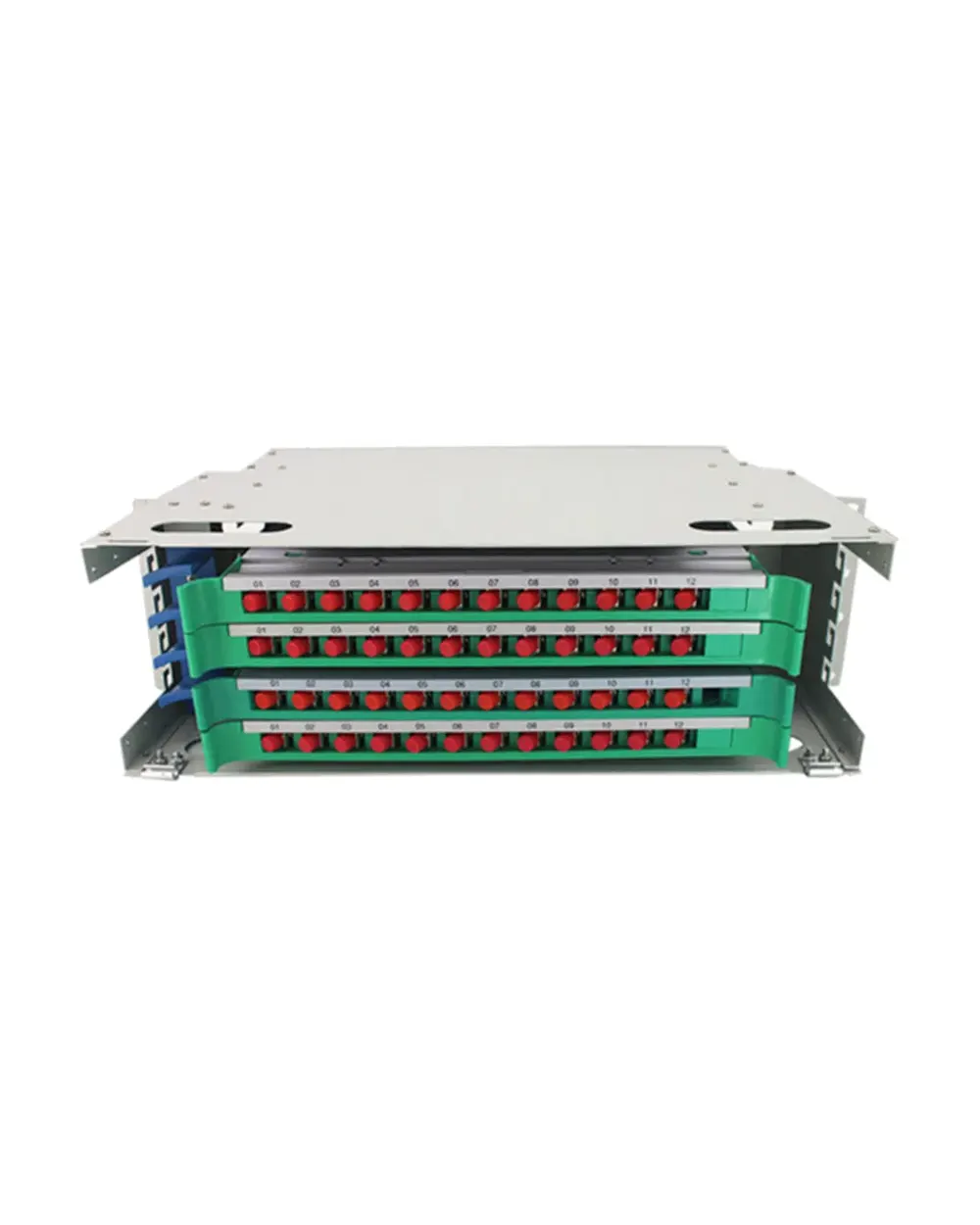

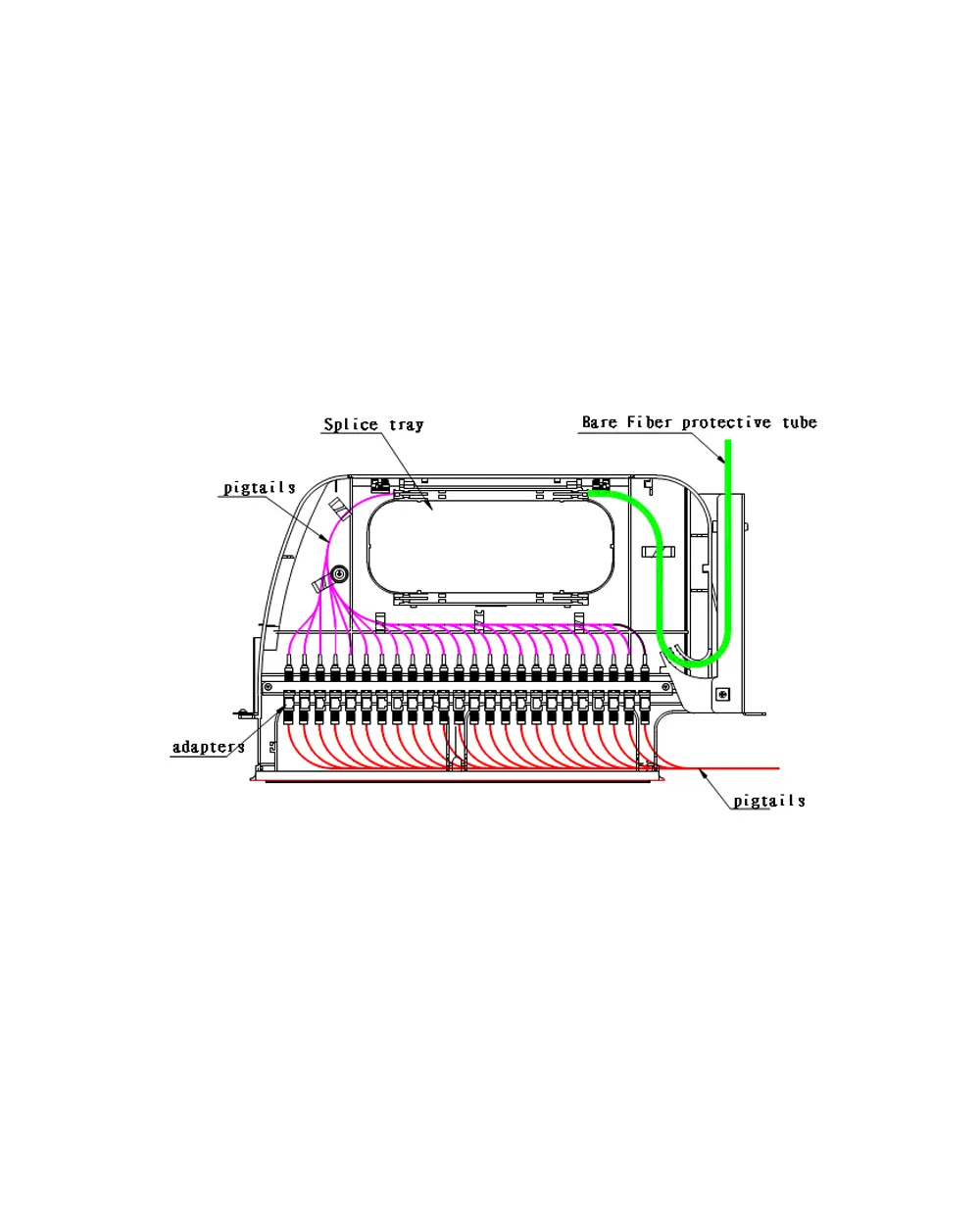

Rotary patch panel ODF-PRW-1U apply to the protective connection of cable and pigtail, the Material is High quality ABS, brackets is cold rolled steel, this panel mainly installed in fiber optic cabinet and rack.
AT-ODF-PRW-1U
SKU: AT-ODF-PRW-1U
Extra Description
Features:
● Max capacity is 120cores ( LC 4port adapters).
● Special rotary design, operation convenient.
● Variety of coled-rolled steel adapter plate for choice based on different demands.
● Material is ABS plastic, light weight.
- AT-ODF-PRW-1U Data Sheet
Specifications:
| Applicable Adapter | SC, FC, LC | |
| Capacity | 24, 48, 96 | |
| Model | ODF-PRW-1U/24C, ODF-PRW-1U/48C, ODF-PRW-1U/96C | |
| Color | Milky Grey or other appointed Color | |

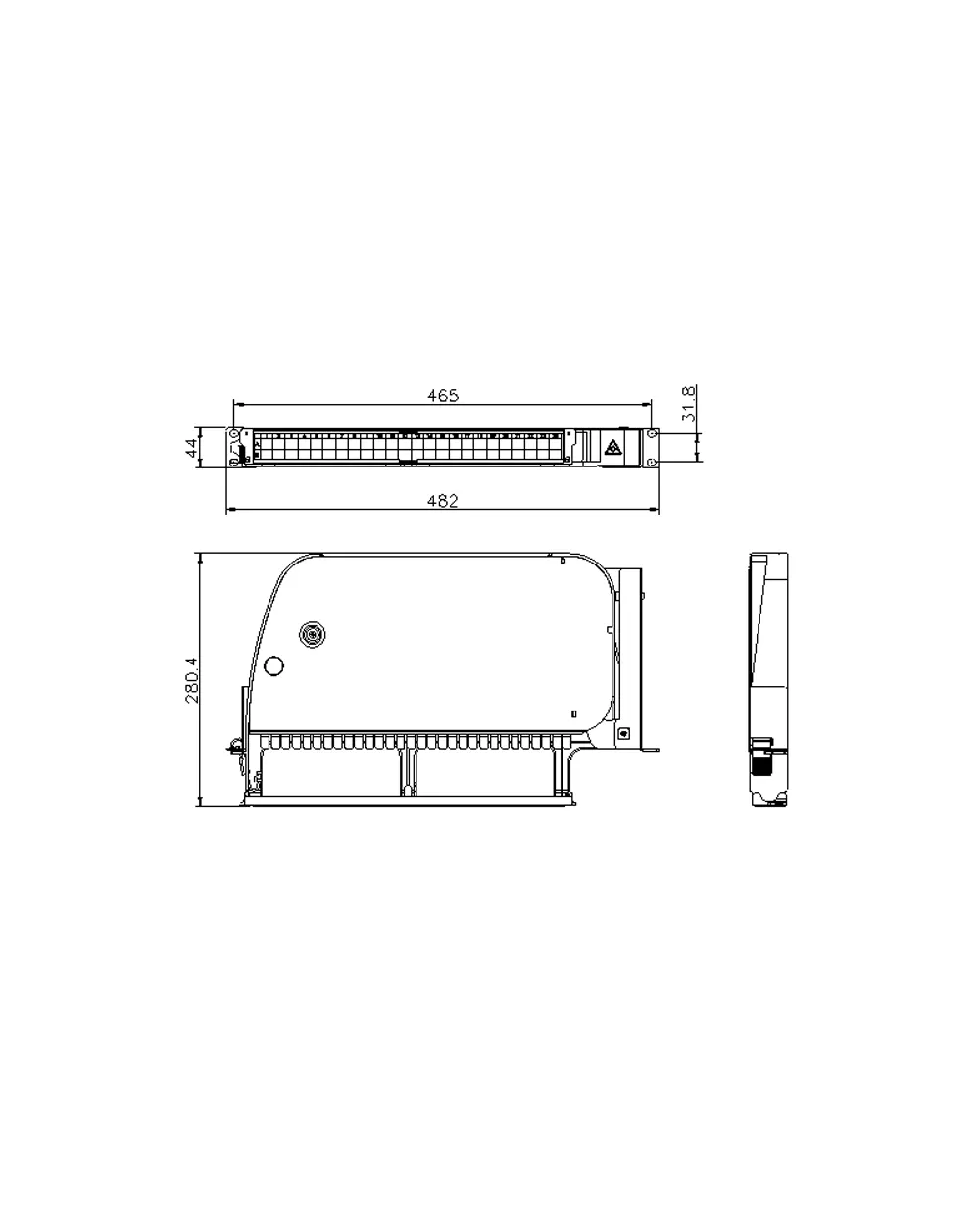

| Size | 54*55*44cm | |
| Net Weight | 3kgs | |
| Installation Method | 19” rack mount | |
| Splice Tray Capacity | OST-022/010G, OST-022/010G, OST-022 | |
