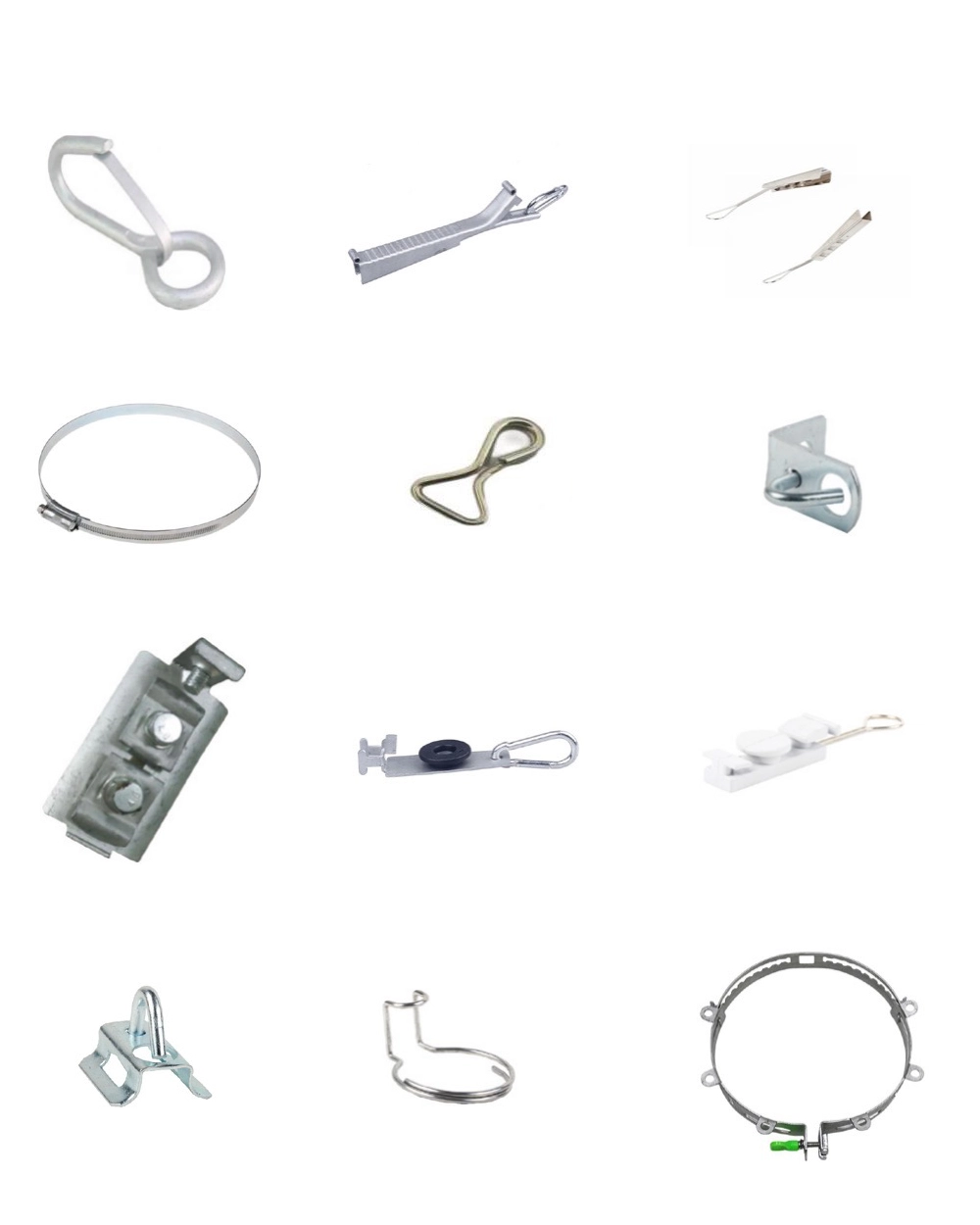

Cable Installation Accessories
- Supporting Accessories are used for aerial and wall installation of Outdoor Figure 8 Self-supporting FTTH Drop Cable outdoor.
- Corrugated Pipes are used for wall installation of FTTH Drop Cable indoor and outdoor.
- Ducts are used for wall installation of FTTH Drop Cable indoor and horizontally.
- Screw Fixation Accessories are used for wall installation of FTTH Drop Cable indoor and horizontally, and wall installation of Outdoor Figure 8 Self-supporting FTTH Drop Cable outdoor.
- FTTH Drop Cable Splicing Protective Box and FTTH Fiber Socket for wall installation of FTTH Drop Cable indoor.
Categories: Cabling Tools, Fiber Cable & Tools
Extra Description
- FTTH Drop Cable Installation Accessories Data Sheet
Specification:
 | Name:Cable Clamp (Straight Angle) |  | Name:Pole Loop |  | Name:Buckle with Spring |
| Size:205*16*17 mm | Size:70*60*320 mm | Size:77*30*26mm | |||
| Materials:Stainless Steel | Materials:Steel Rod | Materials:Carbon steel | |||
| Application:Fixed bow-type drop cables by wedge-shaped structure | Application:Install on the pole by steel strip,vertical line for cables | Application:The anchor node is formed at a position with a fixed support cross frame and has a certain pulling force | |||
 | Name:Wall pendant |  | Name:Reducing hoop |  | Name:Cable Fixing Ring |
| Size:Lenth:25-33mm | Size:Adjustable size:130-235mm | Size:120-200mm or 130-235mm | |||
| Materials:Steel, 45# Carbon steel | Materials:Carbon steel | Materials:Stainless steel | |||
| Application:Anchor nodes fixed on the exterior wall of the building | Application:Set as anchor nodes on the wire rod | Application:Tie the clamp hooks and cable management rims to the wire rod | |||
 | Name:Pole Draw Hook |  | Name:Wire Draw Hook |  | Name:Triangle C type hook |
| Size:65*65*60 mm | Size:80*50*30 mm | Size:45*40*45mm | |||
| Materials:Steel (Zinc Plating) | Materials:Steel (Zinc Plating) | Materials:Steel (Zinc Plating) | |||
| Application:Install on the pole by steel strip,connect with S hook | Application:Install on the steel strand, connect with S hook | Application:Fix on the building or exterior wall to form anchor points and connect S-shaped fixings | |||
 | Name:Plastic Holder |  | Name:Cable Clamp (Curve Angle) |  | Name:layer wire anchor |
| Size:135*28*16 mm/150*45*16 mm | Size:70*R40*18*18mm | Size:106*22*13mm;Double:106*22*29mm | |||
| Materials:ABS & Stainless Steel Wire | Materials:Stainless Steel Wire | Materials:Steel | |||
| Application:Fixed bow-type drop cables by binding way | Application:Link two or less self-supporting fiber optic cables directly to the anchor point in a corner way | Application:Connect steel wires and anchors in a single or 2 self-supporting cables with a span not exceeding 100M | |||
 | Name:Intermediate fixture |  | Name:Six-strand card slot fixings |  | Name:Draw Hook-L |
| Size:Customizable size | Size:Customizable size | Size:80*75*40 mm | |||
| Materials:Carbon steel | Materials:Carbon steel | Materials:Steel (Zinc Plating) | |||
| Application:Install on a pole or suspension line to form an intermediate support point, and make the overhead wiring neat | Application:A scene where the 6 or less optical cables are fixed on a wall not more than 15 meters apart and are wired in a straight line | Application:Install on the pole by by bolt, connect with S hook | |||
 | Name:Wall Draw Hook-C |  | Name:Double position hook |  | Name:Ring pull hook |
| Size:72*60*25 mm | Size:Customizable size | Size:Customizable size | |||
| Materials:Steel (Zinc Plating) | Materials:Steel (Zinc Plating) | Materials:Steel (Zinc Plating) | |||
| Application:Install on the steel strand, connect with S hook | Application:The pull hook passes through the steel strip to form an anchor node, and connects the cable clamp with the optical cable | Application:Drill holes in the building or exterior wall, equipped with bolts to form anchor points | |||
