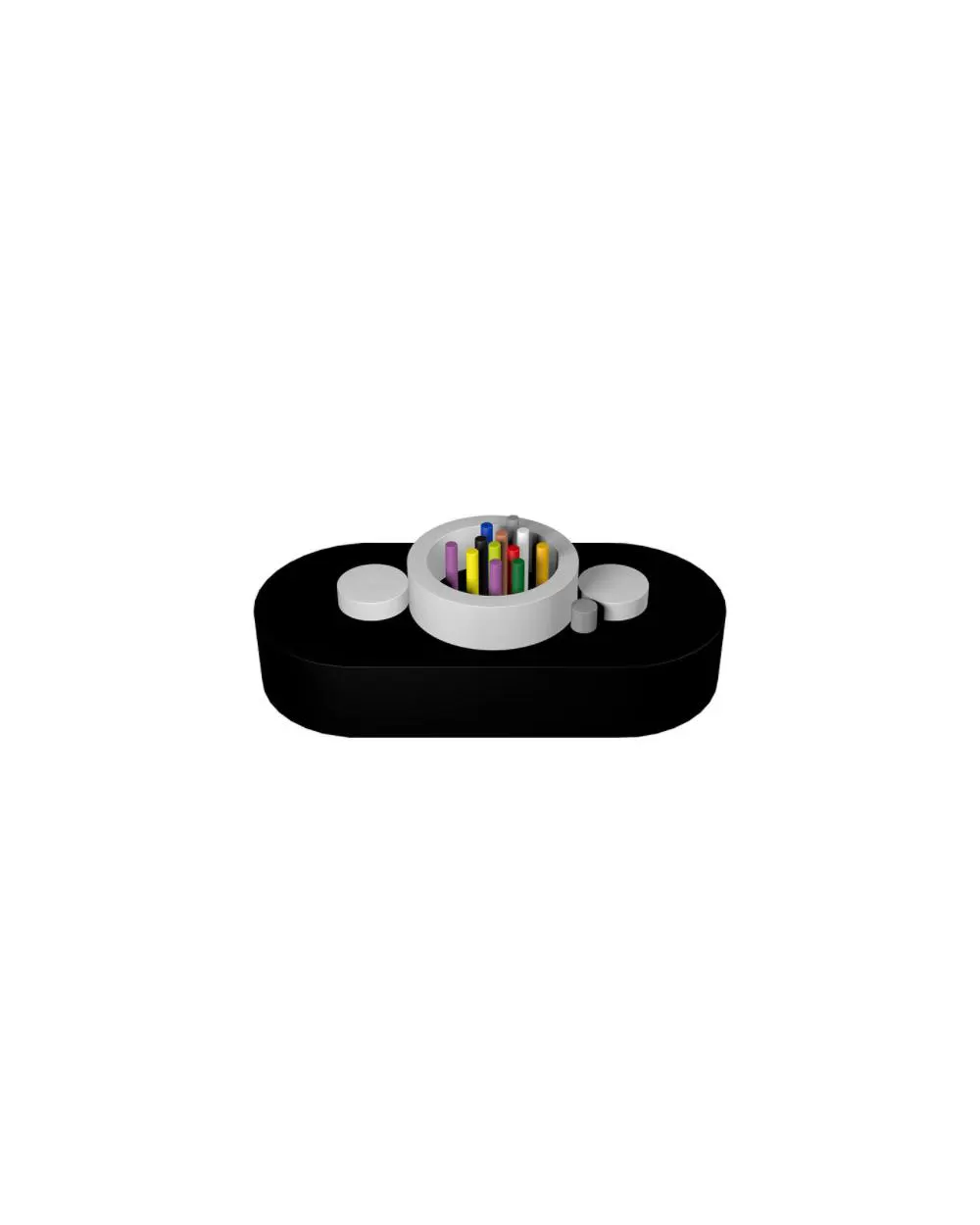

Flat-shape Optical Cable
With the development of fiber optic communication, FTTH has been the final solution of fiber-optic networks. It adapts to the demand for high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of the market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
Categories: Drop Cable, Fiber Cable & Tools
Extra Description
Applications
- FTTx FTTH project for indoor cable
- Installation in a small bending environment
Features
- Low purchasing and construction costs
- Soft and flexible, good bending performance
- Simple structure, compact and lightweight, and high practicability
- Flame retardant LSZH jacket meets relevant fire protection requirements in the indoor environment
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Novel notch design for easy stripping, and easy connection without splicing or with splicing, simplify the installation and maintenance
- Flat-shape Optical Cable Data Sheet
Cable Parameters:
| Cable Count | Out sheath Diameter （MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature （℃） | |||
| short term | long term | short term | long term | short term | long term | ||||
| 12/24 | (4.0±0.2)x(8.5±0.5) | 42 | 1200 | 400 | 2200 | 1000 | 20D | 10D | -20 ~~ +60 |
Optical Characteristics:
| Cable Count | Parameter | Reference | |||
| Single mode | Multi mode | ||||
| Standard | Elite | Standard | Elite | ||
| Insert ion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC 61300- 3-34 |
| Retur n loss | ≥ 50dB (PC) ≥ 60dB (APC) | ≥ 55dB (PC) ≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
End-Face Geometry:
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) | ||
| Radius of curvature (mm) | 10 to 25 | 5 to 12 | ||
| Fiber height (nm) | -100 to 100 | -100 to 100 | ||
| Apex offset (μm) | 0 to 50 | 0 to 50 | ||
| APC angle (°) | / | 8° ±0.2° | ||
| Key error (°) | / | 0.2° max | ||
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3- 35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM):
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3- 35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics:
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-2 |
| Cold | -25°C, 96h duration | IEC 61300-2-42 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-17 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-18 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
Ordering information
