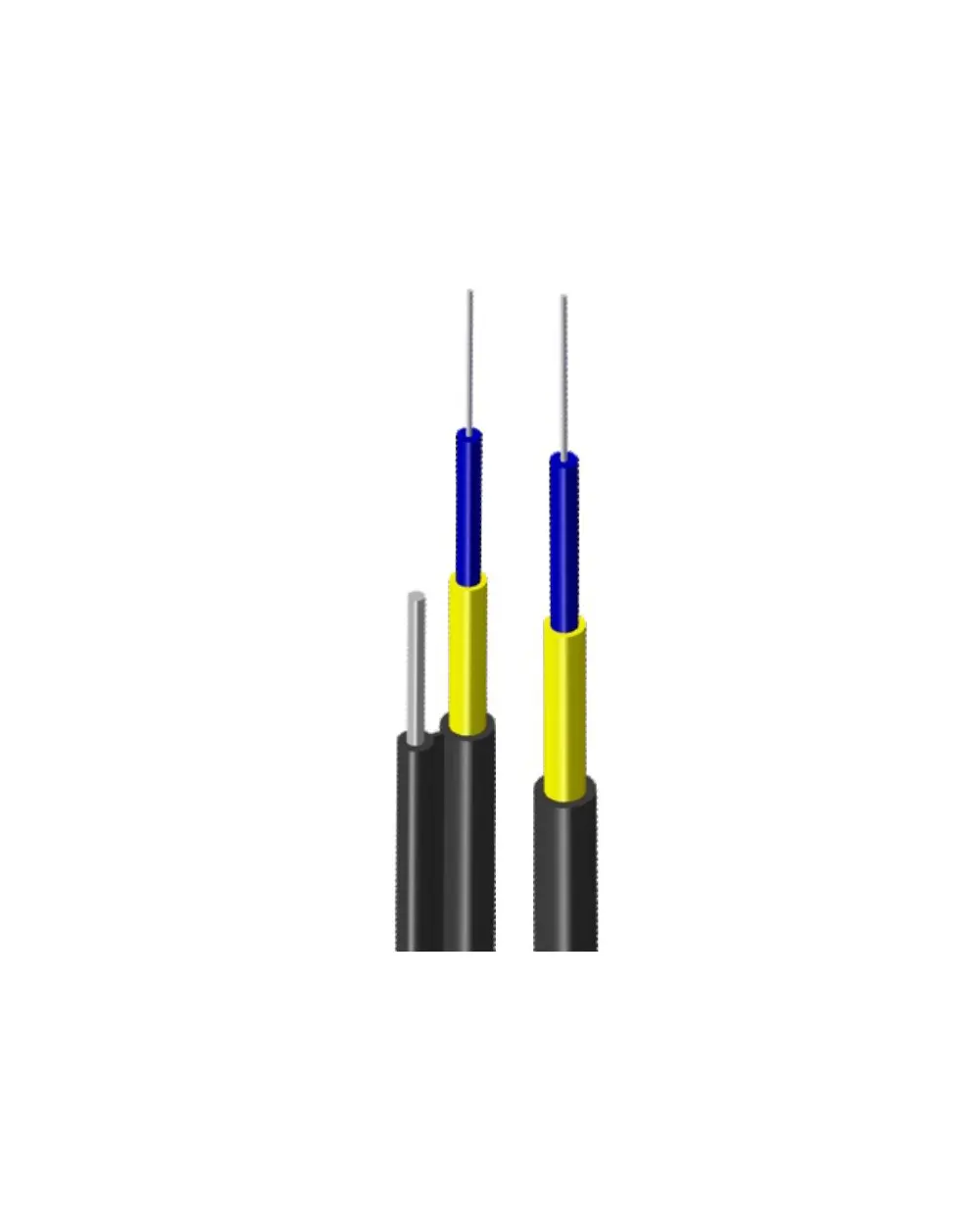

FTTH Round Drop Cable
With the development of fiber optic communication, FTTH has been the final solution of fiber-optic networks. It adapts to the demand for high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of the market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
Categories: Drop Cable, Fiber Cable & Tools
Extra Description
Features
- Low purchasing and construction costs
- Soft and flexible, good bending performance
- Simple structure, compact and light weight, and high practicability
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Novel notch design for easy stripping, and easy connection without splicing or with splicing, simplify the installation and maintenance
- Armored Bow-type Drop Cable Data Sheet
Specifications:
| Type | Fiber Count | Specifications | Weight (kg/km) | Tensile(N) | Crush(N) | Bending Radius(mm) | |||
| (mm) | Long term | Short term | Long term | Short term | Static | Dynam ic | |||
| GJFJH | 1 | 2.5 | 5. 0 | 60 | 120 | 1000 | 2200 | 10 | 20 |
| 2 | 3 | 6. 8 | 100 | 200 | 1000 | 2200 | 10 | 20 | |
| 4 | 3.5 | 8. 0 | 100 | 200 | 1000 | 2200 | 10 | 20 | |
| GJYFJCH | 1 | 3.0×6. 0 | 20. 0 | 300 | 600 | 1000 | 2200 | 10 | 20 |
| 2 | 3.0×6. 0 | 22.1 | 300 | 600 | 1000 | 2200 | 10 | 20 | |
| 4 | 3.7×6. 5 | 26. 0 | 300 | 600 | 1000 | 2200 | 10 | 20 | |
Transmission Properties:
| Cabled Optical fiber | 62.5μm (850nm/1300nm) | 50μm (850nm/1300nm) | G.652 (1310nm / 1550nm) | G.657 (1310nm / 1550nm) |
| Max attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 | 0.4/0.3 |
| Typical value (dB/km) | 3.0/1.0 | 3.0/1.0 | 0.36/0.22 | 0.36/0.22 |
Ordering information
