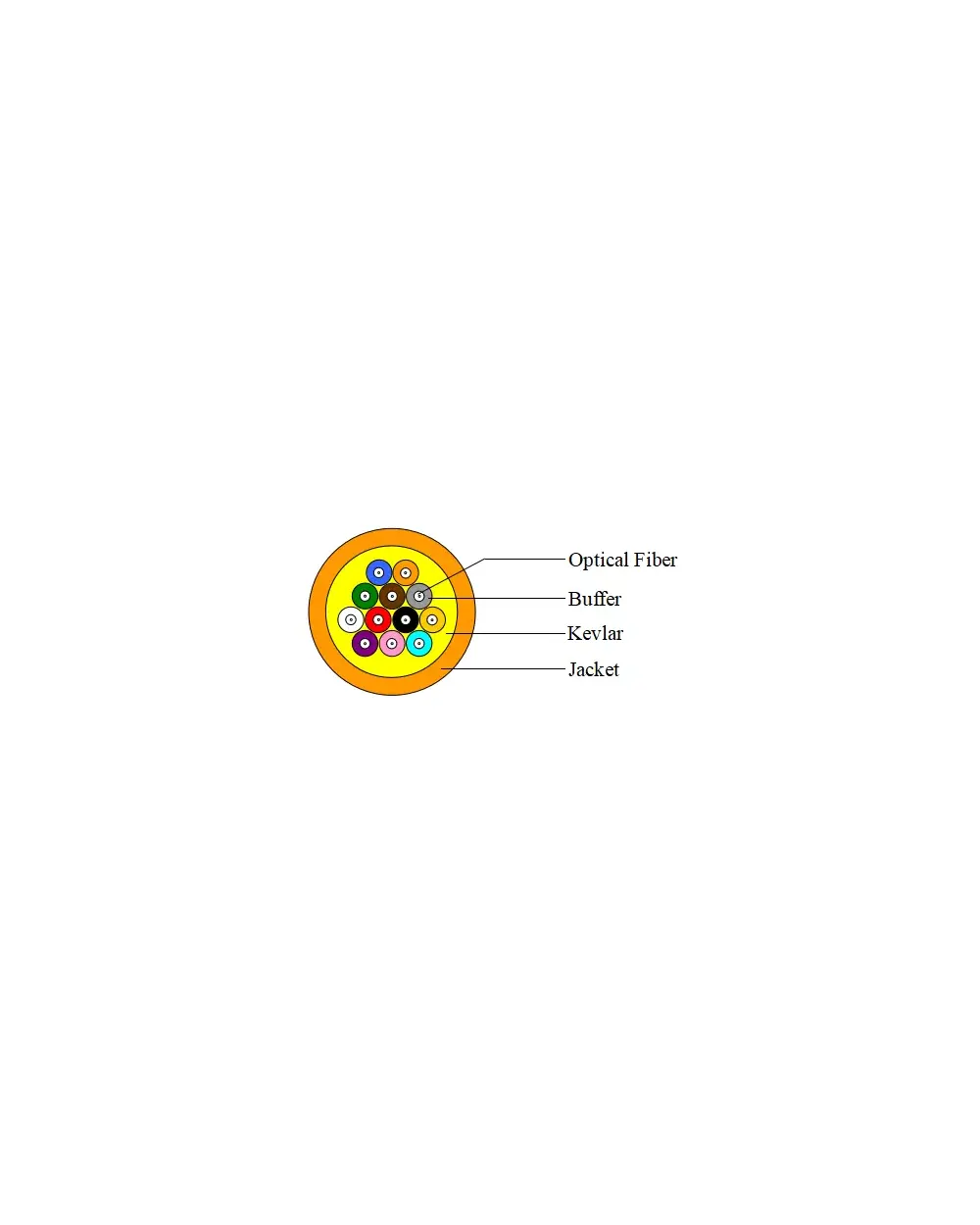

Multi-fiber Distribution Indoor Cable I Riser
With the development of fiber optic communication, FTTH has been the final solution of fiber-optic networks. It adapts to the demand for high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of the market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
Categories: Fiber Cable & Tools, Indoor Cable
Extra Description
Applications
- Used as pigtails and patch cords
- Used in indoor cabling, especially used as distribution cable
- Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames
- Multi-fiber Distribution Indoor Cable I Data Sheet
Specifications:
| Fiber Count | Dimension (mm) | Tensile Strength (N) | Crush (N/100mm) | Min. Bending Radius (mm) | Cable Weight (kg/km) | |||
| Short Term | Long Term | Short Term | Long Term | Dynamic | Static | |||
| 4 | 5.0 | 440 | 130 | 1,000 | 200 | 20D | 10D | 19.0 |
| 6 | 5.2 | 440 | 130 | 1,000 | 200 | 20D | 10D | 23.0 |
| 8 | 5.5 | 440 | 130 | 1,000 | 200 | 20D | 10D | 26.0 |
| 12 | 6.5 | 660 | 200 | 1,000 | 200 | 20D | 10D | 36.5 |
| 16 | 7.5 | 660 | 200 | 1,000 | 200 | 20D | 10D | 44.5 |
| 24 | 8.2 | 660 | 200 | 1,000 | 200 | 20D | 10D | 54.5 |
| 36 | 9.0 | 660 | 200 | 1,000 | 200 | 20D | 10D | 72.0 |
| 48 | 10.5 | 660 | 200 | 1,000 | 200 | 20D | 10D | 90.0 |
Transmission Properties:
| Fiber Type | SM 9/125um (1310nm/1550nm) | 62.5um (OM1) (850nm/1300nm) | 50um (OM2) (850nm/1300nm) | 50um (OM3) (850nm/1300nm) |
| Maximum Attenuation (dB/km) | 0.8/0.6 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
| Typical Attenuation (dB/km) | 0.4/0.3 | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 |
| Minimum LED Bandwidth (MHz·km) | - | 200/500 | 500/500 | 1500/500 |
Ordering information
