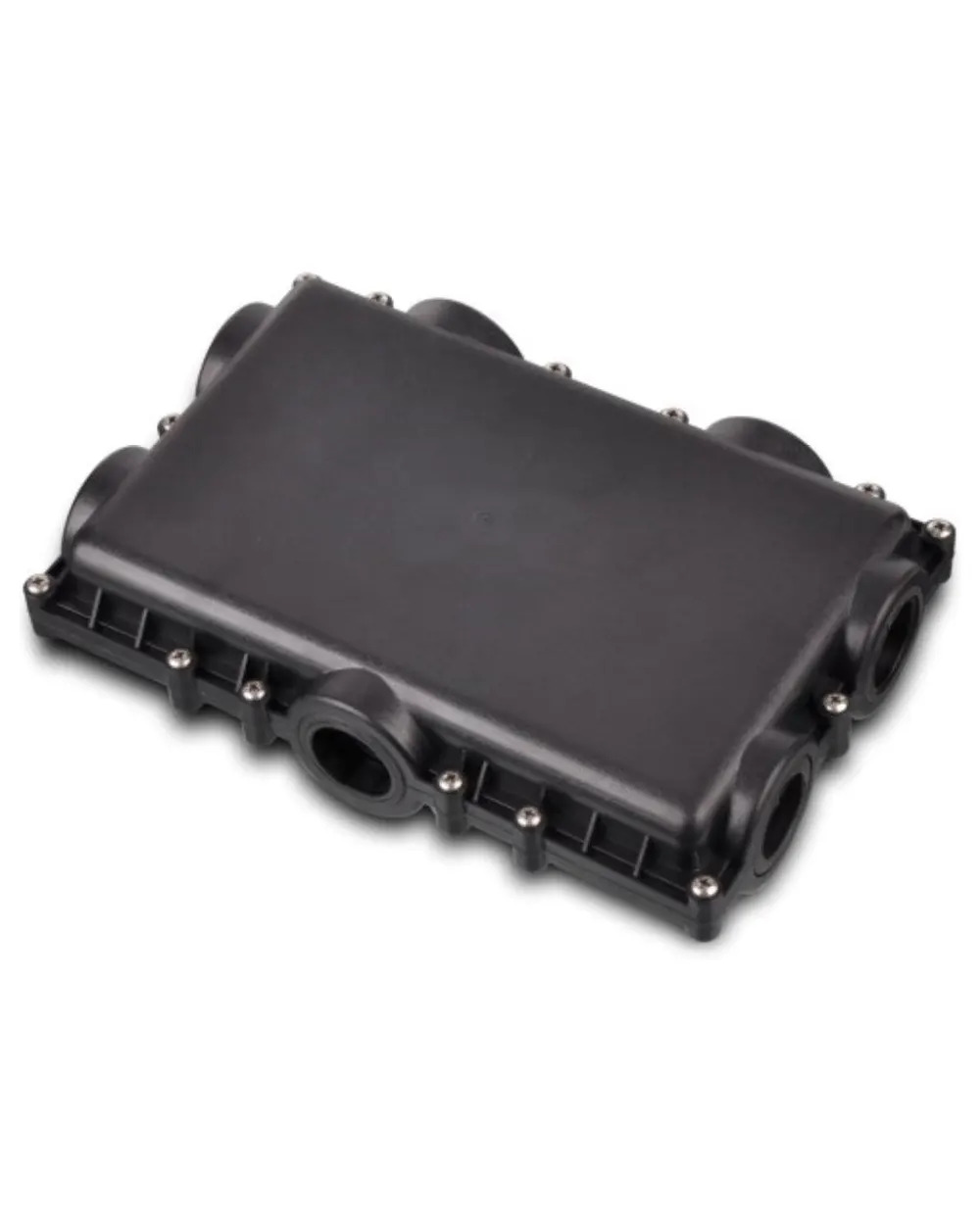

Micro Duct Closure Branching Enclosure Type H
Each Kit shall comprise following components
• Lower Shell: 1 PC
• Upper Shell: 1 PC
• Seal: 1 PC
• Captive screws: 14 PCs
• Threaded inserts: 14 PCs
• Clamping plates: 6 PCs
• Spacers – 8mm: 4 PCs
• Spacers – 15mm: 4 PCs
• Port supports: 4 PCs
• 11 – 16mm Hose Clips: 4 PCs
• 19 – 44mm Hose Clips: 2 PCs
• Cable ties 3.5mm x 150mm: 4 PCs
• Self-tapping Pozidriv countersunk screws -13mm: 4 PCs
• Self-tapping Pozidriv countersunk screws -19mm: 4 PCs
• Self-tapping Pozidriv countersunk screws – 25mm: 4 PCs
Categories: Fiber Cable & Tools, Micro Duct Closure
Extra Description
Features
- Microduct pathway protection of the microfiber for air-blown fiber systems in direct buried applications.
- Connects exclusive 16 port or 24 port expansion kit for additional drops per enclosure.
- Size and bend radius standards compliant.
- Double clamping design for securely holding duct.
- Meets IP67 rating.
- Made of resilient plastic for impact and durability.
- Easy maintenance and re-assembly.
- Micro Duct Closure Branching Enclosure Type H Data Sheet
Technical Specification:
| Materials | Shell | ABS |
| Spacers | Nylon | |
| Seal | TPE | |
| Port Supports | PP (Polypropylene) | |
| Clamp Plates | Nylon | |
| All metallic parts | Stainless Steel. Except nickel plated brass threaded inserts | |
| Dimensions | Length | 316mm (12.4") |
| Width | 220mm (8.7”) | |
| Height | 70mm (2.8") | |
| Weight | 1232g | |
| Color | Shells to be Black All the other plastic parts are to be black. | |
| Crush | 1000N/10mins | |
| IP Grade | IP68 | |
| Application | DB (Direct Bury) or Dl (Direct Instal) | |

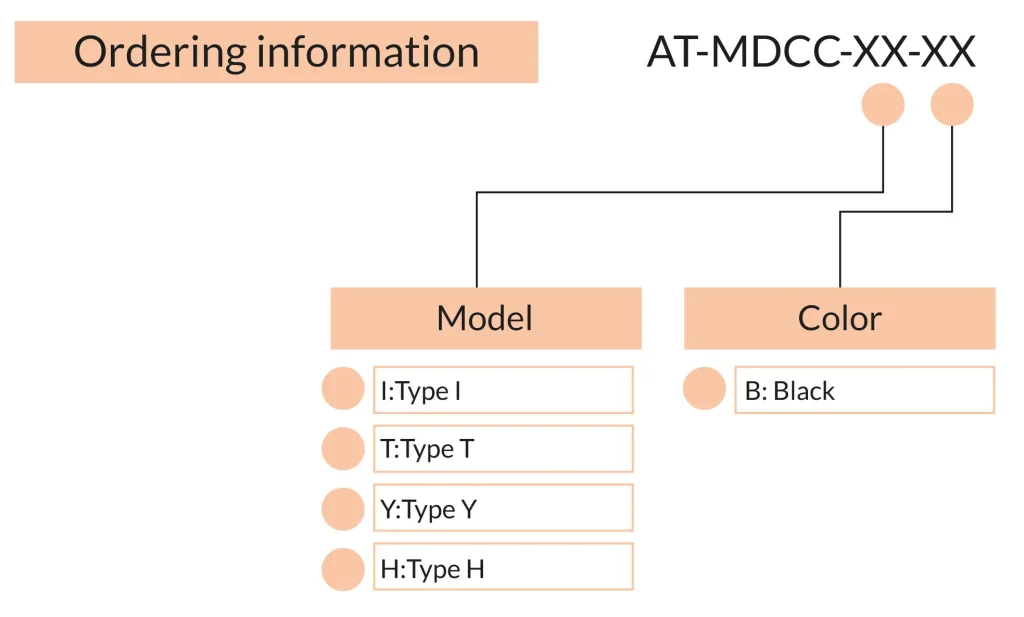

Ordering information
