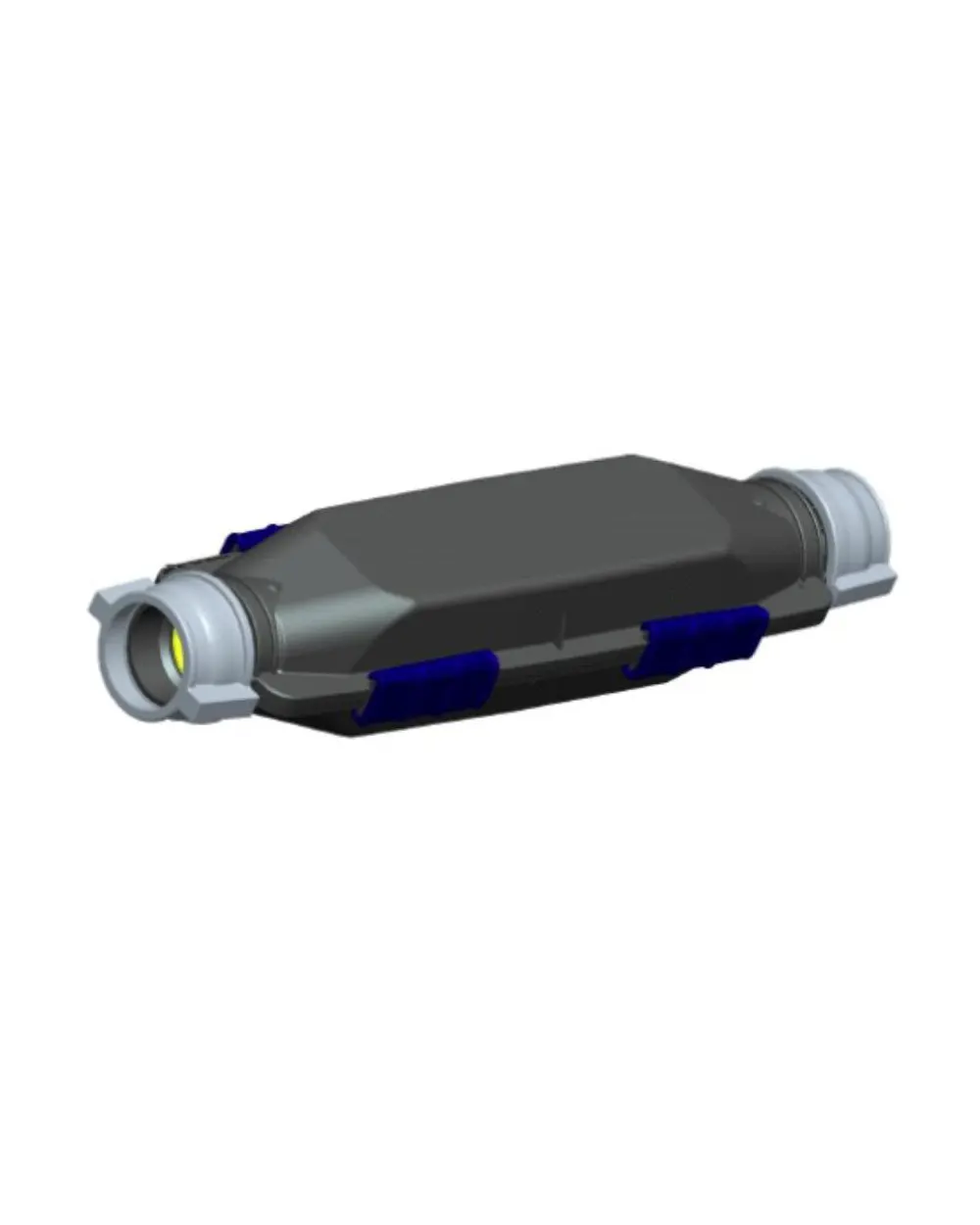

Micro Duct Closure I Closure
Each Kit shall comprise following components
• Lower Shell: 1 PC
• Upper Shell: 1 PC
• Seal: 1 PC
• Lower Cap: 2 PC
• Upper Cap: 2 PC
• Pin: 4 PC
• Spacers: 2 PC
• Self-tapping Pozidriv countersunk screws: 4 PC
• Port supports: 2 PC
• Hose Clips: 2 PC
Categories: Fiber Cable & Tools, Micro Duct Closure
Extra Description
Features
- Microduct pathway protection of the microfiber for air-blown fiber systems in direct buried applications.
- Connects exclusive 16 port or 24 port expansion kit for additional drops per enclosure.
- Size and bend radius standards compliant.
- Double clamping design for securely holding duct.
- Meets IP67 rating.
- Made of resilient plastic for impact and durability.
- Easy maintenance and re-assembly.
- Micro Duct Closure I Closure Data Sheet
Technical Specification:
| Materials | Shell | PP (Polypropylene) |
| Spacers | Nylon | |
| Seal | TPE | |
| Port Supports | PP (Polypropylene) | |
| Clamp Plates | Nylon | |
| Dimensions | Length | 615mm (24.2") |
| Width | 159mm (6.26") | |
| Height | 108mm (4.25”) | |
| Weight | 2040g | |
| Color | Shells to be Black All the other plastic parts are to be black. | |
| Application | DB (Direct Bury) or DI (Direct Install) | |
| For Duct size | MD (Micro Duct) 50mm | |
Ordering information
