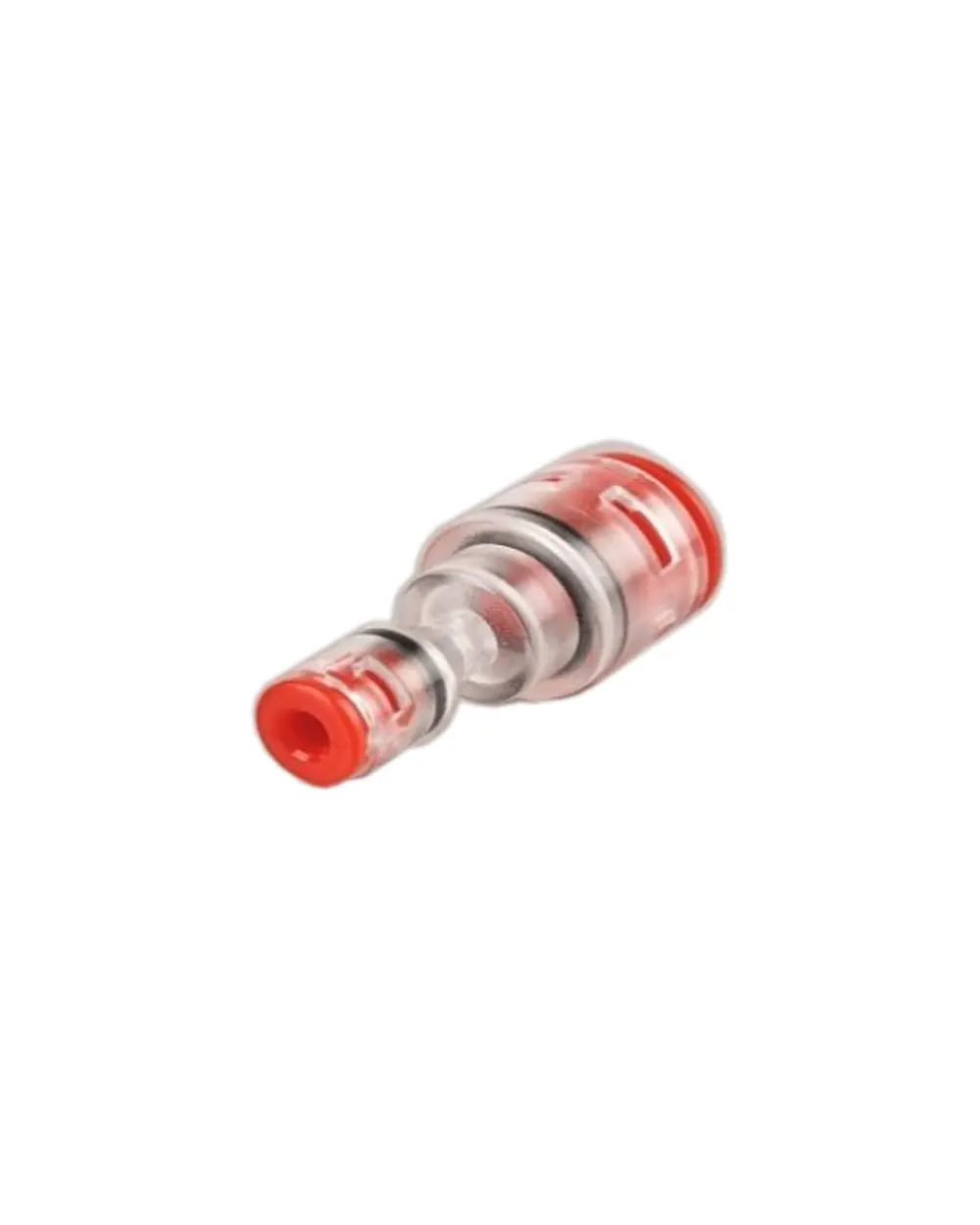

Reduction Micro Duct Connector
- Connecting two micro ducts which are the same outer diameter
- Easy installation, without any special tools
- Transparent plastic body easy to observe the situation
- High temperature resistance-40 ‘c 65 ‘c
- High pressure resistance>25bar
- Standard EN50411-2-8
- Fire Resistance styles also available(Optional)
Categories: Fiber Cable & Tools, Micro Duct Connector
Extra Description
Features
- Connect two micro-ducts which are the same outer diameter
- Easy installation, without any special tools
- Transparent plastics body, easy to observe the situation
- High temperature resistance -40℃～65℃
- High pressure resistance
- Standard EN50411-2-8
- Reduction Micro Duct Connector Data Sheet
Specification:
| Model | Duct OD/ID (mm) (Bigger Port) | Duct OD/ID (mm) (Smaller Port) | Reduction | Packing (Pcs/CTN) |
| R5/2.1 | 5/3.5 | 3/2.1 | 3.5>2.1 | 3000 |
| R5/2.8 | 5/3.5 | 4/2.8 | 3.5>2.8 | 3000 |
| R7/2.1 | 7/5.5 | 3/2.1 | 5.5>2.1 | 2000 |
| R7/2.8 | 7/5.5 | 4/2.8 | 5.5>2.8 | 2000 |
| R7/3.5 | 7/5.5 | 5/3.5 | 5.5>3.5 | 2000 |
| R8/2.1 | 8/6 | 3/2.1 | 6>2.1 | 2000 |
| R8/3.5 | 8/6 | 5/3.5 | 6>3.5 | 2000 |
| R8/5.5 | 8/6 | 7/5.5 | 6>5.5 | 2000 |
| R10/3.5 | 10/8 | 5/3.5 | 8>3.5 | 1000 |
| R10/5.5 | 10/8 | 7/5.5 | 8>5.5 | 1000 |
| R10/6 | 10/8 | 8/6 | 8>6 | 1000 |
| R12/3.5 | 12/10 | 5/3.5 | 10>3.5 | 1000 |
| R12/5.5 | 12/10 | 7/5.5 | 8>5.5 | 1000 |
| R12/6 | 12/10 | 8/6 | 8>6 | 1000 |
| R12/8 | 12/10 | 10/8 | 10>8 | 1000 |
| R12.7/10 | 12.7/10 | 12/10 | 12.7>10 | 1000 |
| R14/3.5 | 14/10 | 7/3.5 | 10>3.5 | 1000 |
| R14/8 | 14/12 | 10/8 | 12>8 | 1000 |
| R14/10 | 14/12 | 12/10 | 12>10 | 1000 |
| R16/8 | 16/13 | 10/8 | 13>8 | 800 |
| R16/1210 | 16/13 | 12/10 | 13>10 | 600 |
| R16/1410 | 16/13 | 14/10 | 13>10 | 600 |
| R18/10 | 18/14 | 14/10 | 14>10 | 500 |
