All Dielectric Self-supporting Aerial Cable – ADSS

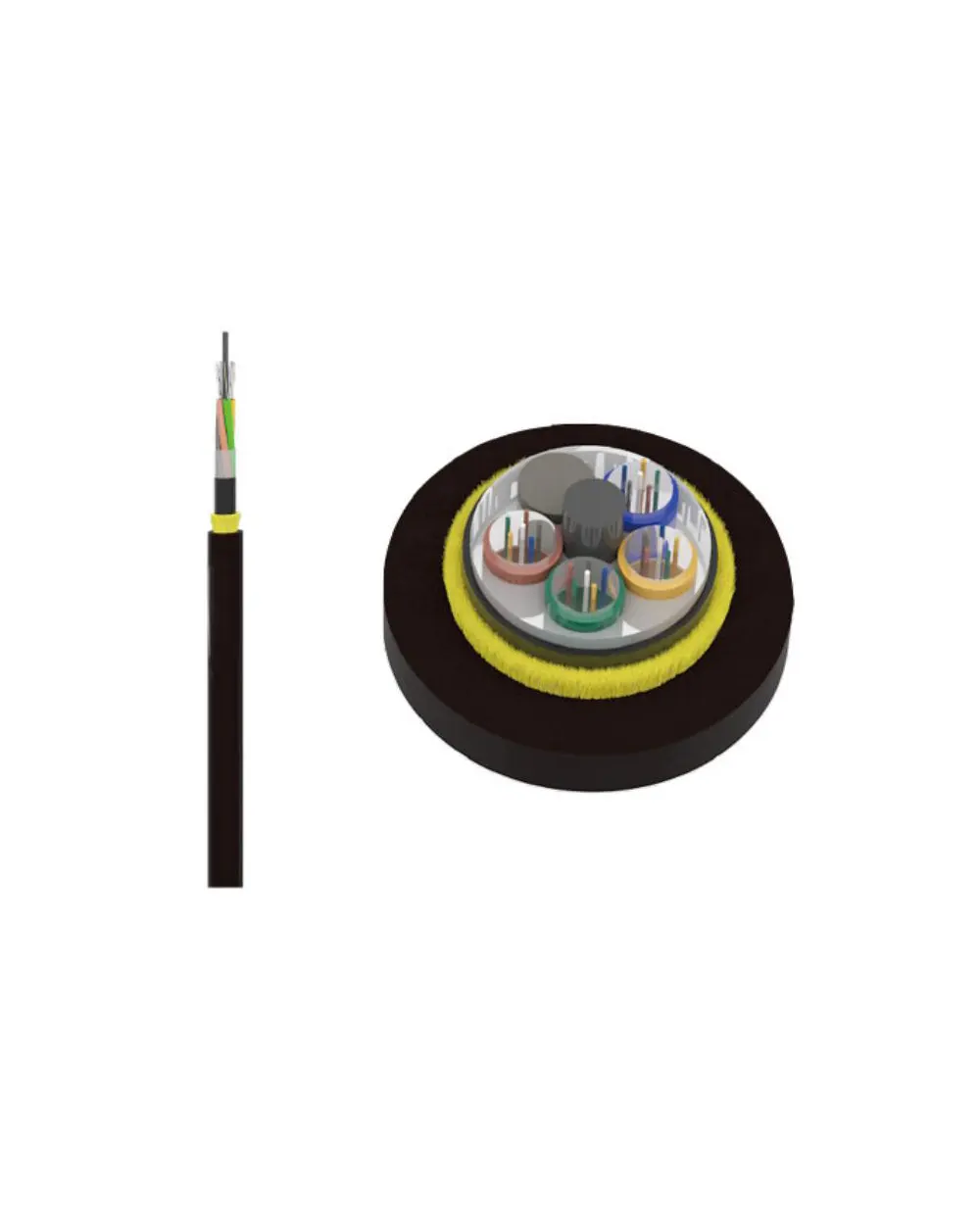

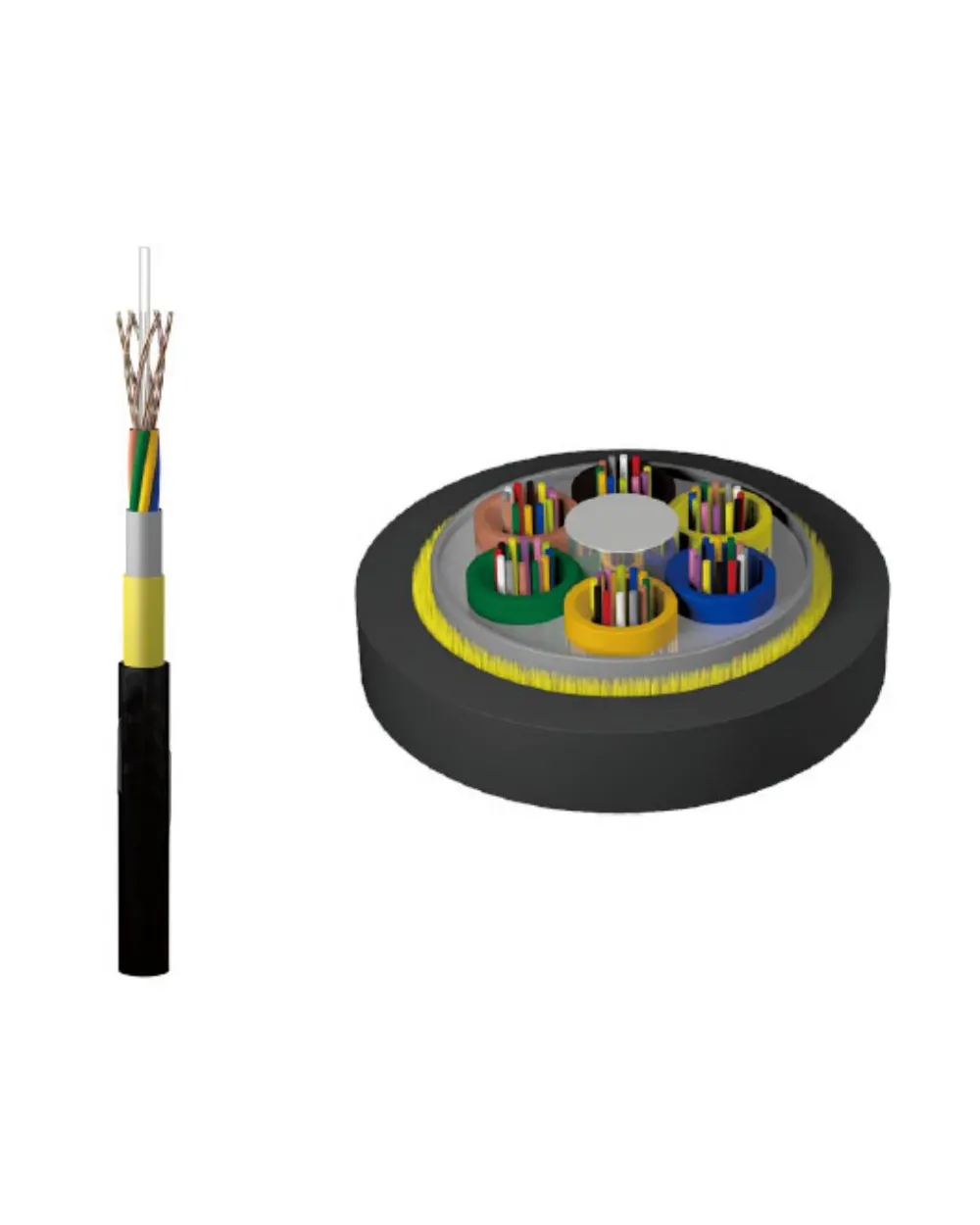

ADSS cable is loose tube stranded. The 250um bare fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
Categories: Fiber Cable & Tools, Outdoor Cable
Extra Description
After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of armaid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
- Low purchasing and construction costs
- Soft and flexible, good bending performance
- Simple structure, compact and light weight, and high practicability
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Novel notch design for easy stripping, and easy connection without splicing or with splicing, simplify the installation and maintenance
- All Dielectric Self-supporting Aerial Cable – ADSS Data Sheet
Optical Characteristics:
| Attenuation | 1310nm | ≤0.33 | [dB/km] | |
| 1383nm(after H2-aging) | ≤0.31 | [dB/km] | ||
| 1550nm | ≤0.19 | [dB/km] | ||
| 1625nm | ≤0.23 | [dB/km] | ||
| Attenuation vs. Wavelength Max. Α difference | 1285-1330nm in reference to 1310nm | ≤0.03 | [dB/km] | |
| 1525-1575nm, in reference to 1550nm | ≤0.02 | [dB/km] | ||
| Dispersion coefficient | 1285-1340nm | -3.5 to 3.5 | [ps/(nm·km)] | |
| 1550nm | ≤18 | [ps/(nm·km)] | ||
| 1625nm | ≤22 | [ps/(nm·km)] | ||
| Zero Dispersion Wavelength(λ0) | - | 1300-1324 | [nm] | |
| Zero Dispersion Slope(S0) | - | ≤0.092 | [ps/(nm2·km)] | |
| Typical Value | - | 0.086 | [ps/(nm2·km)] | |
| PMD | Maximum Individual Fibre | - | ≤0.1 | [ps/√km] |
| Link Design Value （M=20， Q=0.01%) | - | ≤0.06 | [ps/√km] | |
| Typical Value | - | 0.04 | [ps/√km] | |
| Cable Cutoff Wavelength (λCC) | - | ≤1260 | [nm] | |
| Mode Field Diameter（MFD） | 1310nm | 8.9-9.57 | [nm] | |
| 1550nm | 9.8-10.8 | [nm] | ||
| Mode Field Diameter Concentricity Error | - | ≤0.5 | [μm] | |
| Effective Group Index of Refraction（Neff ） | 1310nm | 1.466 | - | |
| 1550nm | 1.467 | - | ||
| Point Discontinuities | 1310nm | ≤0.05 | [dB] | |
| 1550nm | ≤0.05 | [dB] | ||
Geometrical Characteristics:
| Cladding Diameter | - | 125.0±0.7 | [μm] |
| Cladding Non-Circularity | - | ≤1.0 | [%] |
| Coating Diameter | - | 240-250 | [μm] |
| Coating-Cladding Concentricity Error | - | ≤12.0 | [μm] |
| Environmental Characteristics | 1310nm, 1550nm & 1625nm | ||
| Temperature Dependence Induced Attenuation | -60℃ to +85℃ | ≤0.05 | [dB/km] |
| Temperature-Humidity Cycling Induced Attenuation | -10°C to +85°C, 98% RH | ≤0.05 | [dB/km] |
| Water Immersion Dependence Induced Attenuation | 23°C，for 30 days | ≤0.05 | [dB/km] |
| Damp Heat Dependence Induced Attenuation | 85°C and 85% RH，for 30 days | ≤0.05 | [dB/km] |
| Dry Heat Aging | 85℃, for 30 days | ≤0.05 | [dB/km] |
| Typical Value | - | [dB/km] | |

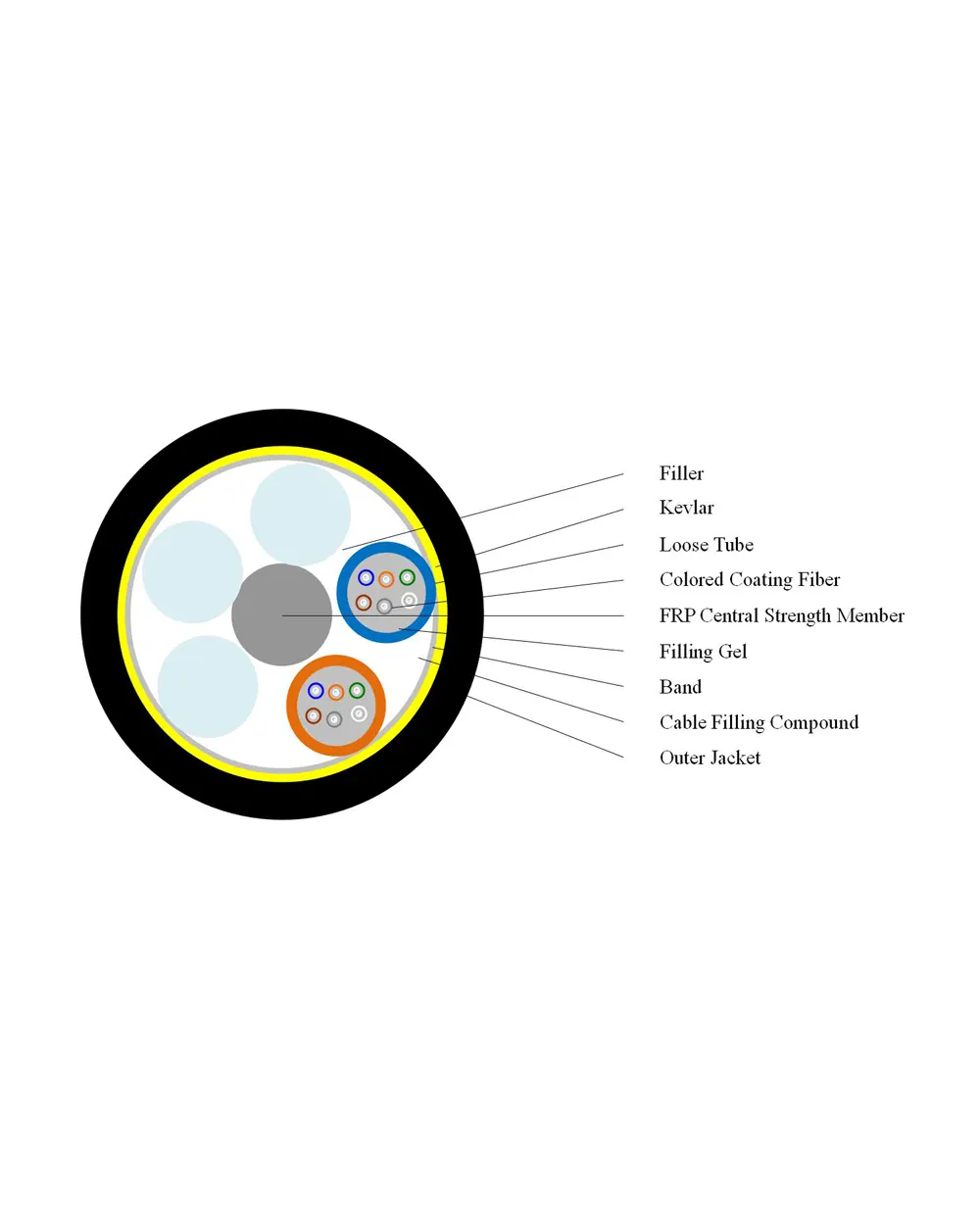

Cable Parameters:
| Items | Specifications | |
| Fiber Count | 6 or 8 or 12 | |
| Colored Coating Fiber | Dimension | 250μm±15μm |
| Color | Blue、Orange、Blue、Brown、Grey、White or else | |
| Loose Tube | Dimension | 2.0mm±0.1mm |
| Material | PBT | |
| Color | Blue、Orange | |
| Filler | Dimension | 2.0mm±0.05mm |
| Materialdays | PP | |
| Color | ≤0.05 | |
| Central Strength Member | Dimension | 1.8mm |
| Material | FRP | |
| Outer Jacket | Dimension | 10.5mm±0.2mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension（Long Term） | N | 800 |
| Tension（Short Term） | N | 2000 |
| Crush（Long Term） | N/10cm | 300 |
| Crush（Short Term） | N/10cm | 1000 |
| Min. Bend Radius（Dynamic） | mm | 20D |
| Min. Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
| Span | m | 100-120 |
