AT-FOSC-IM96N-4
Fiber Optic Joint Closure, also named Fiber Optic Splice Closure, is used to connect and protect two or more fiber optic cables in Fiber to the home network. Fiber Optic Joint Closure is an essential fiber optic part in fiber optic cabling construction. Fiber Optic Joint Closure’s quality directly influences the quality and lifespan of fiber optic network. Fiber Optic Joint Closure could be installed in aerial, pole mounting, direct buried and duct mounting.
Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting.
Extra Description
According to the shapes of Fiber Optic Joint Closure, there are inline Fiber Optic Joint Closure (horizontal Fiber Optic Joint Closure) and dome Fiber Optic Joint Closure (vertical Fiber Optic Joint Closure).
According to the functions of Fiber Optic Joint Closure, there are Fiber Optic Joint Closure for fiber fusion and FTTH Fiber Optic Splitter Joint Closure for housing fiber optic splitters in FTTH Passive Optical Network.
AT-FOSC-IM96N-4 Inline Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application
Features:
●Easy access to installation, maintenance and future expansions.
●Excellent sealing against water ingress and harsh environment.

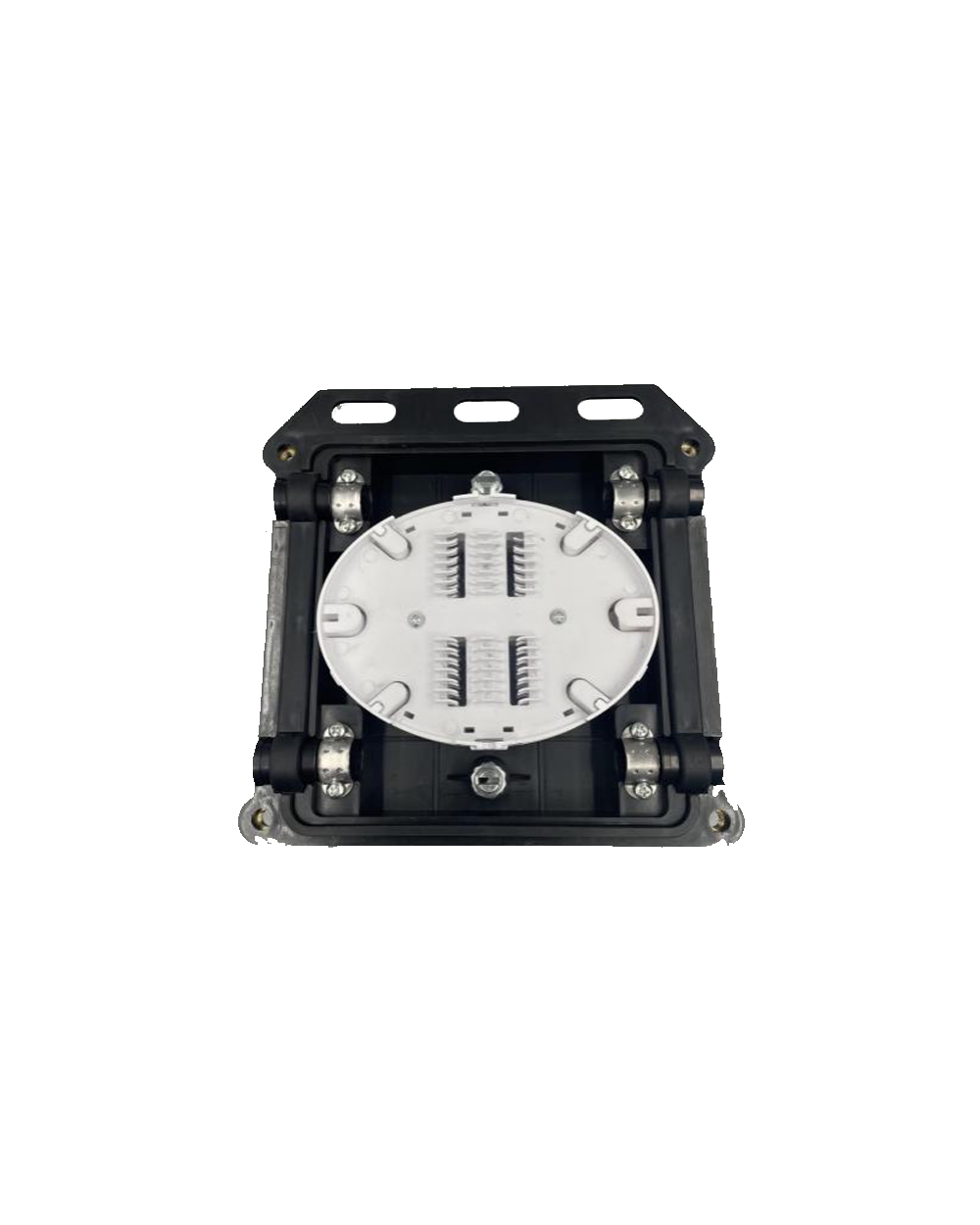

●Hinged splice trays for easy expansion without disturbing spliced fibers.
●Compatible with standard normal fiber cable types.
- AT-FOSC-IM96M-6 Data Sheet
Specifications:
| Model | AT-FOSC-IM192A-4 |
| Type | Inline type |
| Number of Inlet/Outlet ports | 4 ports |

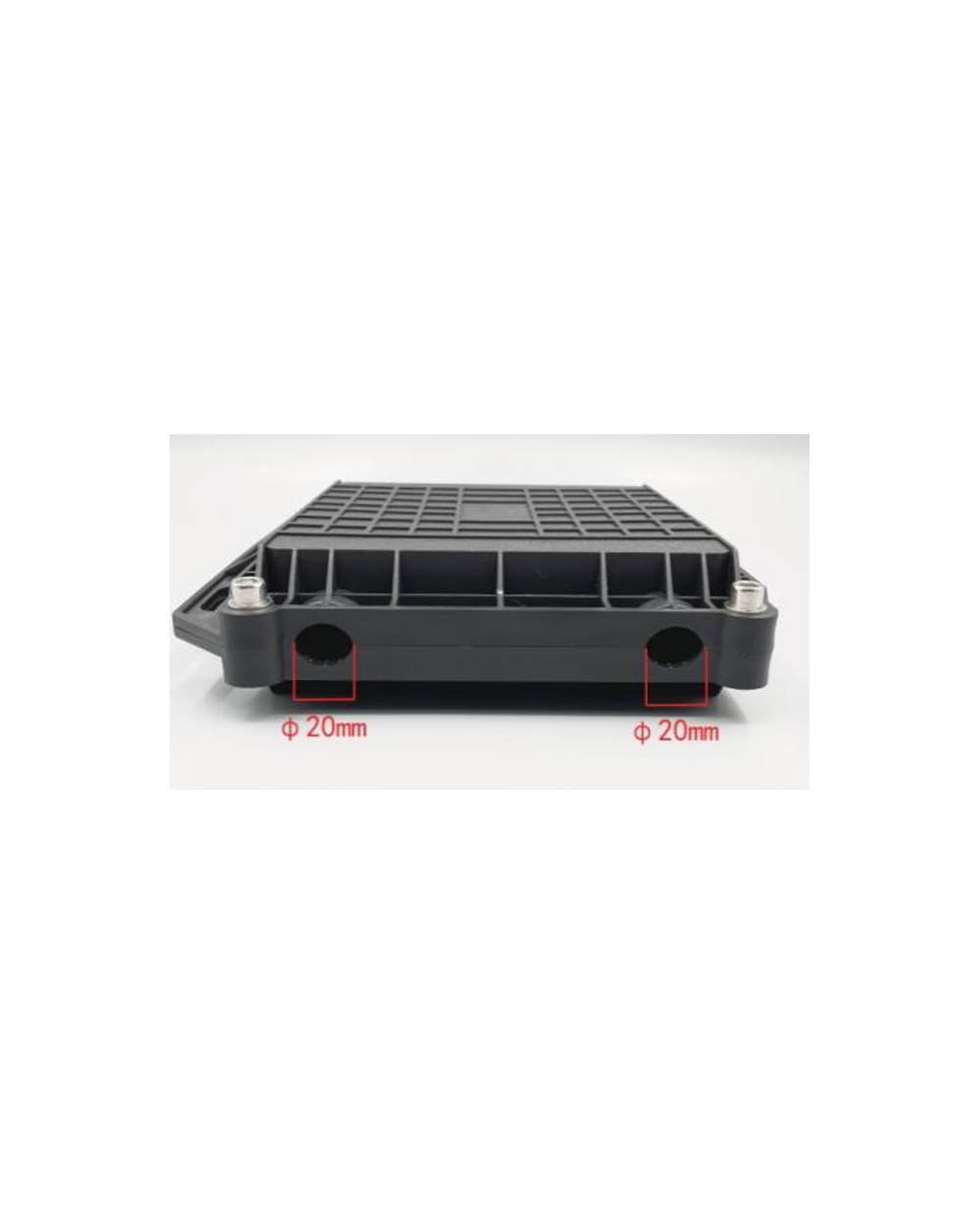

| Cable Diameter | 4 ports×20mm |
| Maximum Capacity | Bunchy: 96 fibers; |
| Capacity per Splice Tray | Bunchy: single layer: 24 fibers; |
| Quantity of Splice Tray | 4 pcs |
| Body Material | PP/ABS |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 210(L)×210(W)×58(H)mm |
| Net Weight | 0.7KG |
| Temperature | -40℃~65℃ |
Ordering Information:
