AT-DSB-12B

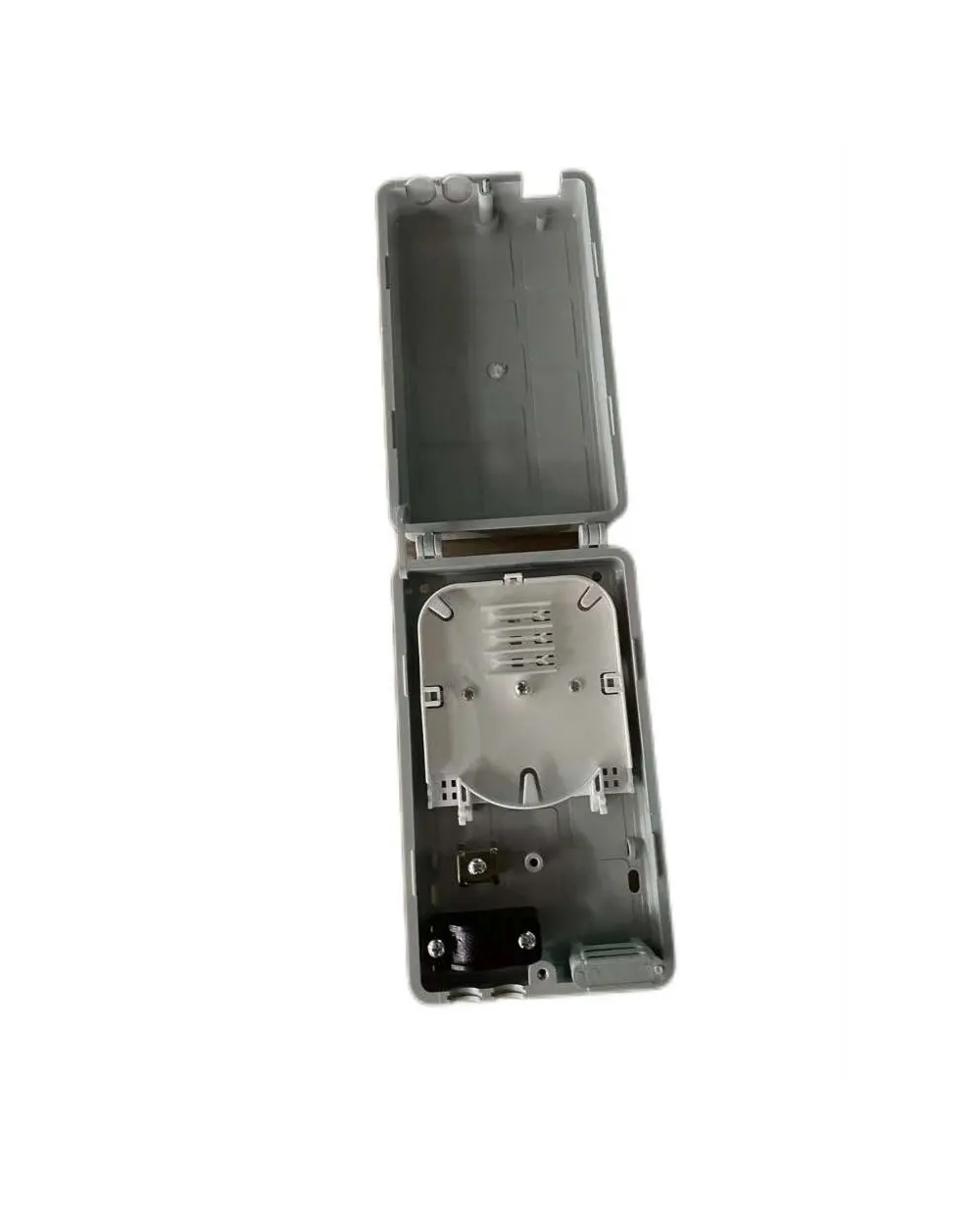

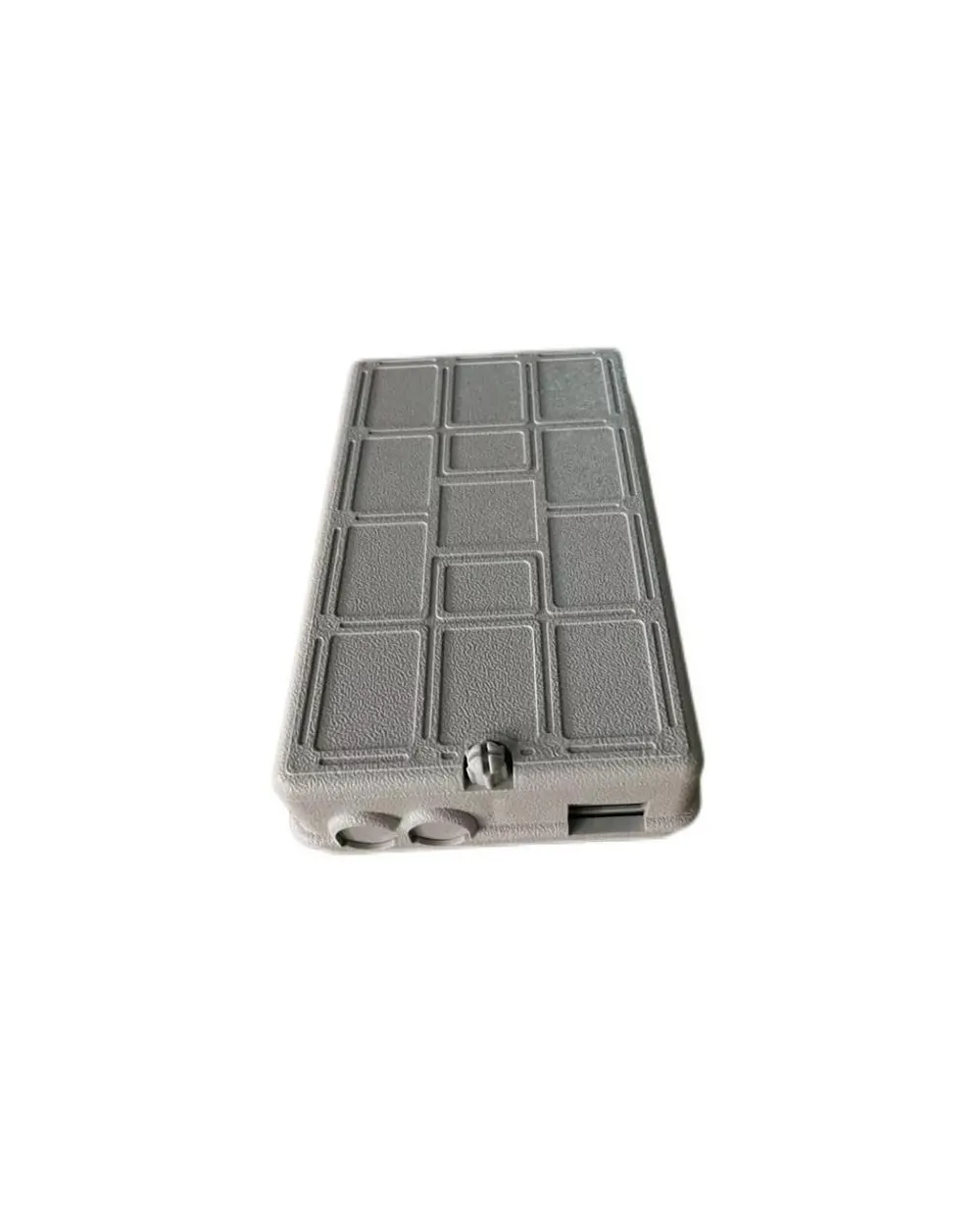

This FTTH compaction closure is a Waterproof connection box in FTTH communication network system. The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Categories: Direct Splice Box - DSB, Optical Boxes
SKU: AT-DSB-12B
Extra Description
eatures:
- Total enclosed structure.
- Suitable for FTTH Drop Cable 2.0mm*3.0mm.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
- The flip opening angle is over 90° which is convenient for the installation and maintenance of the optical fiber.
Application:
- FTTH.
- Telecommunication.
- AT-DSB-12B Data Sheet
Specifications:
| Shape | Rectangular |
| Fiber capacity | 12 fiber |
| In and out cable size | 2*3mm |
| Size | 300(H)*100(W)*45(D)mm |
| Color | Black |
| Working Temperature | -25~65℃ |
| Atmospheric Pressure | 70Kpa-106Kpa |
Ordering Information:
