AT-FWO-1-C
Fiber Optic Outlet is specially designed for FTTH application. Fiber Optic Outlet integrates fiber termination, storage and patching in one highly compact box.
It is used to protect the termination of FTTH Drop Cable and field assembly fast connector indoors.
Categories: Faceplate Wall Outlet - FWO, Optical Boxes
SKU: AT-FWO-1-C
Extra Description
Features:
- Simple operation and low construction cost.

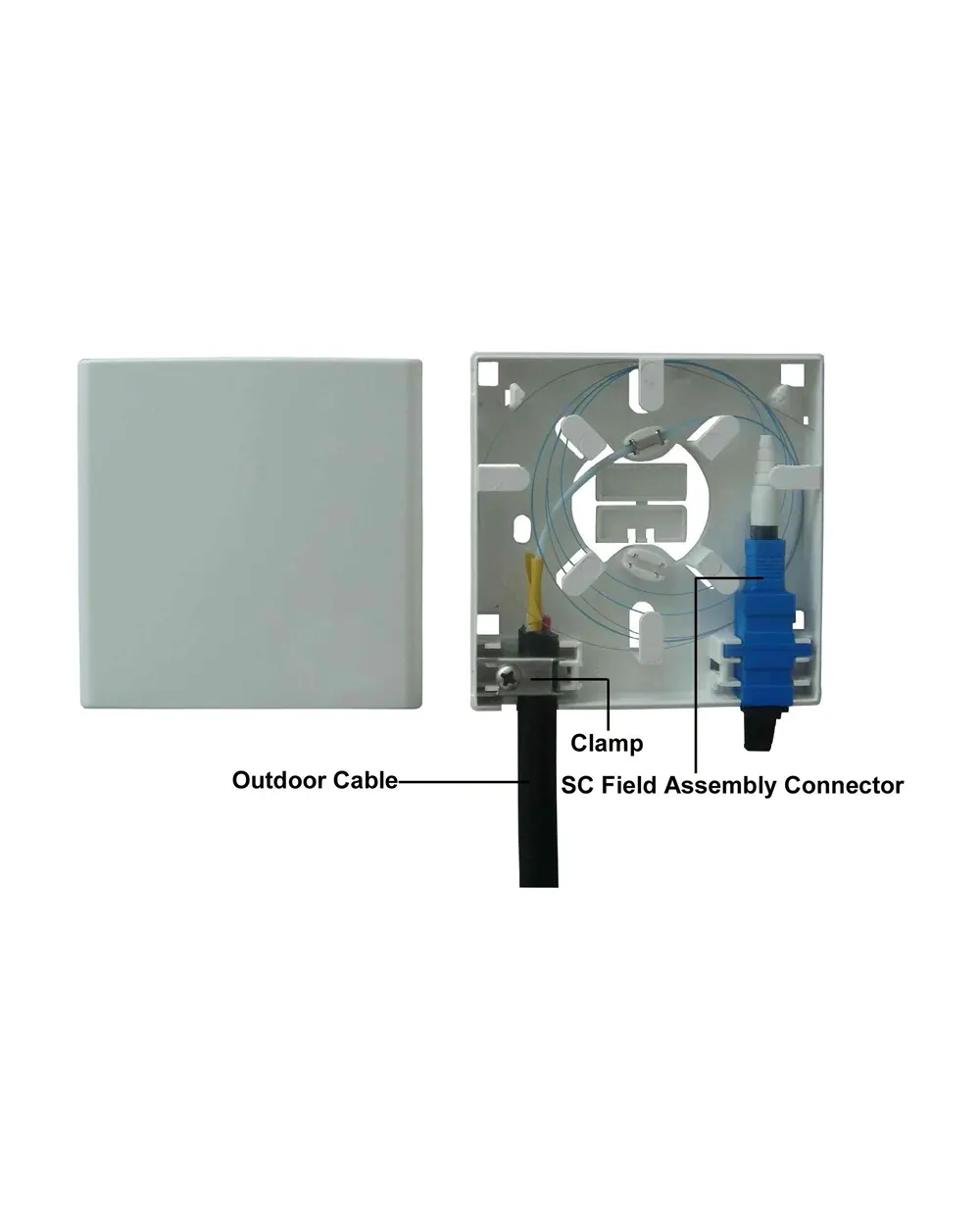

- Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
- No need to open the cover when plugging and unplugging fiber optic connectors.
- Downward optical port in Access Terminal Box (ATB) prevents eye injury by laser.
- Access Terminal Box (ATB) has drop cable inlets each side, left, right and bottom sides for flexible cable routing .
Application:
- Wall mounting installation.
- Suitable for 2*3mm FTTH Drop Cable and Round Drop Cable Φ5–Φ7 mm.
- AT-FWO-1-C Data Sheet
Specifications:
| Material | PC & ABS |
| Size (H*W*D) | 86×86×25mm |
| Capacity | SC: 1 fiber LC: 2 fibers |
| Optical Cables Inlet | Left, right, bottom and base |
| Drop cable type | Ф8~Ф10.5mm outdoor cable, 2×3mm drop cable & indoor cable |
| Net Weight | 0.3kg |
| Color | White |
Ordering Information:
