AT-FWO-2-B

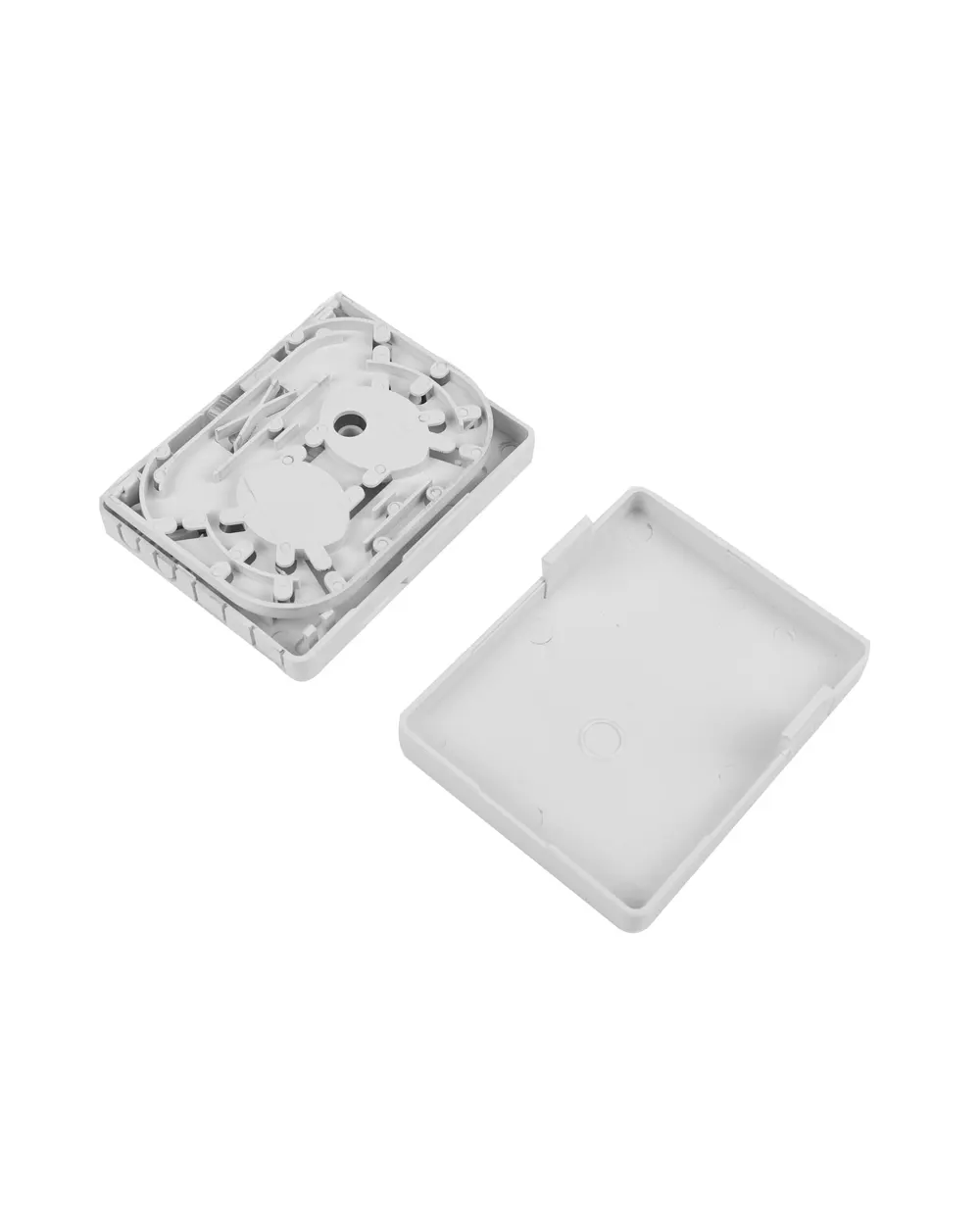

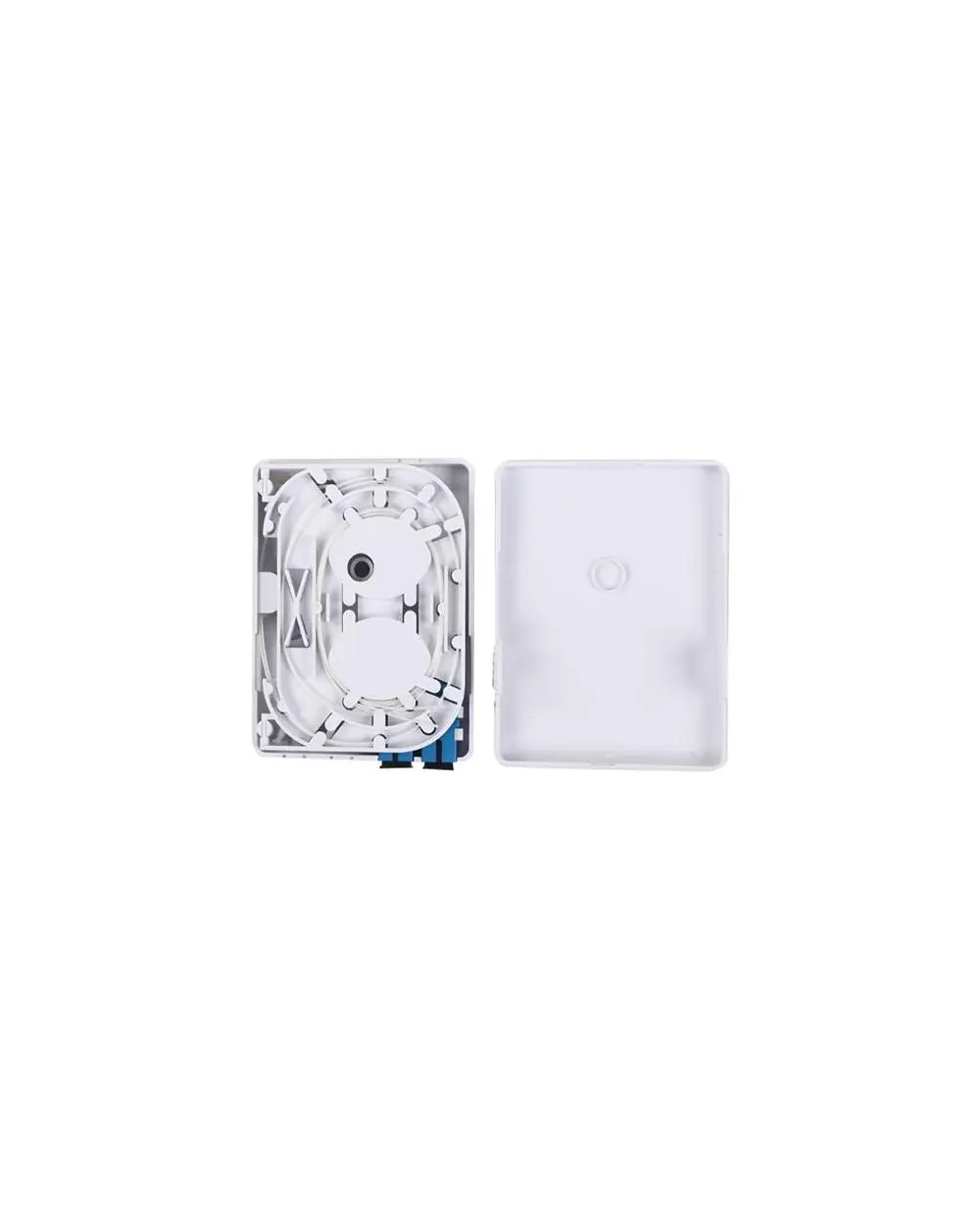

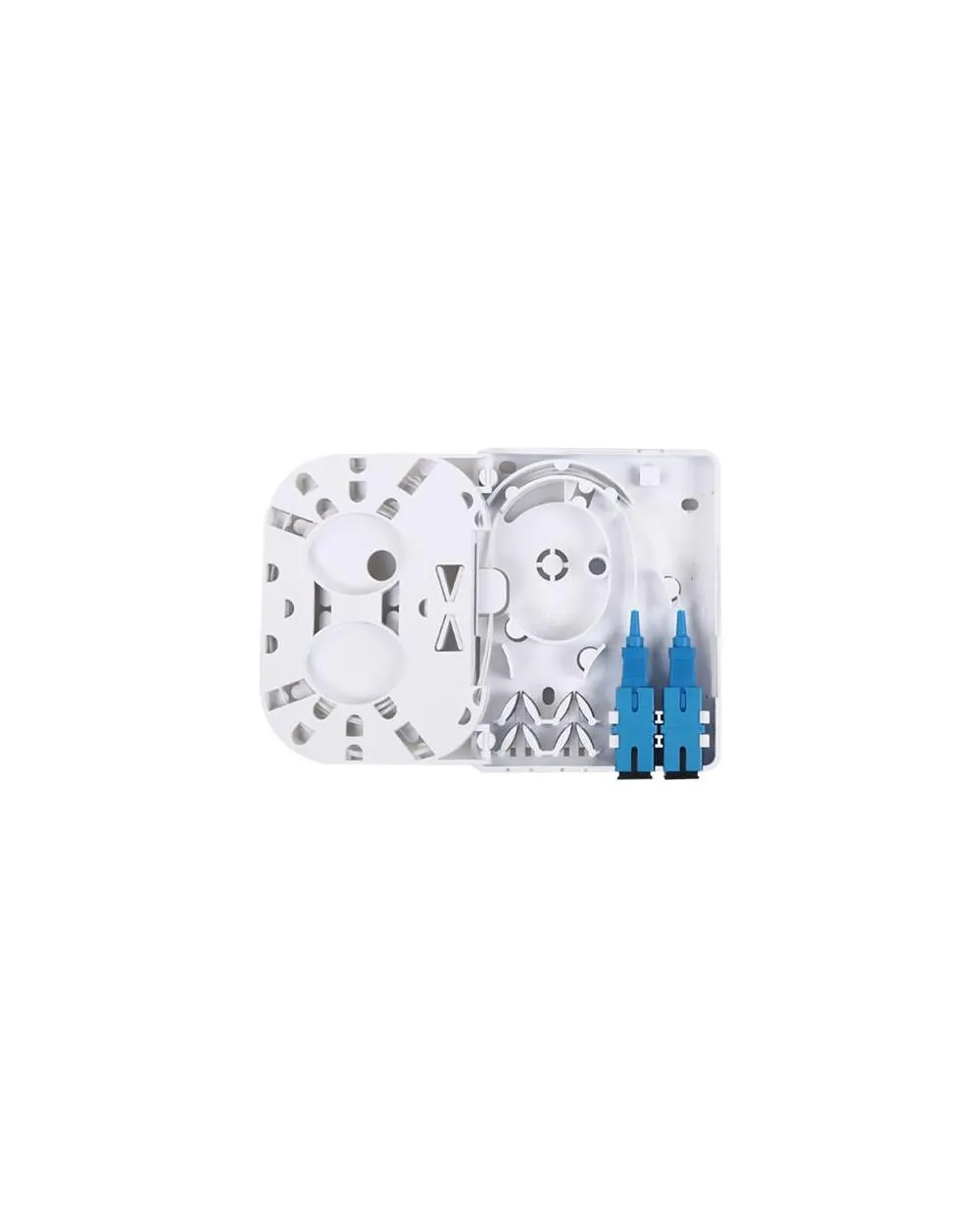

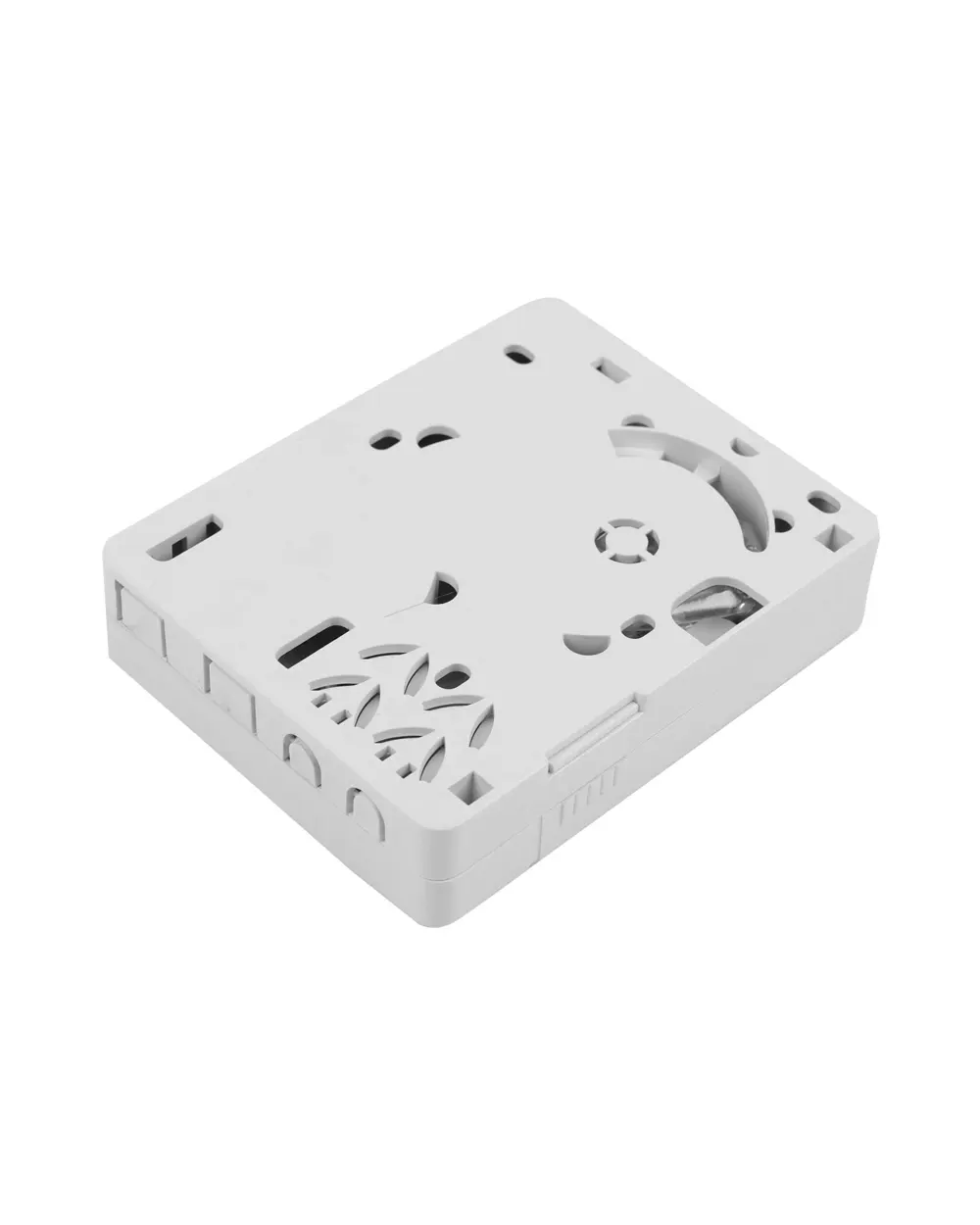

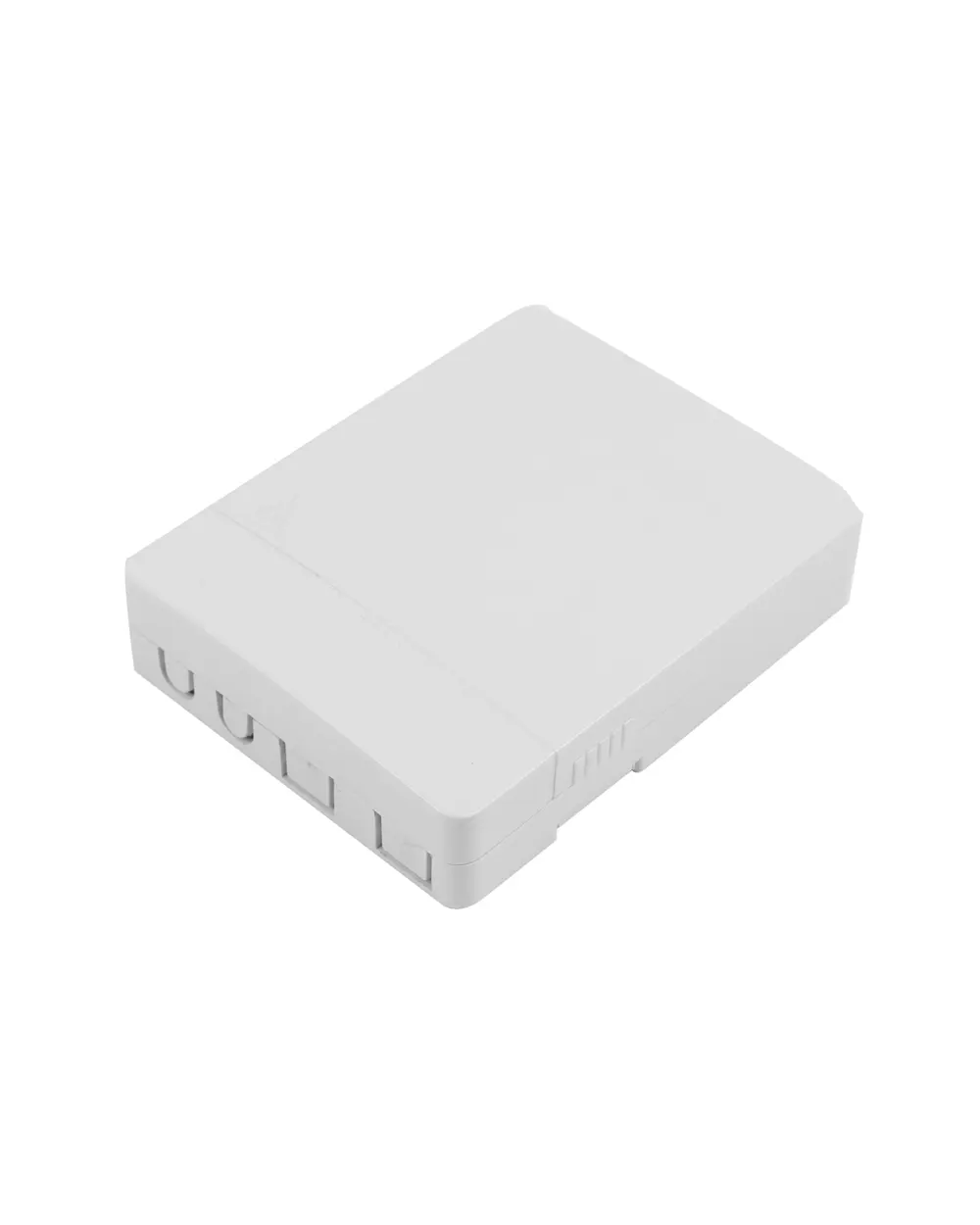

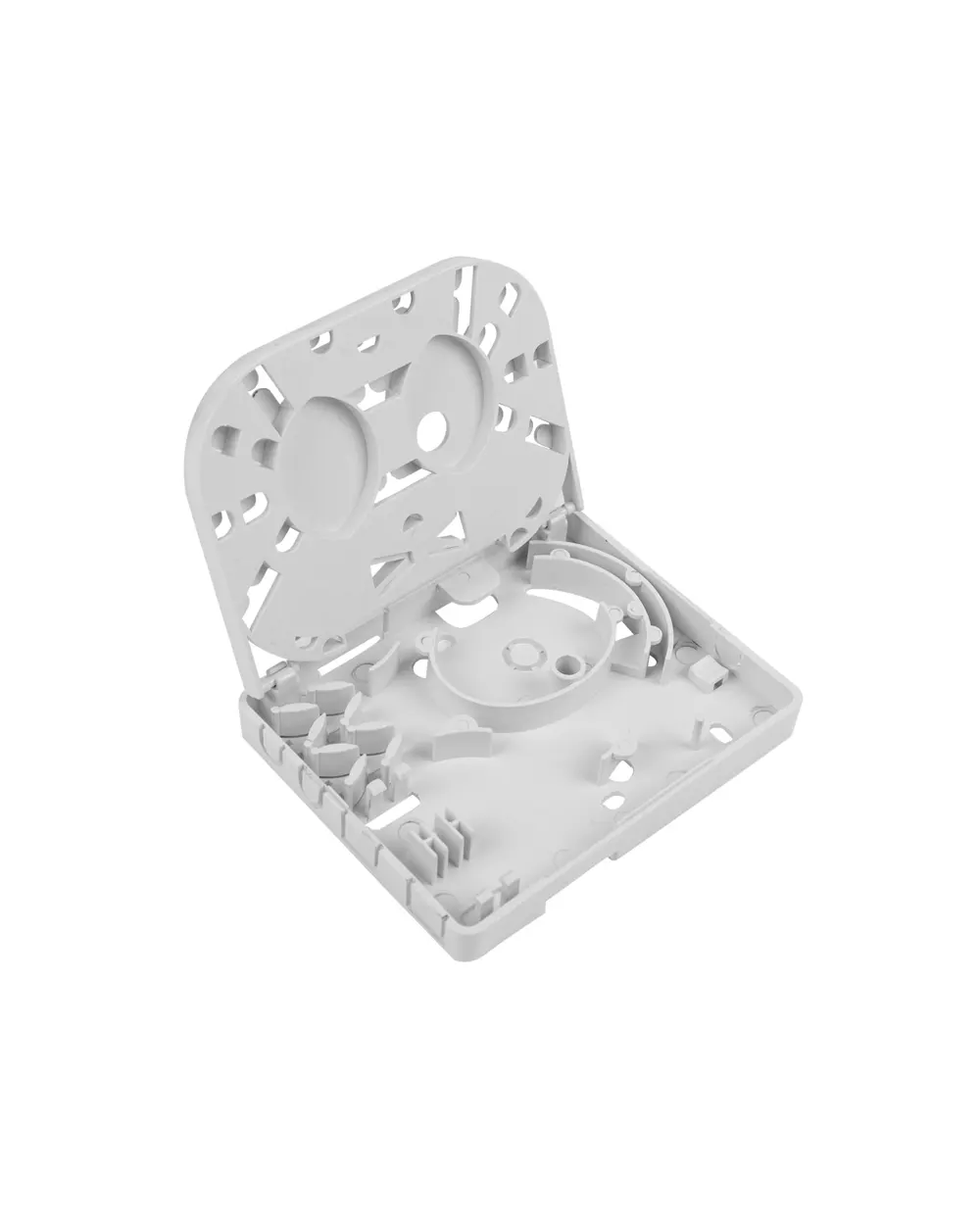

Access Terminal Box (ATB) is designed to connect the drop cable with PON ONU (Optical Network Unit) in FTTH application. Access Terminal Box (ATB) is installed on the wall and provides protection for optical fiber splicing or termination.
Access Terminal Box (ATB) supports fusion splicing, mechanical splicing and field assembly fast connectors. Access Terminal Box (ATB) is compact and cost-effective.
Categories: Faceplate Wall Outlet - FWO, Optical Boxes
SKU: AT-FWO-2-B
Extra Description
Features:
- Simple operation and low construction cost.
- Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
- No need to open the cover when plugging and unplugging fiber optic connectors.
- Downward optical port in Access Terminal Box (ATB) prevents eye injury by laser.
- Access Terminal Box (ATB) has drop cable inlets each side, left, right and bottom sides for flexible cable routing .
Application:
- Wall mounting installation.
- Suitable for 2*3mm FTTH Drop Cable and Round Drop Cable Φ5–Φ7 mm.
- AT-FWO-2-B Data Sheet
Specifications:
| Material | PC & ABS |
| Size (H*W*D) | 105*82*21mm |
| Capacity | SC: 2 fiber LC: 4 fibers |
| Drop cable type | Flat: 2 mm x 3 mm Round: Φ5–Φ7 mm |
| Net Weight | 0.3kg |
| Color | White |
Ordering Information:
