AT-FSB-16A
MDU Optical Splitter Box is used for indoor plant MDU (multi-dwelling) buildings in FTTH networks.
It carries out optimized fiber management for riser cable and 8 fibers distribution in P2P network or 8 fibers splitting in P2MP PON network, and serves 8 subscribers.

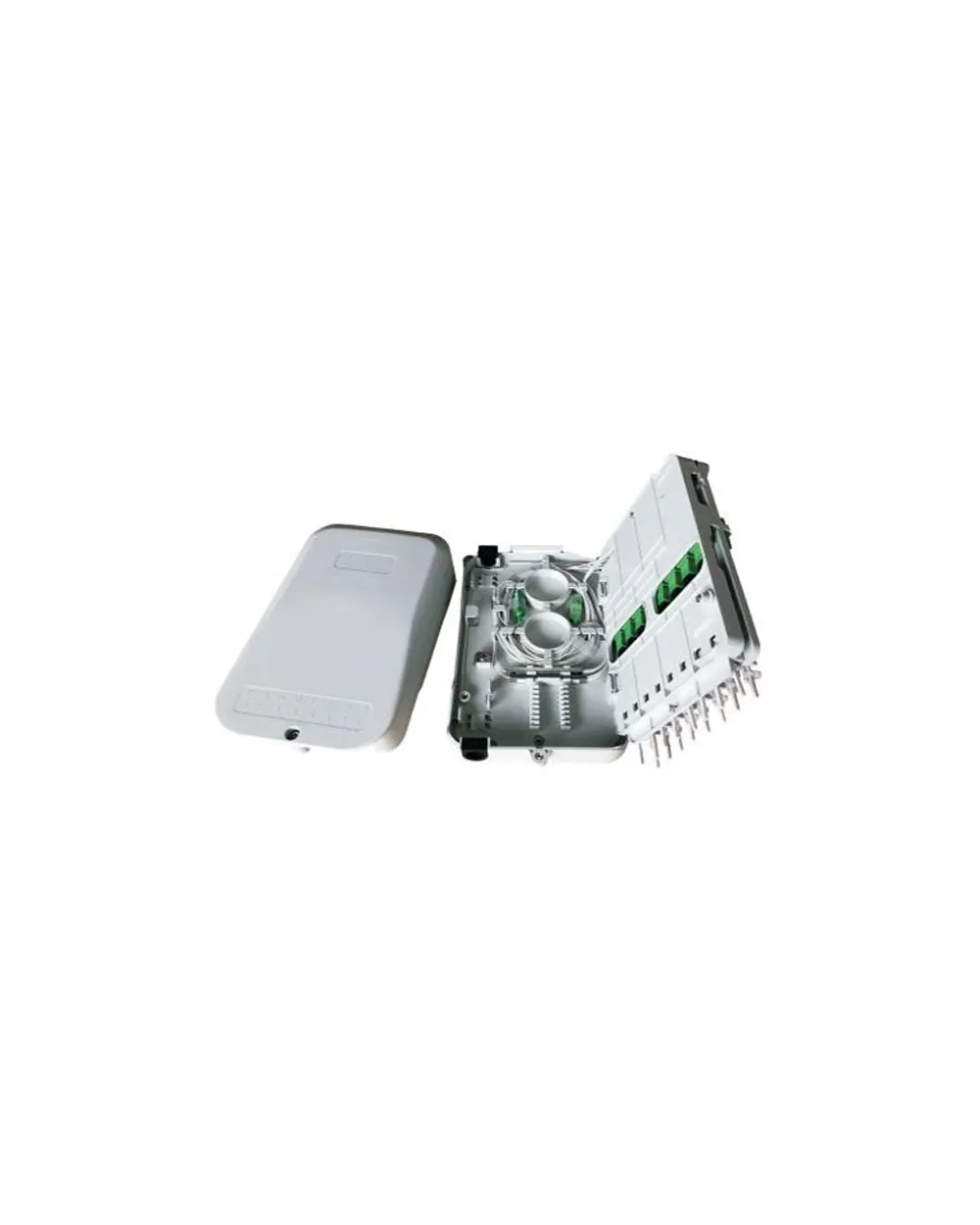

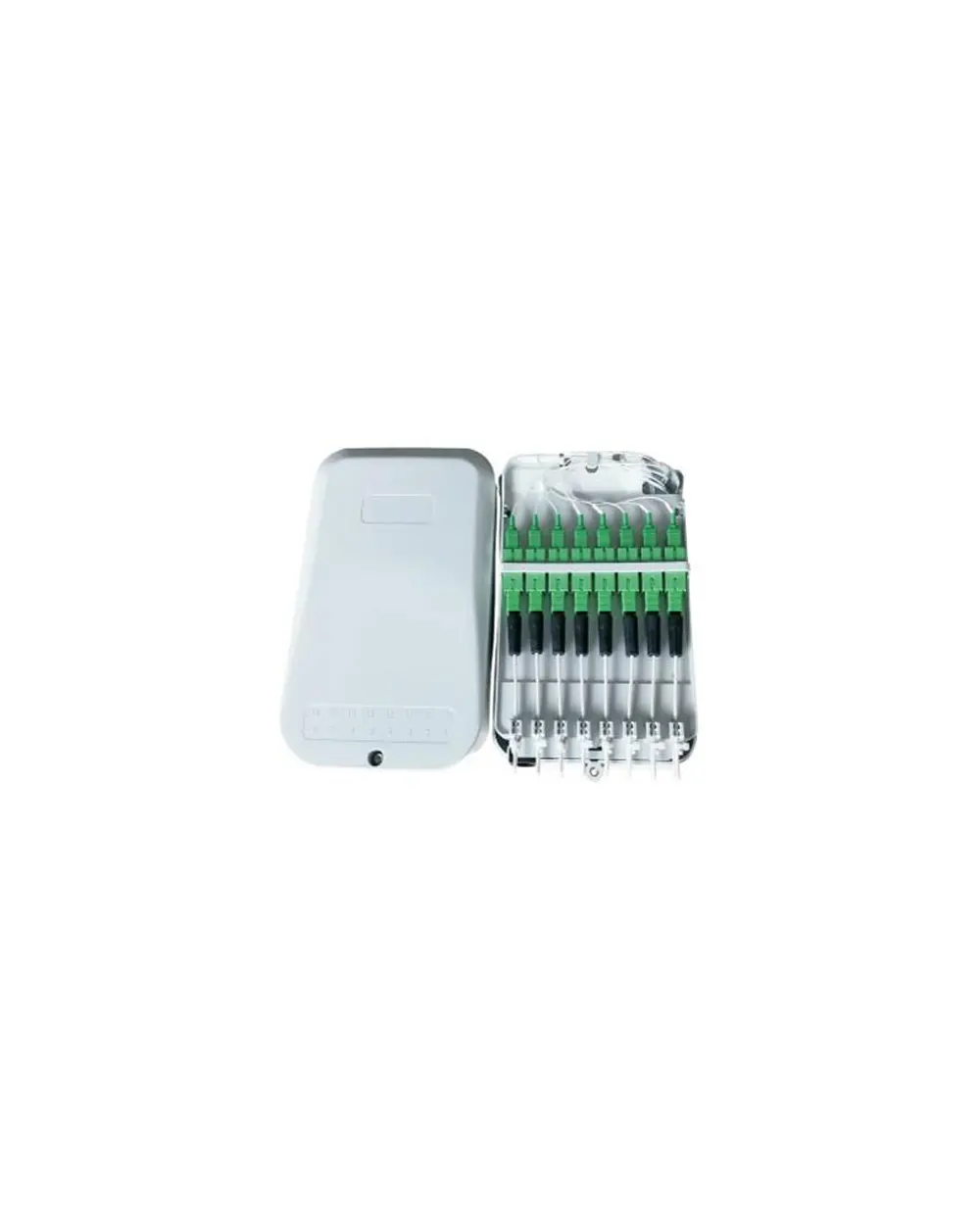

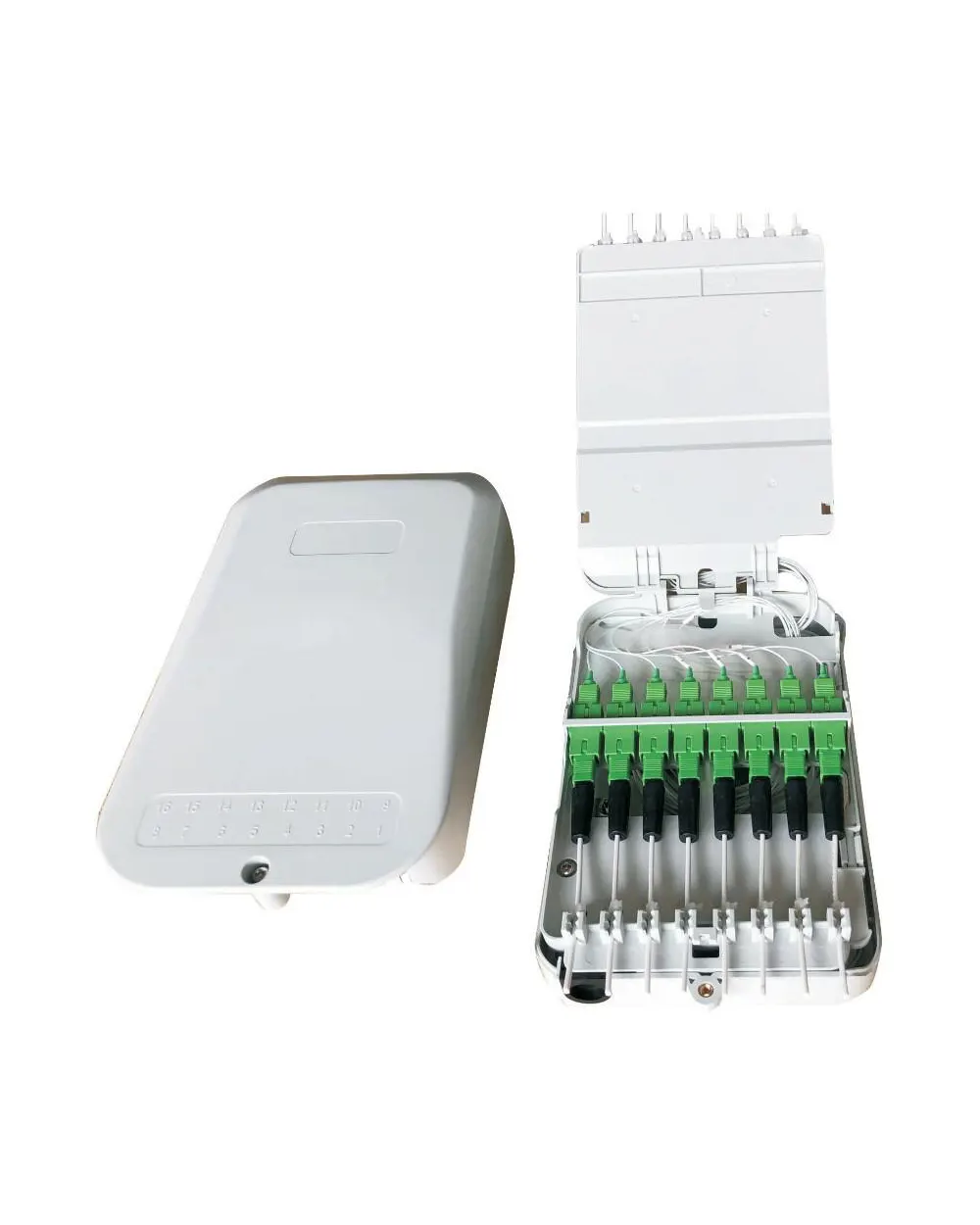

MDU Optical Splitter Box integrates fiber cable fixation, storage, uncut, splicing, distribution, splitting in an indoor wall mounting box.
Categories: Indoor Wall Mount Fiber Splitter Box FSB, Optical Boxes
SKU: AT-FSB-16A
Extra Description
eatures:
- Various installation applications.
- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- Separate splicing area and distribution area for easy fiber management.
- 1×8 blockless spitter can be installed as an option.
- AT-FSB-16A Data Sheet
Specifications:
| Max. Capacity | SC: 16 fibers |
| Max. Inlet Cable Diameter | 10mm |
| Inlet Cable Number | 2pcs (top: 1pcs, down: 1pcs) |
| Outlet Cable Number | 16pcs |
| Protection Grade | IP30 |
| Installation Method | Wall mounting |
| Working Environment | Indoor |
| Dimension | 210*140*60 mm |
| Color | RAL7035 gray |
| Working Temperature | -25°C~+55°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
| Side Pressure | ≥2000N / 10cm |
| Impact | ≥20N.m |
Ordering Information:
