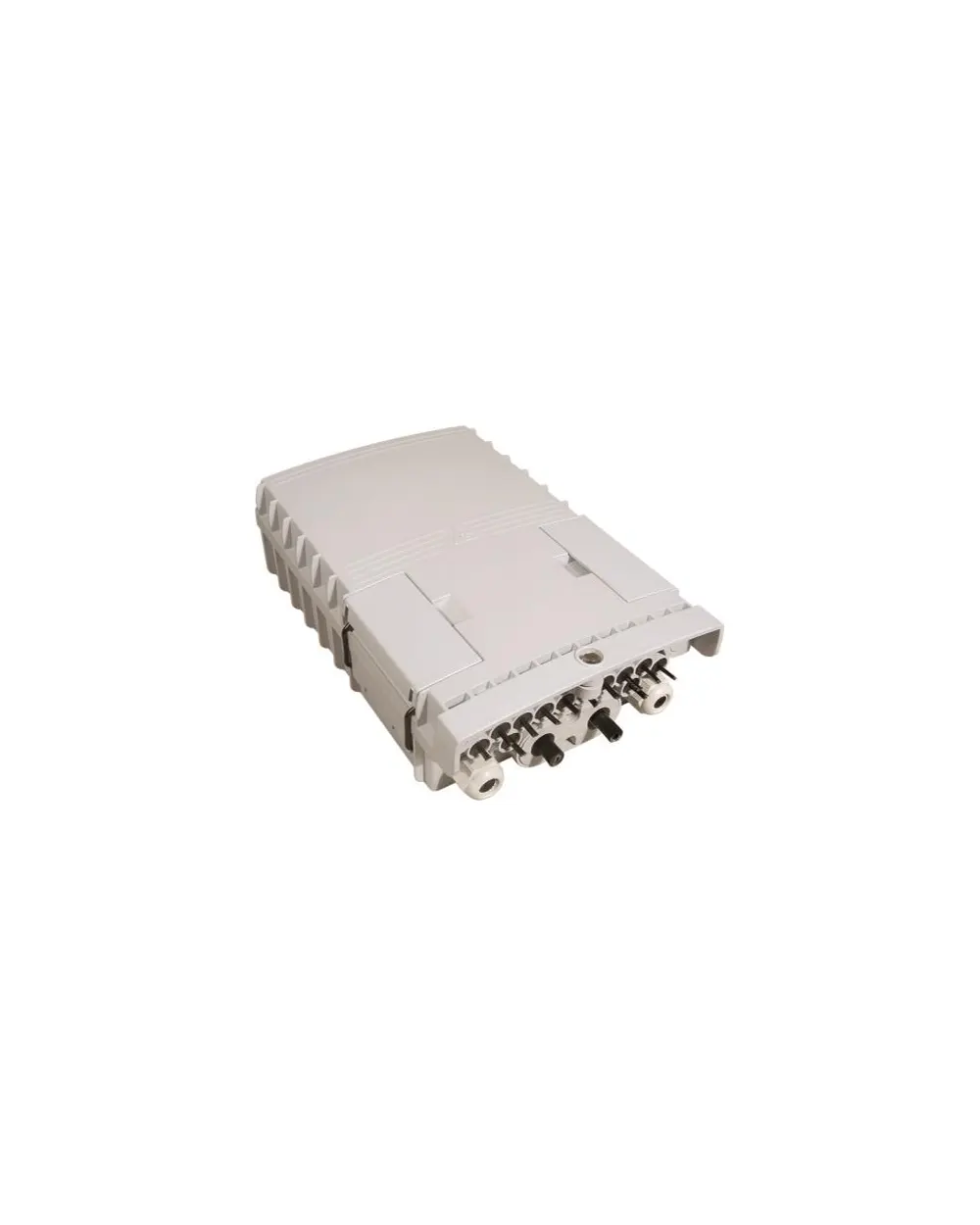

AT-ODB-12D
Fiber Terminal Box FTB provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network.
ASLA TECH provides Fiber Terminal Box TB made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

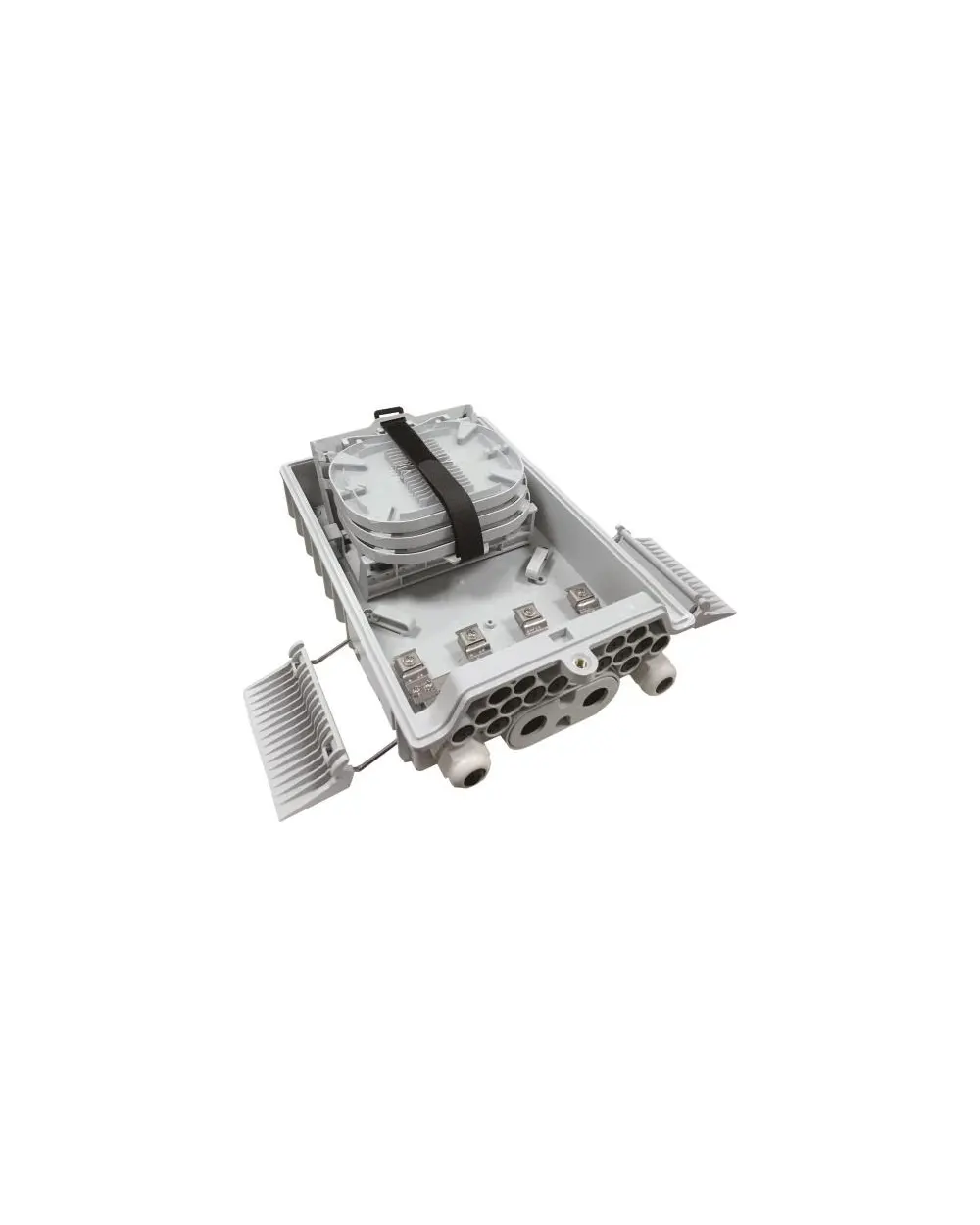

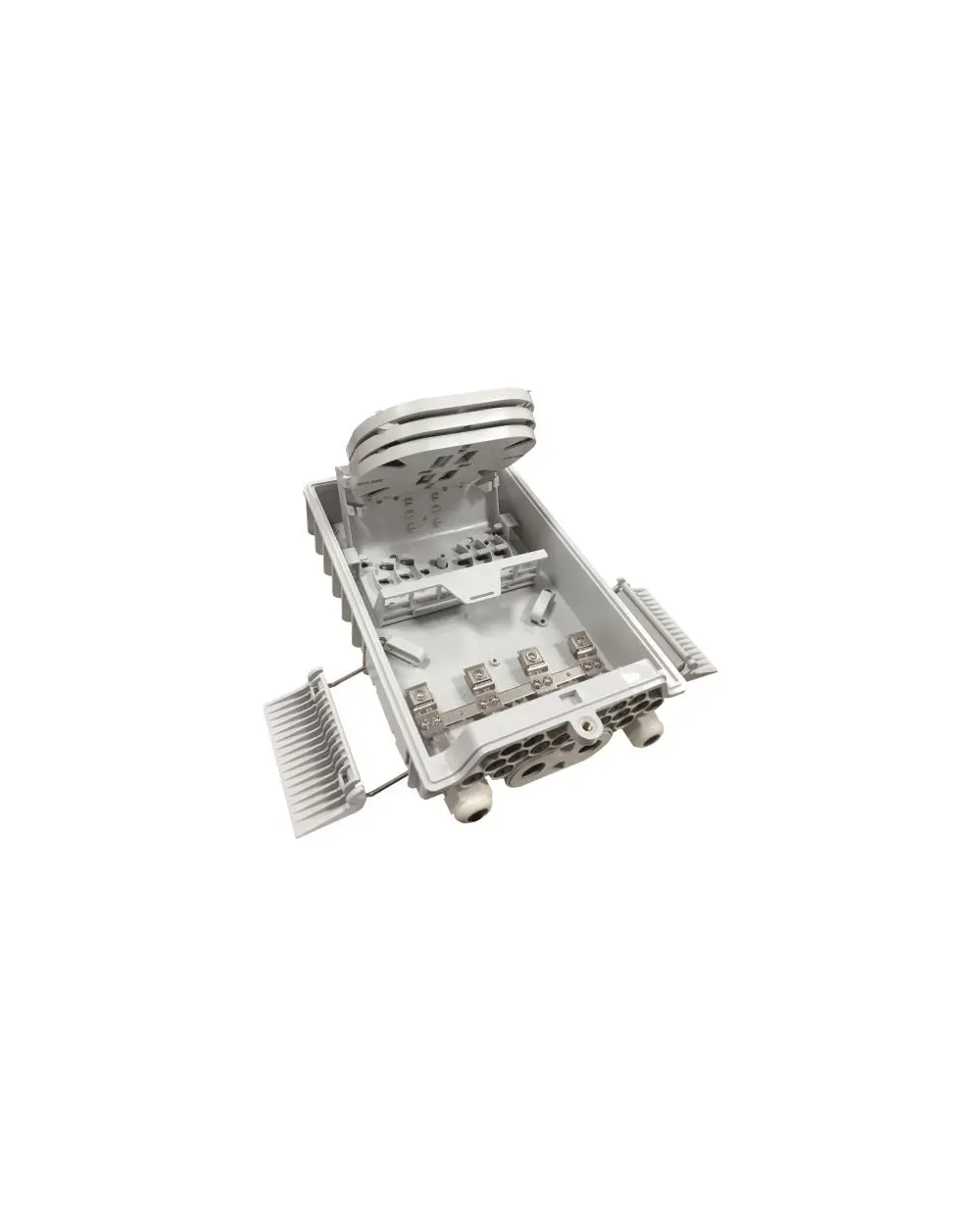

AT-ODB-12D Fiber Terminal Box FTB integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Categories: Optical Boxes, Optical Distribution Box - ODB
SKU: AT-ODB-12D
Extra Description
eatures:
- Water-proof design with IP66 Protection level.
- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- 1×8 blockless spitter can be installed as an option.
- AT-ODB-12D Data Sheet
Specifications:
| Max. Capacity | SC: 12 fibers LC: 24 fibers |
| Max. Inlet Cable Diameter | 20mm |
| Inlet Cable Number | 2 cable glands or 1 uncut cable port (Mid-span port) |
| Max. Outlet Cable Diameter | 4.5×7.5mm |
| Outlet Cable Number | 12pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 274(H)*175(W)*82(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information:
