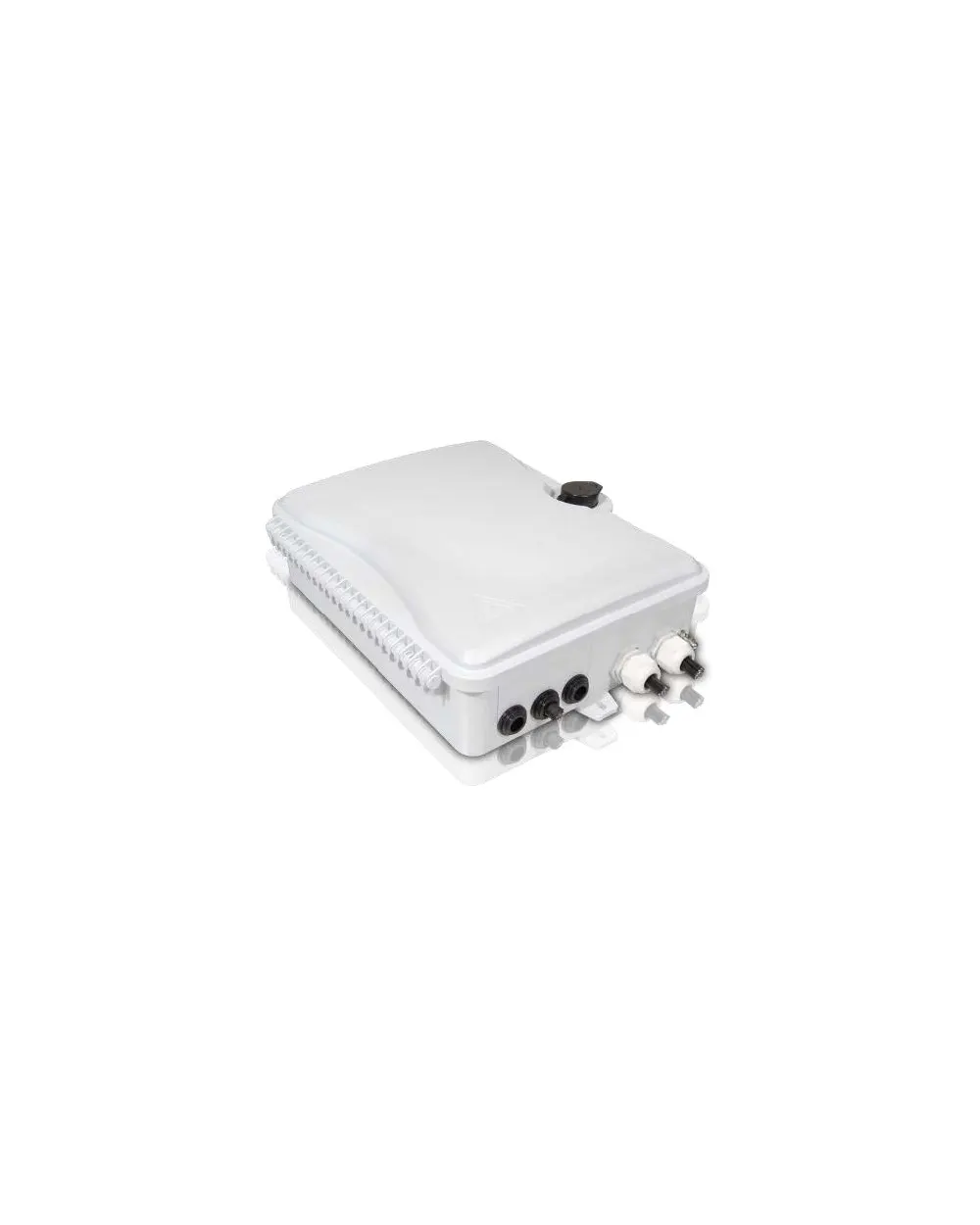

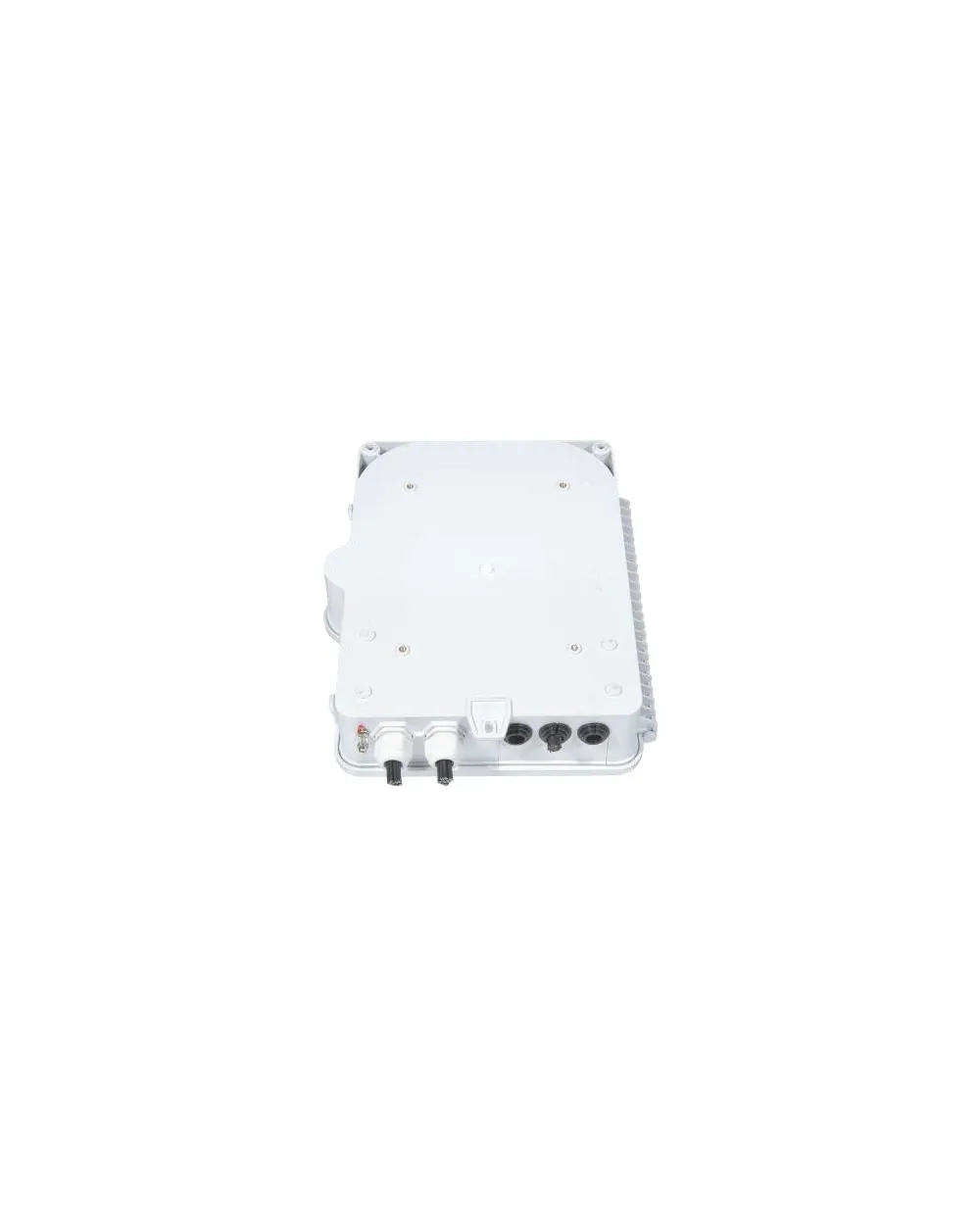

AT-ODB-16B
Fiber Terminal Box FTB provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network.
ASLA TECH provides Fiber Terminal Box TB made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.

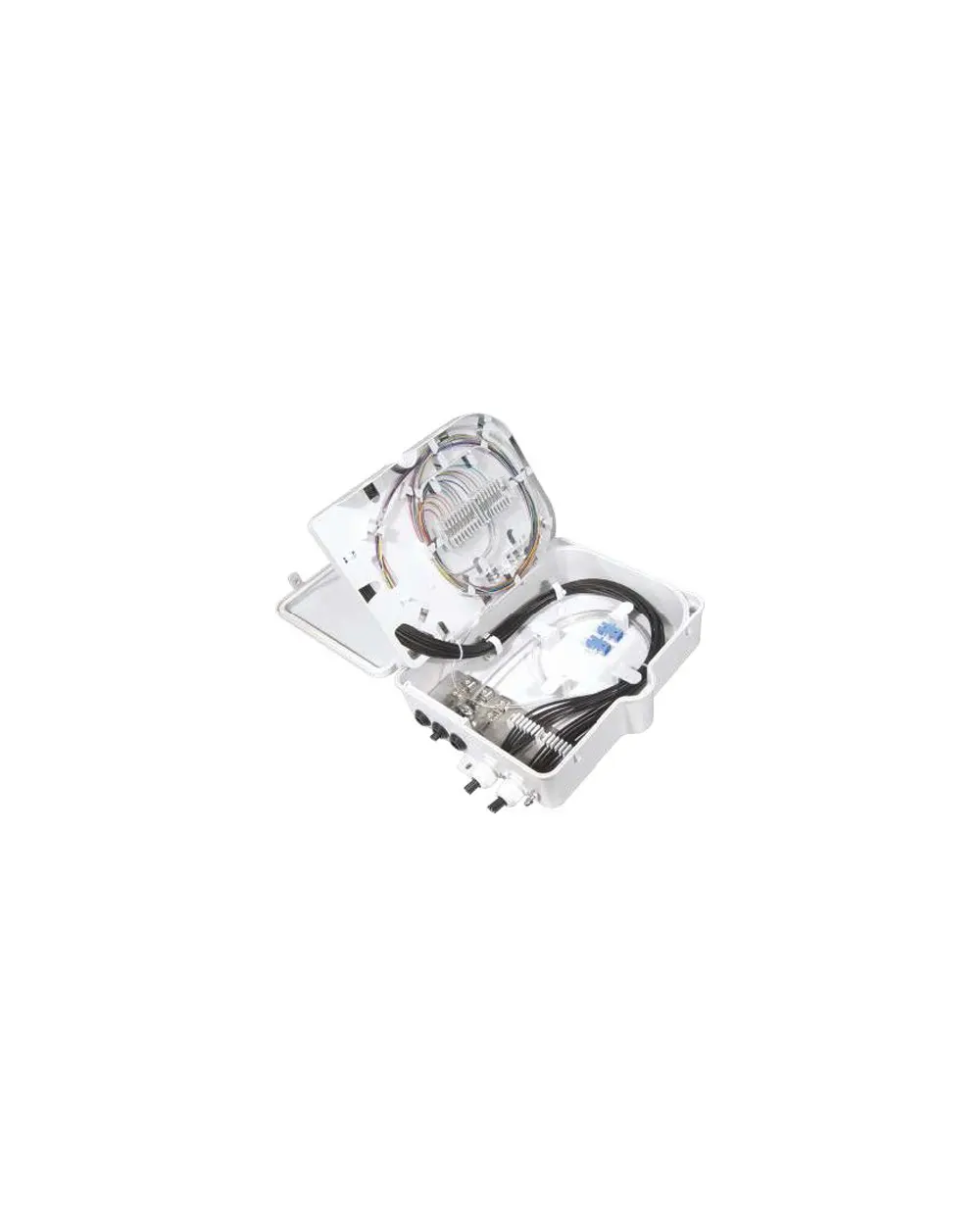

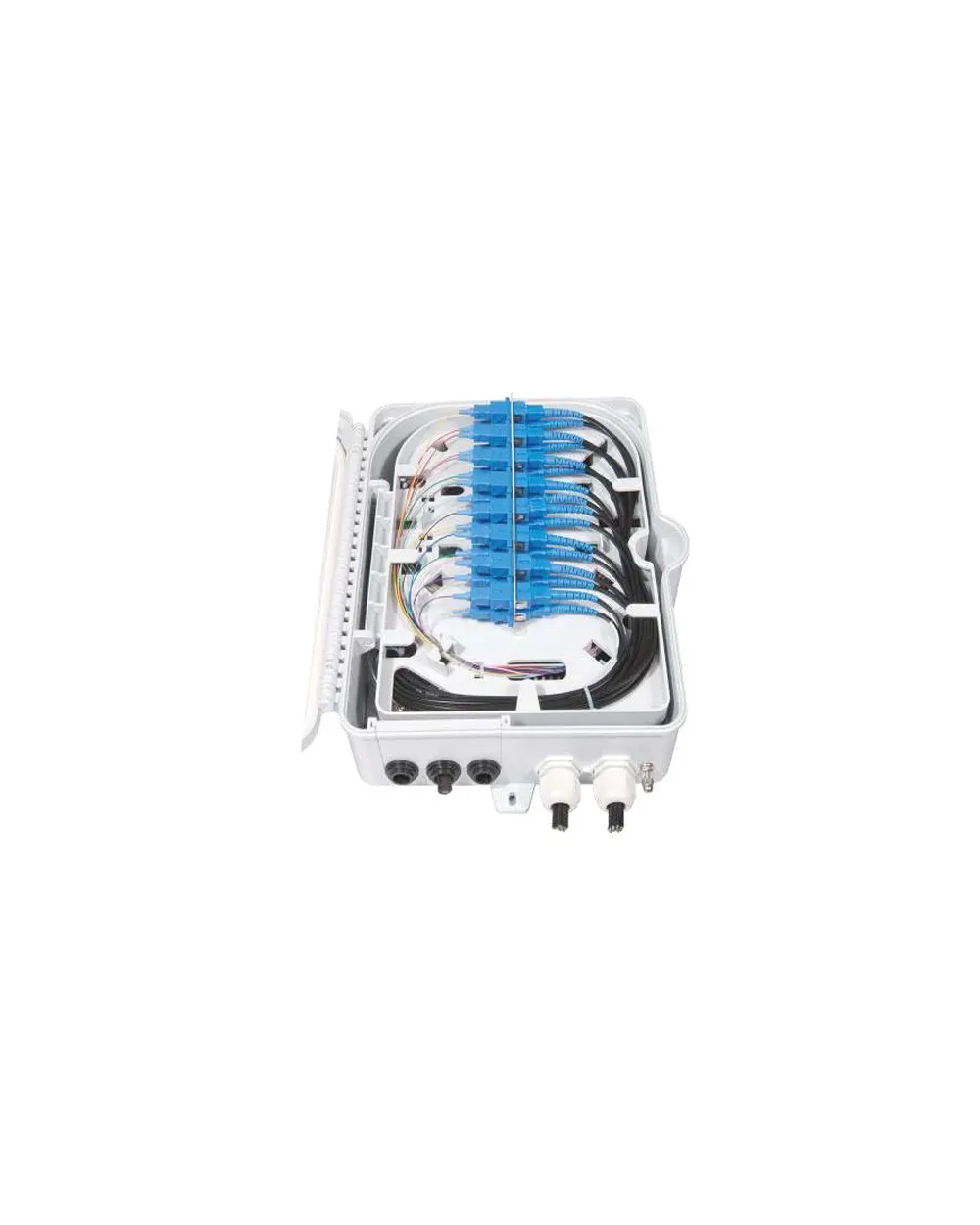

AT-ODB-16B Fiber Terminal Box FTB integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Categories: Optical Boxes, Optical Distribution Box - ODB
SKU: AT-ODB-16B
Extra Description
atures:
- Efficient cable management.
- UV protection and anti-aging material.
- Water-proof design with IP65 Protection level.
- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1×8 or 1×16 blockless splitter can be installed as an option.
- AT-ODB-16B Data Sheet
Specifications:
| Max. Capacity | SC: 16 fibers LC: 32 fibers |
| Max. Inlet Cable Diameter | 12mm |
| Inlet Cable Number | 3pcs |
| Max. Outlet Cable Diameter | 2×3mm |
| Outlet Cable Number | 2pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 280(H)*110(W)*85(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
