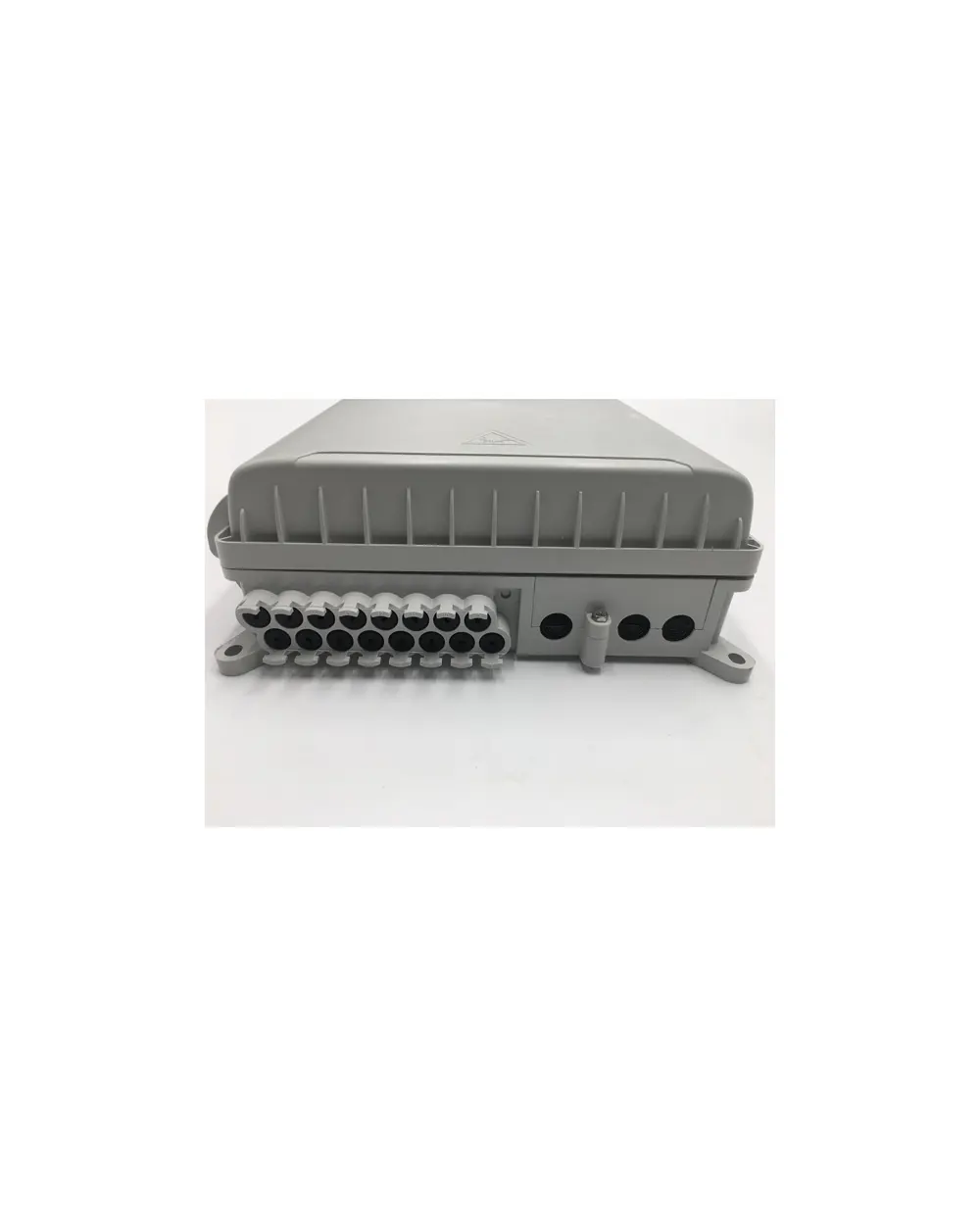

AT-OSB-16I
Optical Splitter Box provides fiber optic cable management for the connection of distribution cables and
drop cables via Insertion Module PLC Splitter at the user access point in FTTH Passive Optical Network.
ASLA TECH provides Optical Splitter Box made of high quality PC and ABS plastic alloy from 2 fibers to 64 fibers splitting.
AT-OSB-16I Optical Splitter Box integrates fiber cable fixation, storage, splicing, distribution and splitting in an outdoor and indoor wall mounting and outdoor pole mounting box.
Categories: Optical Boxes, Optical Splitter Box - OSB
SKU: AT-OSB-16I
Extra Description
eatures:
- Efficient cable management.
- UV protection and anti-aging material.
- Water-proof design with IP65 Protection level.

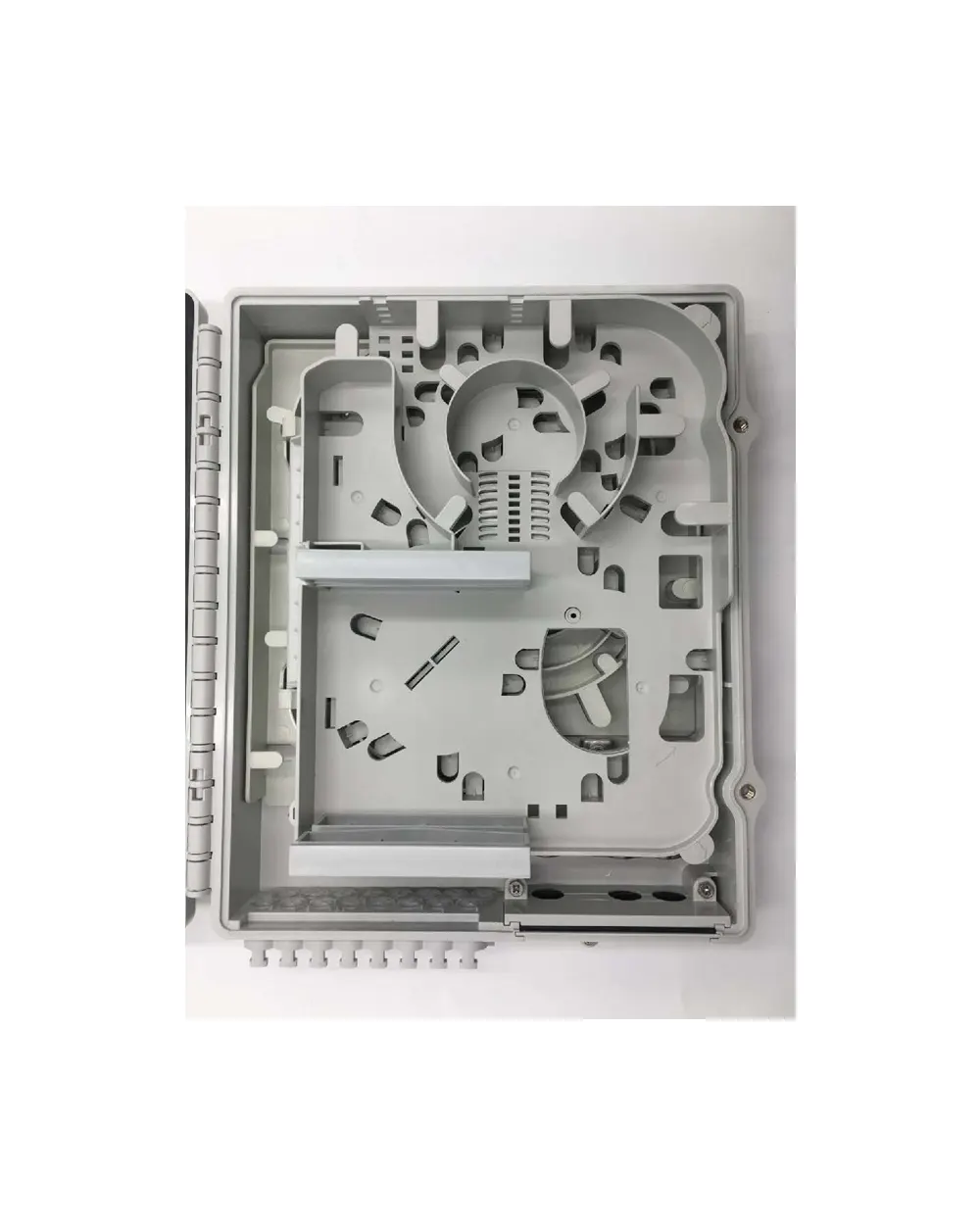

- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1×8 or 1×16 blockless splitter can be installed as an option.
- AT-OSB-16I Data Sheet
Specifications:
| Max. Splitter Capacity | 1pc of 1×16 splitter or 2pcs of 1×8 splitters |
| Max. Inlet Cable Diameter | 16mm |
| Inlet Cable Number | 2 cable glands and 1 uncut cable port |
| Max. Outlet Cable Diameter | 4.6mm |
| Outlet Cable Number | 24pcs |
| Protection Grade | IP65 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 340(H)*270(W)*97(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
