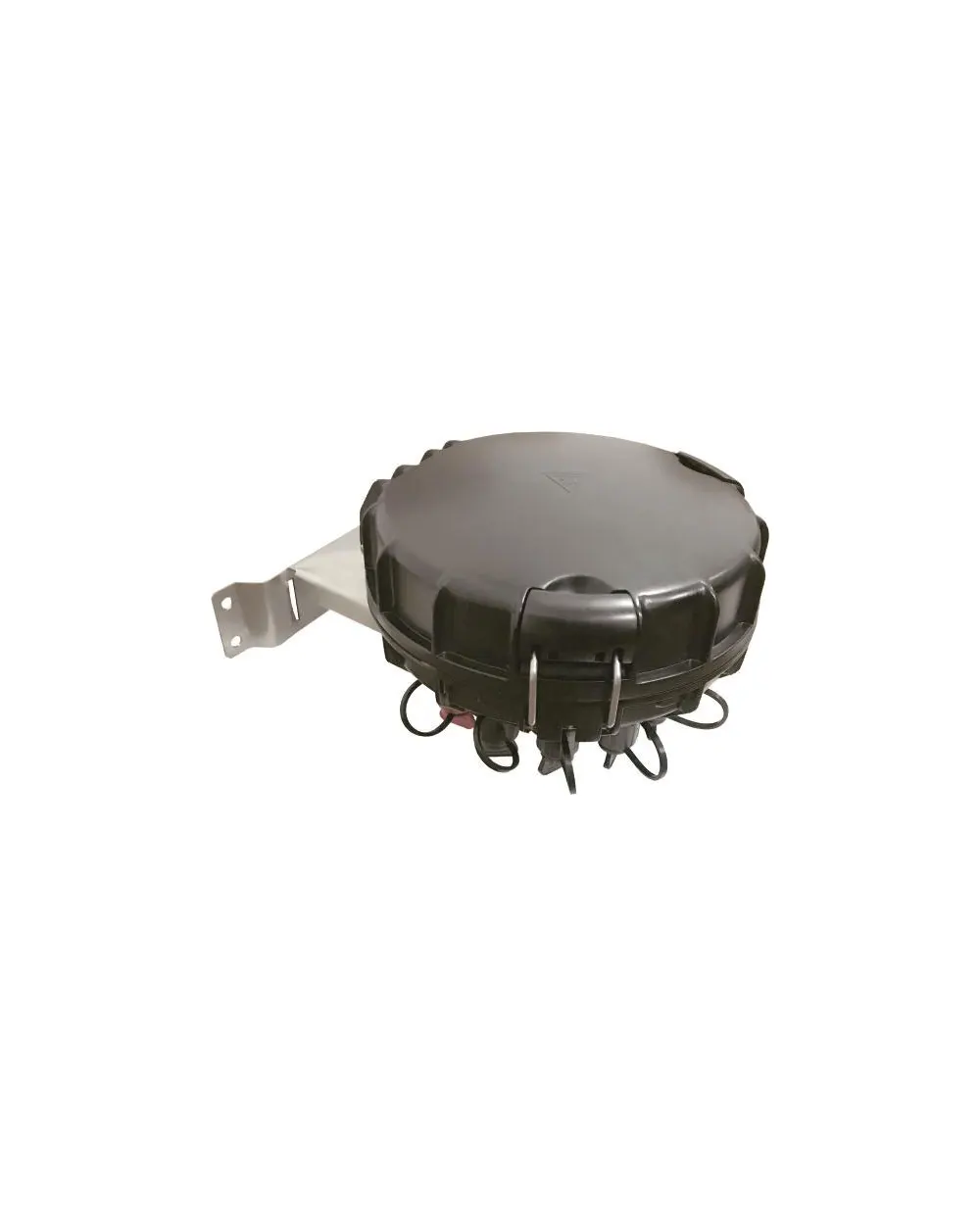

AT-FAT-8C Fiber Access Terminal
Fiber Access Terminal with pre-terminated cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber optic network.
Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
Extra Description
ASLA TECH provides Fiber Access Terminal made of high quality PC and ABS plastic alloy.

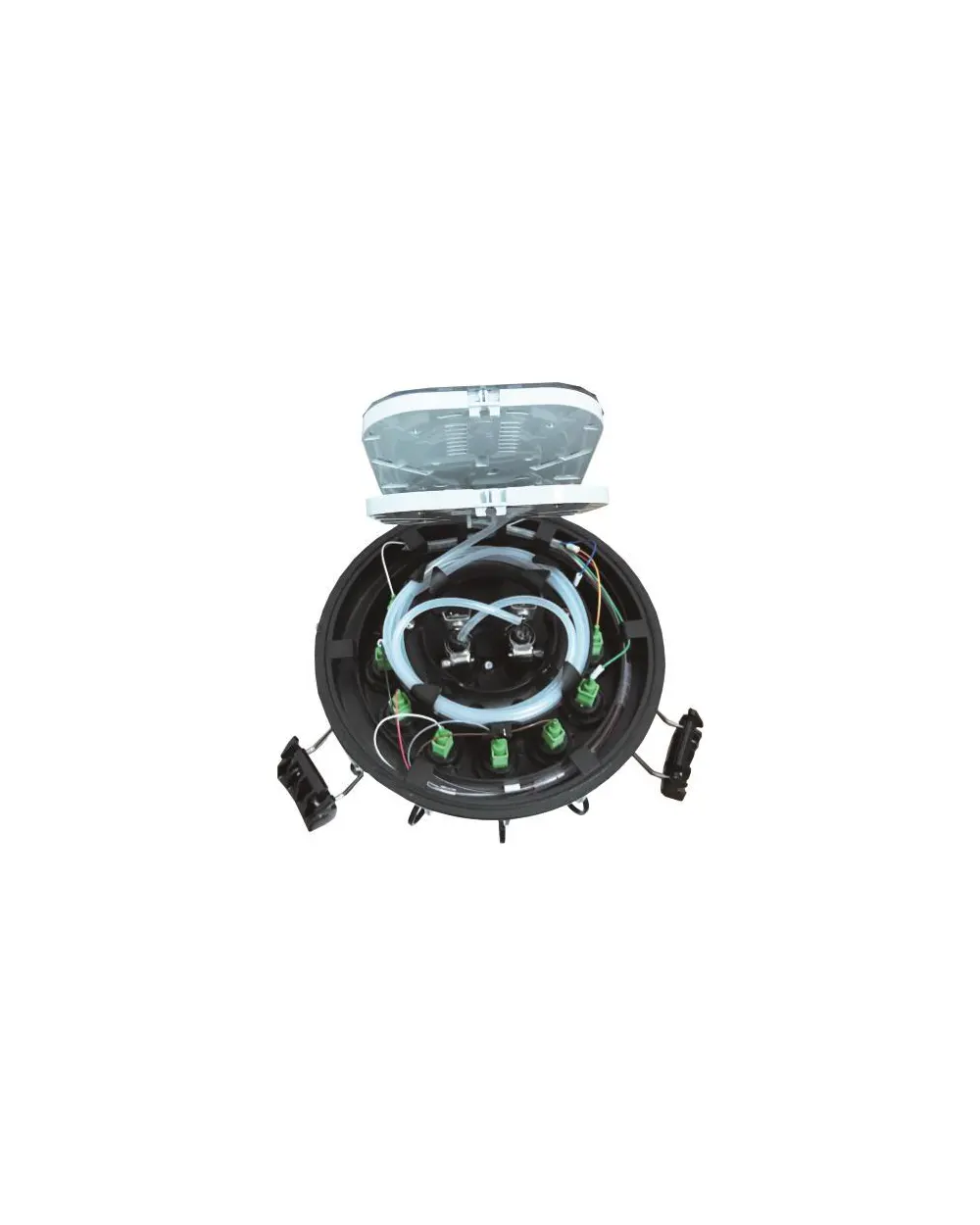

AT-FAT-8C Pre-terminated Fiber Access Terminal integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Features:
- Water-proof design with IP65 Protection level

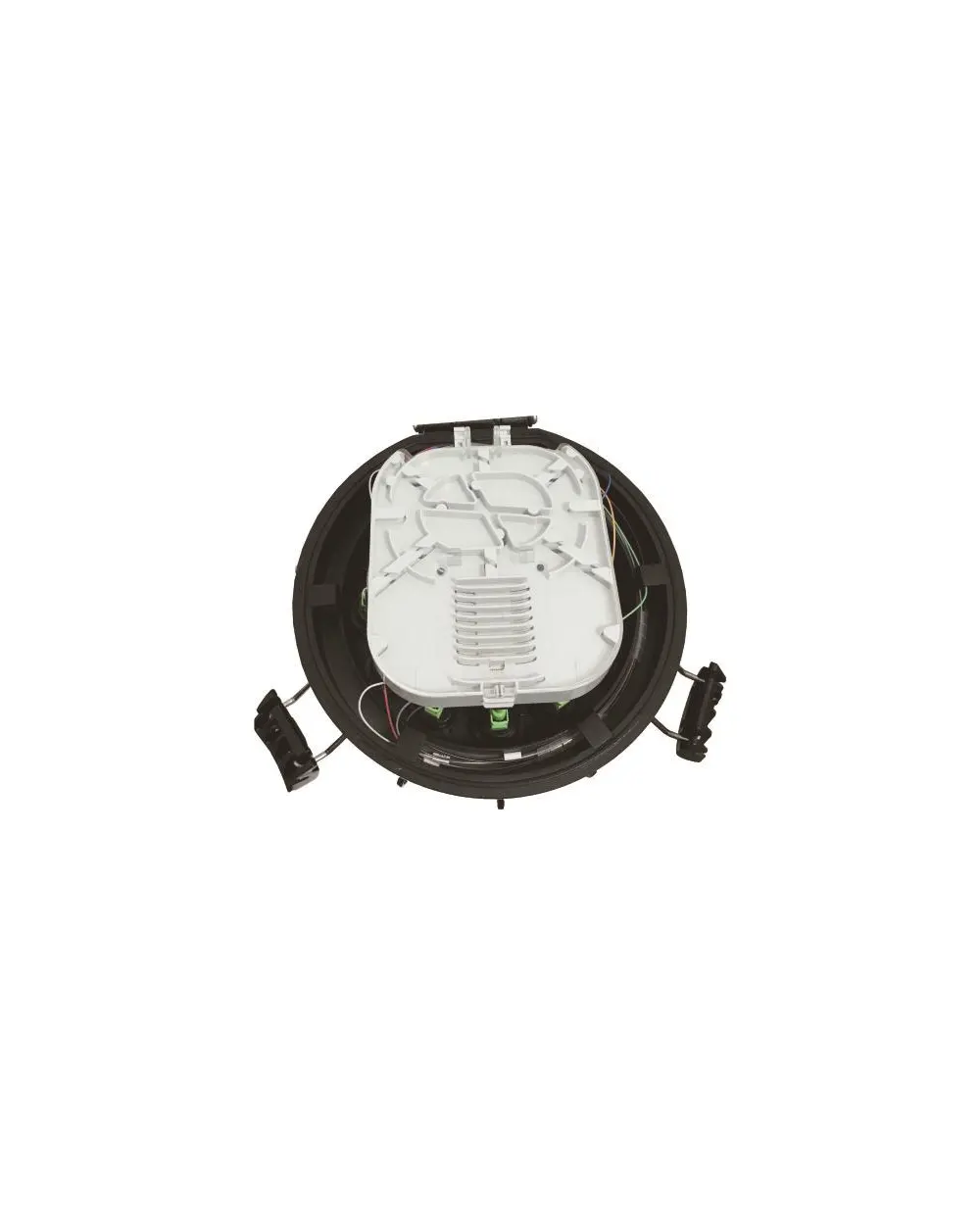

- Integrated with splice tray and cable management system
- Fiber bending radius control more than 40mm
- Suitable for the fusion splice or mechanical splice
- 1×8 blockless spitter can be installed as an option
Pre-terminated Patchcord:
Drop Cable Structure:
Features:
- Low purchasing and construction costs
- Soft and flexible, good bending performance
- Simple structure, compact and light weight, and high practicability
- Flame retardant LSZH jacket meets relevant fire protection requirements
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- AT-FAT-8C Data Sheet
Specifications:
| Max. Capacity | SC: 8 fibers | |
| Max. Inlet Cable Diameter | 14mm | |
| Inlet Cable Number | 1 uncut cable port | |
| Outlet Cable Port | 8 pcs of SC adapters | |
| Protection Grade | IP65 | |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) | |
| Working Environment | Outdoor and indoor | |
| Dimension | 180(H)*190(W)*129(D)mm | |
| Working Temperature | -20°C~+60°C | |
| Storage Temperature | -40°C~+70°C | |
| Relative Humidity | 0%~95% | |
| Air Pressure | 70~106KPa | |
Environmental Characteristics:
| Max. Capacity | SC: 11 fibers | |
| Reinforced adapters | Max. 11, Mini SC adapter or InstaLNK adapters | |
| Splitter | 1x8 PLC spltiter Or 1x9 hybrid splitter (PLC + FBT) Or 1x9 chip splitter | |
| Outlet Cable Port | 9 pcs of adapters | |
| Protection Grade | IP65/IP68 | |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) | |
| Working Environment | Outdoor and indoor | |
| Dimension | 195(H)*195(W)*85(D)mm | |
| Working Temperature | -20°C~+60°C | |
| Storage Temperature | -40°C~+70°C | |
| Relative Humidity | 0%~95% | |
| Air Pressure | 70~106KPa | |
Mechanical Characteristics:
| Operation Temperature | -20°C~+60°C | |
| Storage Temperature | -20°C~+60°C | |
Geometrical Characteristics:
| Fiber Count | 1 | 1 |
| Cable Dimension (mm) | 2.0×5.0 | 5.0 |
| Cable Weight (kg/km) | 20 | 50 |
Transmission Characteristics:
| Fiber Type | G.652.D | G.657.A1/A2 | G.657.B1/B2 | |||
| Wavelength (nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 |
| Attenuation (dB/km) | ≤0.45 | ≤0.40 | ≤0.45 | ≤0.35 | ≤0.45 | ≤0.35 |
