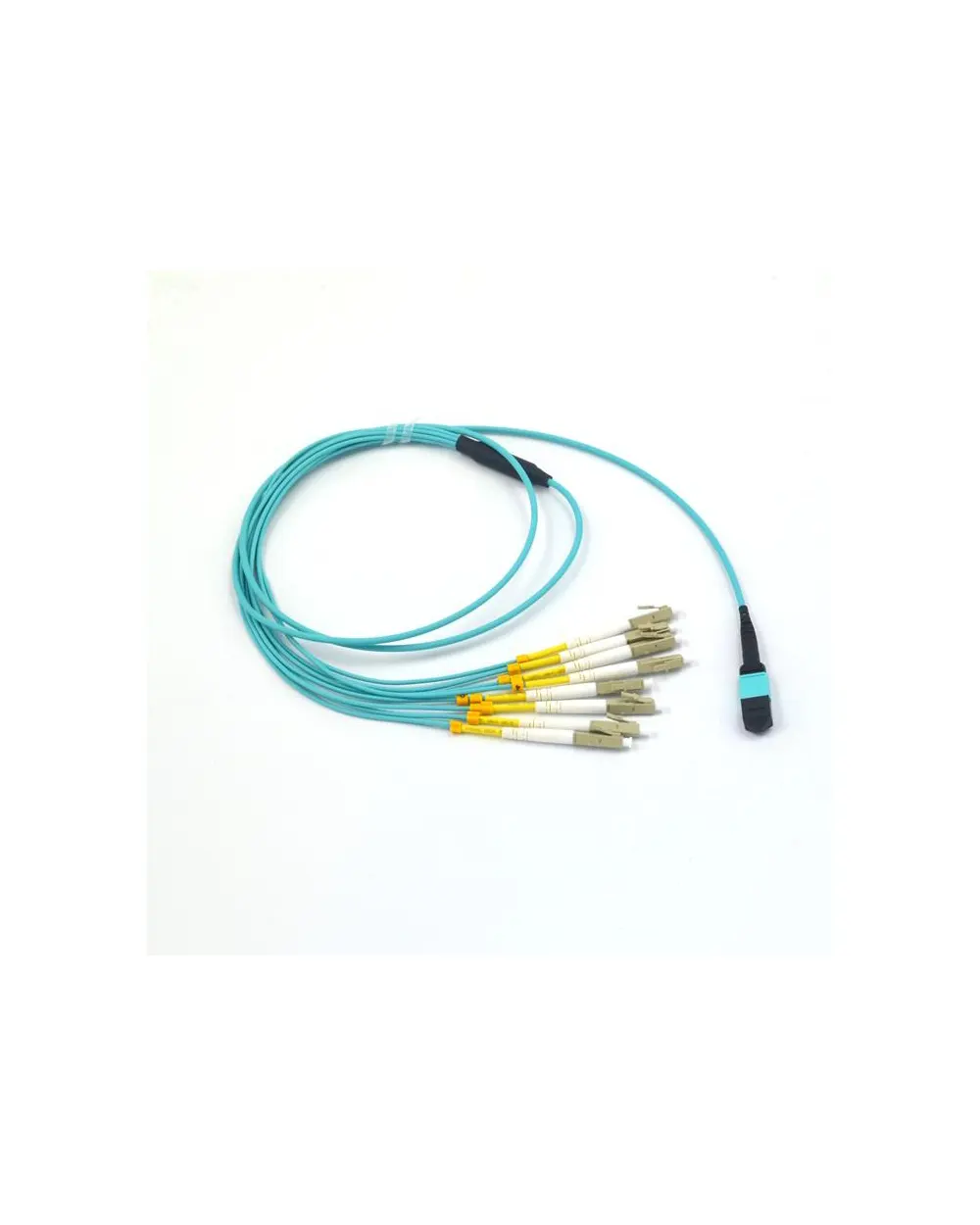

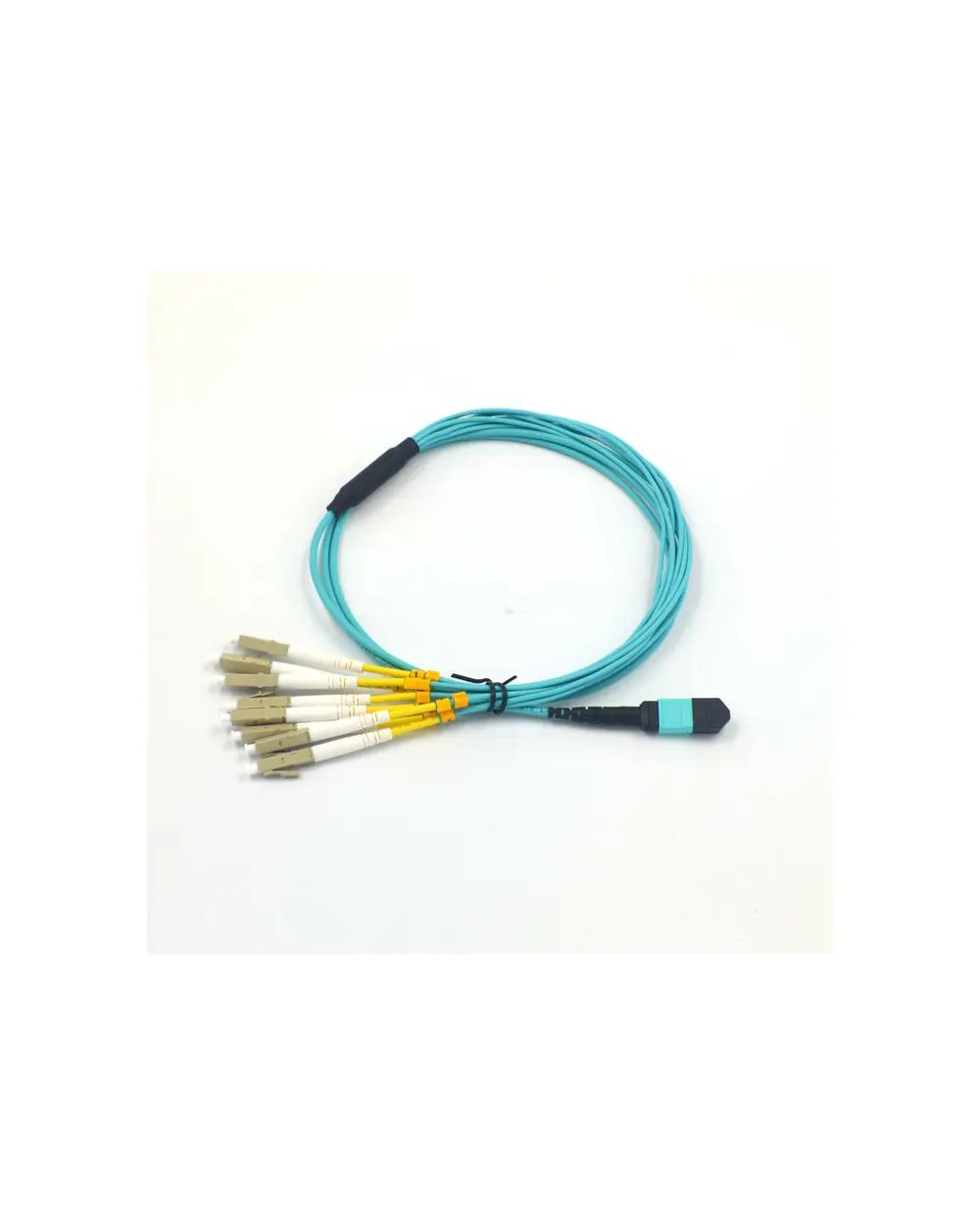

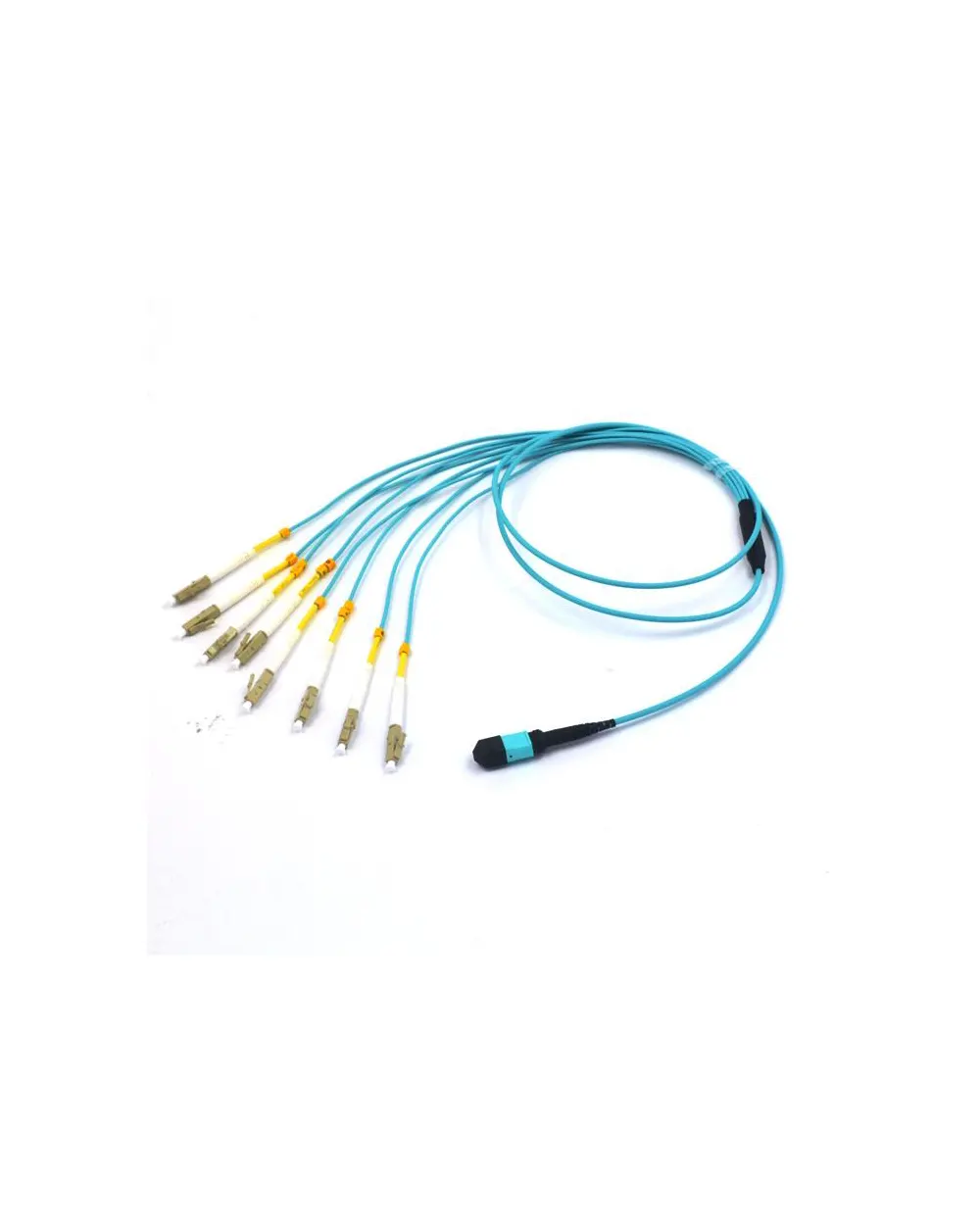

QSFP MPO-8LC Duplex 10GB 50um OM3 3.0Mm Fanout Cable
ASLA TECH MPO Harness Cable assemblies are with a single 12/24 core MPO connector in one end and LC/SC connectors in another.
Directly connecting the backbone cable with the equipment without MPO cassette,the cable is also used for cable expansion in the data center.
Extra Description
QSFP MPO-8LC Duplex 10GB 50um OM3 3.0mm Fanout Cable
MPO/MTP OM3 3.0mm fiber optic breakout cables
MPO/MTP-LC fiber optic harness patch cables
MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.
.The Data Center application with high dense degree environment
.The optical fiber to the building
.The internal connector application in fiber equipment.
MTP/MPO harness cable,
also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end . The main cable is usually 3.0mm LSZH Round cable ,breakout 2.0mm cable .Female and Male MPO/MTP Connector is available and Male type connector has pins.All MPO/MTP Connectors we use USConec Brand .All springoptic’s MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard .We can do Standard type and Elite type both .For the jacket cable we can do 3.0mm round cable also can be flat jacketed ribbon cable or bare ribbon MTP cables .we can offer Single mode and Multimode MTP fiber optical patch cables ,custom design MTP fiber optic cable assemblies,9/125,50/125,62.5/125,SM,MM,Simplex,Duplex.12core MTP/MPO patch cables,24core MTP/MPO patch cables,48core MTP/MPO patch cables all is available.
- QSFP MPO-8LC Duplex 10GB 50um OM3 3.0Mm Fanout Cable Data Sheet
Specifications:
Optical Parameters
| Insertion Loss (dB) | SM Standard | SM Elite | MM Standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | |
| Return Loss (dB) | ≥60 | ≥20 | ||
| Durability (dB) | ≤0.2 500 times mating | |||
| Tensile Strength (kgf) | 10 | |||
| Max Fiber Height Error (nm) | 600 | |||
| Working Temperature (℃） | -20~+70 | |||
| Measurement Wavelength (nm) | 1310 | 850 | ||
LC/SC/FC Fiber Connector
| Mode | SM | MM | |
| Polishing | APC | UPC | UPC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥60dB | ≥55dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.2dB | ||
| Repeatability | ≤0.1dB (1,000 times) | ||
| High Temperature | ≤0.2dB (+85°C 168 hours) | ||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | ||
| Temperature Cycle | ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) | ||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | ||
| Apex Offset | 0~50um | ||
| Radius of Curvature | 7~25mm | ||
| Undercut | -50~50mm | ||
| Durability | ≥1,000 matings | ||
| Tensile Strength (Standard is Polyester) | Aramid Yarn: ≥90N (3.0mm), ≥70N (2.0mm) | ||
| Polyester: ≥50N (3.0mm), ≥40N (2.0mm) | |||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||
| Operating Temp. | -40°C~+80°C | ||
