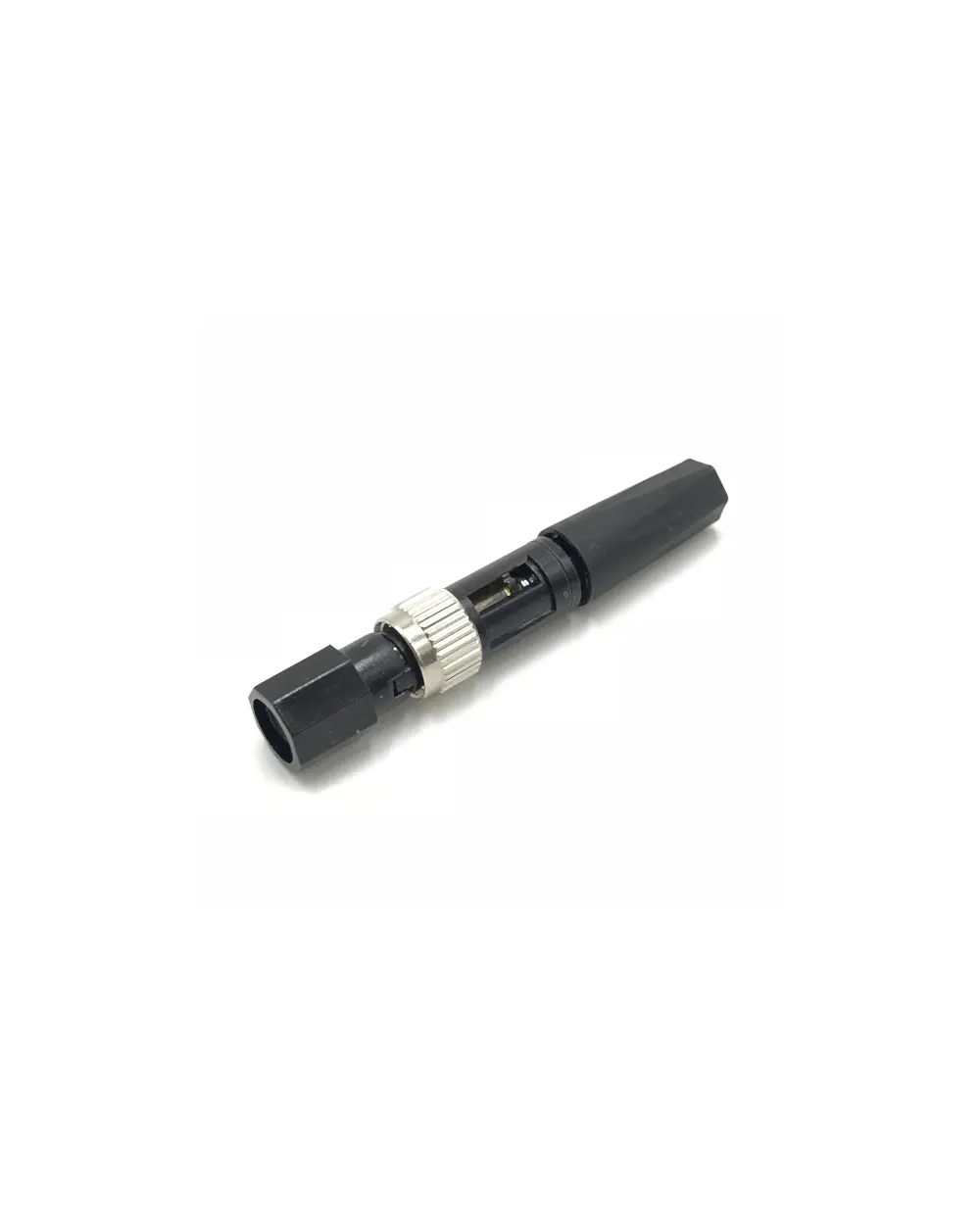

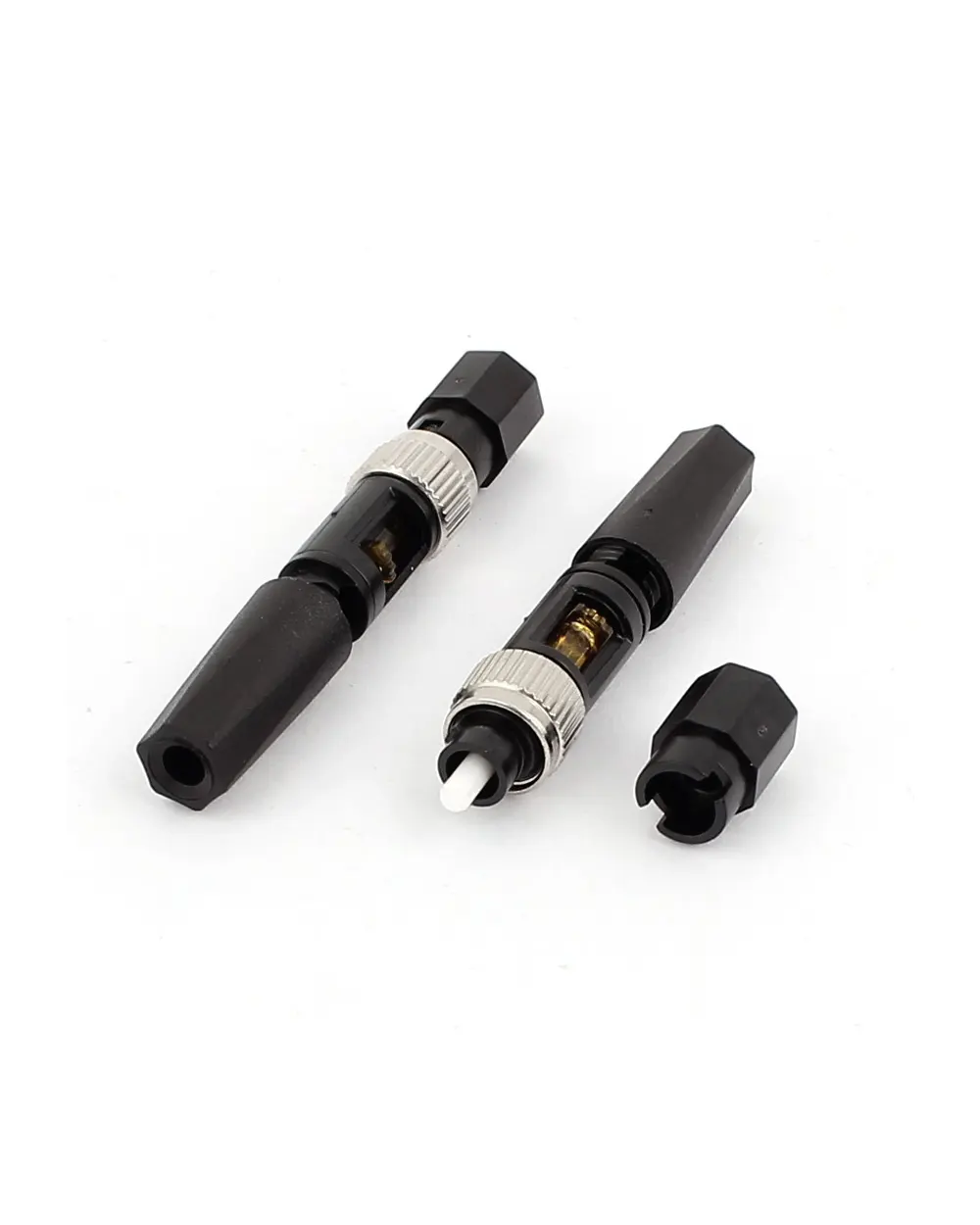

AT-FAFC-P7-FC
It is easy, fast and reliable for engineers to terminate optical fibers in field by using Field Assembly
Optical Connector, without epoxy, polishing, curing, or splicing.
Field assembly optical connector plays an irreplaceable role in FTTH access network. It can achieve
similar excellent transmission parameters as standard polishing and splicing technology. It can greatly
reduce the assembly time.
Extra Description

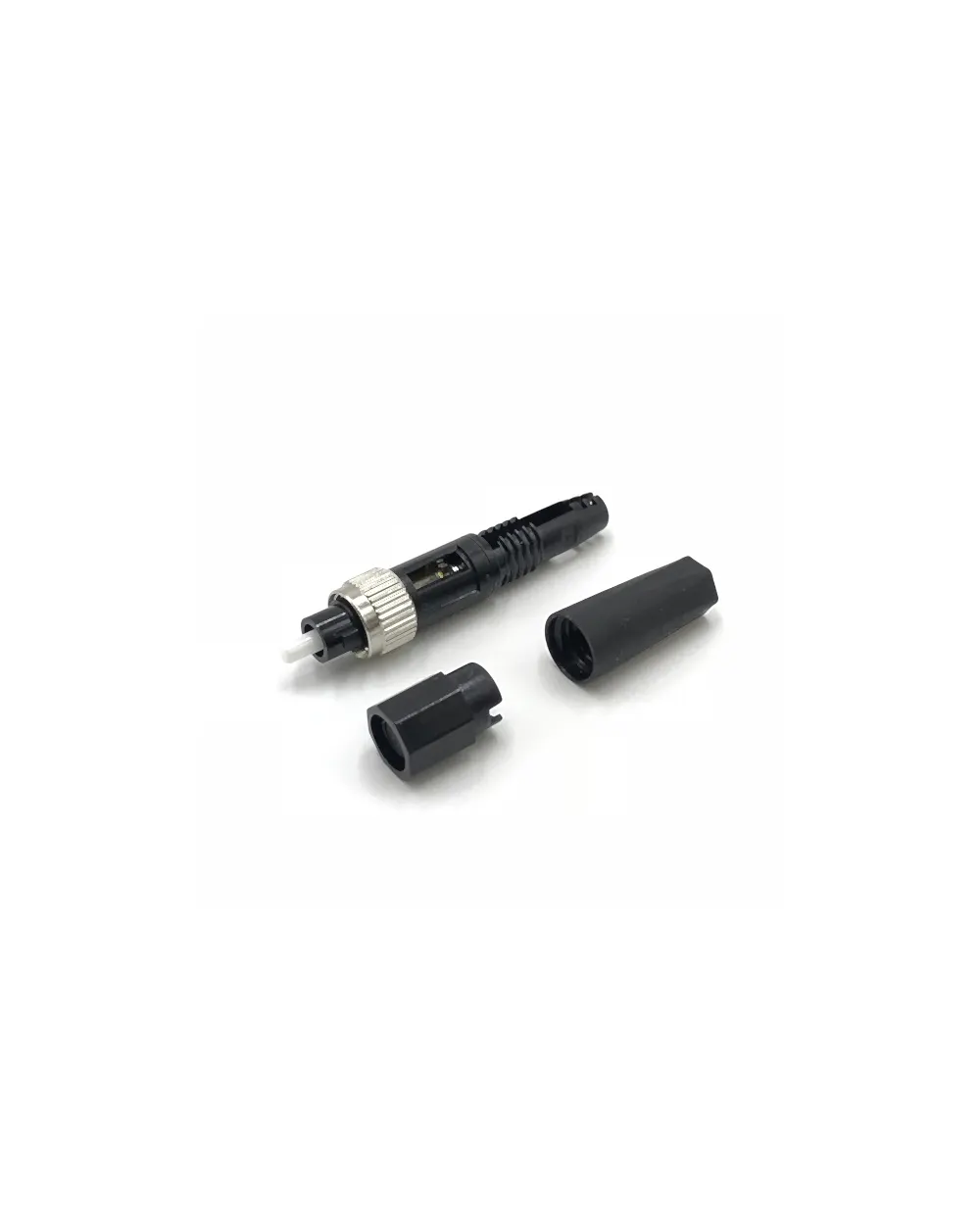

The fast connector consists of three main parts: a ferrule, a mechanical splice, and a connector body. The ferrule holds the fiber securely, while the mechanical splice aligns and joins the fiber ends. The connector body provides protection and stability to the connection.
One of the main advantages of this connector is its simplicity. It doesn’t require specialized tools or training, so it can be used by both experienced technicians and beginners. The installation process involves stripping the fiber, cleaning it, and inserting it into the connector. The connector is then secured by tightening a nut or using a crimping tool.
Another advantage is its versatility. It can be used with different types of fiber optic cables, including single-mode and multimode fibers. It is also compatible with different connector types like SC, LC, and ST.
Feature
- Low insertion loss and high return loss
- High reliability, and save maintenance cost
- Pre-embedded fiber is polished in high quality
- Can be reusable with easy disassembly and assembly
- Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc
- Few special installation tools required, installation is simple and fast, with less than 20 seconds averagely; low technical requirements for the operators
Applications
- Telecommunication networks
- FTTX, FTTH (Fiber to the Home)
- Fiber testing and testing equipment
- FTTH Drop Cable, 86 socket outlet, and ONU
- AT-FAFC-P7-FC Data Sheet
Specifications:
| Fiber Diameter | 125um | |
| Coating Diameter | 250um | |
| Fiber Mode | single mode | |
| Insertion Loss | PC: ≤0.2dB (max. 0.4dB); APC: ≤0.2dB (max. 0.4dB) | |
| Return Loss | PC: ≥40dB (typical ≥45dB); APC: ≥50dB (typical ≥55dB) | |
| Pull Test | <0.2dB, 4N load (0.125 fiber); <0.2dB, 40N load (2.0*3.0mm, 3.0mm) | |
| Impact Test | <0.2dB, Typical 0.1 dB1.5m, 10 repetitions | |
| Durability Test | <0.1dB, 1000 repetition of connecting/disconnecting | |
| Vibrate Test | <0.2dB, 3 axes 2hr/axis, 1.5mm (peak-peak), 10 to 55Hz (45Hz/min) | |
| Thermal Cycle Test | <0.2dB, -40C~+75C, 21 cycles for 168 hours (3.0mm cable) | |
| Humidity Test | <0.2dB, 90 to 95%, Temp75C for 168hrs | |
| Operating Temperature | -40C~+85C | |
