AT-FAT-10F

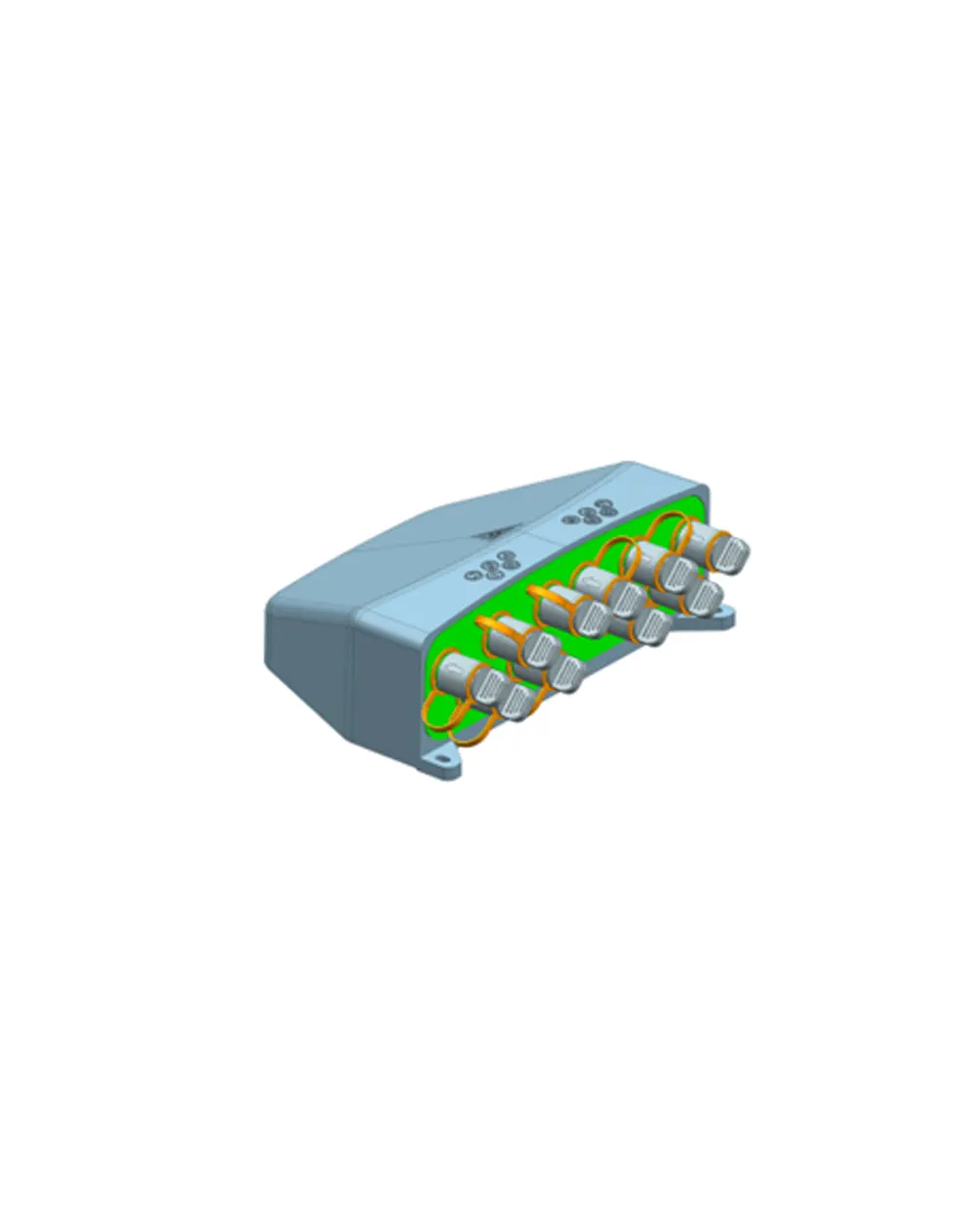

Fiber Access Terminal with pre-connected cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber optic network.
Pre-connected Fiber Access Terminal helps save installation time and labor cost by plugging the pre-connected cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
SKU: AT-FAT-10F
Extra Description
Features:
- Water-proof design with IP68 Protection level.
- IK grade design with IK08 level.
- Totally enclosed structure.
- Moisture proof, waterproof, dust-proof, anti-aging.
- Clamping, splicing, fixation, storage and distribution of feeder cable and drop cable are integrated.

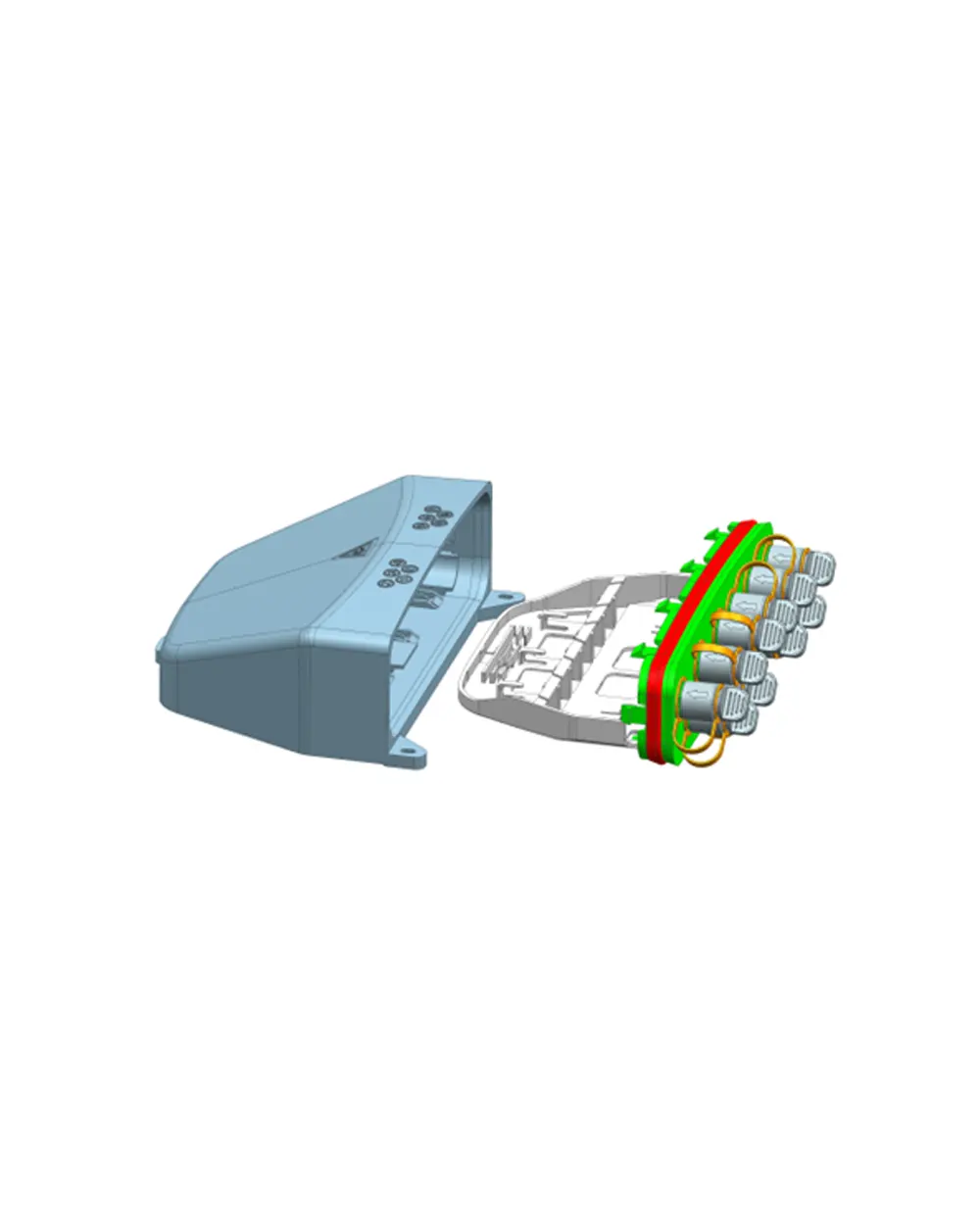

- The internal configuration is 1*2 FTB + 1*8 PLC splitter or mini 1*8 PLC splitter or 1*9 Chip splitter.
- Installation method: wall-mounted, pole-mounted and aerial-mounted.
Application:

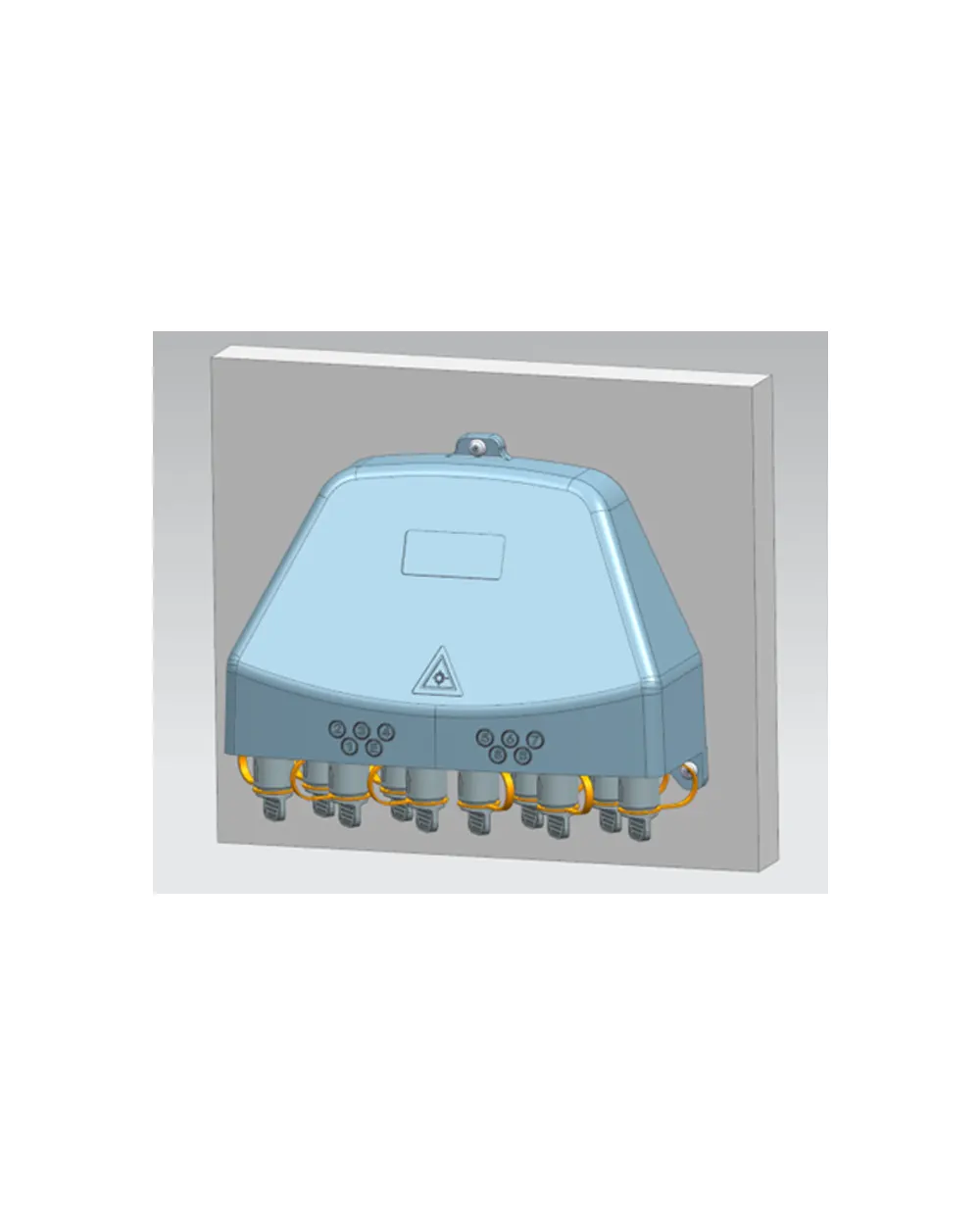

- Wall mounting installation.
- Pole mounting installation.
- Aerial mounting installation.
Accessory kit:
Item | Name | Application | Amount |
1 | Wall mounting Accessories | To fix on the wall | 1 set |
2 | Hook (in wire accessory) | To hang in- wire | 1 pair |
3 | Pole ring | to fix on the pole mounting | 1pc |
4 | Bracket | to organize the cables | 1pair(optional) |
- AT-FAT-10F Data Sheet
Specifications:
| Max. Capacity | SC: 10 fibers | |
| Outlet Cable Port | 10 pcs of SC adapters | |
| Protection Grade | IP68 | |
| Installation Method | Wall-mounted, pole-mounted (optional) or in-wire/aerial mounted (optional) | |
| Working Environment | Outdoor and indoor | |
| Dimension | 220.5*188*74mm | |
| Material | PC+ABS | |
| Working Temperature | -20°C~+60°C | |
| Storage Temperature | -40°C~+70°C | |
| Relative Humidity | 0%~95% | |
| Air Pressure | 70~106KPa | |
| Splitters | 1:9 30/70 uneven splitters | |
| 1:8 even splitters | ||
