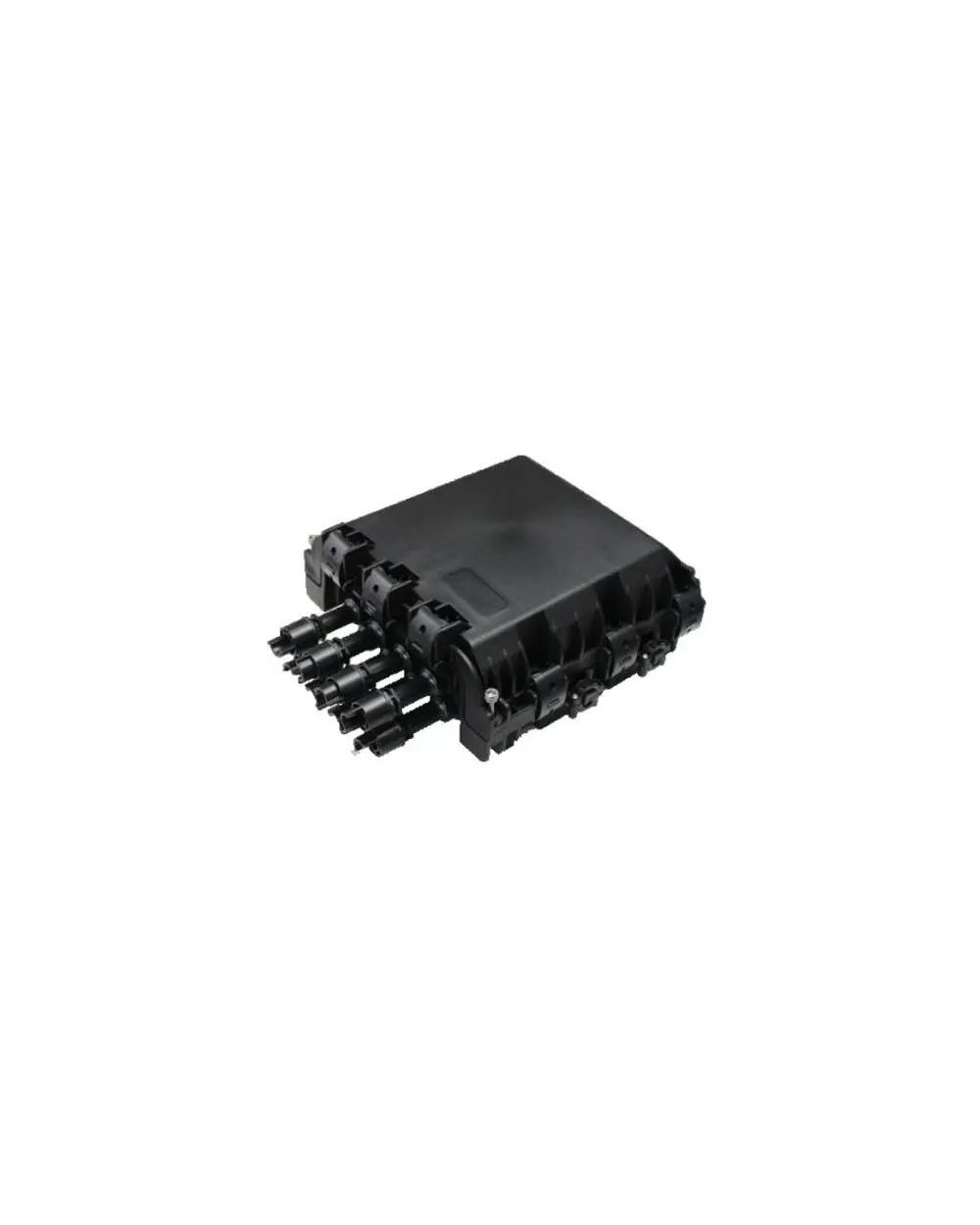

AT-IFAT-8A Fiber Access Terminal
AT-IFAT-8A fiber optic splice closures are specially designed to protect joints of optic cable. Excessive
fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Categories: Optical Boxes, Pre-terminated Fiber Access Terminal-FAT
SKU: AT-IFAT-8A
Extra Description
Application:
It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.
Technical Parameter:
- Working Temperature: -40 degrees centigrade~+70 degrees centigrade
- Atmospheric Pressure: 70~150Kpa
- Axial Tension: >2000N/1min
- Stretching Resistance: 2500N/10 square centimetre (1min)
- Insulation resistance: >2*104MΩ
- Voltage Strength: 15KV/1min, no arcover or breakdown
- Pressure in the water: 50m/72hours
- Splice tray with optical taking-in radius: 30mm. Low optical loss.
Features:
- Excessive fibers can be stored in storage baskets. Easy in fiber management.
- Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
- Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

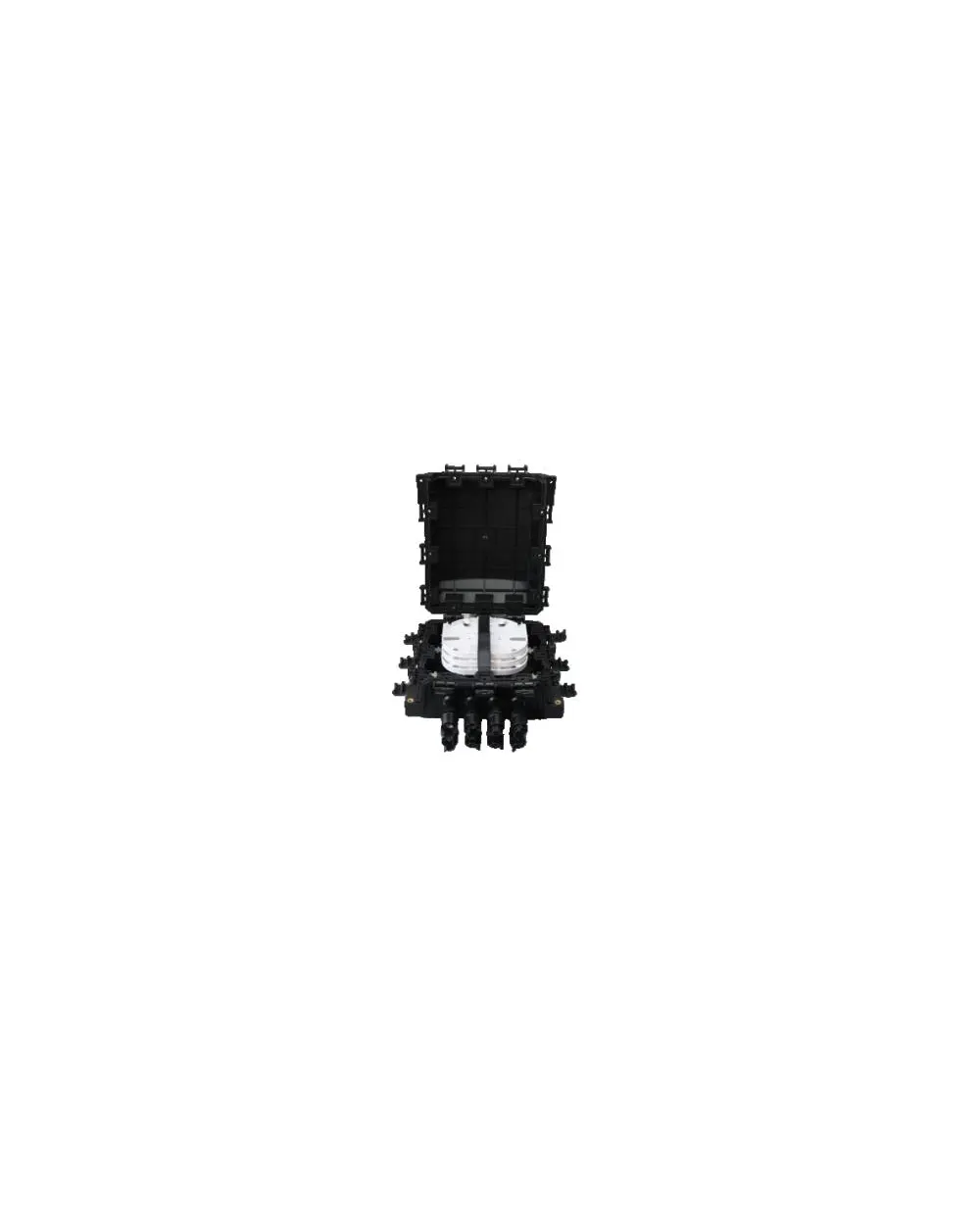

- The splice trays are hinged for access to any splice tray, without disturbing other trays.
- The inner parts and fixing parts are made of stainless steel
- With a earthing device protect it from damage by lightning
- Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair)
- AT-IFAT-8A Data Sheet
Specifications:
| Material | Trays | Tray capacity | Total Capacity | Dimension | Built-in Adapter |
| COVER&BASE:PP+GF TRAY: ABS | 3 | 12F | 36F | A*B*C(mm) 248*276*124.5 | 8 pcs SC/UPC or SC/APC |
| Sealing method | Mechanical and heat-shrinkable seals | ||||
Environmental Characteristics:
| Max. Capacity | SC: 11 fibers | |
| Reinforced adapters | Max. 11, Mini SC adapter or InstaLNK adapters | |
| Splitter | 1x8 PLC spltiter Or 1x9 hybrid splitter (PLC + FBT) Or 1x9 chip splitter | |
| Outlet Cable Port | 9 pcs of adapters | |
| Protection Grade | IP65/IP68 | |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) | |
| Working Environment | Outdoor and indoor | |
| Dimension | 195(H)*195(W)*85(D)mm | |
| Working Temperature | -20°C~+60°C | |
| Storage Temperature | -40°C~+70°C | |
| Relative Humidity | 0%~95% | |
| Air Pressure | 70~106KPa | |
Mechanical Characteristics:
| Operation Temperature | -20°C~+60°C | |
| Storage Temperature | -20°C~+60°C | |
Geometrical Characteristics:
| Fiber Count | 1 | 1 |
| Cable Dimension (mm) | 2.0×5.0 | 5.0 |
| Cable Weight (kg/km) | 20 | 50 |
Transmission Characteristics:
| Fiber Type | G.652.D | G.657.A1/A2 | G.657.B1/B2 | |||
| Wavelength (nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 |
| Attenuation (dB/km) | ≤0.45 | ≤0.40 | ≤0.45 | ≤0.35 | ≤0.45 | ≤0.35 |
Ordering Information:
