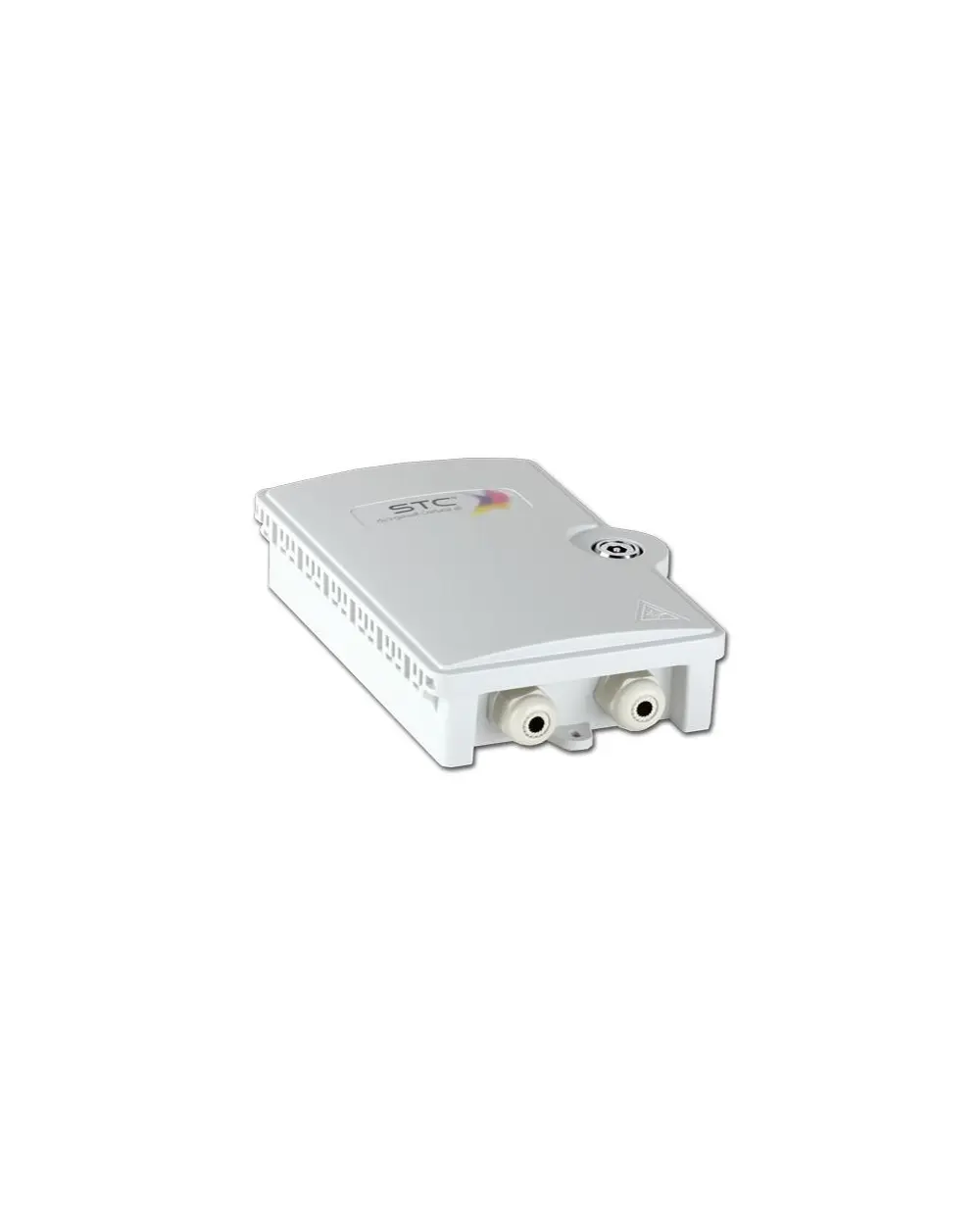

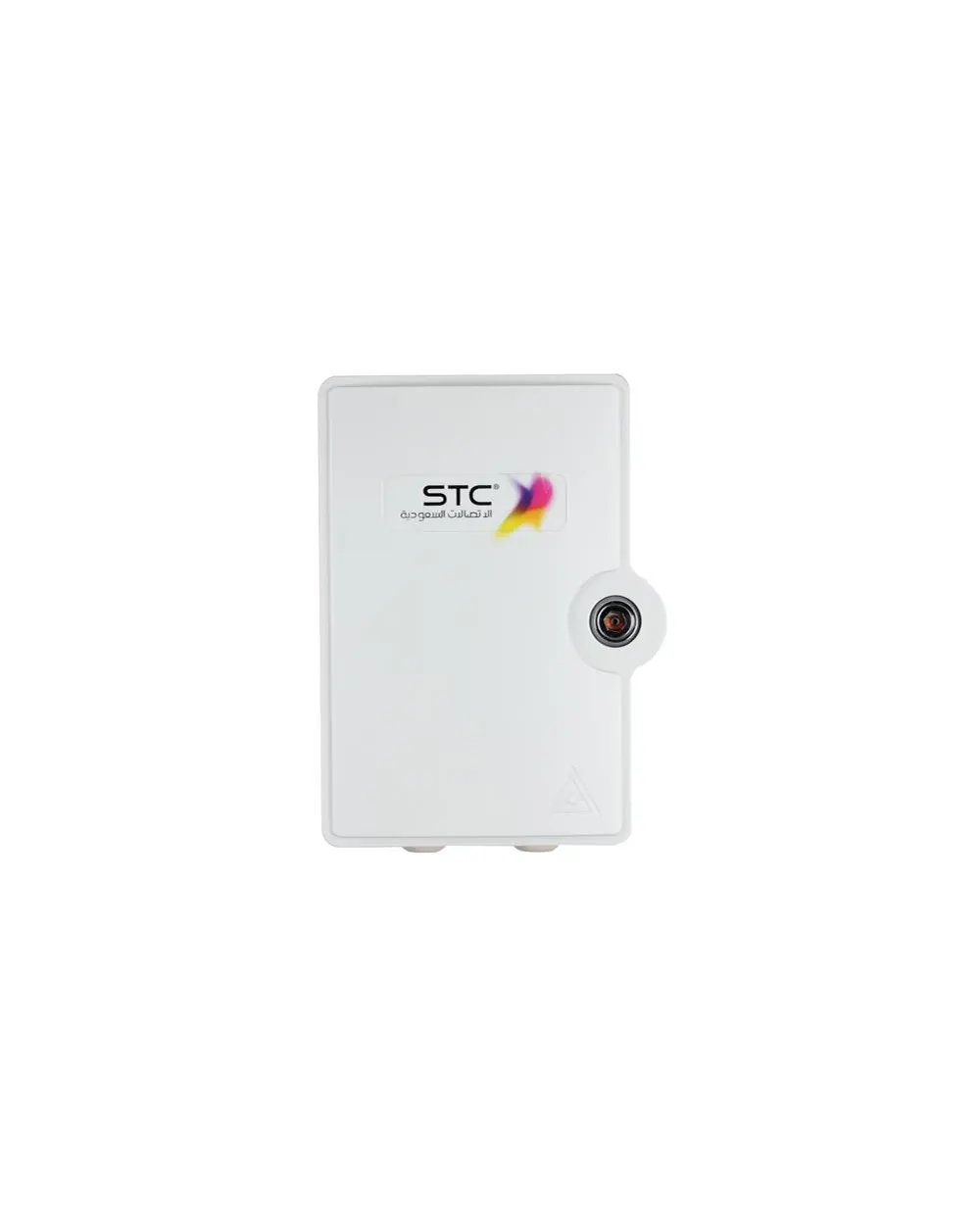

AT-ODB-2B
Fiber Terminal Box FTB provides fiber optic cable management for the connection of distribution cables and drop cables at the user access point in fiber optic network.
ASLA TECH provides Fiber Terminal Box TB made of high quality PC and ABS plastic alloy and SMC material from 2 fibers to 96 fibers.
AT-ODB-2B Fiber Terminal Box FTB integrates fiber cable fixation, storage, splicing and distribution in an outdoor and indoor wall mounting and outdoor pole mounting box.
Categories: Optical Boxes, Optical Distribution Box - ODB
SKU: AT-ODB-2B
Extra Description
Features:
- Water-proof design with IP65 Protection level.

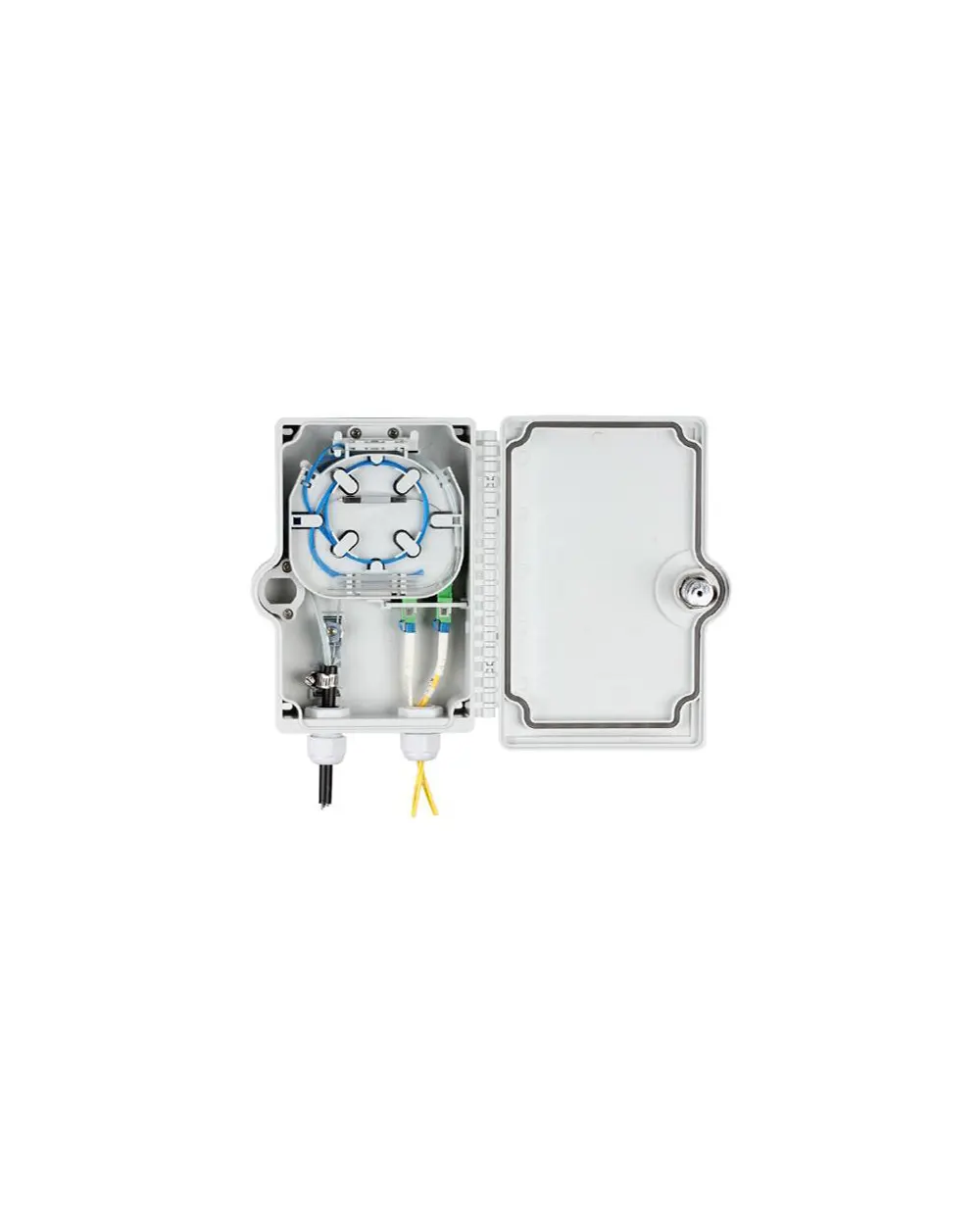

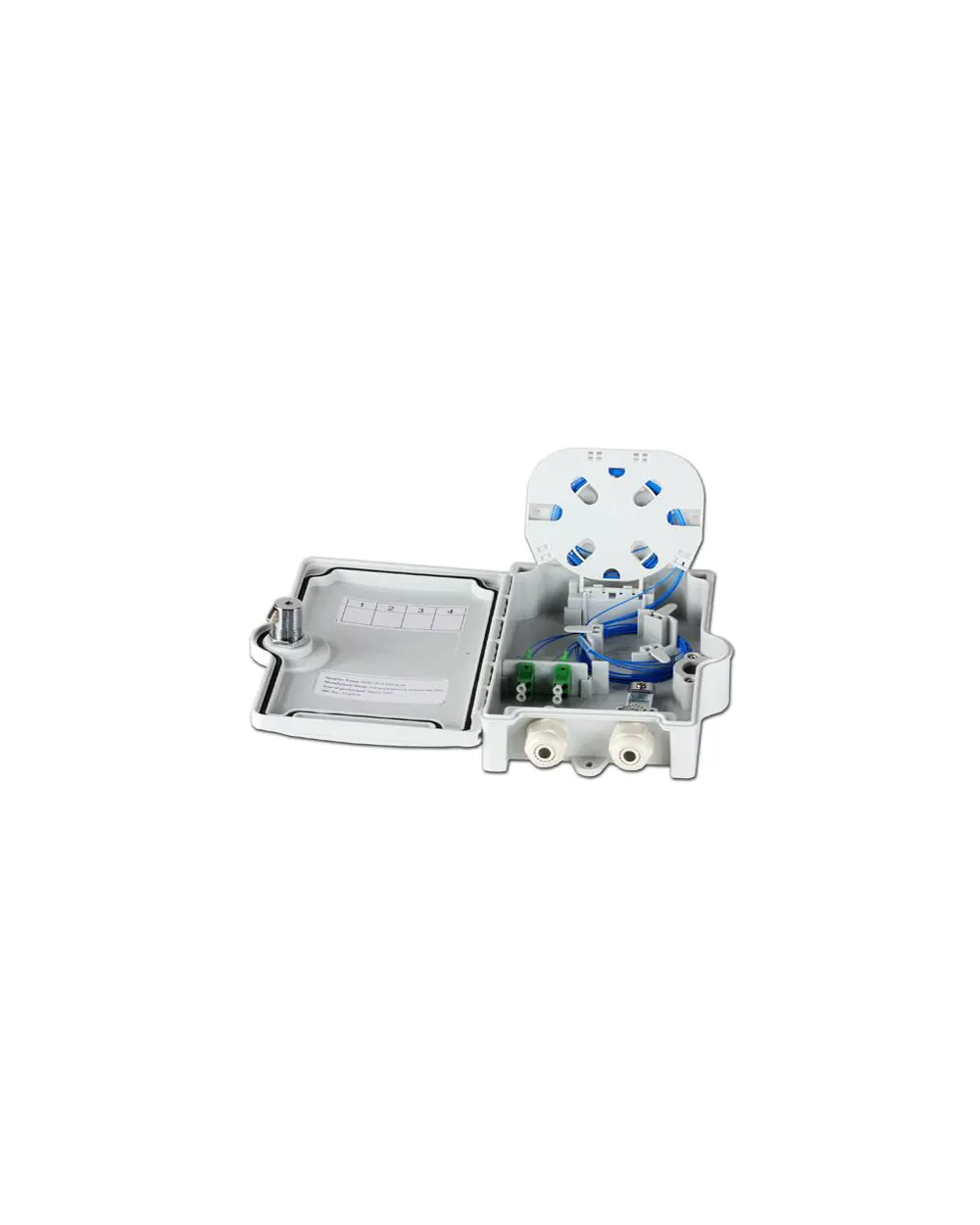

- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1*4 spitter can be installed as an option
- AT-ODB-2B Data Sheet
Specifications:
| Max. Capacity | SC: 2 fibers LC: 4 fibers |
| Max. Inlet Cable Diameter | 8mm |
| Inlet Cable Number | 1pc |
| Max. Outlet Cable Diameter | 8mm |
| Outlet Cable Number | 1pc |
| Protection Grade | IP65 |
| Installation Method | Wall mounting |
| Working Environment | Outdoor and indoor |
| Dimension | 208(H)*153(W)*52(D)mm |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information:
