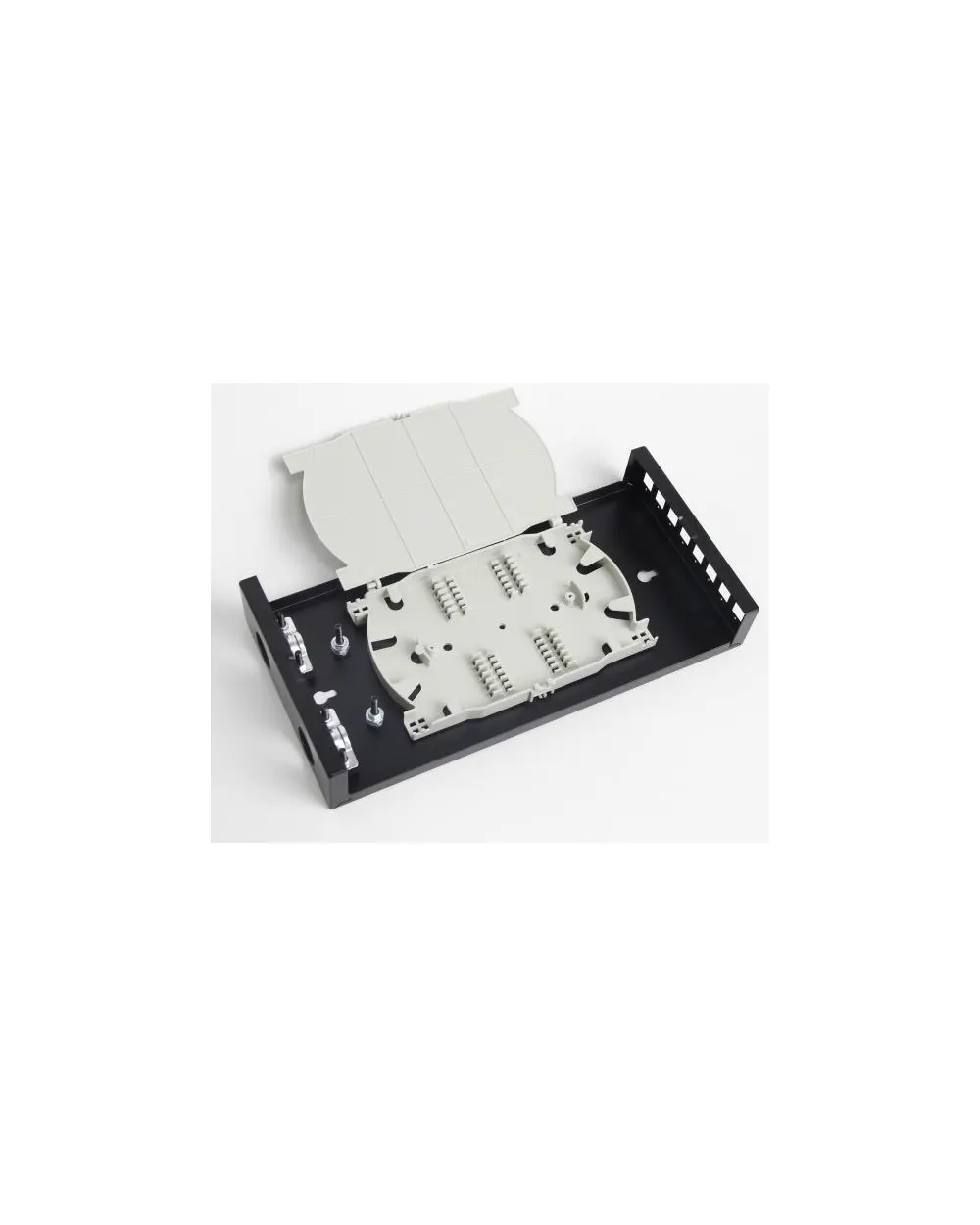

AT-ODB-8L
MDU metal Optical Distribution Box is used for indoor plant MDU (multi-dwelling) buildings in FTTH
networks.
It carries out optimized fiber management for riser cable and 8 fibers distribution in P2P network or 8
fibers splitting in P2MP PON network, and serves 8 subscribers.
MDU Optical Splitter Box integrates fiber cable fixation, storage, uncut, splicing, distribution, splitting in
an indoor wall mounting box.
Categories: Optical Boxes, Optical Distribution Box - ODB
SKU: AT-ODB-8L
Extra Description
eatures:
- Water-proof design with IP66 Protection level.
- Integrated with splice tray and cable management system.
- Fiber bending radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- 1×8 blockless spitter can be installed as an option.
- AT-ODB-8L Data Sheet
Specifications:
| Max. Capacity | SC: 8 fibers |
| Max. Inlet Cable Diameter | Can be customized |
| Inlet Cable Number | 1pcs |
| Max. Outlet Cable Diameter | 2×3mm |
| Outlet Cable Number | 8pcs |
| Protection Grade | IP30 |
| Installation Method | Wall mounting |
| Working Environment | indoor |
| Dimension | 265x130x40 mm |
| Working Temperature | -25°C~+55°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~95% |
| Air Pressure | 70~106KPa |
Ordering Information:
