ASLA TECH MPO Harness Cable assemblies are with a single 12/24 core MPO connector in one end and LC/SC connectors in another.
Directly connecting the backbone cable with the equipment without MPO cassette,the cable is also used for cable expansion in the data center.

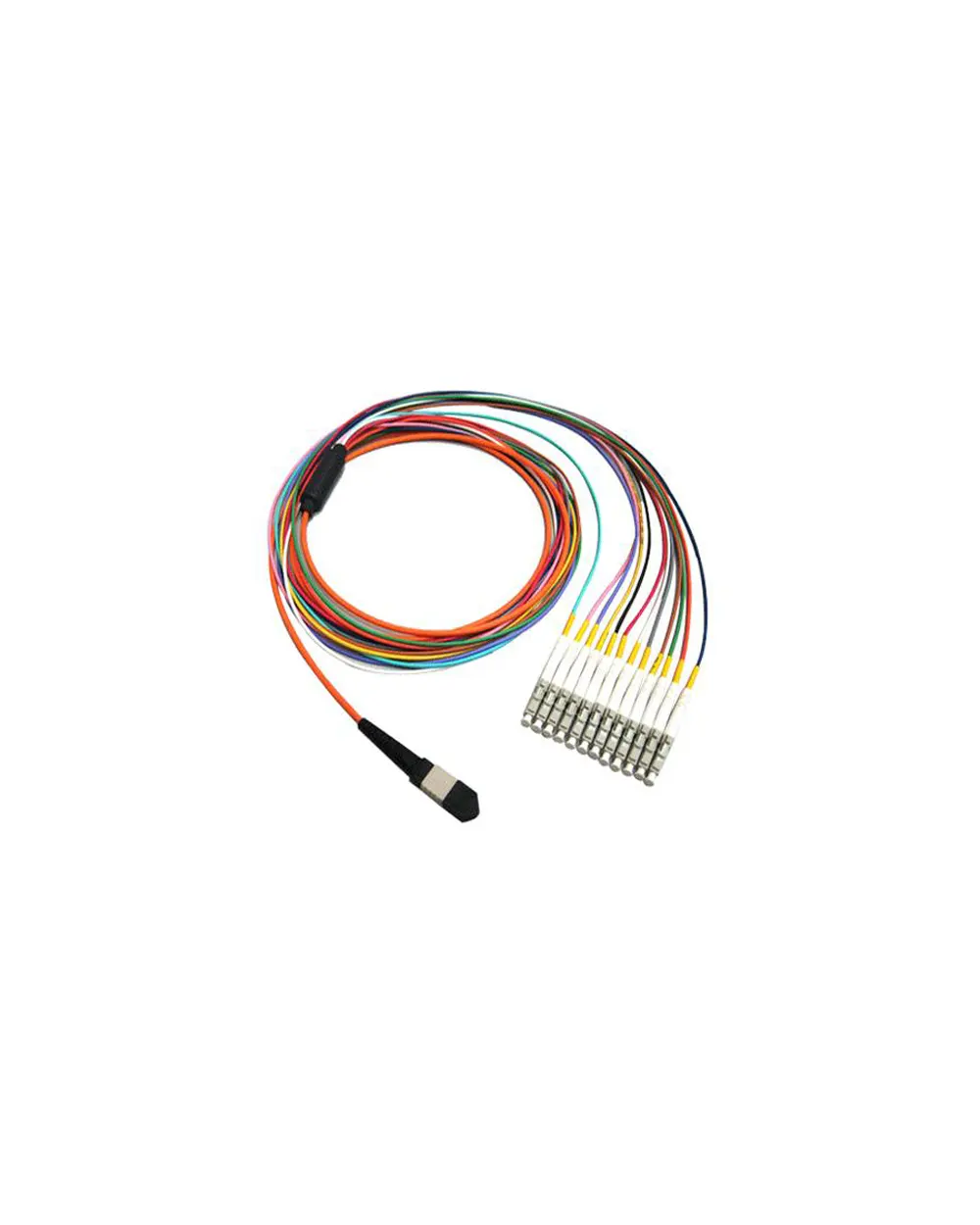

12core MTP/MPO-FC Multimode 3.0mm Breakout cables
· MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.
· The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards. Actually, it belongs to a custom product, please kindly email your requirements to us!
Features
· With 12-fiber and 24-fiber MPO/MTO connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Support use in attaching directly to 40/100G transceivers
· 100% factory tested, with test results included for each assembly
· Polarity options are TIA style A, B, or C (Method B is standard)
· For transition from trunk backbone assemblies to fiber rack system
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling
| Insertion Loss (dB) | SM Standard | SM Elite | MM Standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | |
| Return Loss (dB) | ≥60 | ≥20 | ||
| Durability (dB) | ≤0.2 500 times mating | |||
| Tensile Strength (kgf) | 10 | |||
| Max Fiber Height Error (nm) | 600 | |||
| Working Temperature (℃） | -20~+70 | |||
| Measurement Wavelength (nm) | 1310 | 850 | ||
| Mode | SM | MM | |
| Polishing | APC | UPC | UPC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥60dB | ≥55dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.2dB | ||
| Repeatability | ≤0.1dB (1,000 times) | ||
| High Temperature | ≤0.2dB (+85°C 168 hours) | ||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | ||
| Temperature Cycle | ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) | ||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | ||
| Apex Offset | 0~50um | ||
| Radius of Curvature | 7~25mm | ||
| Undercut | -50~50mm | ||
| Durability | ≥1,000 matings | ||
| Tensile Strength (Standard is Polyester) | Aramid Yarn: ≥90N (3.0mm), ≥70N (2.0mm) | ||
| Polyester: ≥50N (3.0mm), ≥40N (2.0mm) | |||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||
| Operating Temp. | -40°C~+80°C | ||
