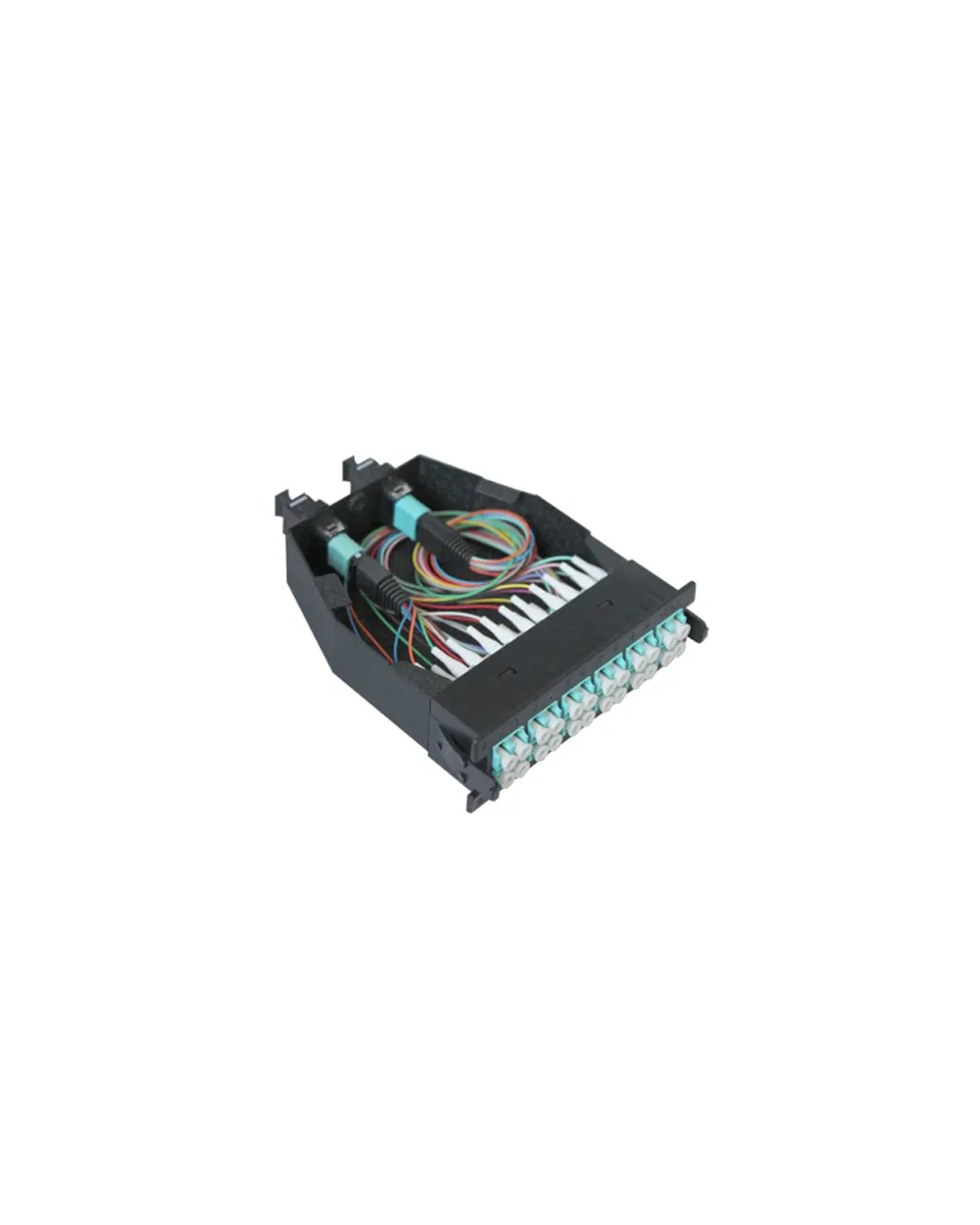

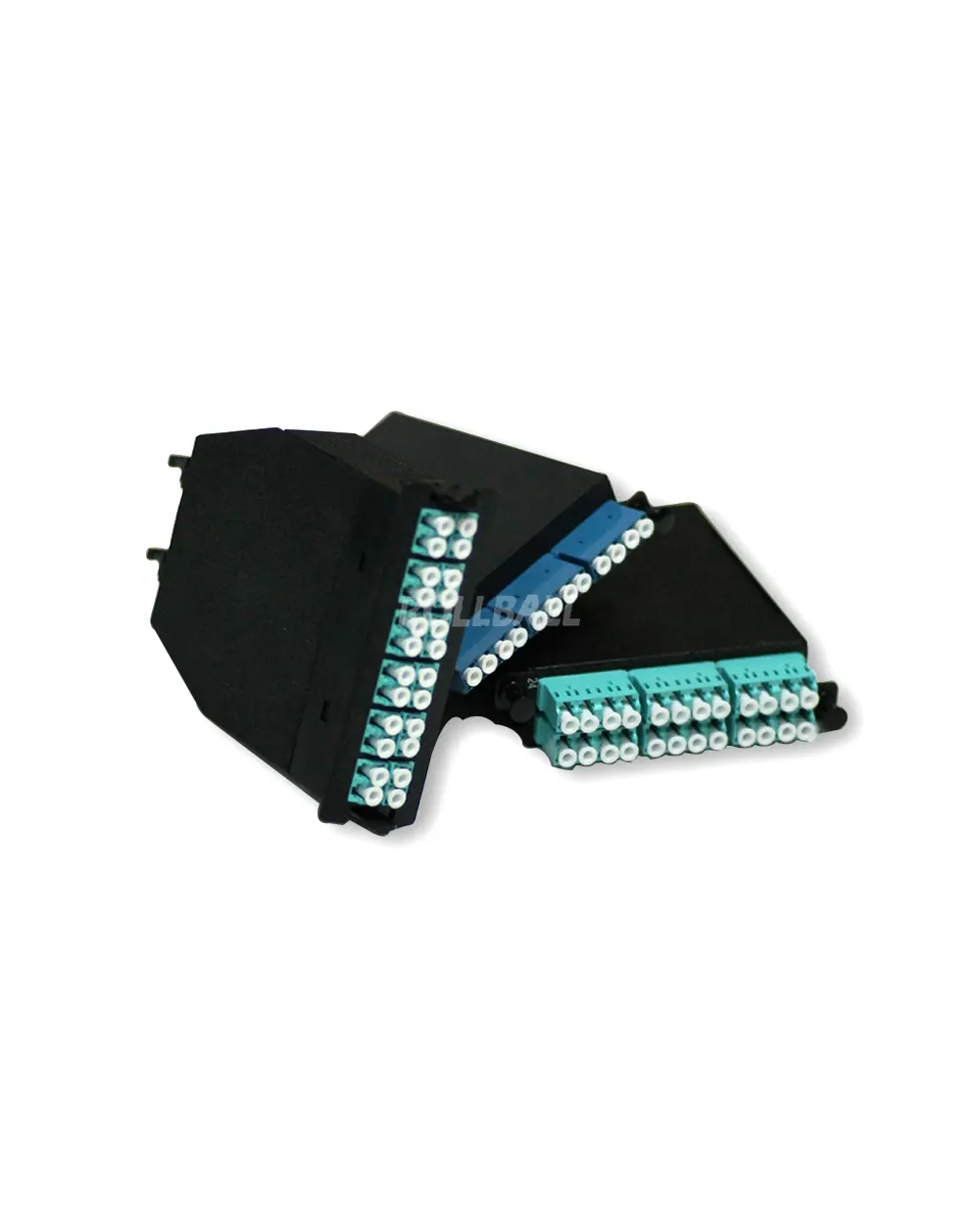

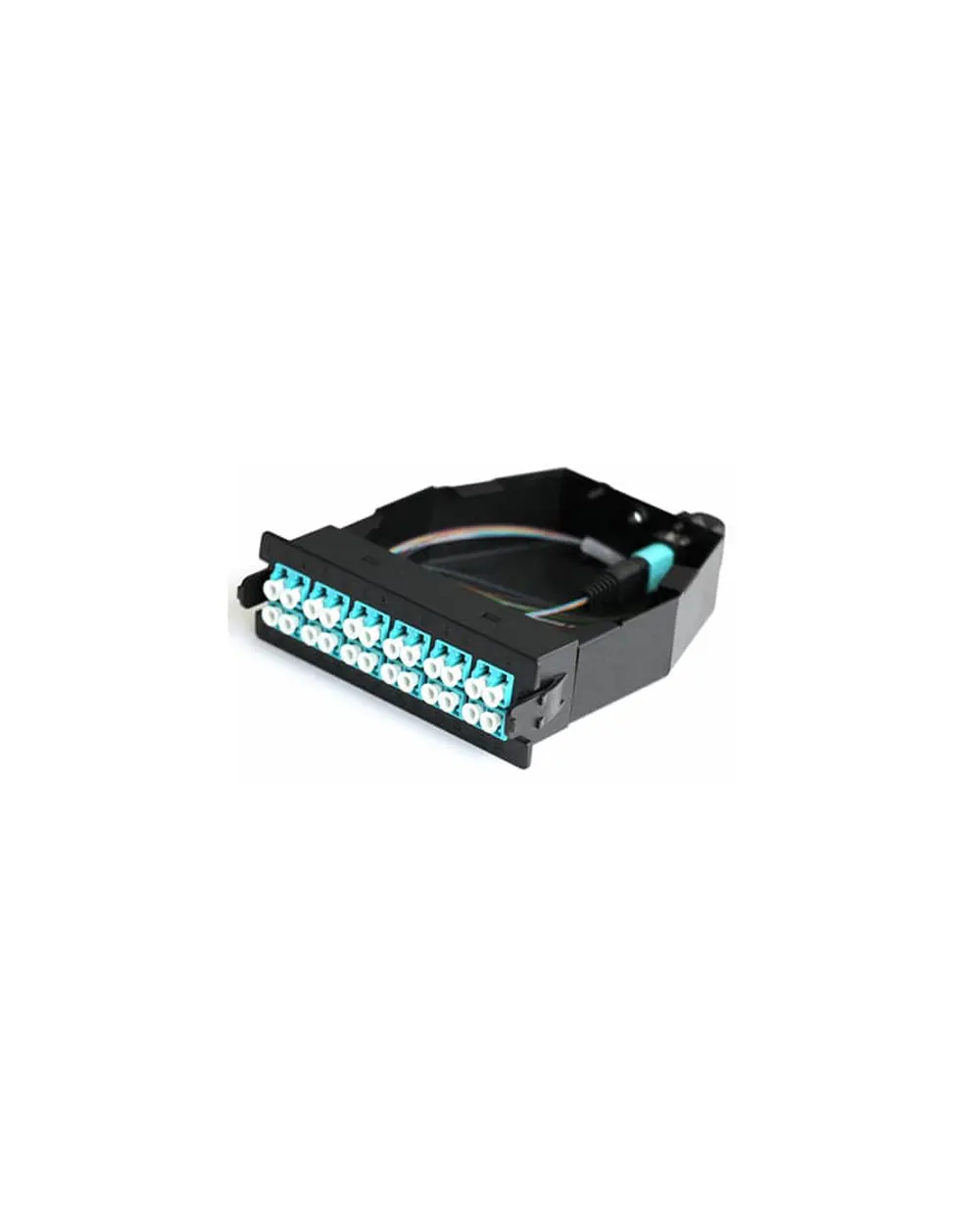

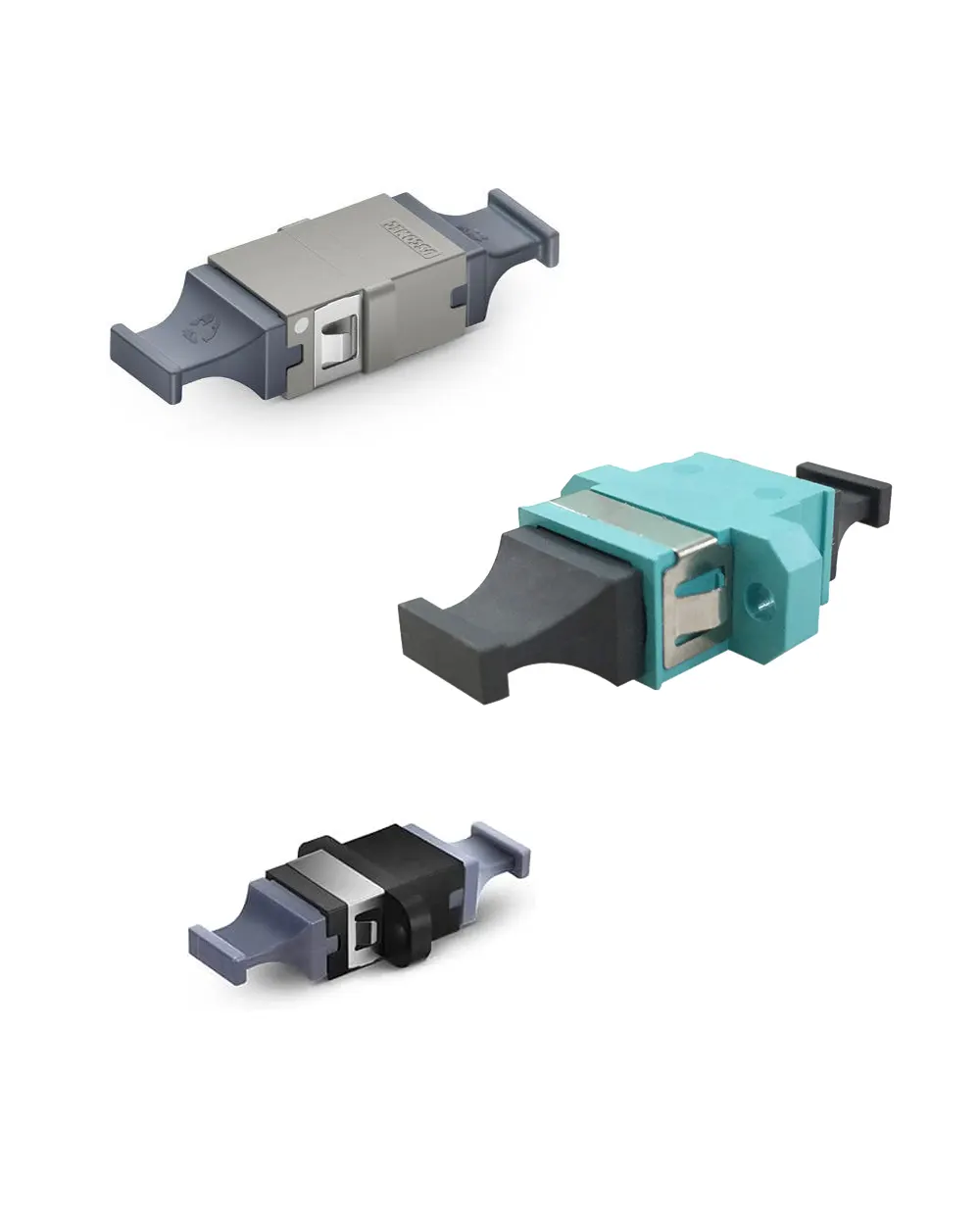

The MPO module Cassettes are mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
The fast connector consists of three main parts: a ferrule, a mechanical splice, and a connector body. The ferrule holds the fiber securely, while the mechanical splice aligns and joins the fiber ends. The connector body provides protection and stability to the connection.
One of the main advantages of this connector is its simplicity. It doesn’t require specialized tools or training, so it can be used by both experienced technicians and beginners. The installation process involves stripping the fiber, cleaning it, and inserting it into the connector. The connector is then secured by tightening a nut or using a crimping tool.
Another advantage is its versatility. It can be used with different types of fiber optic cables, including single-mode and multimode fibers. It is also compatible with different connector types like SC, LC, and ST.
| Fiber Mode | Single Mode | Multi Mode |
| Insertion Loss (dB) | ≤0.70 (Standard) ≤0.35 (Elite) | ≤0.70 (Standard) ≤0.35 (Elite) |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
| Operating Temperature | -40C~+85C | |
| Fiber Mode | Single Mode | Multi Mode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of Curvature (mm) | 500 | - | 50 | - |
| Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Fiber Height (nm) | 1000 ~ 3000 | |||
| Max Fiber Height Error (nm) | 600 | |||
| Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
| Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
| Central Concave (nm) | 300 | |||
