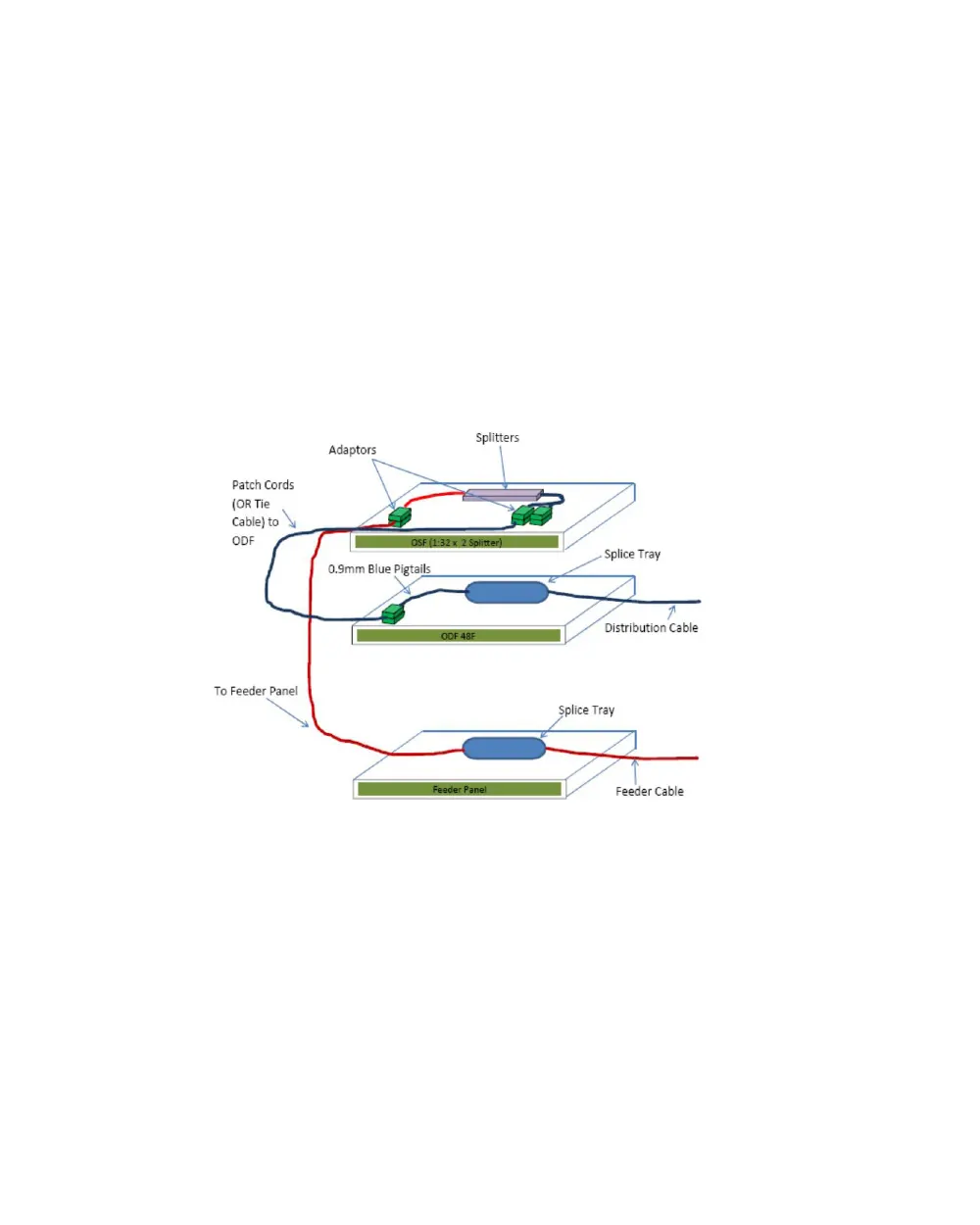

Fiber Distribution Hub (FDH) Cabinet provides a reliable, lightweight, and cost-effective solution for connecting feeder cables and distribution cables through rack-mounted fiber optic splitters in the outside plant of the FTTH network. The Fiber Distribution Hub (FDH) Cabinet is deployed as a Local Convergence Point (LCP) in a centralized splitting PON system and a testing point in the outside plant of the FTTH network.
The Fiber Distribution Hub (FDH) Cabinet is made of an outer cabinet wall with stainless steel and an inner cabinet wall with aluminum alloys. Between the outer and inner cabinet, there’s heat insulation (thickness of 18mm), which is made of high temperature resistant,
low heat transmit foam material to prevent heat, burn, and shaking.
In places where the top/bottom/door board and Fiber Distribution Hub (FDH) Cabinet meet, the high-temperature resistant foam sealing putty is used to prevent dust, water, and moist.
● Supports cassette type PLC Splitters of 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×2, 2×4, 2×8, 2×16, 2×32, and 2×64.
● No Adaptors, No Pigtails, No Patch cords required. All Connections will be spliced before Delivering.
| Dimensions (W×H×D) (with Deviation) | 750(W)*1450(H)*320(D) mm (with base) |
| Material | SMC box body, Stainless steel for internal parts |
| Capacity | 1*32 splitter |
| Installation Space | 19U |
| Protection Level | IP65 |

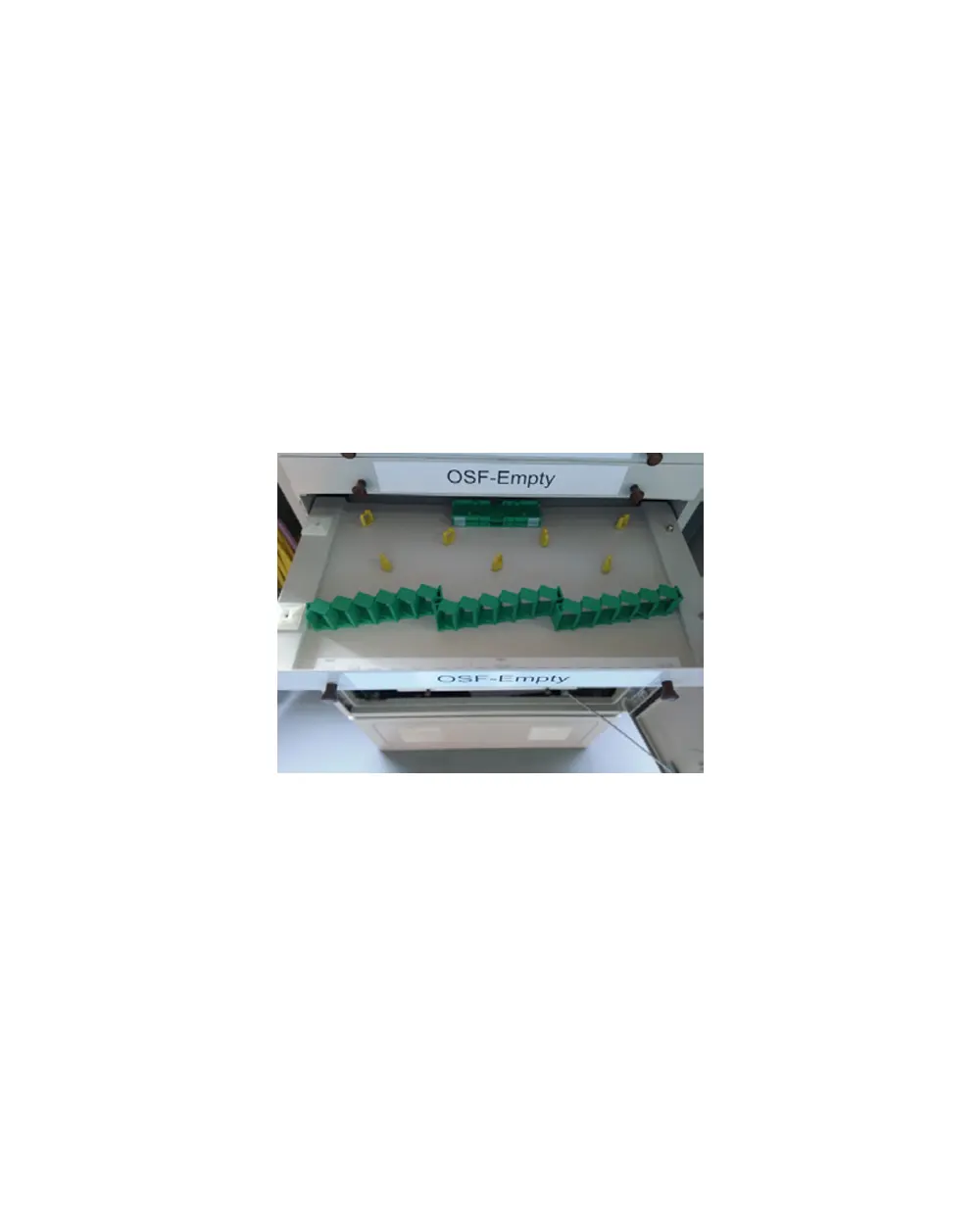

| Optical Splitter Frame: | |
| Dimension (W×D×H) | 482×200×1U& 482×200×3U |
| Material | Aluminum or Regular Steel or customized |
| Installation Method | 19” rack |
| Capacity | 1U: 1 piece of 1*16 SC/APC Splitter, 2pc of 1*32 LC/APC splitter 3U: 2 pieces of 1*32 SC/APC Splitter, 4 pc of 1*32 LC/APC splitter |

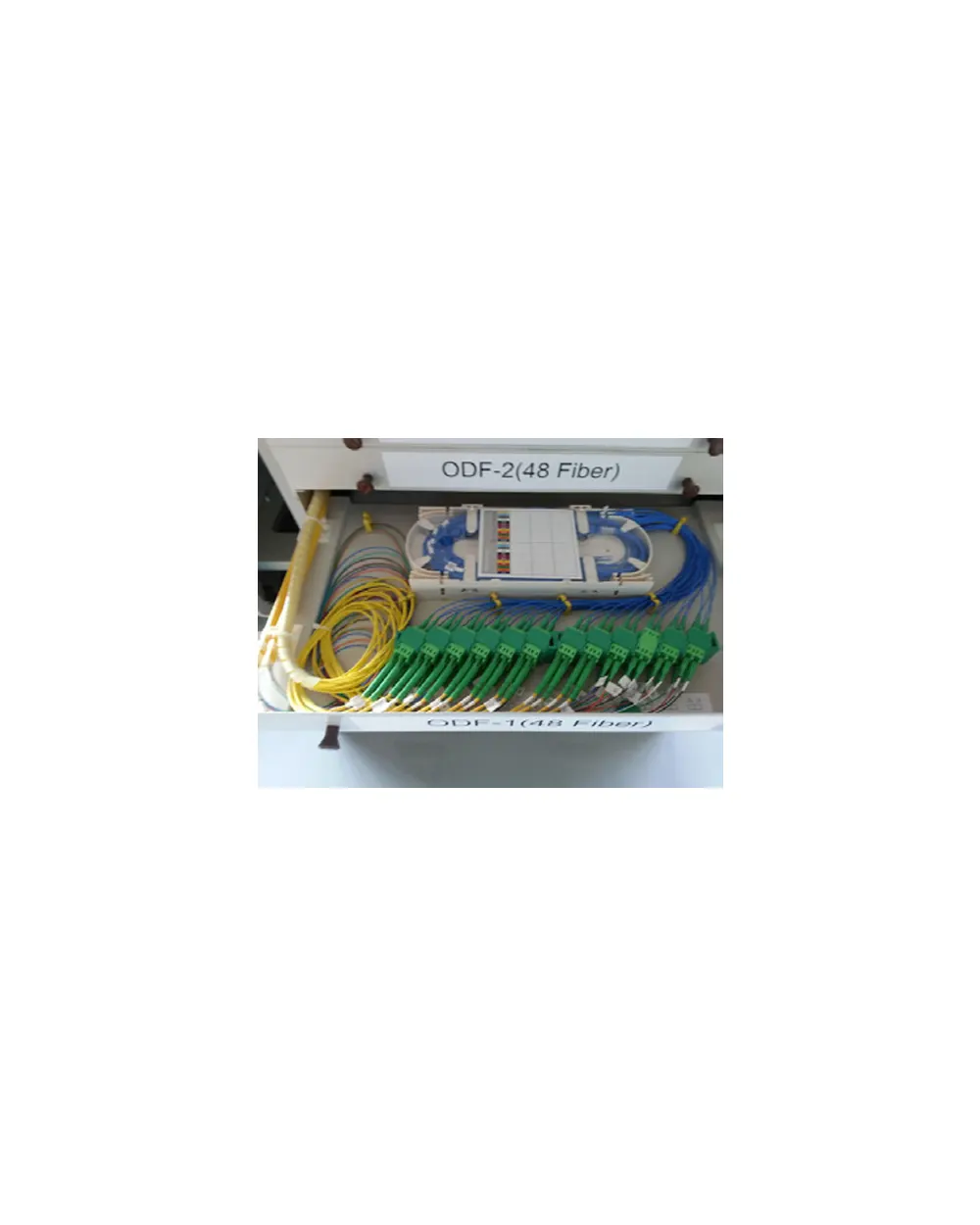

| Optical Distribution Frame: | |
| Dimensions (W×D×H) | 482×200×3U (mm) |
| Material | Aluminum or Regular Steel or customized |
| Installation Method | 19” rack |
| Capacity | 72 fibers SC/APC 48 fibers SC/APC 144 fibers LC/APC 96 fibers LC/APC |
