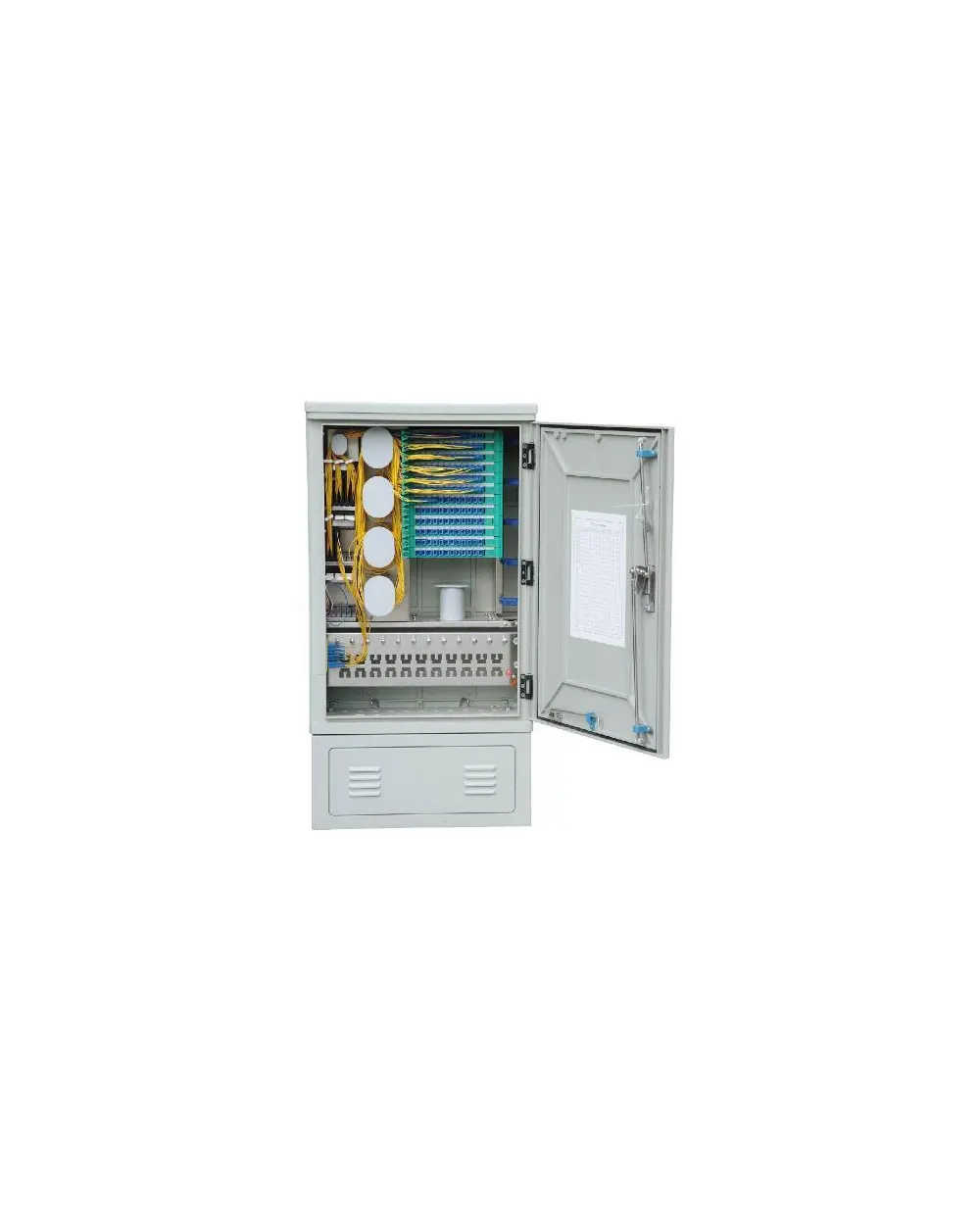

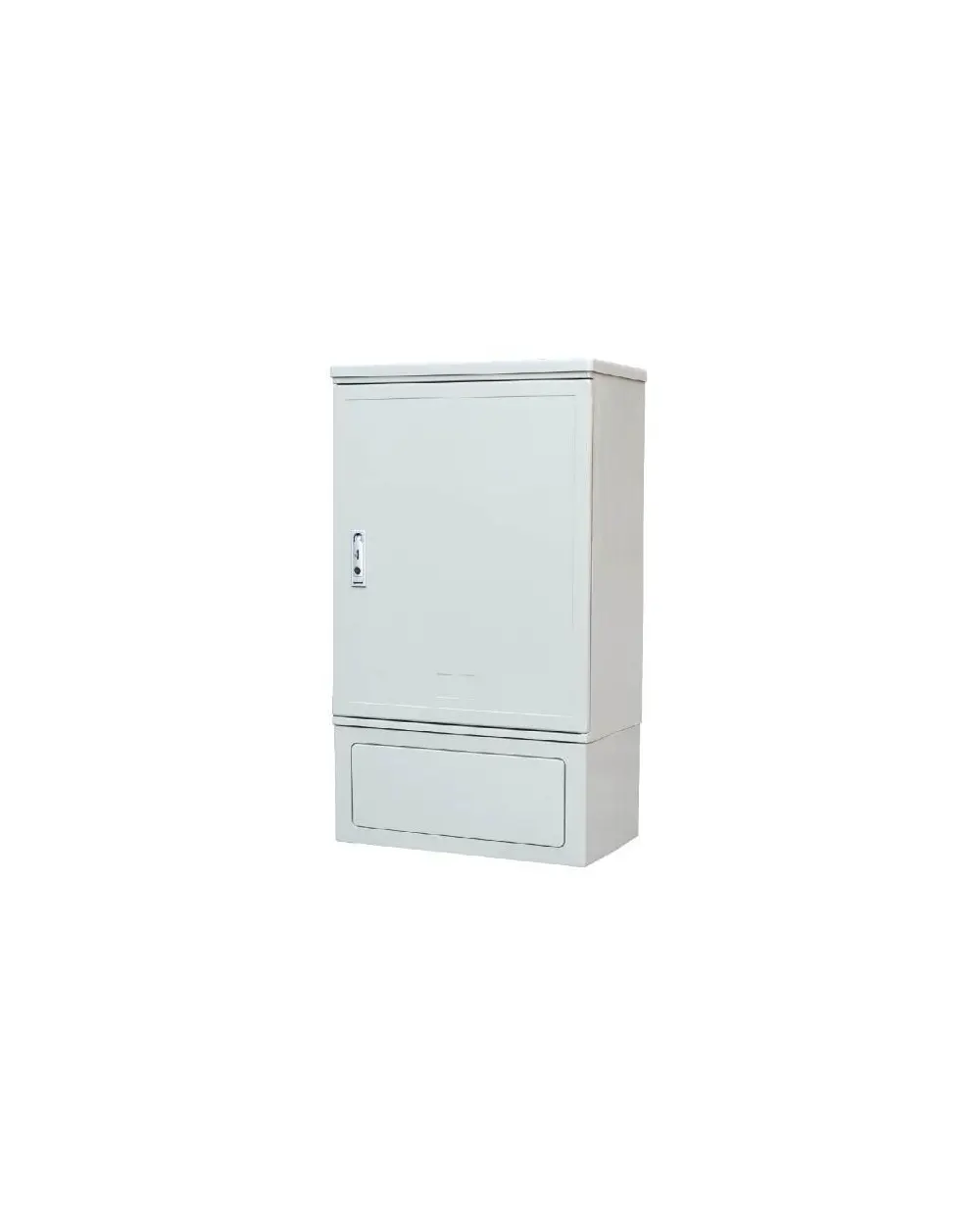

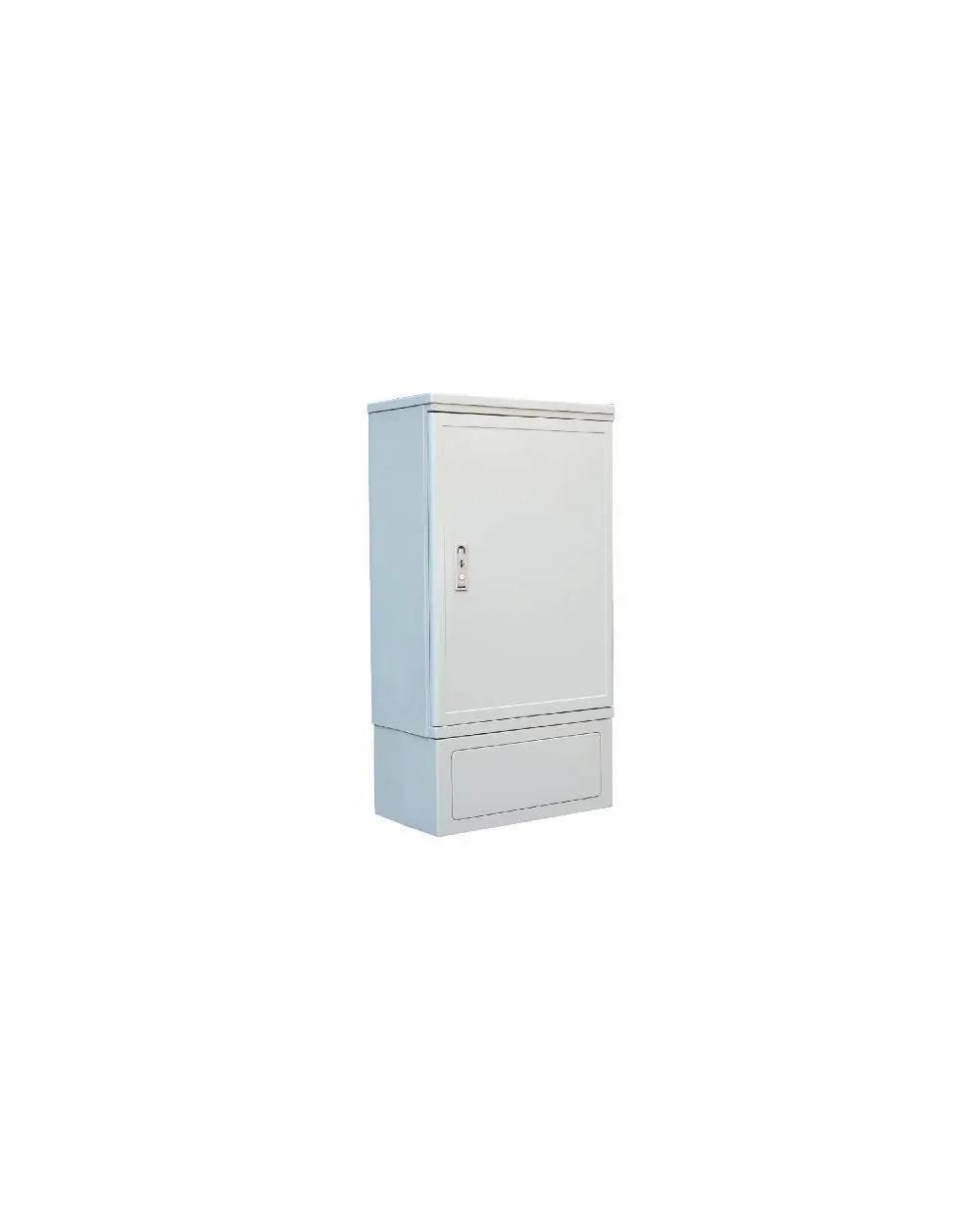

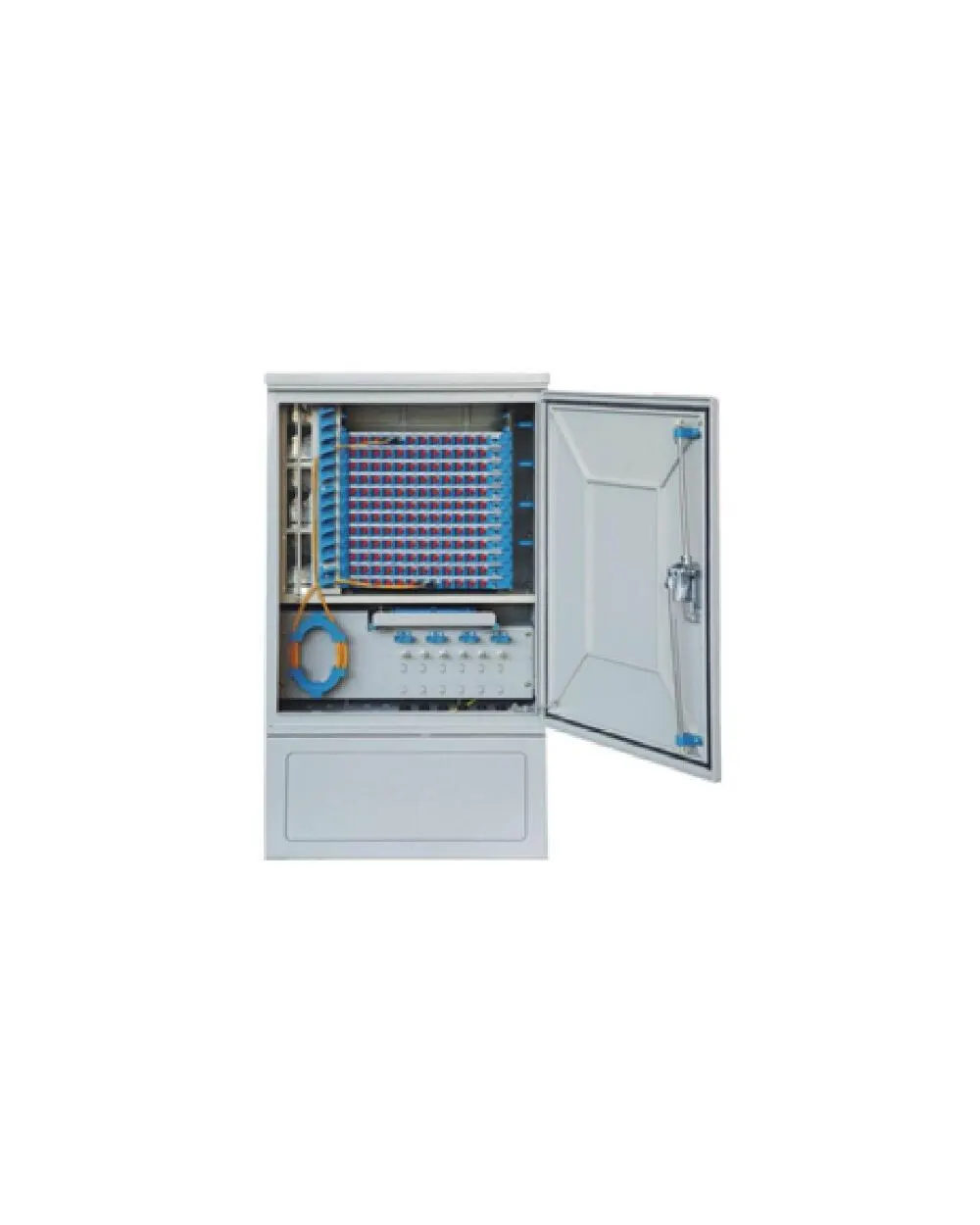

Optical Cross Connect Cabinet, short for OCC, is specially designed for optical fiber cross connection and termination between trunk cables and distribution cables in FTTH network.Optical Cross Connect Cabinet is also used for the housing of fiber optic splitters in outside plant applications.
Optical Cross Connect Cabinet realizes fiber fixation, splicing, termination, reservation, distribution,patching and splitting.
Built-in direct splice trays in Optical Cross Connect Cabinet is capable of providing direct fiber splicing.
Optical Cross Connect Cabinet OCC is fully enclosed with reliable sealing for waterproof and dustproof and versatile for fiber optic cable splice and distribution or rack mount telecommunication device.
● Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
● Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications.
● Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet, we improve our products according to customers’ needs.
● Humanization: Products are of humanized management and operation, and detail-orientation. The comers of the cabinet are formed by using arc shaping mould with its surface electrostatic spraying.
● Systemization: Products of various capacities can meet multiple application requirements. We also offer optical accessories for outdoor cross-connect cabinet, patchcords, pigtails, adaptors, splitters for example, and provide turnkey solutions for installation, splicing, and testing.
● Modular design: 12 fibers Splice and Distribution Integrated Trays and splitter trays are adopted for easy installation and maintenance. All components are in the form of modules to achieve flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance.
| Housing Material | SMC |
| Splice and Distribution Tray Capacity | 12 pieces of SC, FC or ST adaptors (12 fibers) |
| 12 pieces of duplex LC adaptors (24 fibers) | |
| Splice and Distribution Tray Quantity | 12 pieces max |
| Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
| Adaptor Quantity | 144 pieces max |
| Direct Splice Capacity | 48 fibers, 24 fibers/tray (can be specified) |

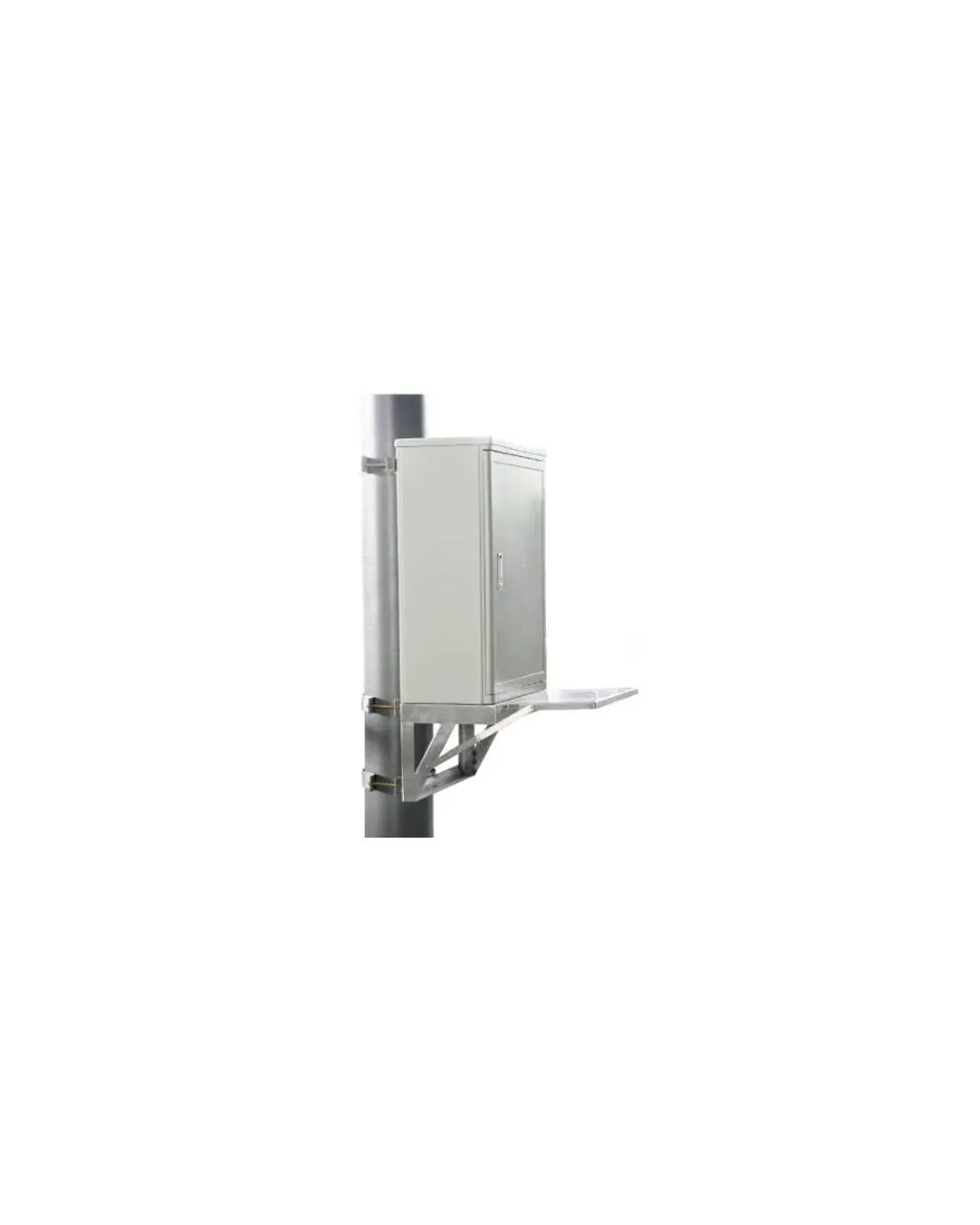

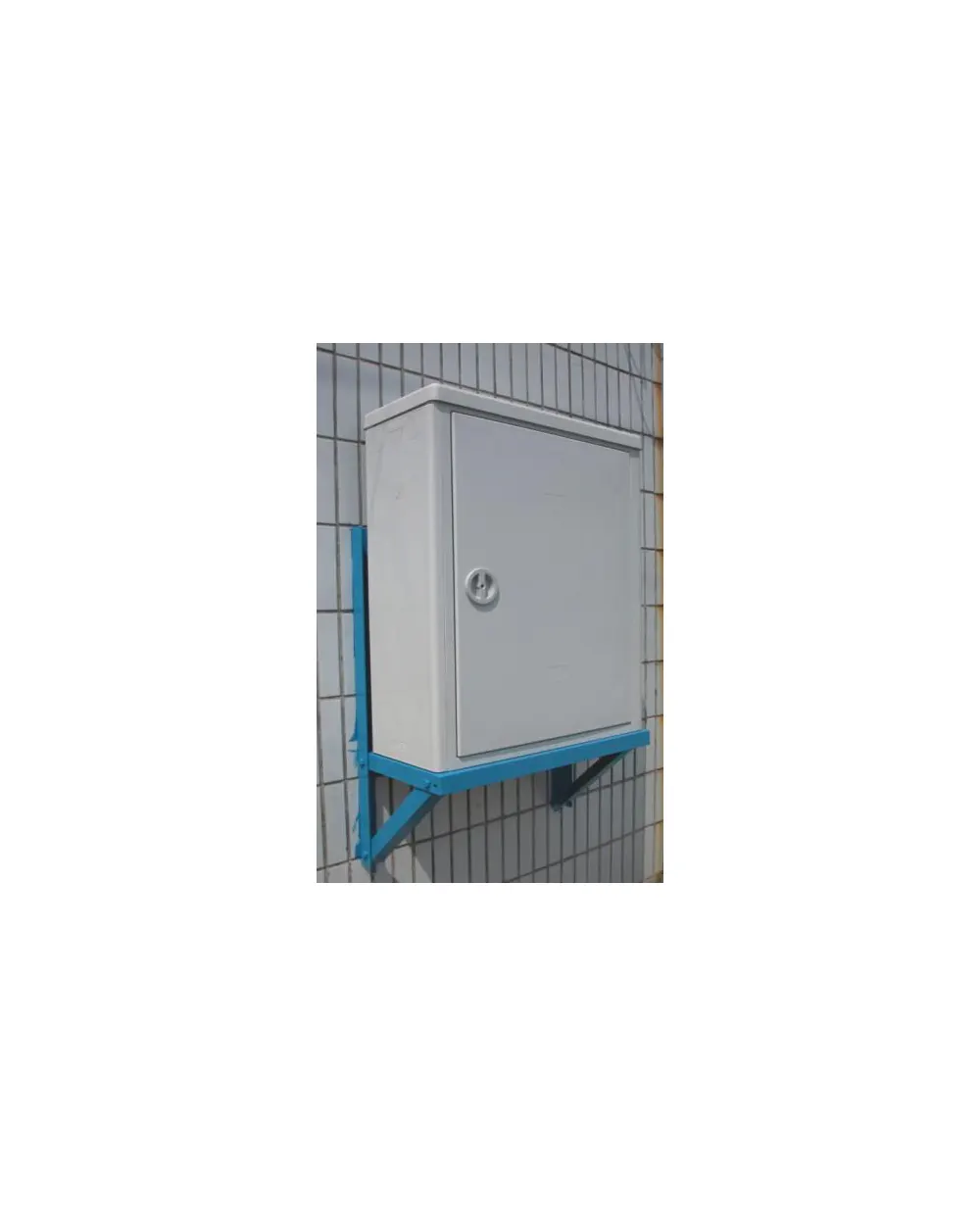

| Installation Method | Floor standing (wall/pole mount is optional) |
| Applicable Environment | outdoor |
| Protection Grade | IP65 |
| Color | gray |
| Net Weight | 40kgs |
| Dimension (H×W×D) | Cabinet: 610×450×280mm; base: 230×450×380mm |
| Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
| Cable Bending Radius | >15 times of cable diameter |
| Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Durability | >1,000 times |
| Insulation Resistance | ≥1,000MΩ/500V(DC) |
| Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
| Vertical Pressure | >980N |
| Atmospheric Pressure | 70~106KPa |
| Relative Humidity | ≤95% (+40°C) |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -40°C~+60°C |
