Fiber Optic Joint Closure, also named Fiber Optic Splice Closure, is used to connect and protect two or more fiber optic cables in Fiber to the home network. Fiber Optic Joint Closure is an essential fiber optic part in fiber optic cabling construction. Fiber Optic Joint Closure’s quality directly influences the quality and lifespan of fiber optic network. Fiber Optic Joint Closure could be installed in aerial, pole mounting, direct buried and duct mounting.
Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting.
According to the shapes of Fiber Optic Splice Closure, there are inline Fiber Optic Splice Closure (horizontal Fiber Optic Splice Closure) and dome Fiber Optic Splice Closure (vertical Fiber Optic Splice Closure).

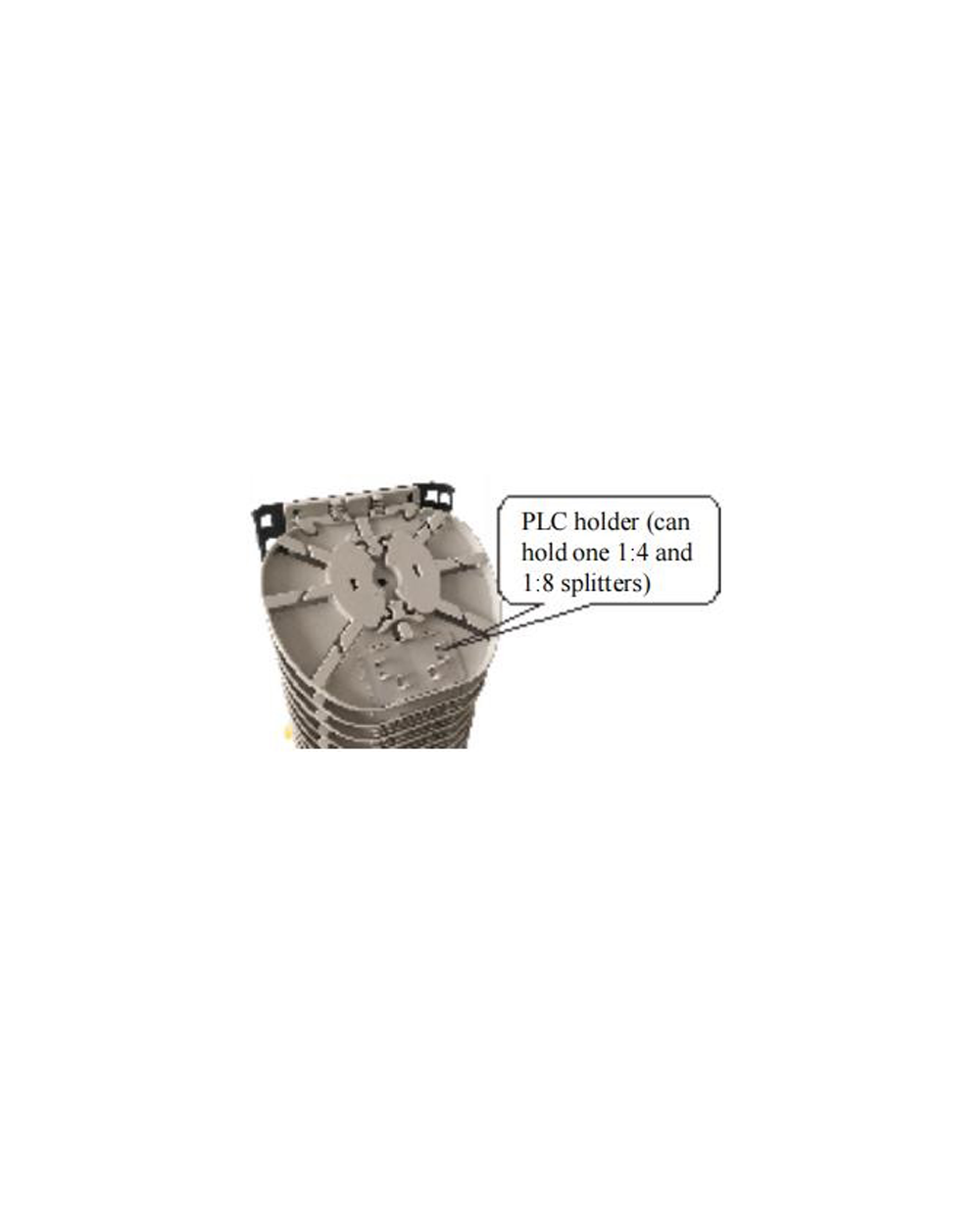

According to the functions of Fiber Optic Splice Closure, there are standard Fiber Optic Splice Closure for fiber splicing and FTTH Fiber Optic Splice Closure for housing fiber optic splitters for FTTH Passive Optical Network.

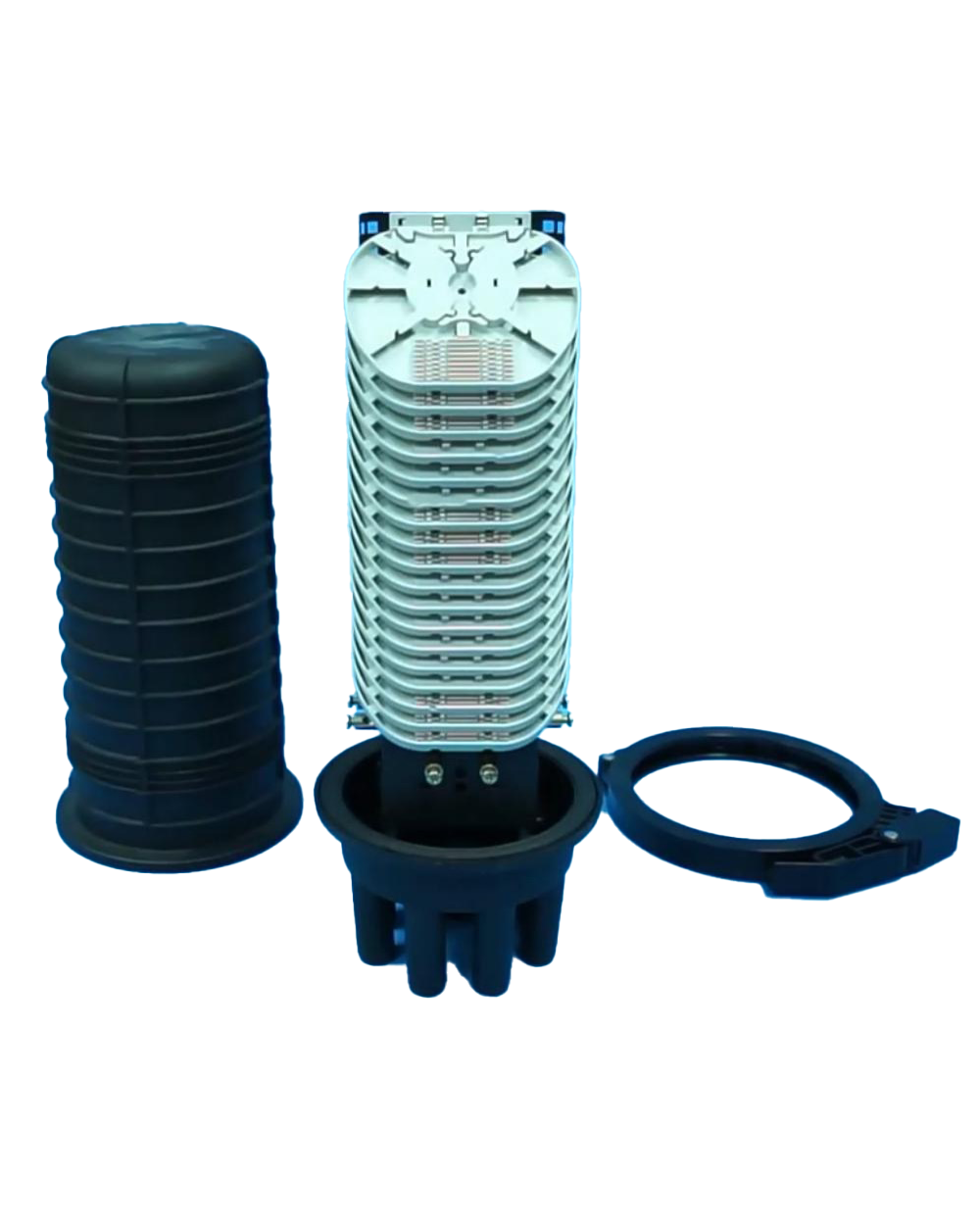

AT-FOSC-DM-288C-6 Dome Type 5 Port Mechanical SealingFiber Optic Splice Enclosure (FOSC) is Mechanical Sealing and suitable for uncut cables.
●Easy access to installation, maintenance and future expansions.
●Excellent sealing against water ingress and harsh environment.
●Hinged splice trays for easy expansion without disturbing spliced fibers.
●Compatible with standard normal fiber cable types.
| Model | AT-FOSC-DM-288C-6 |
| Type | Dome type |

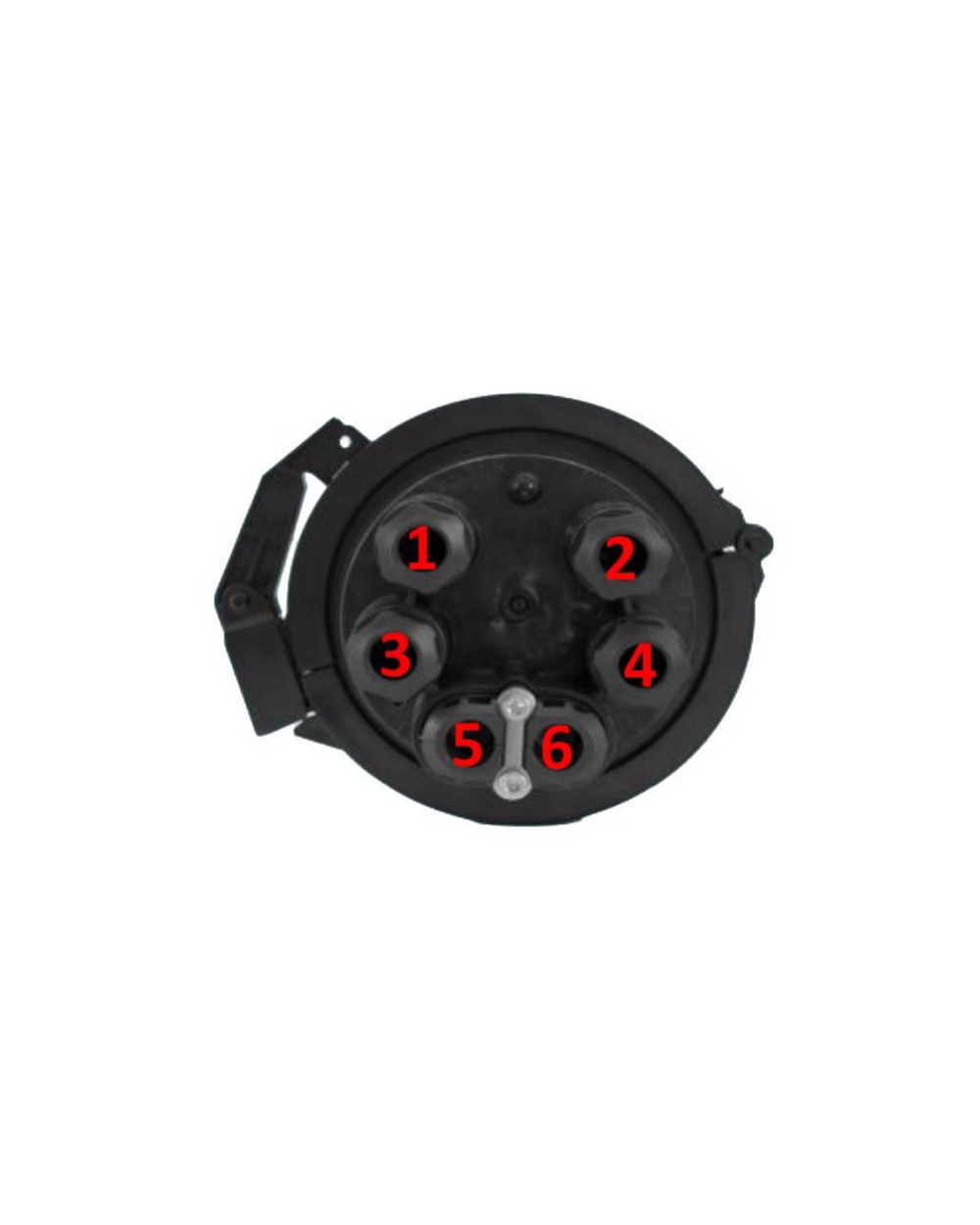

| Number of Inlet/Outlet ports | 6 ports |
| Sealing Structure | Mechanical |
| Cable Diameter | 6 ports×16mm |
| Maximum Capacity | Bunchy: 288 fibers; Ribbon:432 fibers |
| Capacity per Splice Tray | Buncy: single layer: 24 fibers; dual layers: 48 fibers; Ribbon: standard: 6pcs |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 440(H)×230(D)mm |
| Net Weight | 3.5~4.1KG |
| Temperature | -40℃~65℃ |
| Housing (Cover) | To protect splices of fiber optic cables | 1pc |

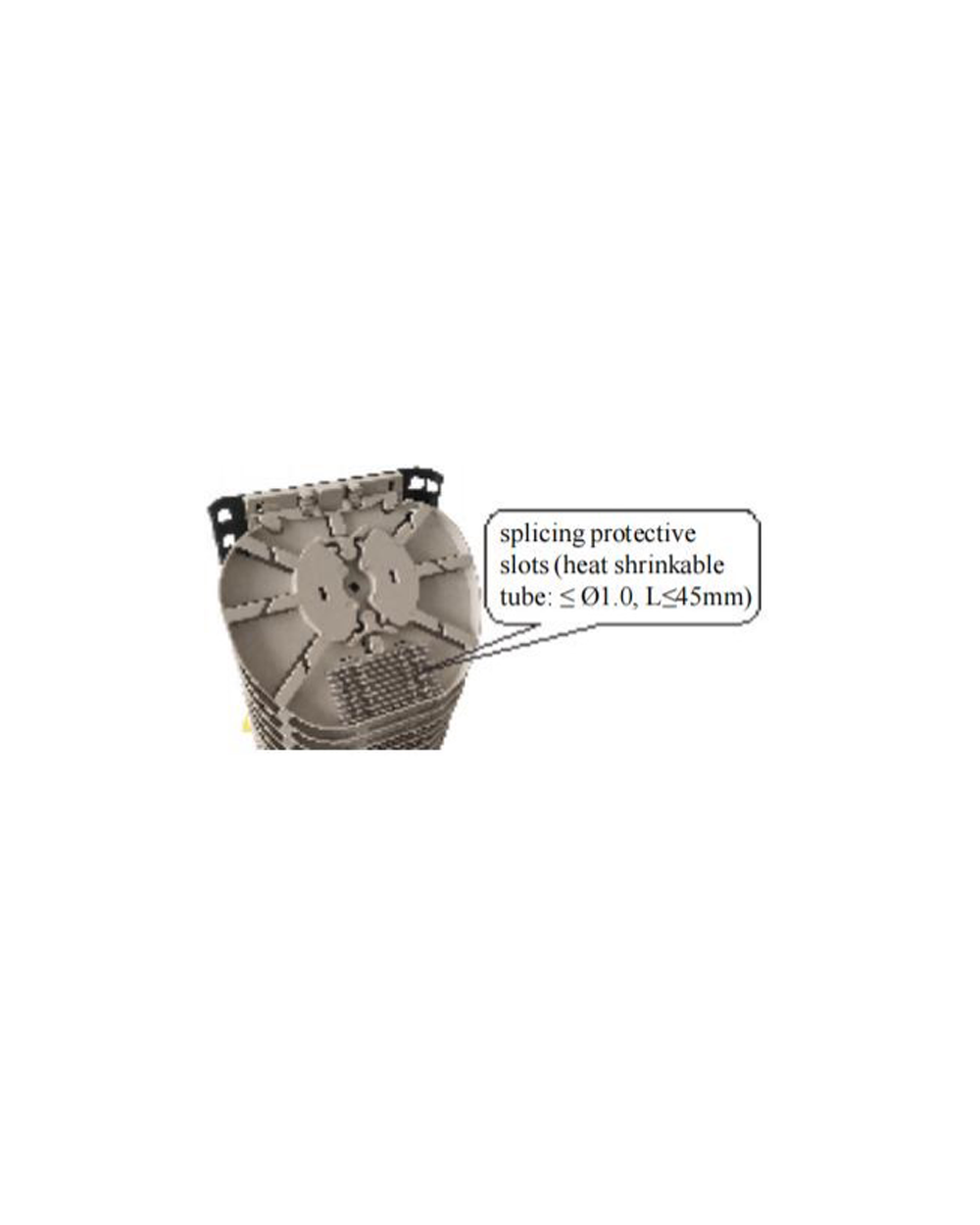

| Splice Tray | To fix Fiber Splice Protective Sleeves | Max. 4pcs |

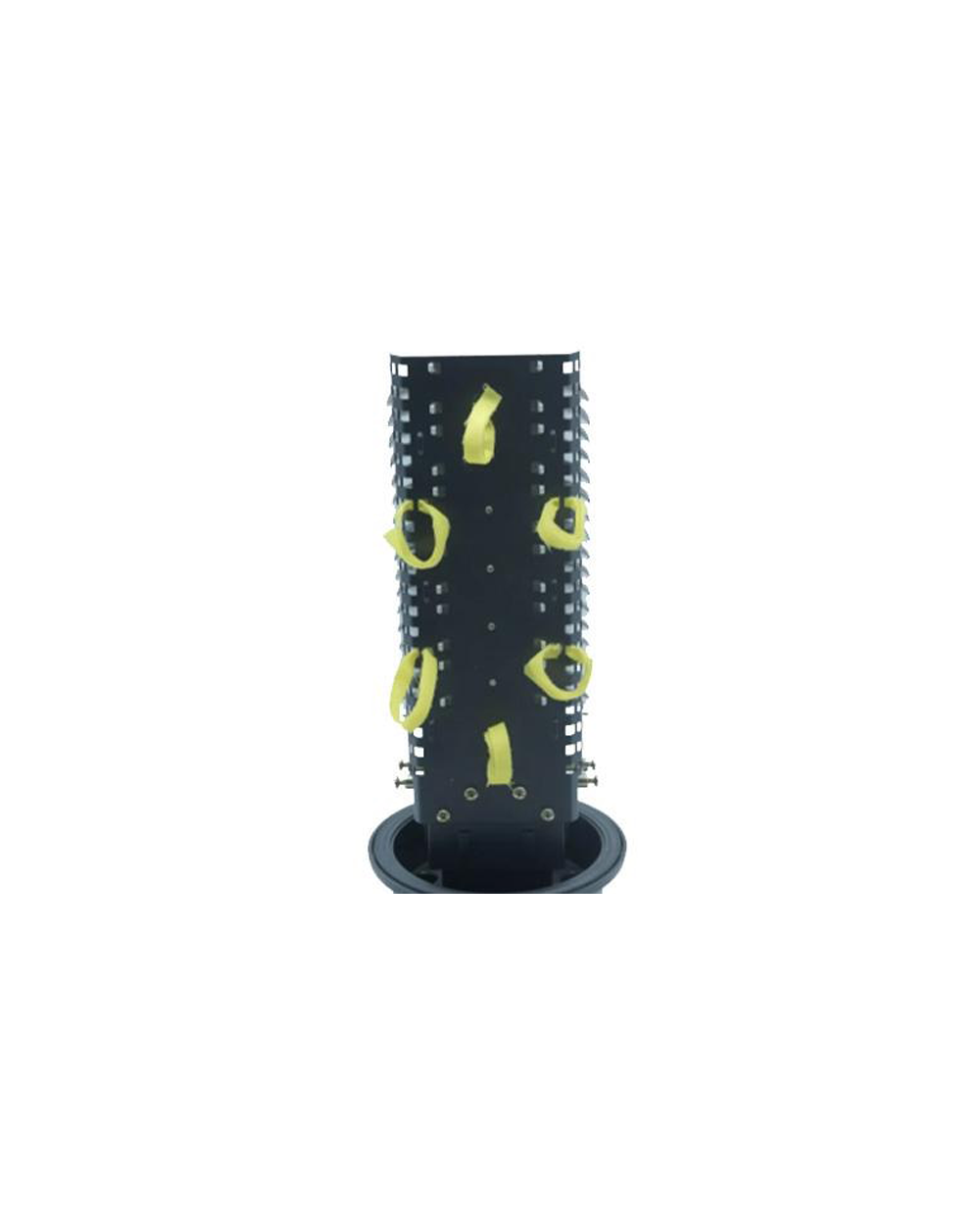

| Fiber Holding Tray | To store loose tube fibers | 1pc |
| Housing (Base) | To fix internal and external structure | 1pc |
| Plastic Hoop | To fix Housing Cover and Base | 1pc |
| Sealing Grommet | To seal bottom and cover | 1 set |
| Sealing Rings for Ports | To seal cable ports | 4pcs |
| Fiber Splice Protective Sleeves | To protect fiber splices | Same as capacity |
| Nylon Tie | To fix buffer tubes with fibers inside | 8pcs |
| Grounding Wire | To connect with grounding device | 1pc |
| Abrasive Cloth | To polish fiber optic cable | 1pc |
| Labeling Paper | To label fibers | 1 set |
| Wrench | To tighten nuts of cable ports | 1pc |
| M10 Wrench | To screw nuts for strength member | 1pc |
| Measuring Paper | To measure perimeter of fiber cable | 1pc |
| Hanging Hoop | To install on wall and pole | 1 set |
| Insulation Tape | To enlarge cable diameter for fixation | 1 roll |
| Sealing Tape | To enlarge cable diameter for sealing grommet | 1 roll |
| User Manual | To instruct installation | 1pc |
| Valve | To perform pressure and sealing testing | 1pc |
| Grounding Device | To derive metallic components of fiber cable | 1 set |
| Buffer Tube | To protect fibers and be fixed on splice trays | specified |
| Desiccant | To desiccate air in FOSC after sealing | 1 bag |
