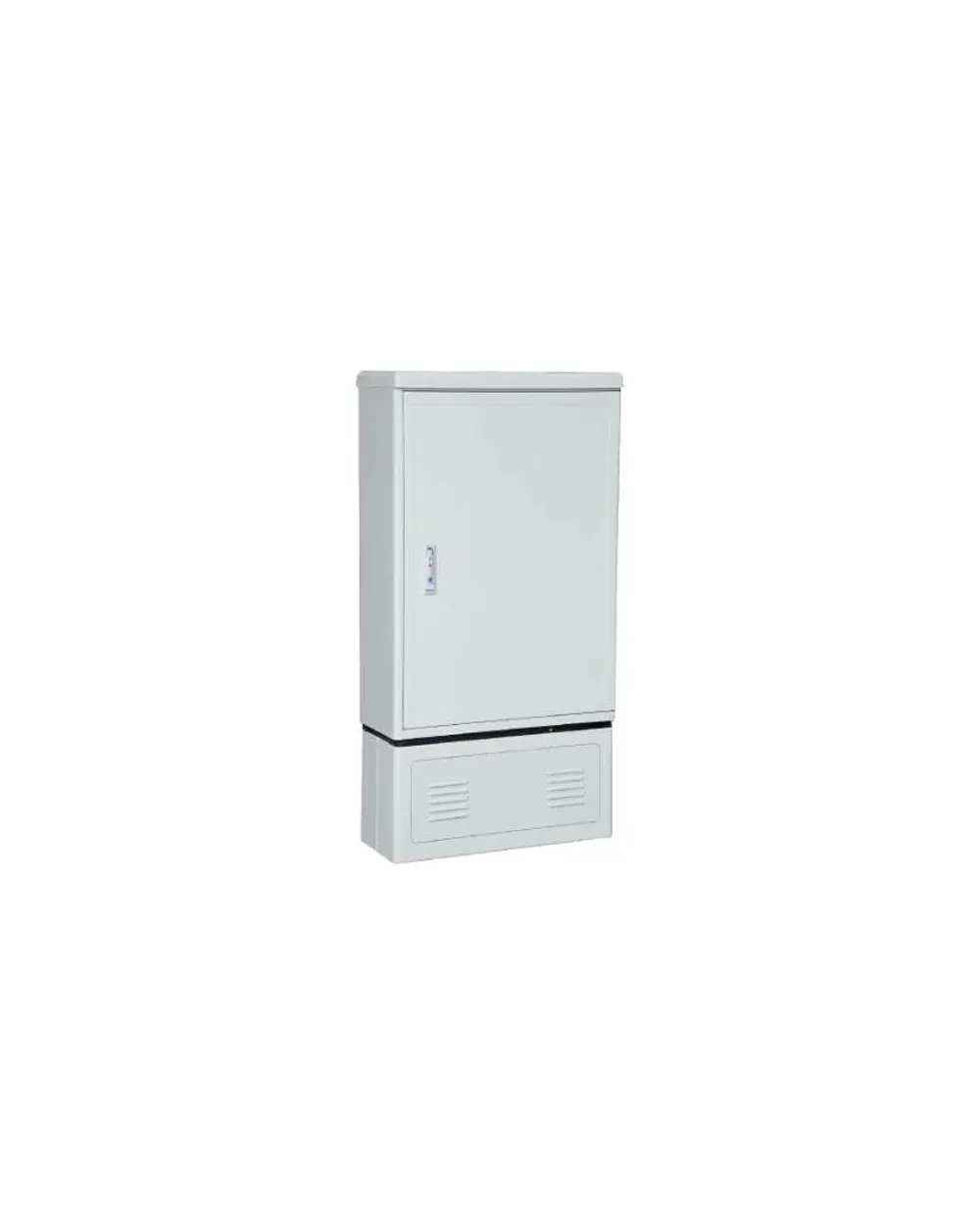

FTTx Optical Splitter Cabinet is specially for housing PLC splitters, connecting(splicing) and distributing feeder cables in FTTx Network. Splitter Slot is applicable for Various of splitters. FTTx Splitter Cabinet supports ground, wall and pole mounting installation.

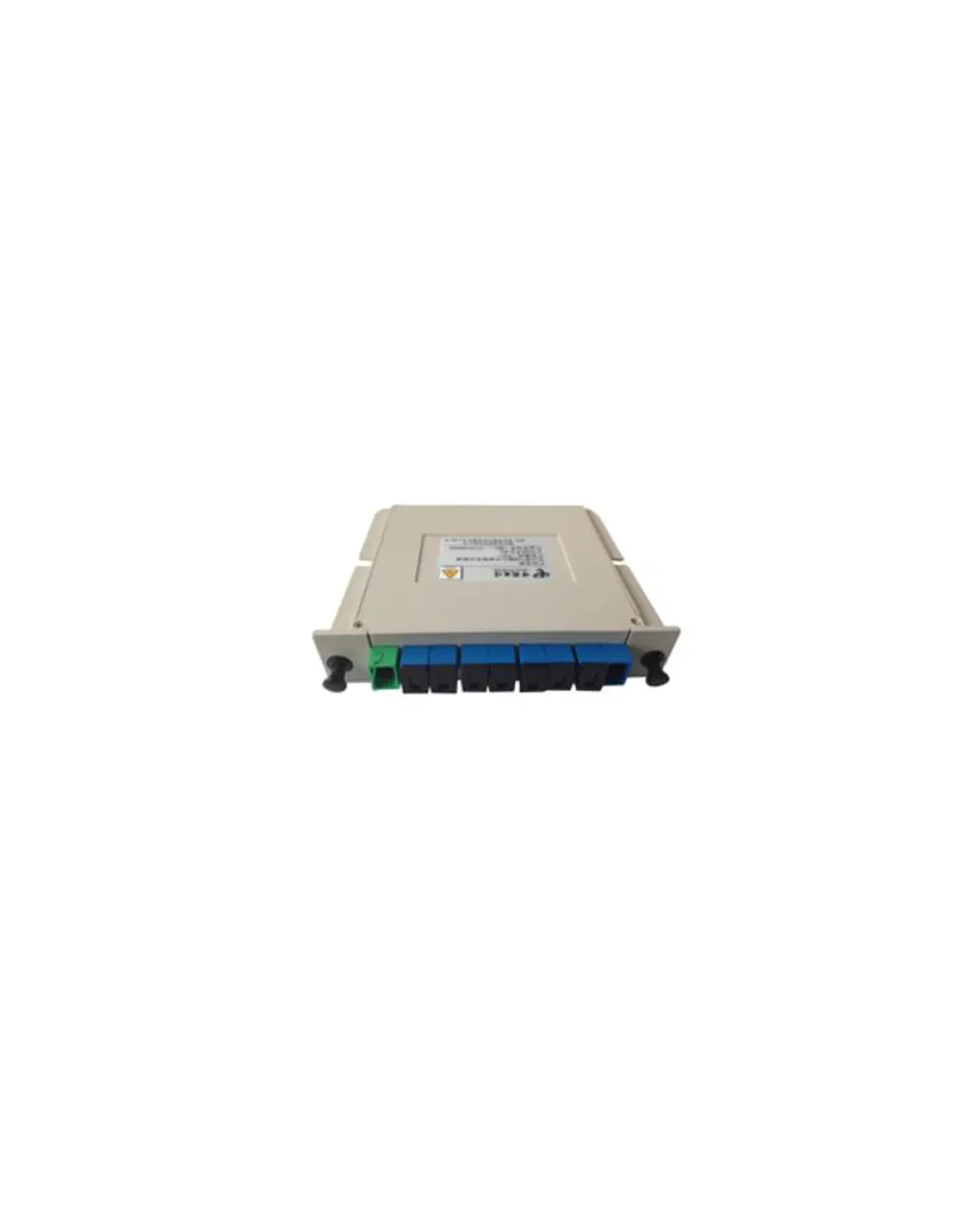

● Support Insertion Module PLC Splitter: 1×2, 1×4, 1×8, 1×16, 1×32 and 1×64.

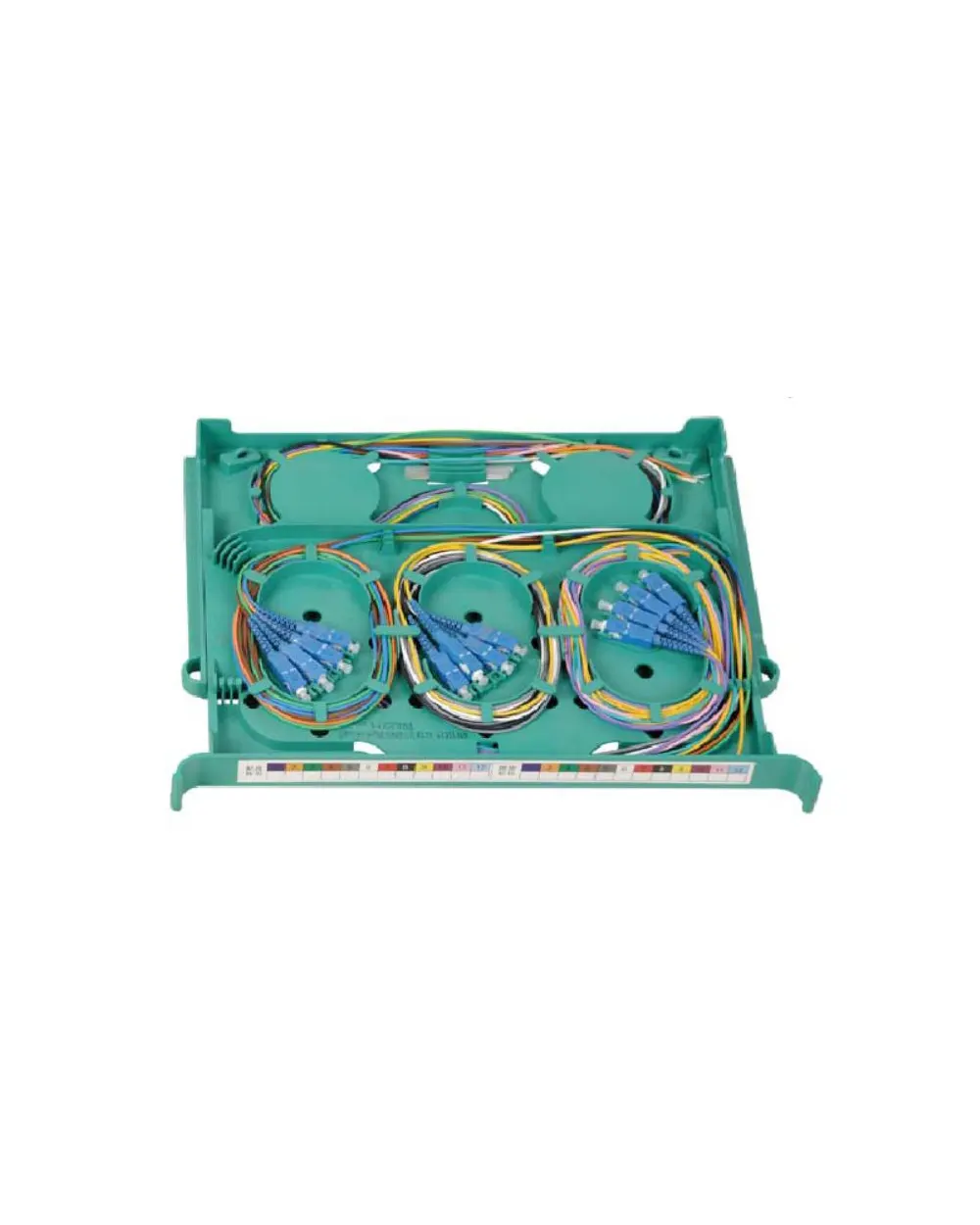

● Unique Splice and distribution Tray. Two separated areas will not affect each other. Storing area can
also be pulled out for easy fiber jumping.

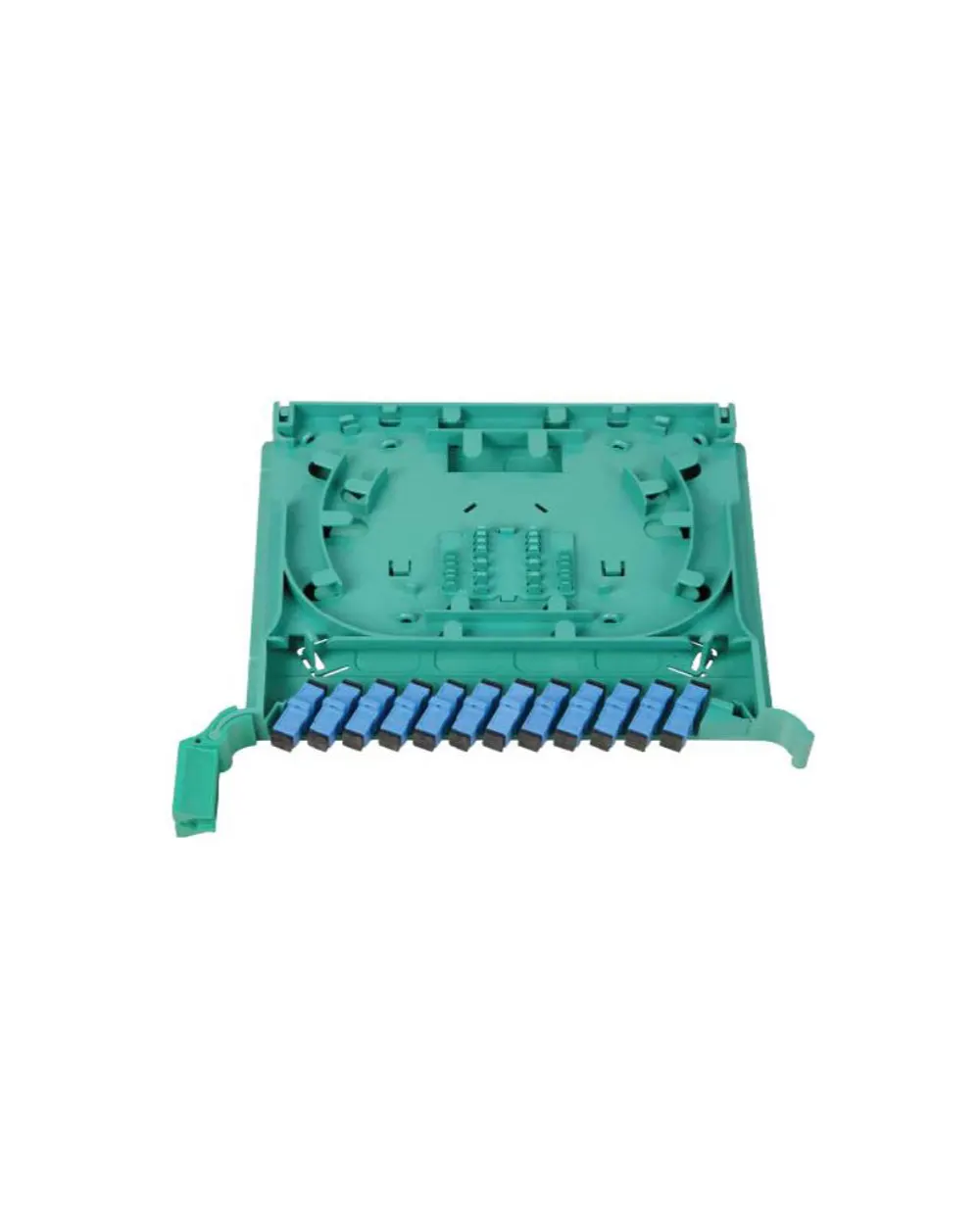

●Independent Splice and Storage Trays marked by different colors will be easy for identifying and
operating.
| Splice and Storage Integrated Tray Capacity | 12 fibers/tray | |||||
| Number of Splice and Distribution Integrated Trays | 3 trays (12 fibers/tray) | |||||
| Number of Splice and Storage Integrated Trays | 27 trays (12 fibers/tray) | |||||
| Applicable PLC Splitter | 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 | |||||
| Splitter Slot No. | 26 | |||||
| Splitter Capacity | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| 26 | 26 | 26 | 13 | 6 | 3 | |
| Dimension (H×W×D) | Cabinet: 1100×750×360mm, base: 350×750×360mm | |||||
