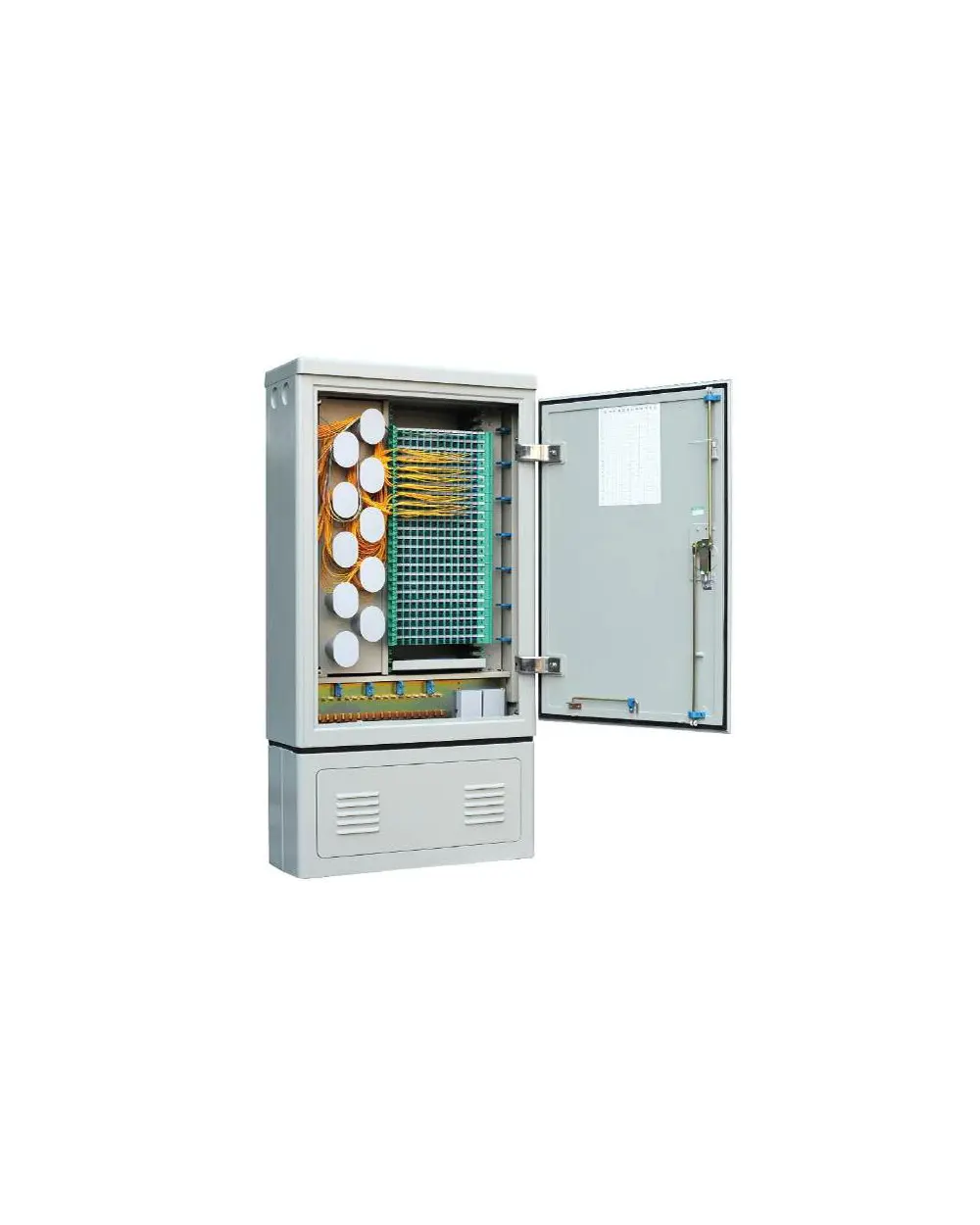

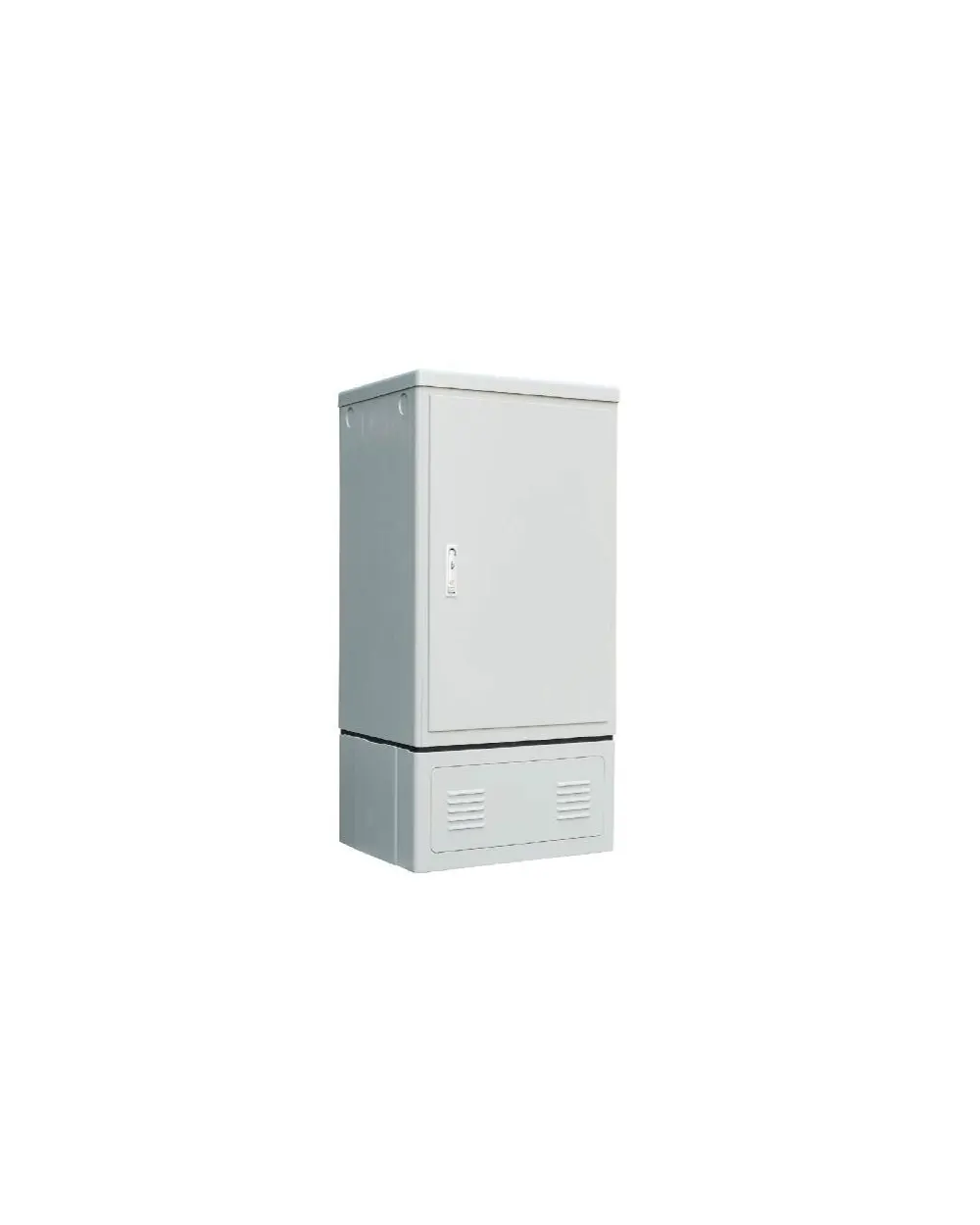

FTTH Street Cabinet provides reliable solutions for fiber optic cable interconnect and cross connect and fiber cable management in FTTX PON system. FTTH Street Cabinet offers a robust and expandable solution for connecting feeder cables and distribution cables in FTTX FTTH network. The fiber optic network for the use of FTTH Street Cabinet could be P2P (point-to-point) and P2MP (point-to-multipoint) Passive Optical Network.
● Specialization: Technical professionals and production/testing equipment ensure excellent product
performance.
● Standardization: We strictly follow industry standard and actively participate in the modification of
industry specifications.
● Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet,
we improve our products according to customers’ needs.
● Humanization: Products are of humanized management and operation, and detail-orientation. The
comers of the cabinet are formed by using arc shaping mould with its surface electrostatic spraying.
● Systemization: Products of various capacities can meet multiple application requirements. We also offer optical accessories for outdoor cross-connect cabinet, patchcords, pigtails, adaptors, splitters
for example, and provide turnkey solutions for installation, splicing, and testing.
● Modular design: 12 fibers Splice and Distribution Integrated Trays and splitter trays are adopted for
easy installation and maintenance. All components are in the form of modules to achieve flexible
configuration. Components of different models are interchangeable, which shortens delivery time,
reduces costs, and simplifies installation and maintenance.
| Housing Material | SMC |
| Splice and Distribution Tray Capacity | 12 pieces of SC, FC or ST adaptors (12 fibers) |
| 12 pieces of duplex LC adaptors (24 fibers) | |
| Splice and Distribution Tray Quantity | 48 pieces max |
| Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
| Adaptor Quantity | 576 pieces max |
| Direct Splice Capacity | 96 fibers, 24 fibers/tray (can be specified) |
| Installation Method | Floor standing |
| Applicable Environment | outdoor |
| Protection Grade | IP65 |
| Color | gray |
| Net Weight | front and back doors type: 99.5kgs |
| two front doors type: 116kgs | |
| Dimension (H×W×D) | front and back doors type: Cabinet: 1100×750×540mm, base: 350×750×540mm |
| two front doors type: Cabinet: 1200×1460×360mm; base, 350×1460×360mm |
| Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
| Cable Bending Radius | >15 times of cable diameter |
| Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Durability | >1,000 times |
| Insulation Resistance | ≥1,000MΩ/500V(DC) |
| Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
| Vertical Pressure | >980N |
| Atmospheric Pressure | 70~106KPa |
| Relative Humidity | ≤95% (+40°C) |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -40°C~+60°C |
